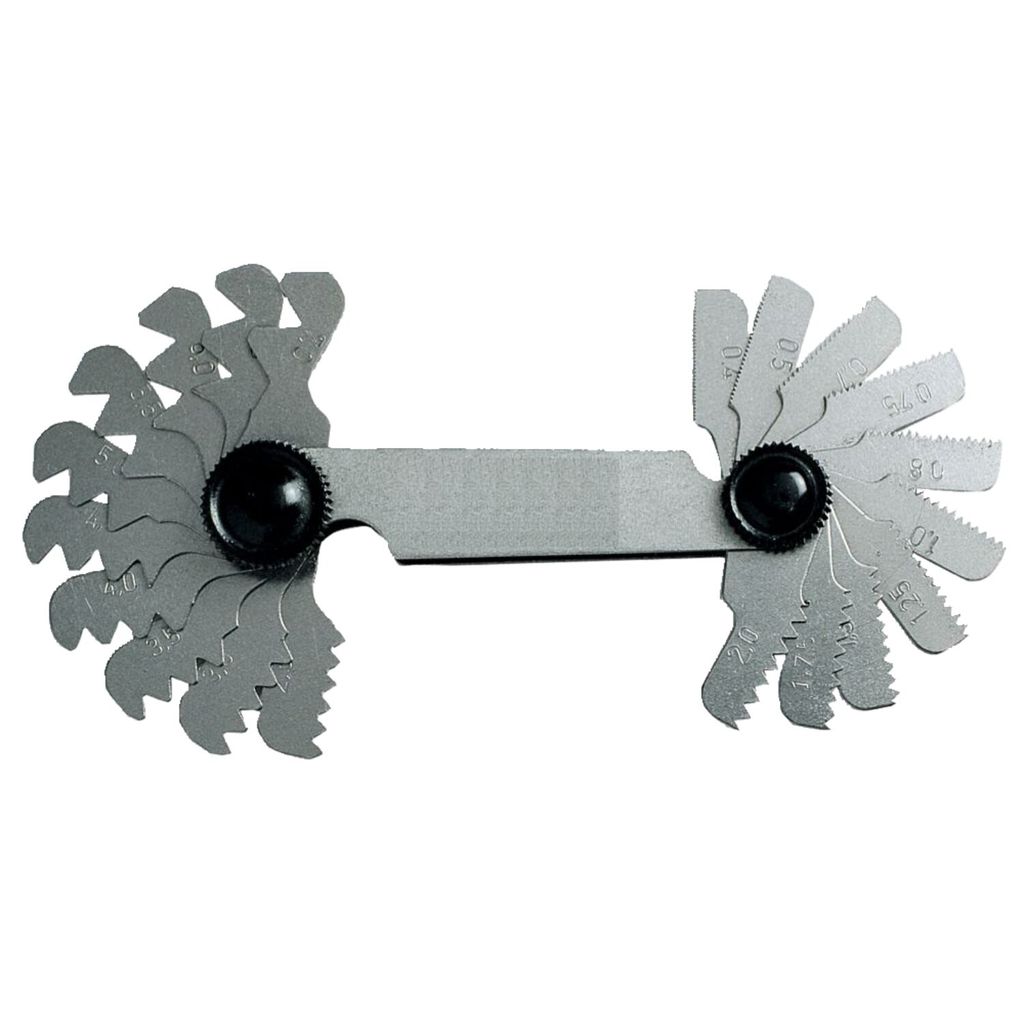

Gänglära MIB UNF

100 kr

Gängtolk för amerikanska gängor (US, UNF/UNC)
Läs mer

954354 MIB
  • Används för säker identifiering av gängtyp och gängstigning på bultar och muttrar
  • För amerikanska gängor (US / UTS Unified Threads Standard)
  • Passar UNF (fina) och UNC (grova) gängor
  • Gängvinkel: 60 grader
  • Antal blad: 16
  • Gängstigning: 12, 14, 16, 18, 20, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 80
Produkt-typ Workshop misc
Kategori Workshop misc

Bolt thread pitch gauge. US, UNF threads

  • Used for a positive identification of the type and pitch (windings) of threads used on bolts or nuts
  • US (UTS or Unified Threads Standard) are most used in the USA and Canada
  • Threads come in 2 types UNF 'Fine' or UNC 'Coarse'
  • Degree: 60 degrees
  • Number of blades: 16
  • Pitch: 12, 14, 16, 18, 20, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 80
