Modul adapter Motogadget Motoscope Breakout V-Rod 03-15

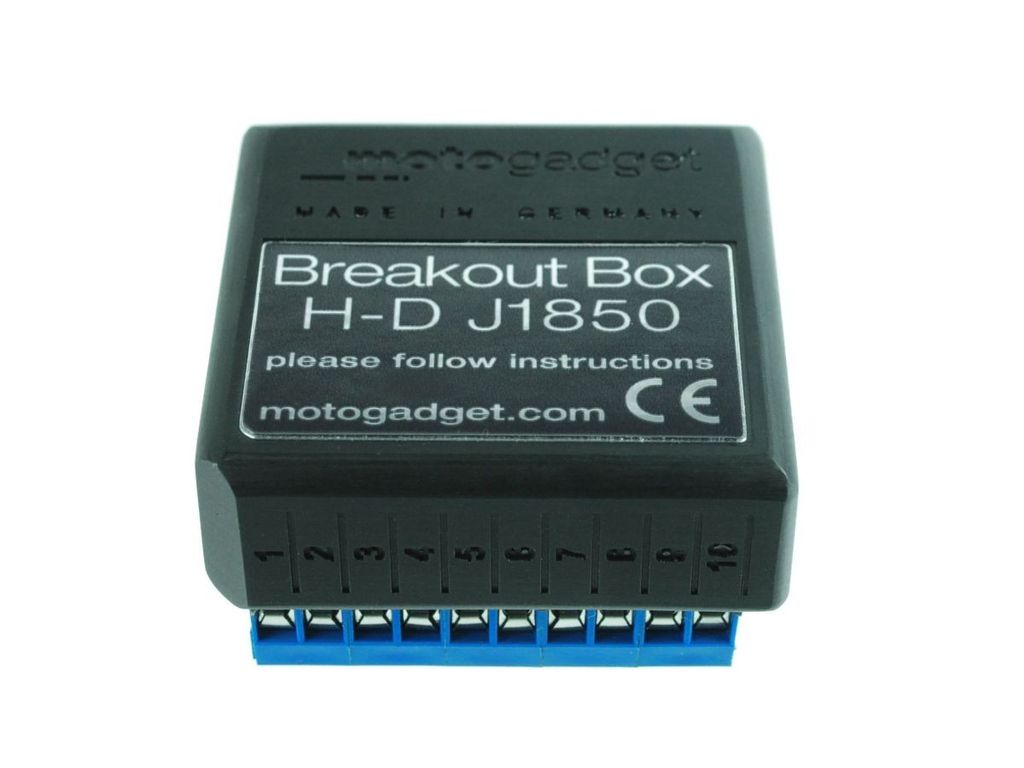

Breakout Box J1850 för motoscope pro
Läs mer
- Digital adaptermodul för smidig anslutning av motoscope pro
- Ingen lödning eller krympning krävs, vilket gör att garantin förblir intakt
- Levereras med Breakout Box J1850-adapter med modellanpassat kontaktdon

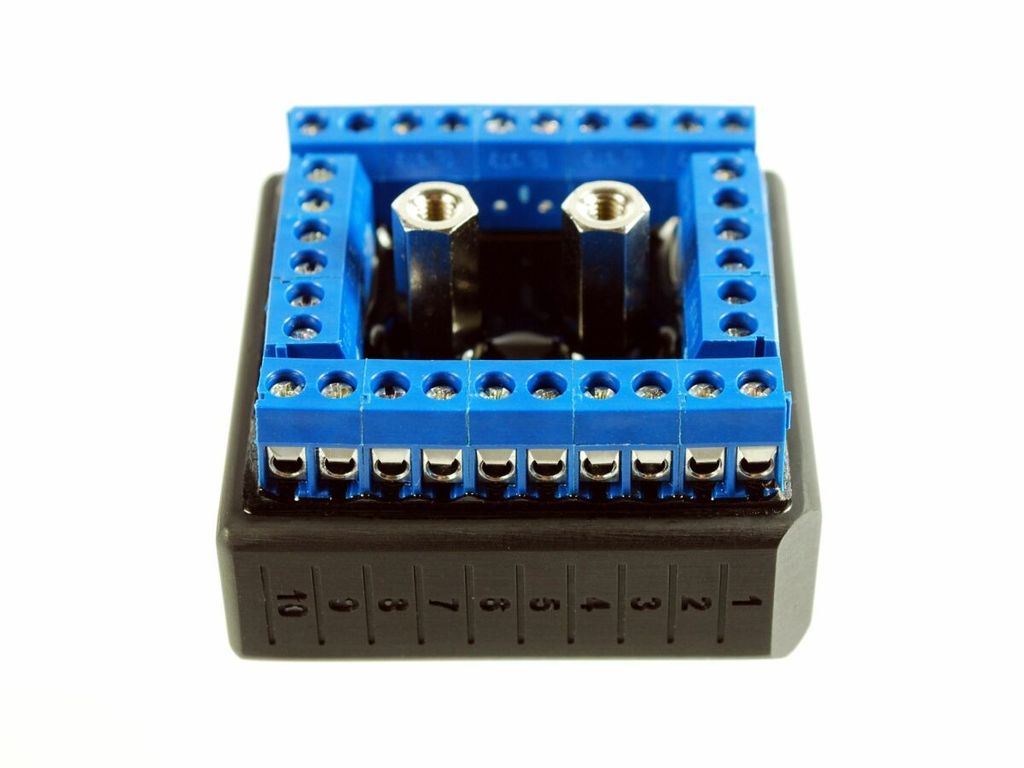

- Inkluderar 32 anslutningsterminaler, 32 kabeländhylsor och plastark för fixering och förankring av kablar
- Levereras med 2 st. M3-monteringsskruvar och 2 st. buntband
Används endast tillsammans med 930269 motoscope pro. För modeller med det digitala bussystemet SAE J1850 samt Vrod-modeller med DEUTSCH-kontaktdon (VRSC). Ej kompatibel med modeller som använder H-D LAN.
Passar: alla V-Rod 04-17
| Tillverkarens Art. Nr. | 1003116 |
-
Hämtamotoscope_pro_Instructions.pdf908.11 KB
Motoscope Pro Breakout Box
- The Breakout Box J1850 is an digital adapter module for the hassle-free connection of the motoscope pro in combination with several Harley Davidsons. No soldering or crimping necessary, so the warranty remains intact
- For H-D models with the SAE J1850 digital bus system
- Fits Vrod models that have DEUTSCH (VRSC) plug connectors.
- Important: Not compatible with any models that use H-D LAN
- Parts Delivered: Breakout Box J1850 adapter with specific plug connector / 32 connection terminals / 2 x M3 mounting screws / 32 cable end sleeves / Plastic sheet for fixing and anchoring the cables / 2 cable ties
- Used with 930269 Motoscope pro only
Fits: 04-17 all V-Rod (NU)
