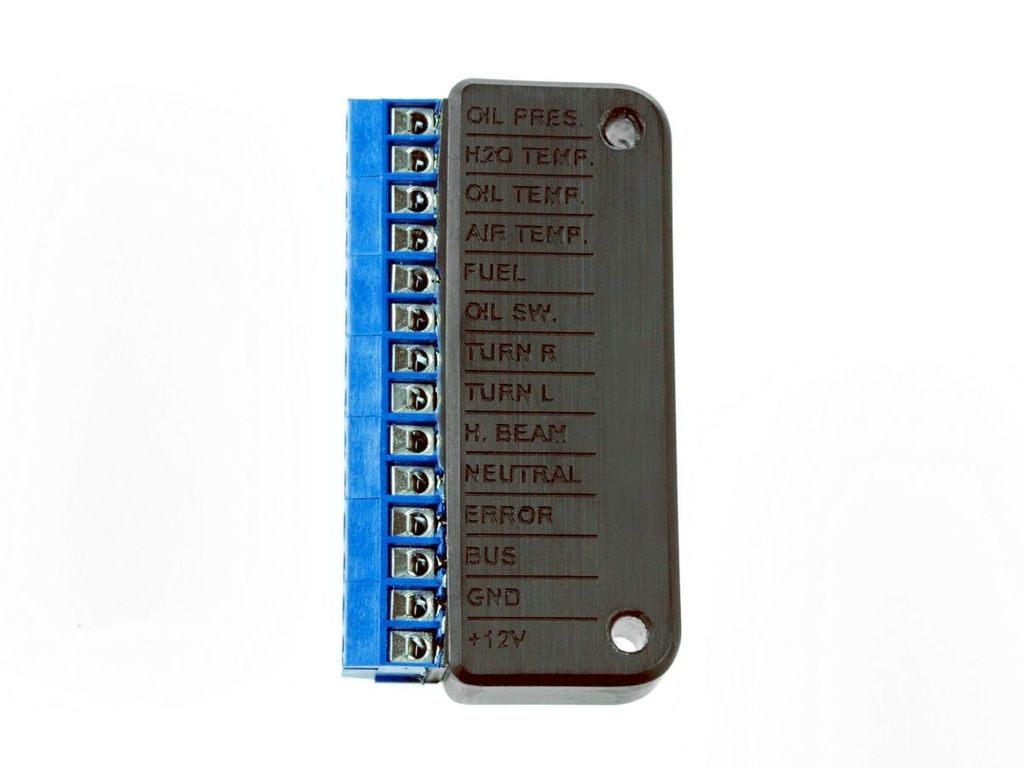

Kopplingsbox Motogadget Motoscope Pro Breakout Box B med temperaturmätning
Digital adaptermodul för motoscope pro till Harley-Davidson
Läs mer
- Digital adaptermodul för enkel anslutning av motoscope pro utan lödning eller klämning
- Gjuten, vibrationsresistent och vattentät konstruktion med skruvplintar
- Mått: 26 mm x 39 mm x 10 mm
- Ansluter signaler för bränsle/reserv, oljetrycksgivare, blinkers, helljus, neutral, motorlampa samt olje-, vatten- och omgivningstemperatur
- Levereras med specifik kontakt, 32 anslutningsplintar, 32 kabeländhylsor, fästplatta i plast, 2 st M3-monteringsskruvar och 2 st buntband
För modeller med SAE J1850 digitalt bussystem och DEUTSCH-kontakt (VRSC). Ej kompatibel med modeller som använder H-D LAN eller med tidiga Breakout boxes, endast kompatibel med senare versioner märkta med streckkodsetikett på baksidan.
Passar: Universal
| Tillverkarens Art. Nr. | 1005041 |
-
Hämtamotoscope_pro_Instructions.pdf908.11 KB
Motoscope Pro Breakout Box
- The Breakout Box J1850 is an digital adapter module for the hassle-free connection of the motoscope pro in combination with several Harley Davidsons. No soldering or crimping necessary, so the warranty remains intact
- For H-D models with the SAE J1850 digital bus system
- Fits Vrod models that have DEUTSCH (VRSC) plug connectors.
- Important: Not compatible with any models that use H-D LAN
- Parts Delivered: Breakout Box J1850 adapter with specific plug connector / 32 connection terminals / 2 x M3 mounting screws / 32 cable end sleeves / Plastic sheet for fixing and anchoring the cables / 2 cable ties
- Breakout box B
- Used to connect the following indicator lights to the 930269 Motoscope Pro:
- Fuel/reserve
- Oil pressure switch
- Left and right turn indicators
- High beam
- Neutral
- Motor warning light
- Oil temperature
- Water temperature
- Ambient temperature
- The Breakout box comes with easy screw-on terminals
- Vibration resistant and waterproof molded
- Dimensions: 26mm x 39mm x 10mm
- Note: Not compatible with the 'early' Breakout boxes
- Compatible with the later model Breakout boxes with a bar-code decal on the rear side only
Fits: Universal
