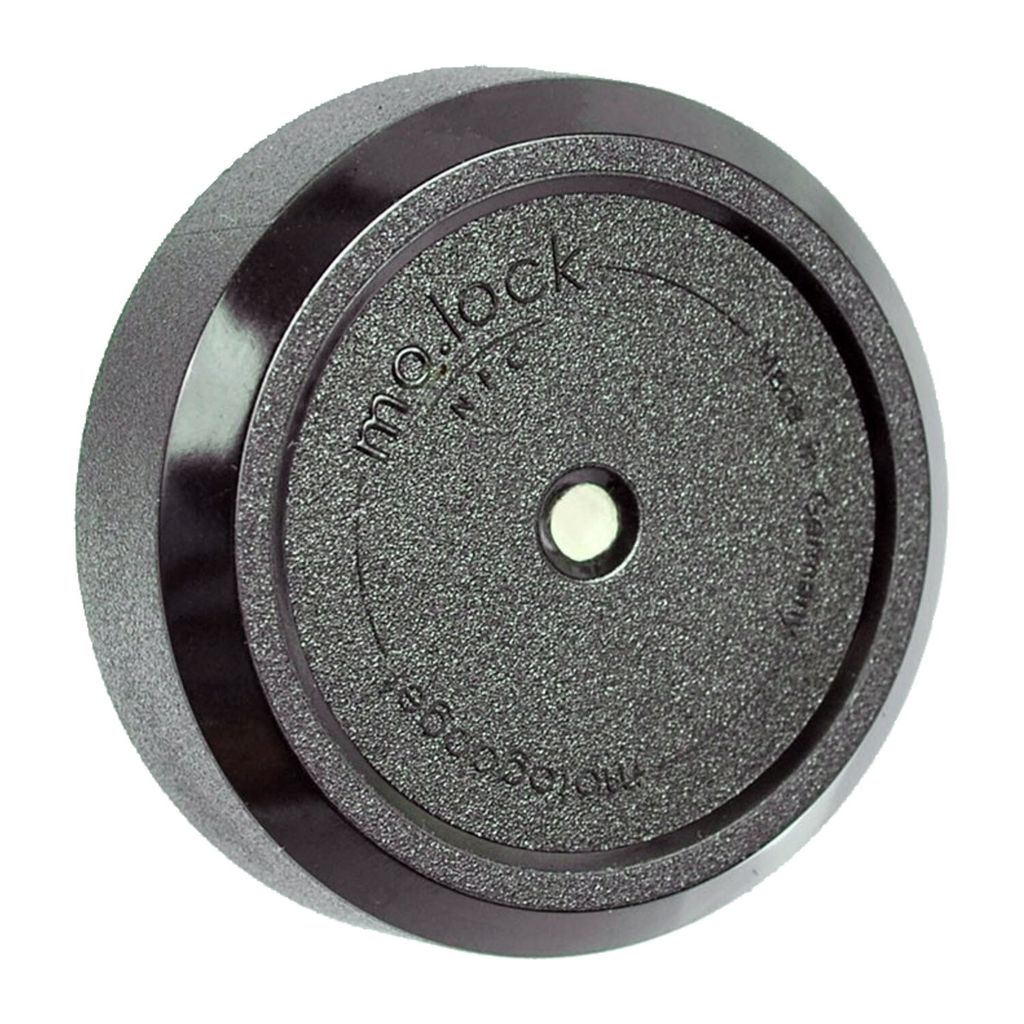

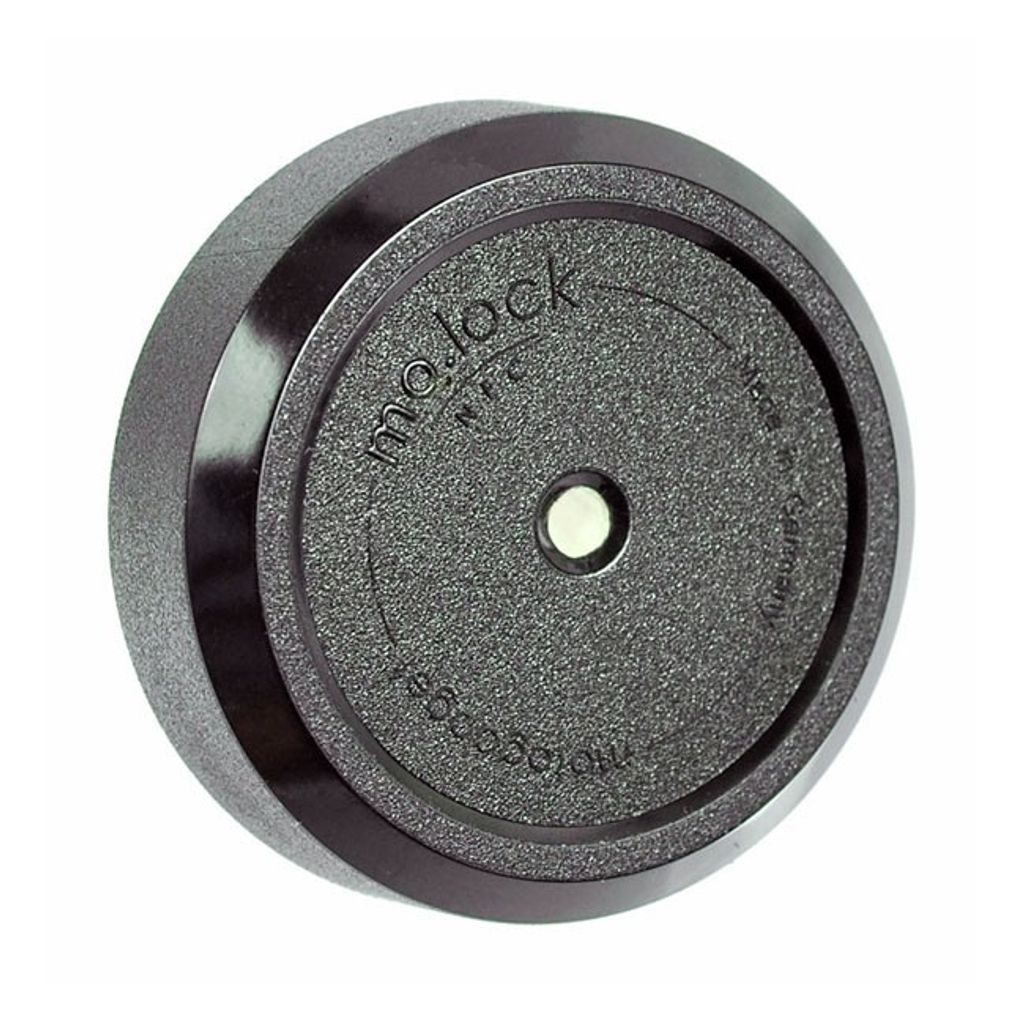

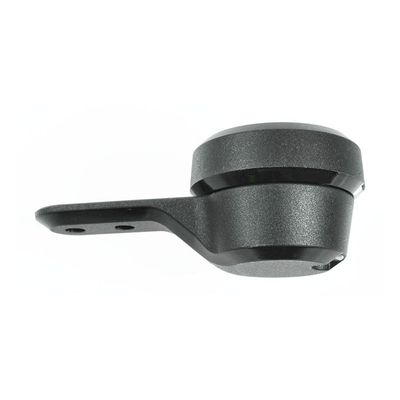

Tändningslås digitalt NFC Motogadget mo.lock
Digitalt, kontaktlöst tändningslås med NFC-teknik från Motogadget
Läs mer
- Ersätter mekaniskt tändningslås eller dess elektriska kopplingsfunktion
- Manipuleringssäker NFC-teknik med ca 20–40 mm räckvidd som förhindrar oavsiktlig aktivering
- Kompakta mått (32 mm diameter, 12 mm höjd) möjliggör dold montering bakom icke-metalliska delar
- 100 % vatten- och vibrationstålig ingjuten konstruktion i icke brännbart material
- Kopplar via medföljande 40A-relä vilket eliminerar risk för överbelastning eller brända kontakter
- Batterisparfunktion som sänker viloströmmen i 3 steg: 3,2 mA till 1,5 mA efter 16 timmar och 0,75 mA efter 8 dagar
- Integrerad RGB-LED visar system- och inlärningsstatus
- Levereras med 40A-relä, fäste, 2 batterifria NFC-nycklar (30 mm diameter, 2 g) och instruktioner
Inte avsett för fordon med aktiva startspärrar. Ersättningsnyckel säljs separat under artikelnummer 973970, och kabelsatser för att bygga kabelhärva finns under artikelnummer 973968 eller 973969.
| Kategori | Switches ignition |
| Produkt-typ | Switches ignition |
mo.lock NFC Lock
- Digital ignition lock replacing mechanical ignition lock or their electrical switching function.
- Near-Field-Communication technology is tamper-proof compared to radio remote controls.
- Lock is small allowing hidden mounting behind non-metallic parts.
- Overloading or scorching of contacts is impossible due to indirect switching via 40A load relay.
- Lock automatically reduces the quiescent current in 3 stages when not used.
- 100% water and vibration resistant thanks to lock being overmolded with non-flammable thermoset.
- Contactless switching distance is approximately 4cm safely ensuring switching ON and OFF excluding unintentional actuation.
- Integrated RGB LED indates status of lock when in use and when teaching new keys.

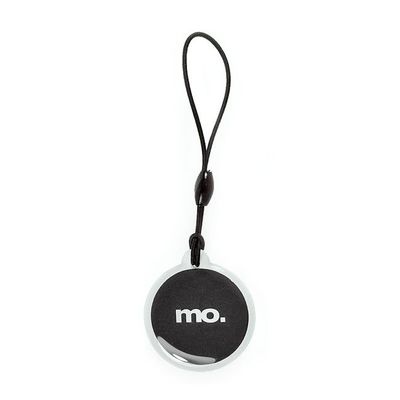

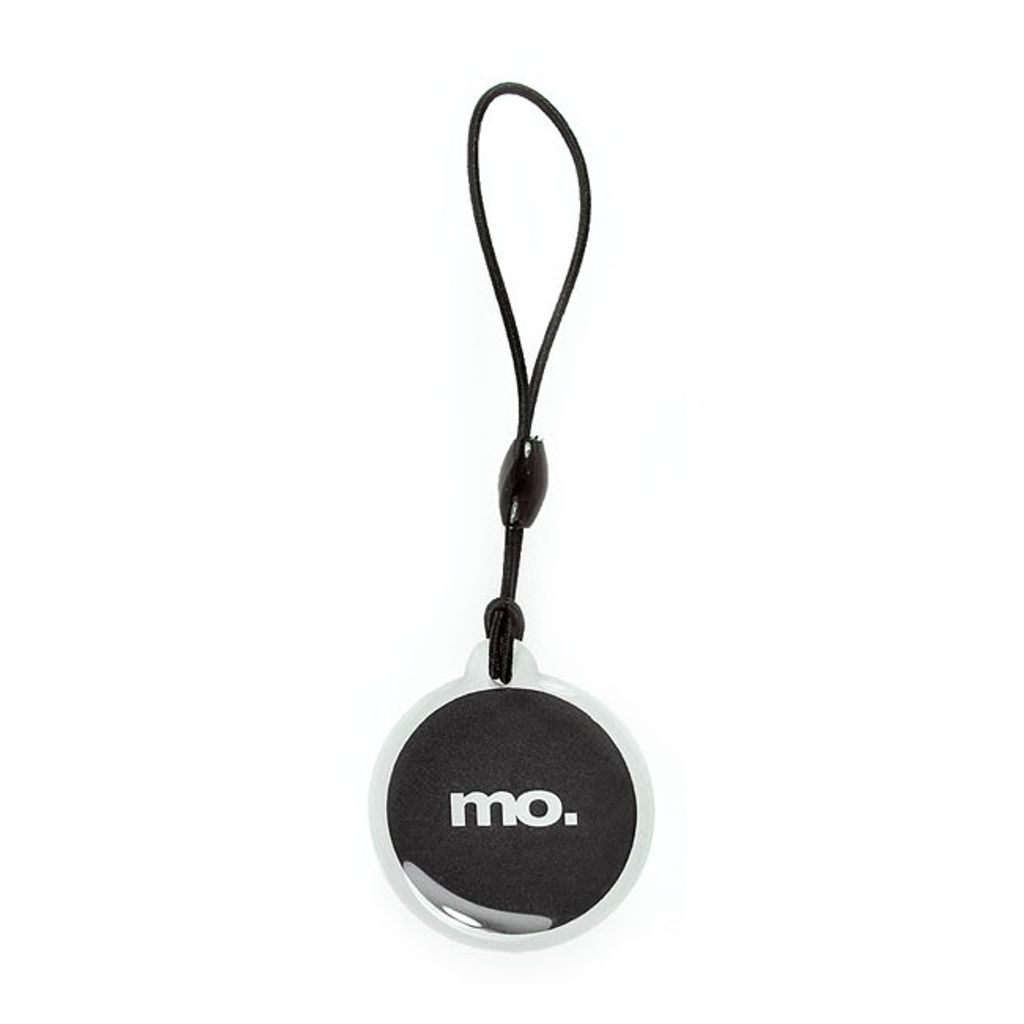

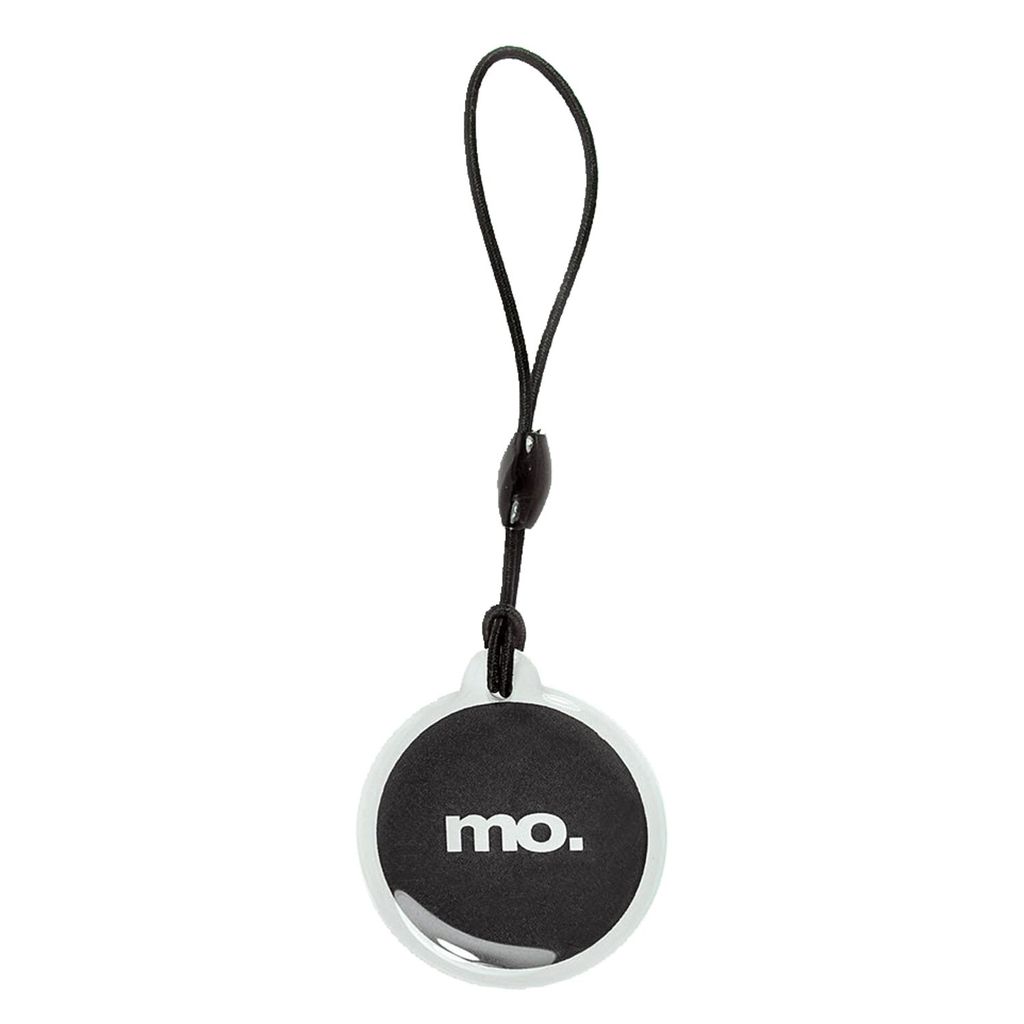

- Keys require no battery and are 30mm in diameter and weigh 2gr.
- Additional keys can be purchased and trained for the lock each key has a unique code.
- Technical data

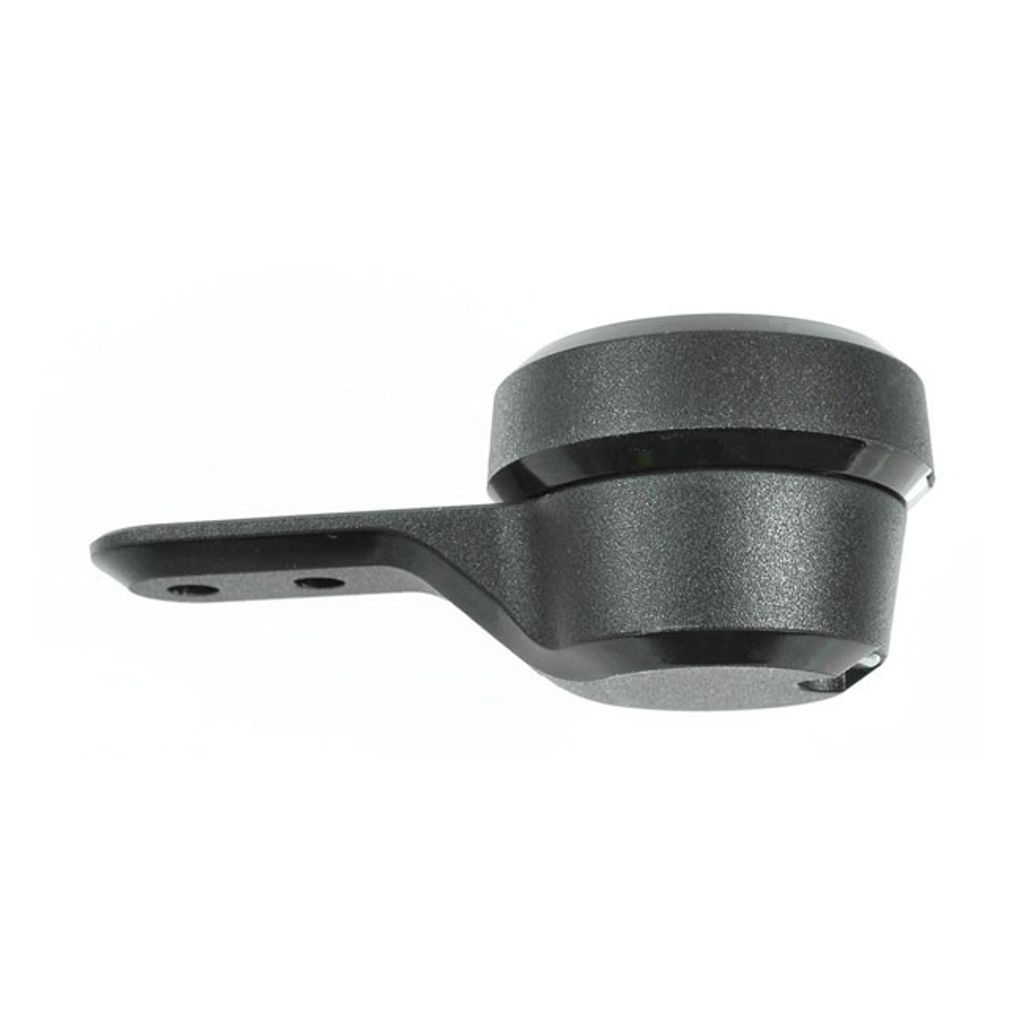

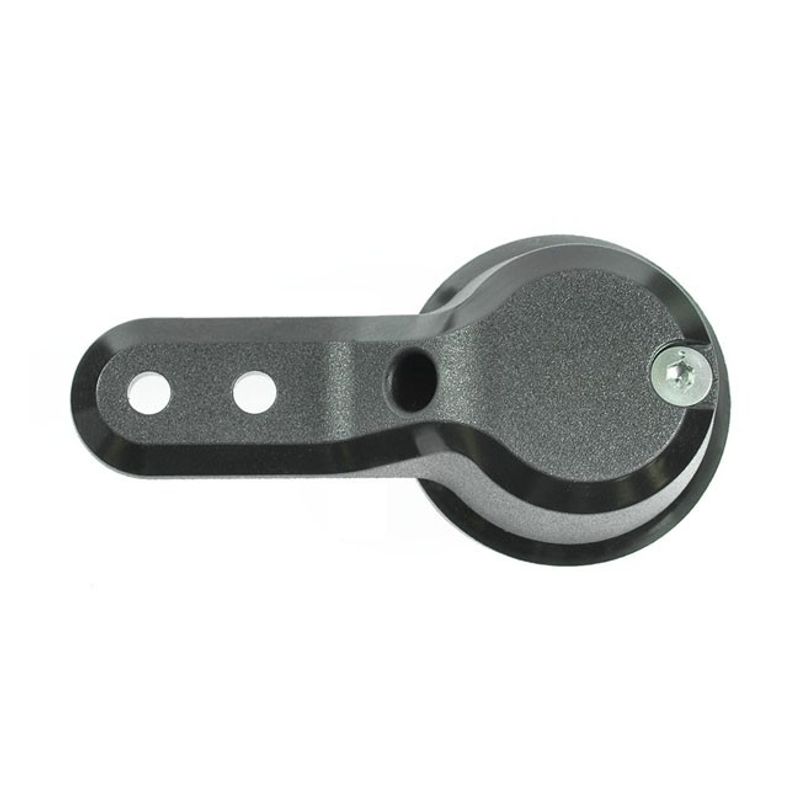

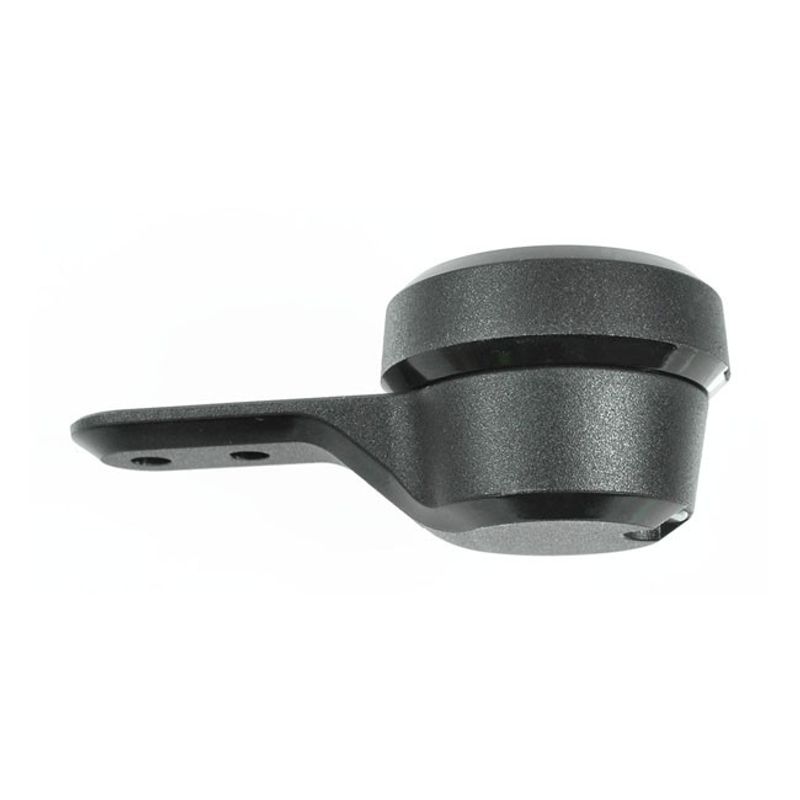

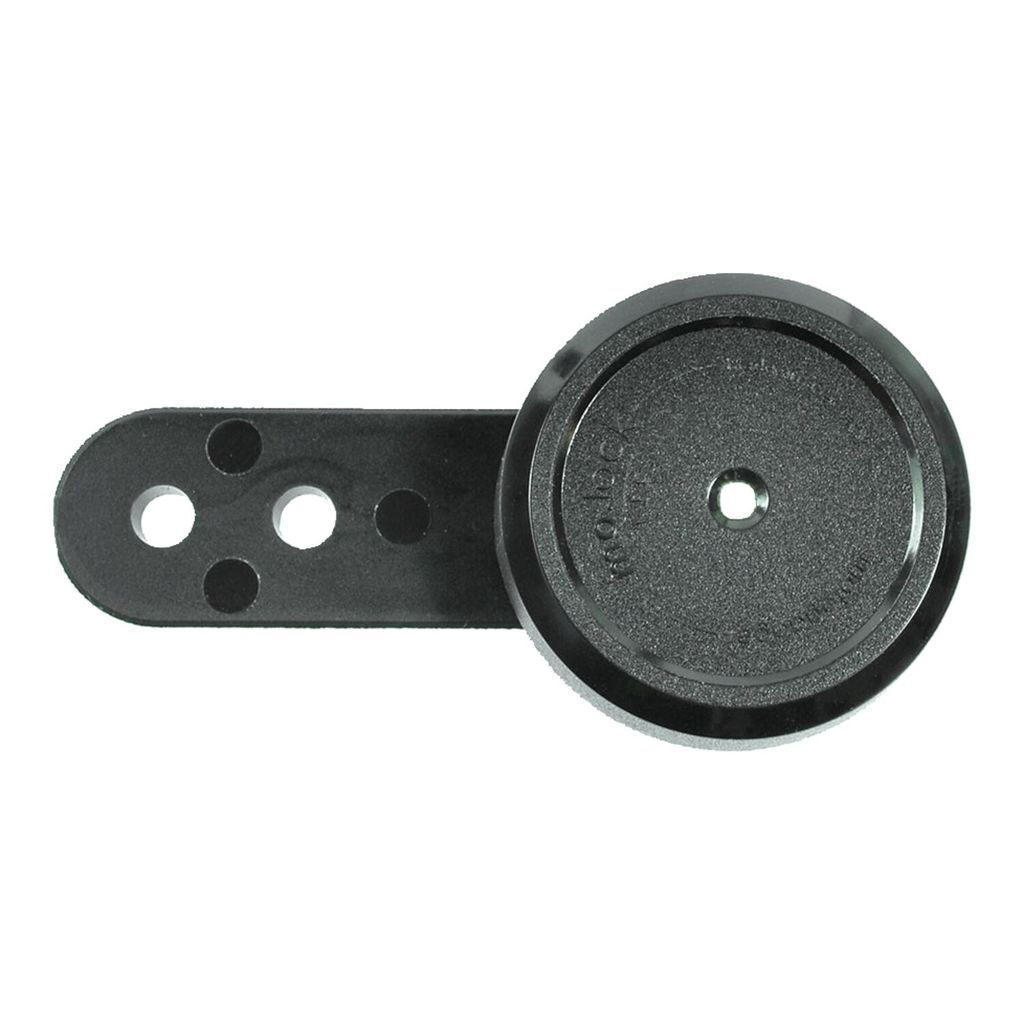

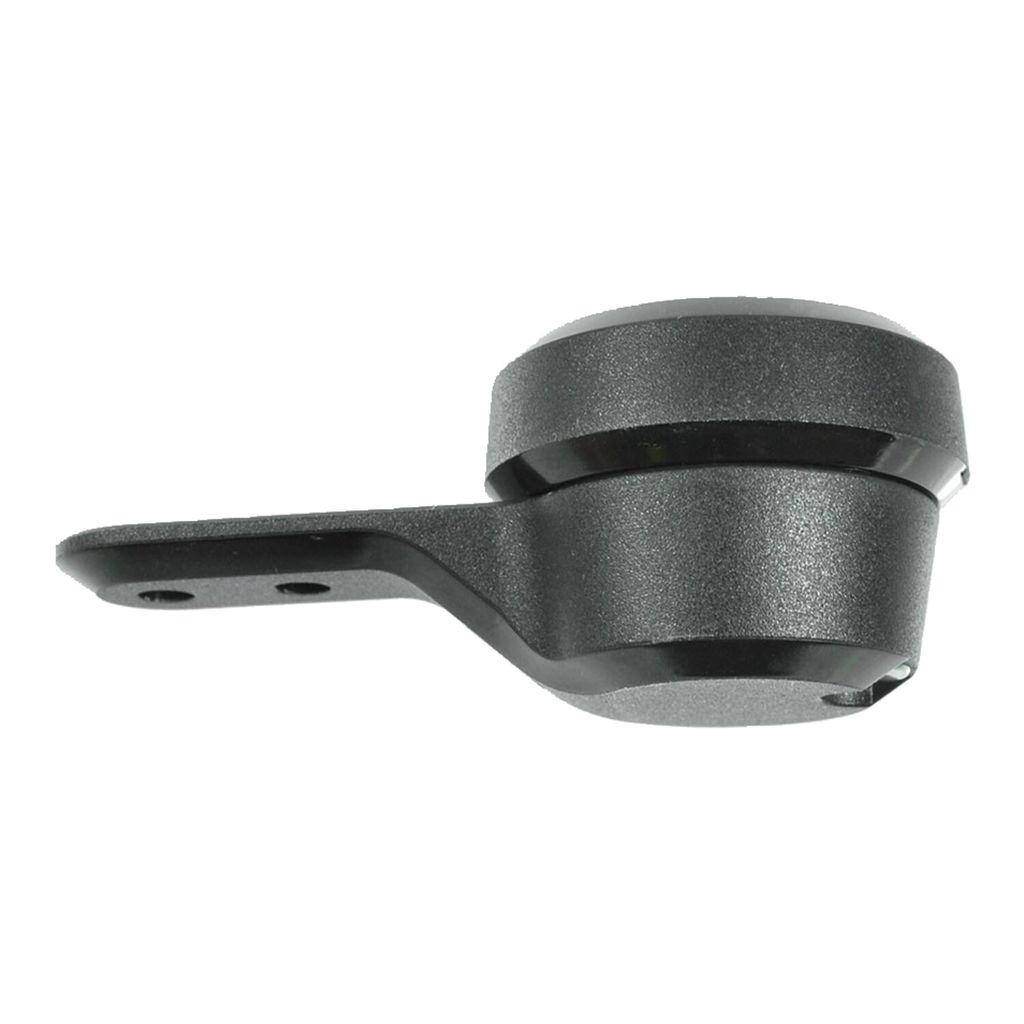

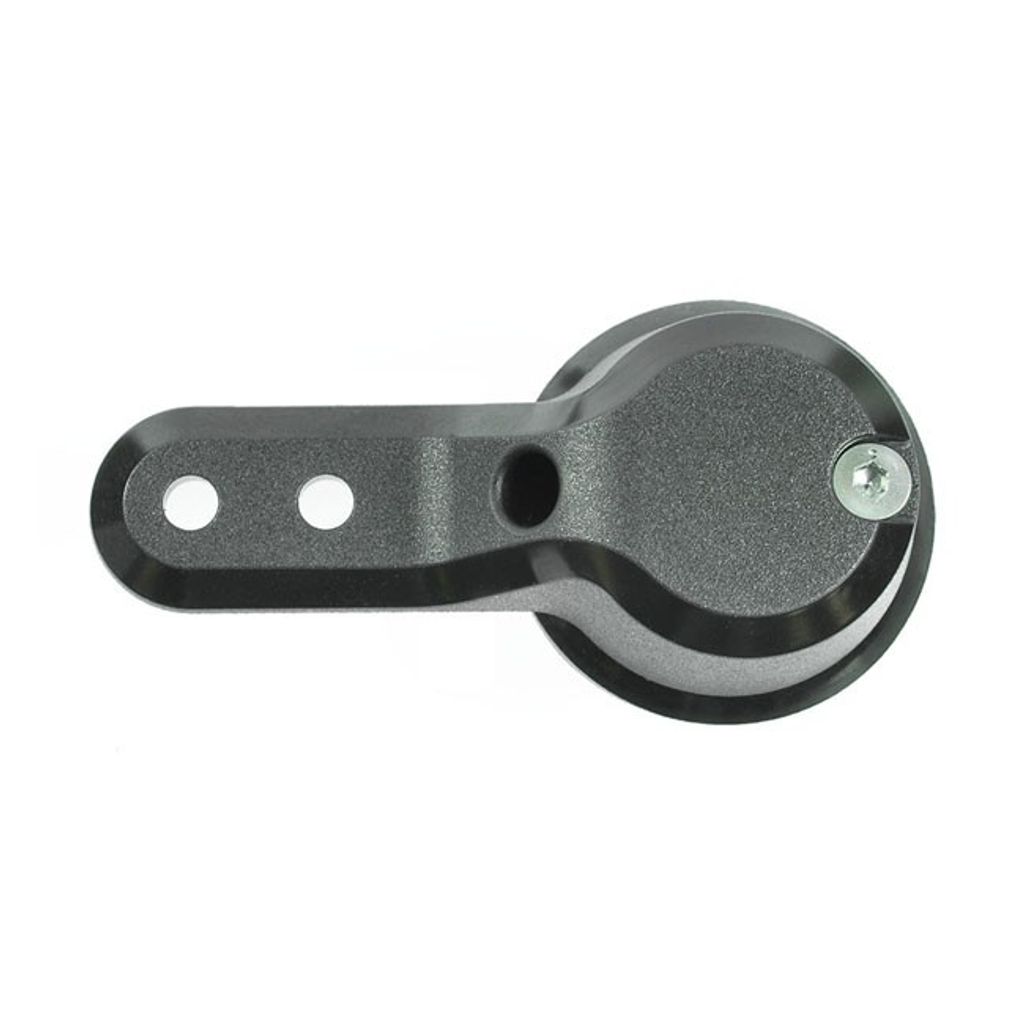

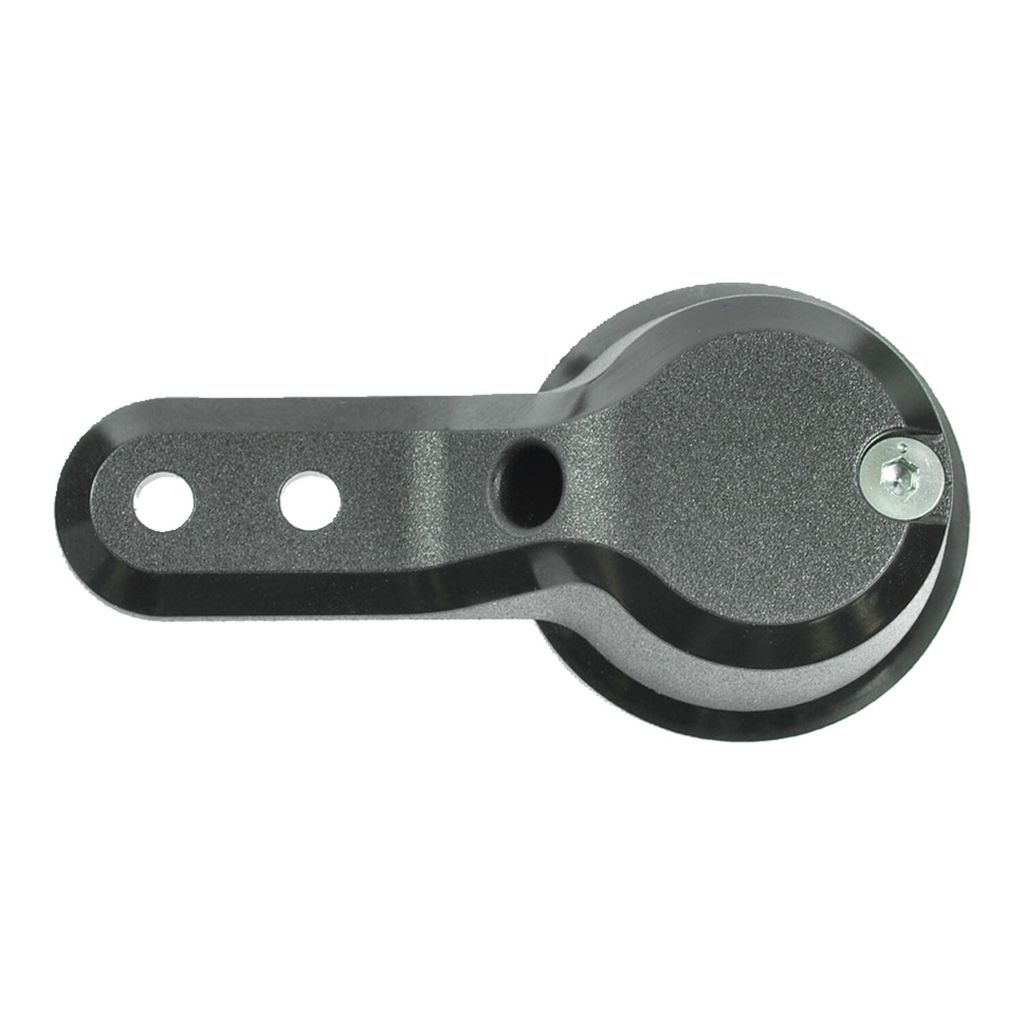

- Mounting 1 x M3 threaded bushing on rear side, bracket with 2 mounting holes
- Operating temperature -20°... +80°C
- Height 12 mm without plug contacts and housing
- Weightl approx. 35 g
- Operating voltage8 V - 18 V

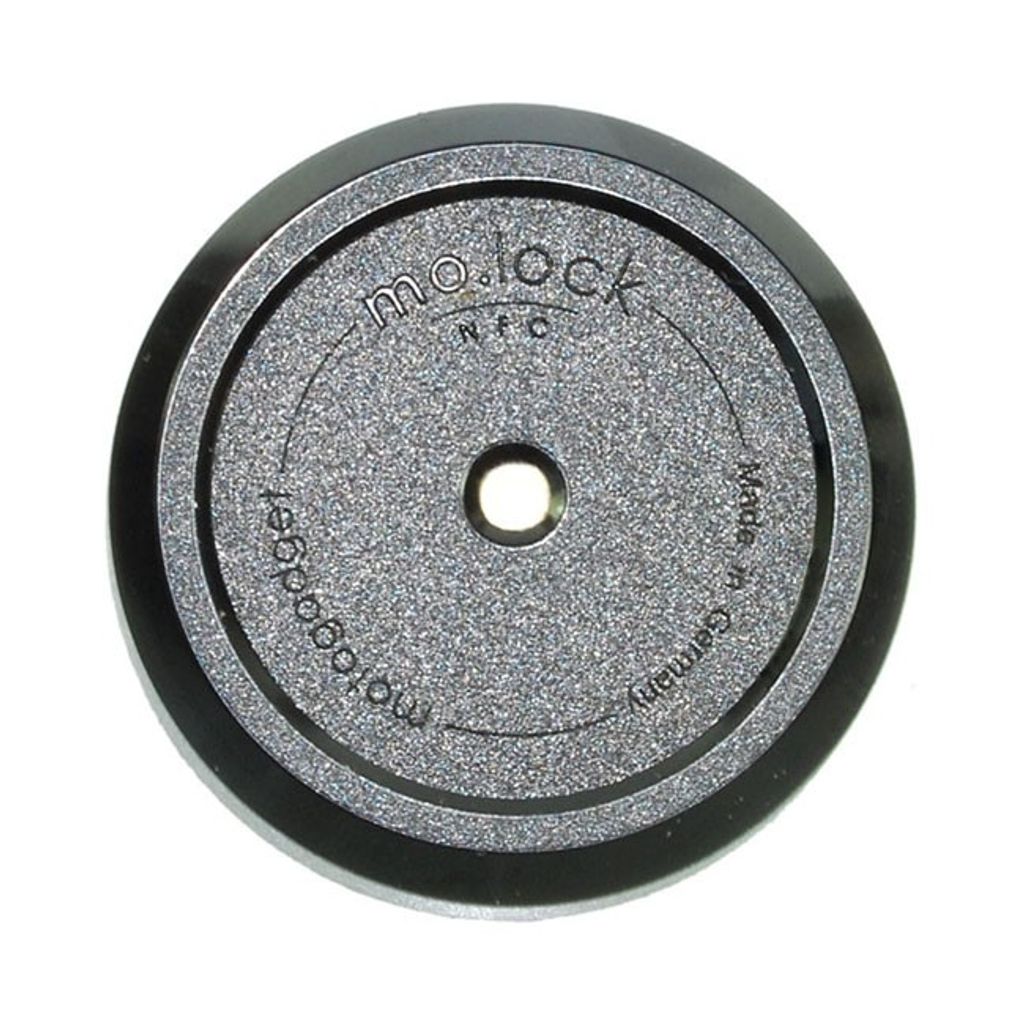

- Diameter of the transmitter/receiver on the vehicle 32 mm
- replaces Part 0521-0889
- NFC (Near Field Communication) is a variation of RFID (Radio Frequency IDentification) and extremely tamper-proof
- 20 to 40mm
- The mechanical ignition switch can be replaced by the mo.lock ignition switch, allowing a hidden mount for a clean look
- It can directly switch an automotive relay of up to 40A

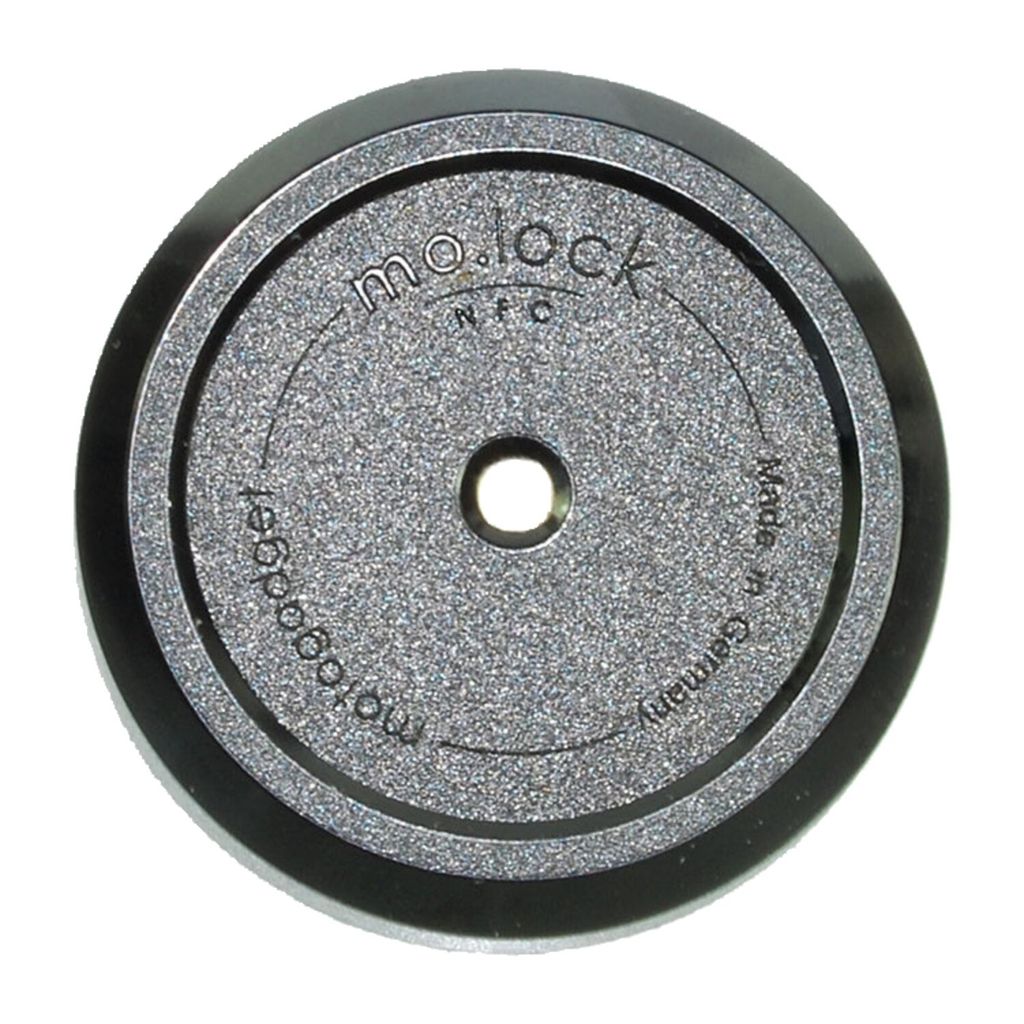

- The mo-lock NFC has an RGB LED on the front which indicates the status by color
- Standby current in switched-off mode is only 3.2 mA, reduces to 1.5 mA after 16 hours and after 8 days to 0.75 mA, for battery protection
- The mo.lock NFC (32mm diameter x 12mm high without terminals) comes with an automotive 40A relay, mount bracket, 2 NFC keys and detailed instructions
- The key first activates the mo.lock without touching it and then, via the relay, the entire on-board system
- Neither key nor mo.lock NFC suffer from mechanical wear
- No overload or scorched pins possible due to indirect switching via the 40A main relay
- The mo.lock NFC is very compact an can be mounted hidden in many places
- Water tight and vibration resistant because of the moulded-in construction
- Keys can be easily purchased and 'learned' to any mo.lock NFC - your integrated locksmith
- 4 cm ensures convenient switching while excluding the possibility of accidental engagement

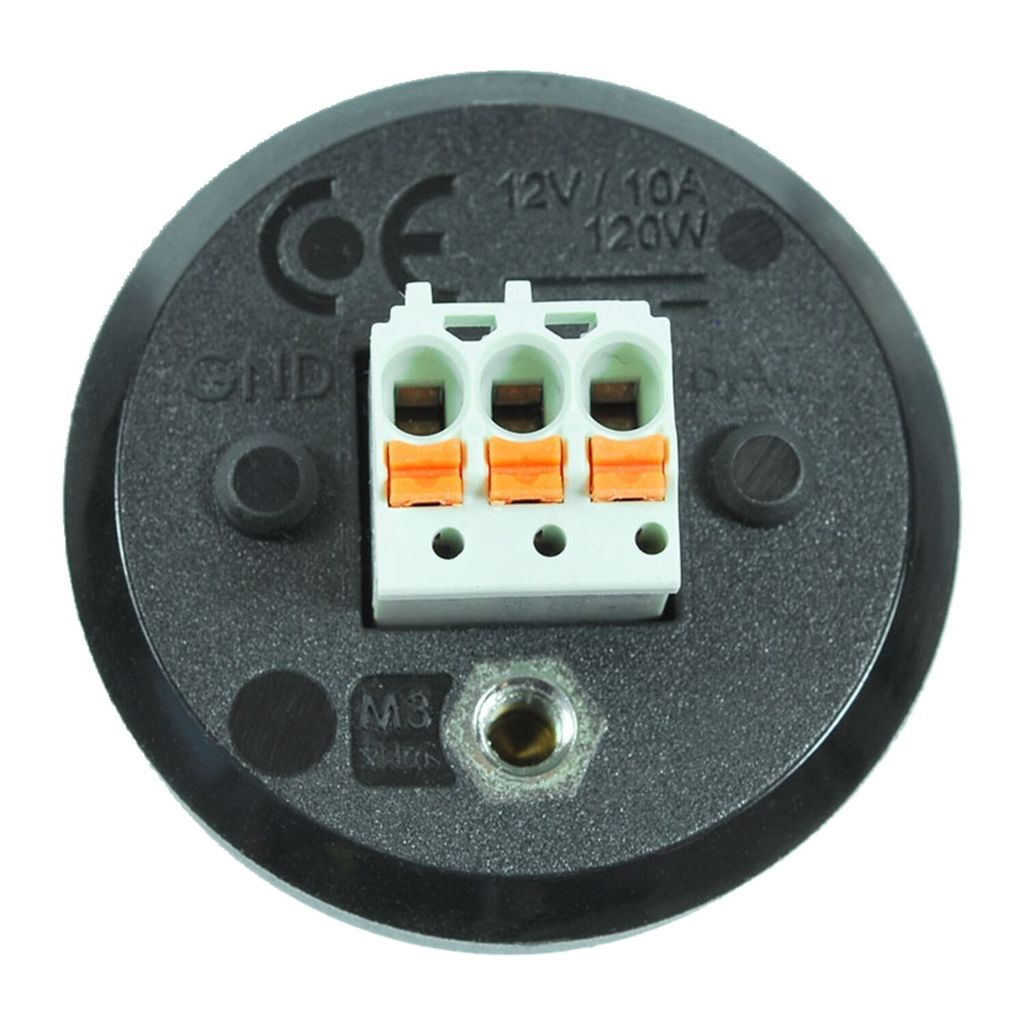

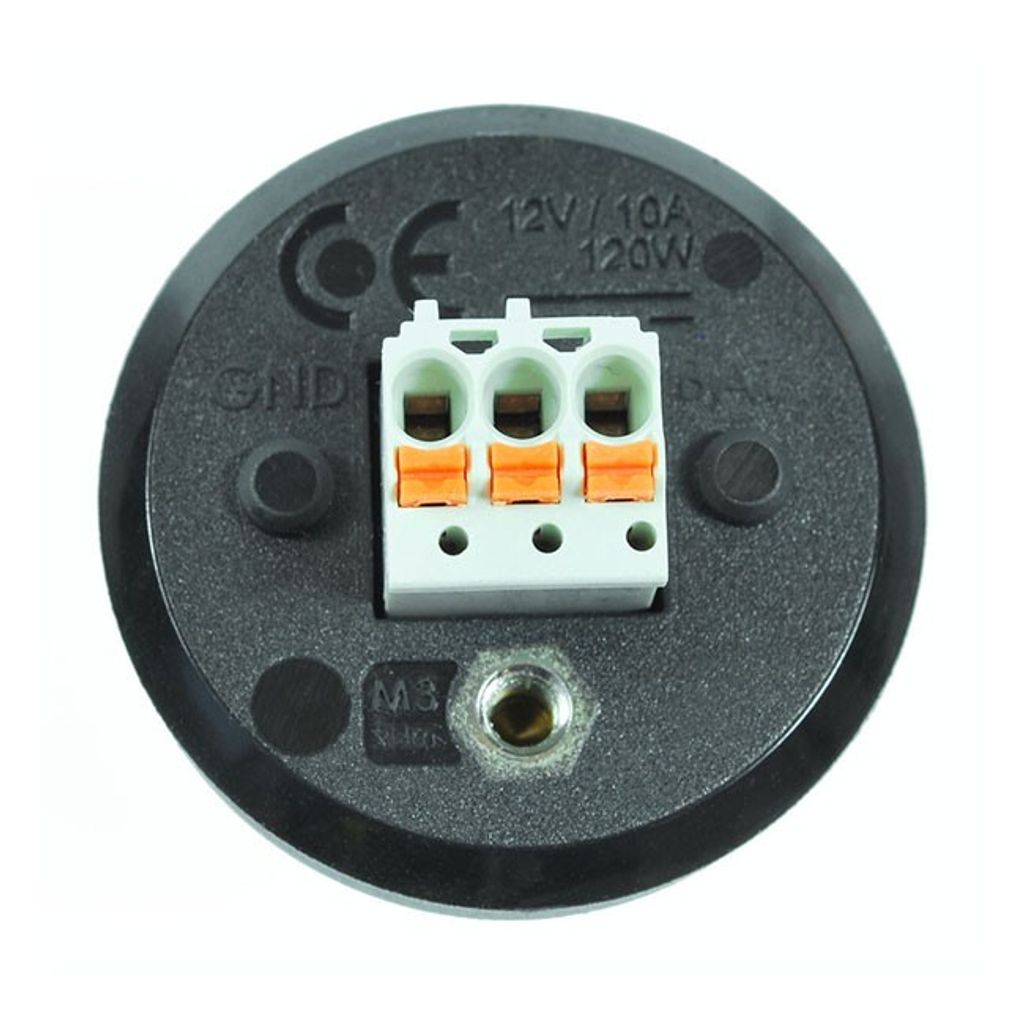

- 35 g Mounting threads: 1 x M3 threaded hole on back side Operating voltage: 8V
- Note: Not for use with active immobilizers
- Note: See 973970 for a replacement 'key'
- Note: See 973968 or 973969 for wiring kits to fabricate the wiring harness for your mo.lock ignition switch
