Hastighetsmätare Motogadget Mst Speedometers mässing

4 280 kr

Motogadget Motoscope Tiny Vintage hastighetsmätare (49 mm)
Läs mer

22100318 MotoGadget
  • Analog stil med stegmotor och visare kombinerat med digitala funktioner
  • Vintage-utförande med svart hus och sarg i antik mässing
  • Kompakt format med 49 mm husdiameter och 24 mm monteringsdjup
  • Visar hastighet (km/h eller mph), klocka, trippmätare, totalmätare, maxhastighet och systemspänning
  • Digital LED-visning lyser igenom urtavlan endast när tändningen är påslagen
  • Fyra integrerade kontrollampor och intelligent självkalibrerande funktion
  • Helt vattentät och vibrationsresistent konstruktion
  • Styrs via en separat tryckknapp och levereras med detaljerad manual

Kompatibel med vissa original hastighetssensorer som Dry-Reed och induktiva givare på H-D och Buell. Tiny Streamline-monteringskoppar säljs separat för 1" (25,4 mm) eller 22 mm styren, universalfästen samt för insvetsning i bensintank eller instrumentpanel.

Passar: Universal

Material Aluminum
Produkt-typ Gauge
Tillverkarens Art. Nr. 5001015
  • motoscope_tiny_speedster_vintage_instructions.pdf
    369.72 KB
    Hämta

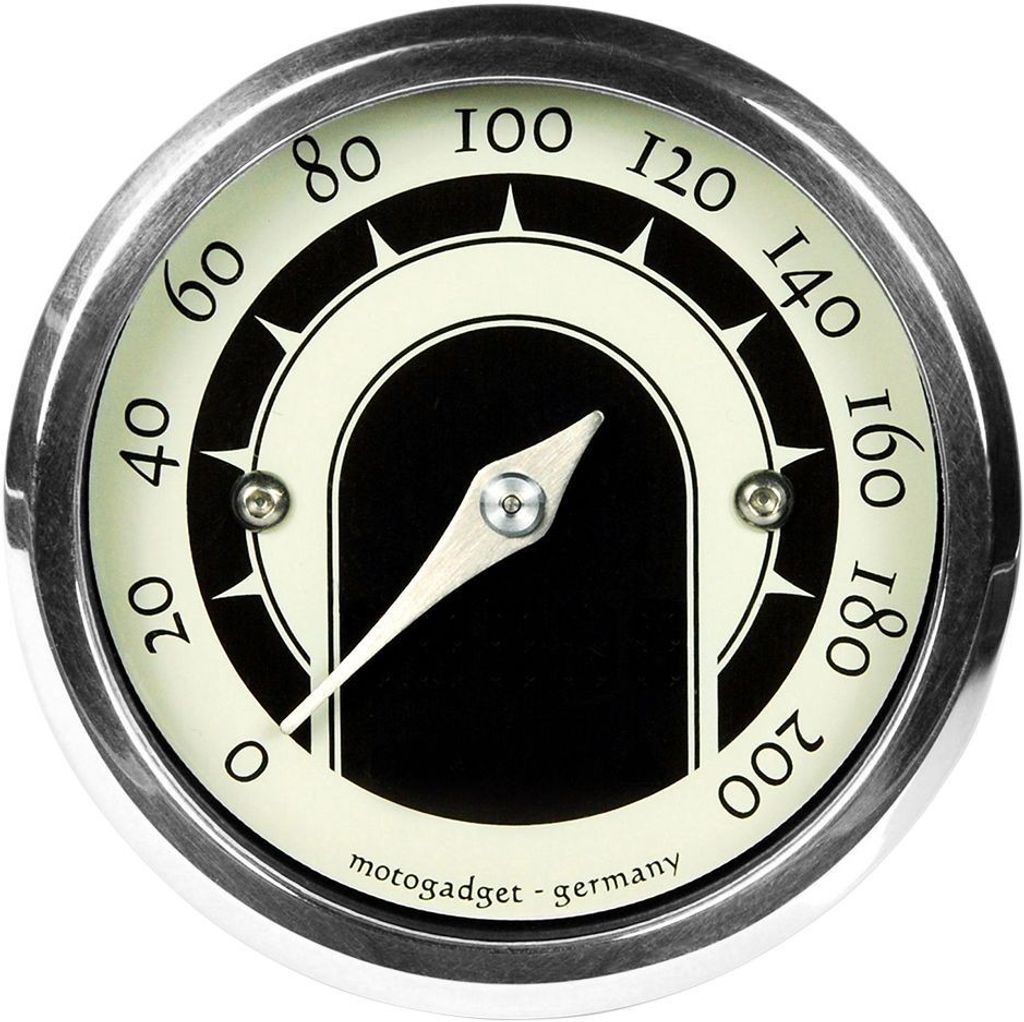

Mst Speedometers

  • Small (49 mm) analog speedometers with old school, retro styling based on the streamline design of the 40''s and 50''s
  • Measures speed digitally and displays it with a stepper motor and a pointer
  • Also displays a clock, odometer, trip odometer, on board voltage and maximum speed
  • Includes four control LEDs
  • Wide range of mounting options
  • Speedster is available in anodized black or polished finish; Vintage has a brass finish
  • Motoscope Tiny. Vintage. Brass
  • Black housing with an old brass bezel around the display
  • Analog styled speedo but with true digital functions
  • Miniature, with a just 49mm diameter housing and an installation depth of 24mm
  • Waterproof and vibration resistant
  • No digital display cutout to maximize the classic analog look
  • Digital information will be illuminated by LEDs through the blacked-out part of the speedo, only when the ignition is turned on
  • All options within the speedo are controlled and adjusted with a single push button switch that can be installed anywhere
  • Speedo can be switched from KMH to MPH function
  • When 200km/h is exceeded, the correct speed will still be shown through the blacked-out part of the speedo, up to 999km/h
  • Compatible with some stock speedo sensors like Dry-Reed and inductive proximity sensors as used on stock H-D and Buell models
  • Comes complete with detailed instruction manual
  • Speedometer, KMH
  • MPH switchable
  • Trip meter
  • Intelligent self-calibrating teach function
  • 4 LED indicator lights
  • Note: Optional 'Tiny Streamline' mounting cups are separately available
  • For use with 1" (25.4mm) or 22mm diameter handlebars or as weld-in cups, for recessed installation in fuel tank/dashboard etc. and as 'universal brackets'

Fits: Universal
