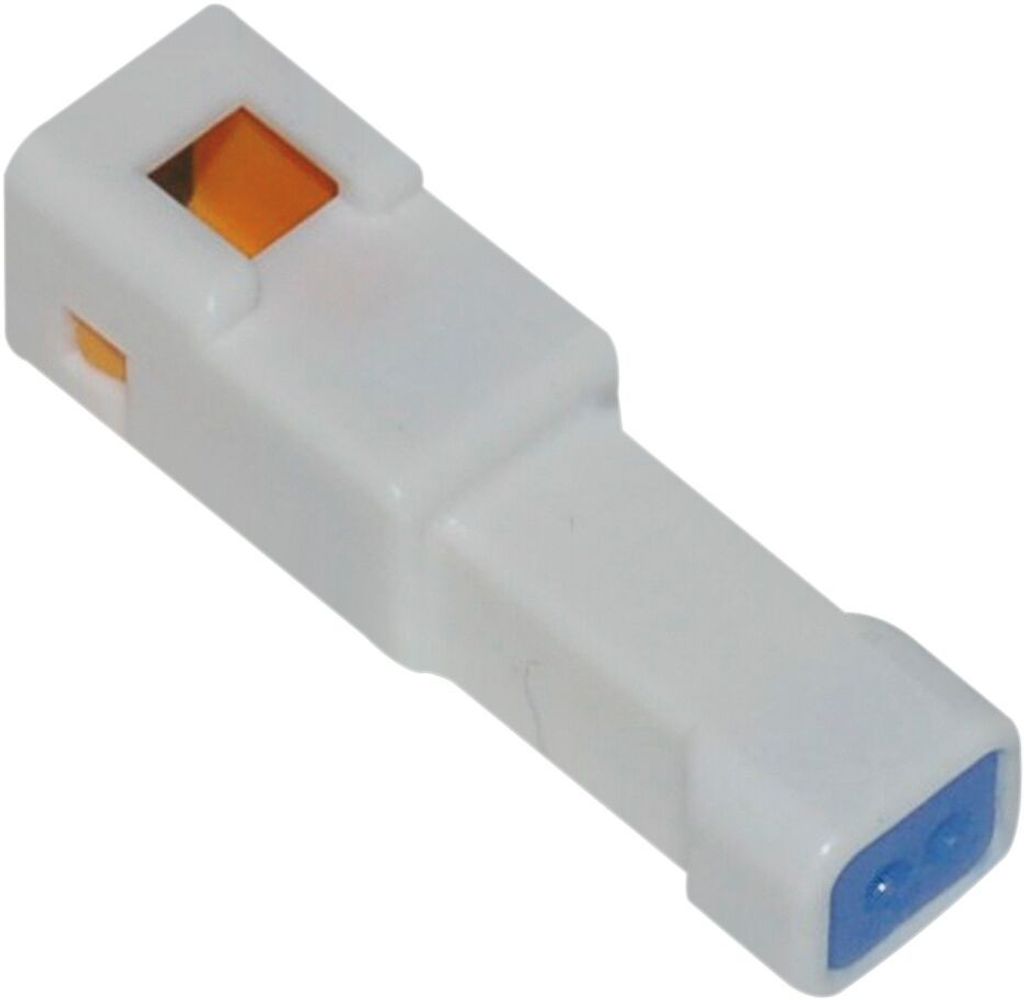

Kontakt Namz JST 2-WIRE dam

60 kr

Vattentät JST Mini-kontakt (dam) med 2 stift från Namz
Läs mer

21200361 Namz
  • JST Mini-kontakt med 2 stift (vit, plug/receptacle housing)
  • Avsedd för damstift
  • Konstruerad för 22-gauge kabel (dimensionerad för max 5 A)
  • Kabeltätningar ingår
  • Mycket litet och vattentätt kontaktdon
  • Används på H-D och diverse custombyggen
  • Tillverkad i USA

Stift för damkontakt (548273) samt rekommenderat pressverktyg (548111) köps separat. För passande 2-stifts hankontakt med hanstift, se 548264.

Färg White
Produkt-typ Wiring Connector
Längd +305 mm -12 tum
Tillverkarens Art. Nr. NJST-02P

JST Mini Connector

  • Small and watertight connector system
  • Designed for 22-gauge wire
  • Include wire seals; crimping terminal tools available separately
  • Made in the USA
  • 22-gauge wire is rated for a maximum of 5 A.
  • JST Mini connector. White, plug, 2-pin
  • receptacle housing for female terminal pins
  • Miniature waterproof connectors, the smallest available
  • Used on H-D and various custom brand bikes
  • High quality, reasonable priced and a good solution when small connectors are required
  • Note: 548273 female crimp-on stamped terminal pins must be ordered separately
  • Note: See 548264 for the mating 2-pins plug connector with male pins
  • Note: See 548111 for the recommended crimp tool
