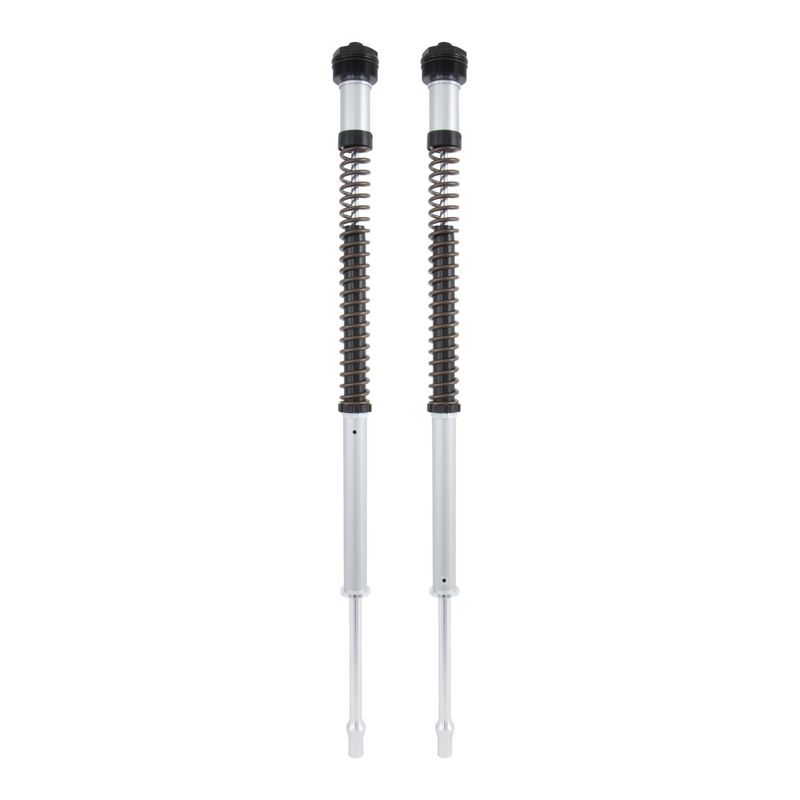

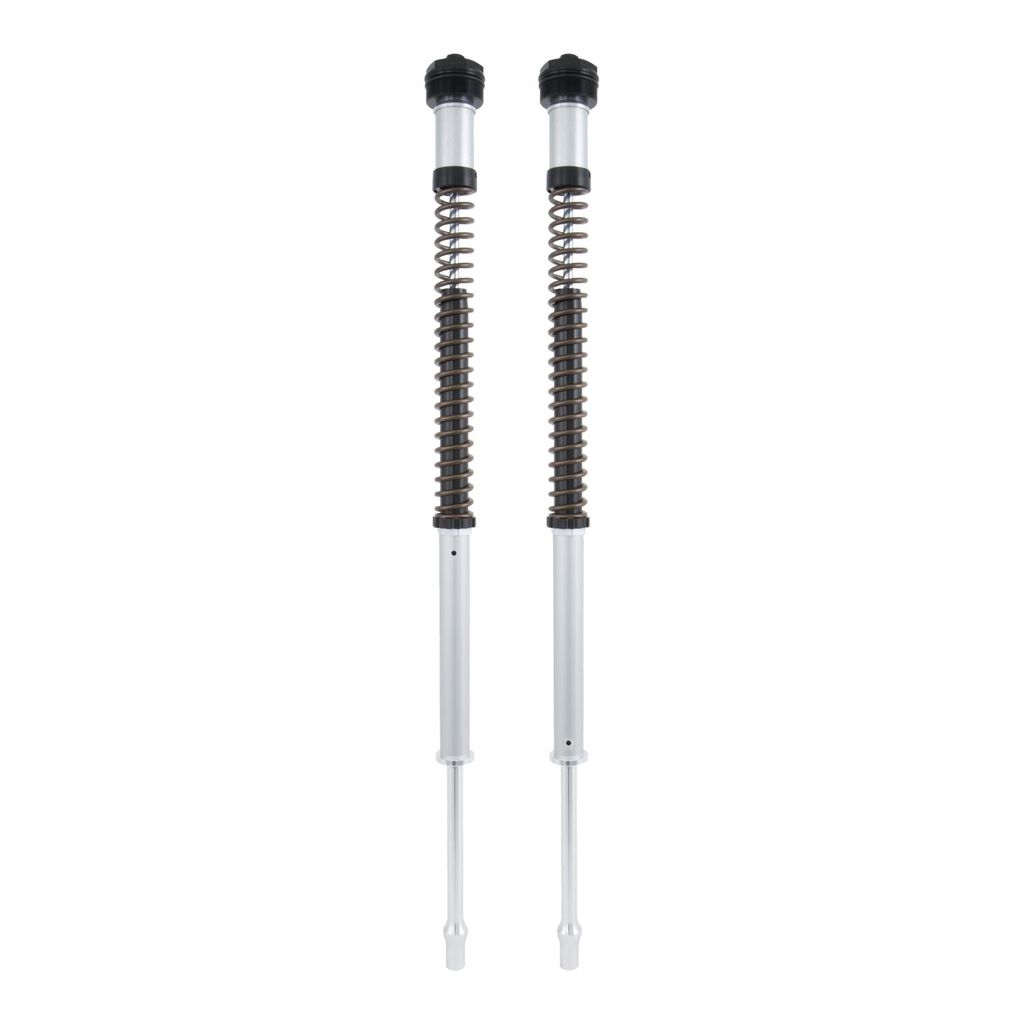

Gaffelpatron fram Öhlins NIX22 FXDL 07-17
Öhlins NIX 22 gaffelpatronsats för framgaffel
Läs mer
- Öhlins NIX-teknik med kompression i vänster ben och returdämpning i höger
- 22 mm kolvdiameter för konventionella (icke-upside down) framgafflar
- Extern justering av kompression, retur och fjäderförspänning i topplocket
- Slaglängd: 5.039"
- Fjädrar med fjäderkonstanter 10 N/mm och 11 N/mm ingår
- 1" sänkningssats ingår
- Avsedd för förarvikt mellan ca 150 lb och 350 lb
- Levereras i par och är ABE-godkänd
Passar inte Switchback, WG, Low Rider S eller Fat Bob. Monteringsverktyg (pullup tool) och stoppbleck ingår ej. Rekommenderad gaffelolja är Öhlins R&T #5 (ca SAE 7.5W, art.nr 962112 eller 962113).
Passar: FXDL 07-17
OEM-nr: 08790-11
| Produkt-typ | Fork springs |
| Kategori | Fork springs |
Fork Cartridge Kit
- Öhlins NIX Technology
- External Compression and rebound adjustment
- External preload adjustment
- 1" lowering kit included
- 22 mm piston diameter
- Öhlins setting bank
- Piston diameter: 22mm
- Position: front
- Spring series: 08790-xx (order separately)
- No lowering kit available
- Recommended oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx
- SAE 7.5 W)
- Packaging unit: pair
- ABE approved
- Note: Springs are not included and must be ordered separately
- Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed
- Note: Spring set 962991 (10N/mm) is recommended, heavy-duty-springs 08790-11 (11.0 N/mm) for riders over 100kg, even harder springs (962993 (12.0 N/mm) and 962994 (13.0 N/mm are available for even heavier riders
- Description: The Öhlins NIX 22 cartridge kit comes with 22mm pistons, which makes it compatible with motorcycles that are equipped with conventional (non-upside down) front forks
- The proven 'NIX' design is derived from the technology that helpt provide championships on the highest level and each NIX 22 cartridge kit is made to fit the specific bike series to meet the requirements and characteristics of that bike
- It features compression damping in the left leg and rebound damping in the right leg, allowing more precision, stability and feedback for improved rider confidence
- All adjustments, including spring preload, are made at the top cap
- It is a bolt-in installation into the original front fork, but springs must be ordered separately the match the rider's weight and preferences for the perfect set-up
Does not include pullup tool or stopper plate. Does not fit Switchback, WG, Low Rider S or Fat Bob. Spring rates included: 10 n/m and 11 n/m Stroke length: 5.039" Weight range (Based on rider only because it’s a front cartridge kit) – Min 150 lb – Max 350 lb
Fits: 07-17 FXDL; 06-07 FXDLI; 06-17 FXDB; 07-17 FXDC; 12-16 FLD. (excl. all FXDWG, FXDF, FXDLS)
