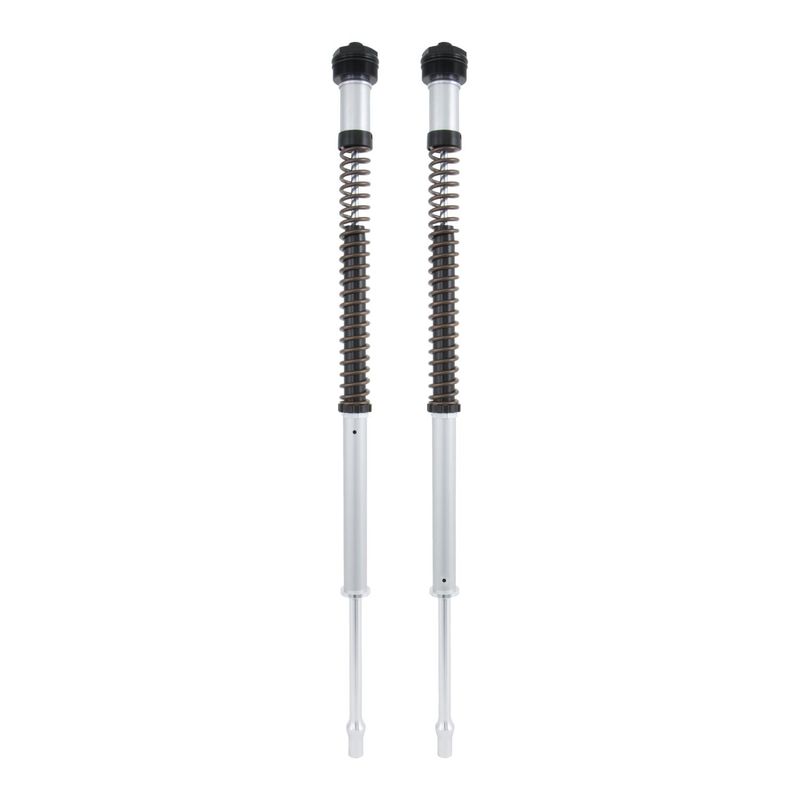

Gaffelpatron fram Öhlins NIX22 Dyna FXDWG Wide Glide 10-17

15 940 kr

Öhlins NIX 22 gaffelpatronkit för konventionell framgaffel
Läs mer

958799 Öhlins
  • Kolvdiameter på 22 mm
  • Kompression i vänster gaffelben och returdämpning i höger gaffelben
  • Samtliga justeringar inklusive fjäderförspänning görs via topplocket
  • Direkt bolt-in-installation i originalframgaffeln
  • Rekommenderad gaffelolja är 962112 (1 l) eller 962113 (4 l) #5 R&T (ca SAE 7,5W)
  • Rekommenderad oljenivå: 150 mm
  • ABE-godkänd
  • Säljs i par

Fjädrar ingår inte utan beställs separat ur 08790-serien baserat på förarens vikt och preferenser. Ingen sänkningssats finns tillgänglig. Anpassad för motorcyklar med konventionell framgaffel (ej upside-down).

Passar: Dyna FXDWG Wide Glide 10-17

Produkt-typ Fork springs
Kategori Fork springs

NIX22 front fork cartridge kit

  • Piston diameter: 22mm
  • Position: front
  • Spring series: 08790-series (order separately)
  • No lowering kit available
  • Recommended oil: 962112 (1 liter) or 962113 (4 liter)#5 R&T (approx
  • SAE 7.5 W)
  • Oil level mm: 150 mm
  • Packaging unit: pair
  • ABE approved Note: Springs are not included and must be ordered separately
  • Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed
  • Description: The Öhlins NIX 22 cartridge kit comes with 22mm pistons, which makes it compatible with motorcycles that are equipped with conventional (non-upside down) front forks
  • The proven 'NIX' design is derived from the technology that helpt provide championships on the highest level and each NIX 22 cartridge kit is made to fit the specific bike series to meet the requirements and characteristics of that bike
  • It features compression damping in the left leg and rebound damping in the right leg, allowing more precision, stability and feedback for improved rider confidence
  • All adjustments, including spring preload, are made at the top cap
  • It is a bolt-in installation into the original front fork, but springs must be ordered separately the match the rider's weight and preferences for the perfect set-up

Fits: 10-17 Dyna FXDWG Wide Glide (excl. 06-09 models)
