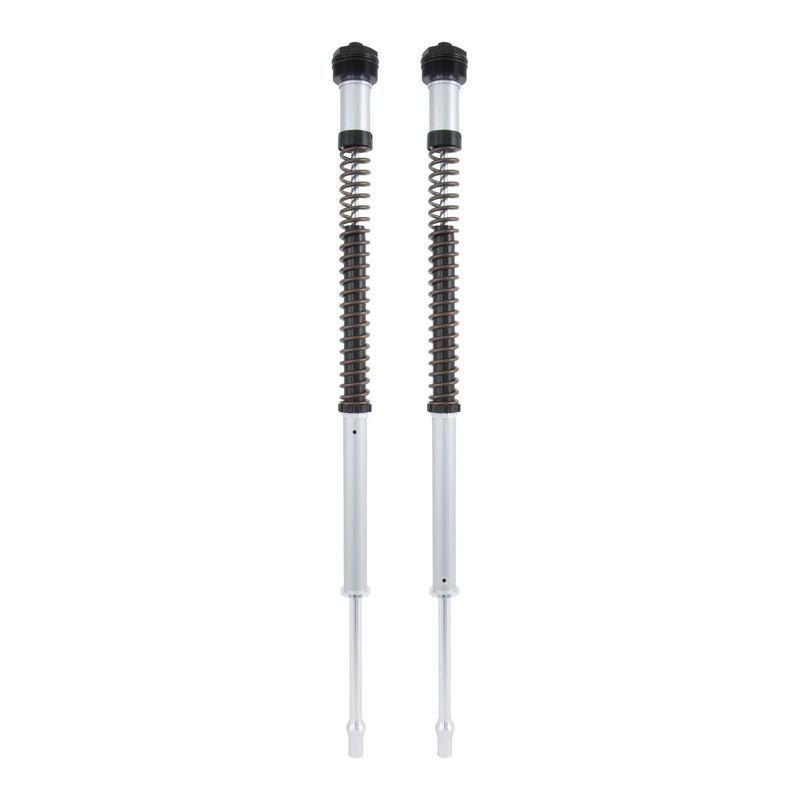

Gaffelpatron fram Öhlins NIX22 Harley-Davidson Softail

15 940 kr

Öhlins NIX 22 gaffelpatronsats fram
Läs mer

960407 Öhlins
  • NIX-teknik med kompressionsdämpning i vänster ben och returdämpning i höger ben
  • 22 mm kolvdiameter för konventionella (icke-upside down) framgafflar
  • Justerbar fjäderförspänning i toppen
  • Bultmonterad installation i originalgaffeln
  • Inkluderar fjädrar med fjäderhastighet 9,5 N/mm, 10 N/mm och 11 N/mm (fjäderserie 08423-xx)
  • Rekommenderad oljenivå: 140 mm
  • ABE-godkänd
  • Säljs i par (förpackning: par)

Rekommenderad gaffelolja är Öhlins R&T #5 (ca SAE 7.5W), art.nr 962112 (1 liter) eller 962113 (4 liter). Ingen sänkningssats finns tillgänglig. Följ Öhlins rekommendationer gällande fjäderhastighet och olja utifrån förarens vikt och körstil.

Passar: Harley-Davidson Softail

OEM-nr: 08423-80, 08423-85, 08423-90, 08423-95, 08423-10

Produkt-typ Fork springs
Kategori Fork springs

CARTRIDGE KIT NIX 22

  • The NIX 22 Cartridge Kit is based on the experience learned through decades of testing and racing in top-tier championships. The kit delivers unparalleled performance with stable damping characteristics while ensuring great comfort, contributing to rider confidence. The NIX 22 is designed to increase performance for lightweight sport bikes and street bikes. The kit has the Öhlins proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg. This allows for more precise function and stability. Adjustments are made at the top with the spring preload. The cartridge system fits bolt-on and are easy to install in standard front forks. The NIX 22 Cartridge Kit has been tested extensively and tailor made to suit the individual requirements and characteristics for each individual bike. Note! Springs are included.
  • NIX22 front fork cartridge kit. Softail
  • Piston diameter: 22mm
  • Position: front
  • Spring series: 08423-xx
  • No lowering kit available
  • Recommend fork oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx
  • SAE 7.5W)
  • Oil level mm: 140 mm
  • Packaging unit: pair
  • ABE approved
  • Note: Includes 9.5 N/mm, 10 N/mm and 11 N/mm springs
  • Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed
  • Description: The Öhlins NIX 22 cartridge kit comes with 22mm pistons, which makes it compatible with motorcycles that are equipped with conventional (non-upside down) front forks
  • It is a bolt-in installation into the original front fork, but springs must be ordered separately the match the rider's weight and preferences for the perfect set-up
  • Note: Optional available spring sets
  • Springs are sold in pairs
  • 962747 08423-80 Spring rate 8.0 N/mm (custom light) 962748 08423-85 Spring rate 8.5 N/mm (custom light) 962749 08423-90 Spring rate 9.0N/mm (approx
  • 50 kg rider / preload turns: 4) 962750 08423-95 Spring rate 9.5N/mm (approx
  • 60-70 kg rider / preload turns: 60kg 3, 70kg 5) 962738 08423-10 Spring rate 10N/mm (approx
  • 80-110 kg rider / preload turns: 80kg 3, 90kg 5, 100kg 7, 110kg 8)

Fits: Harley-Davidson Softail Breakout, 2018 – 2023 ABE (Germany); Harley-Davidson Softail FLDE Deluxe, 2018 – 2020 ABE (Germany); Harley-Davidson Softail Heritage Classic, 2018 – 2023 ABE (Germany); Harley-Davidson Softail Low Rider, 2018 – 2023 ABE (Germany); Harley-Davidson Softail Slim, 2018 – 2021 ABE (Germany); Harley-Davidson Softail Street Bob, 2018 – 2023 ABE (Germany);
