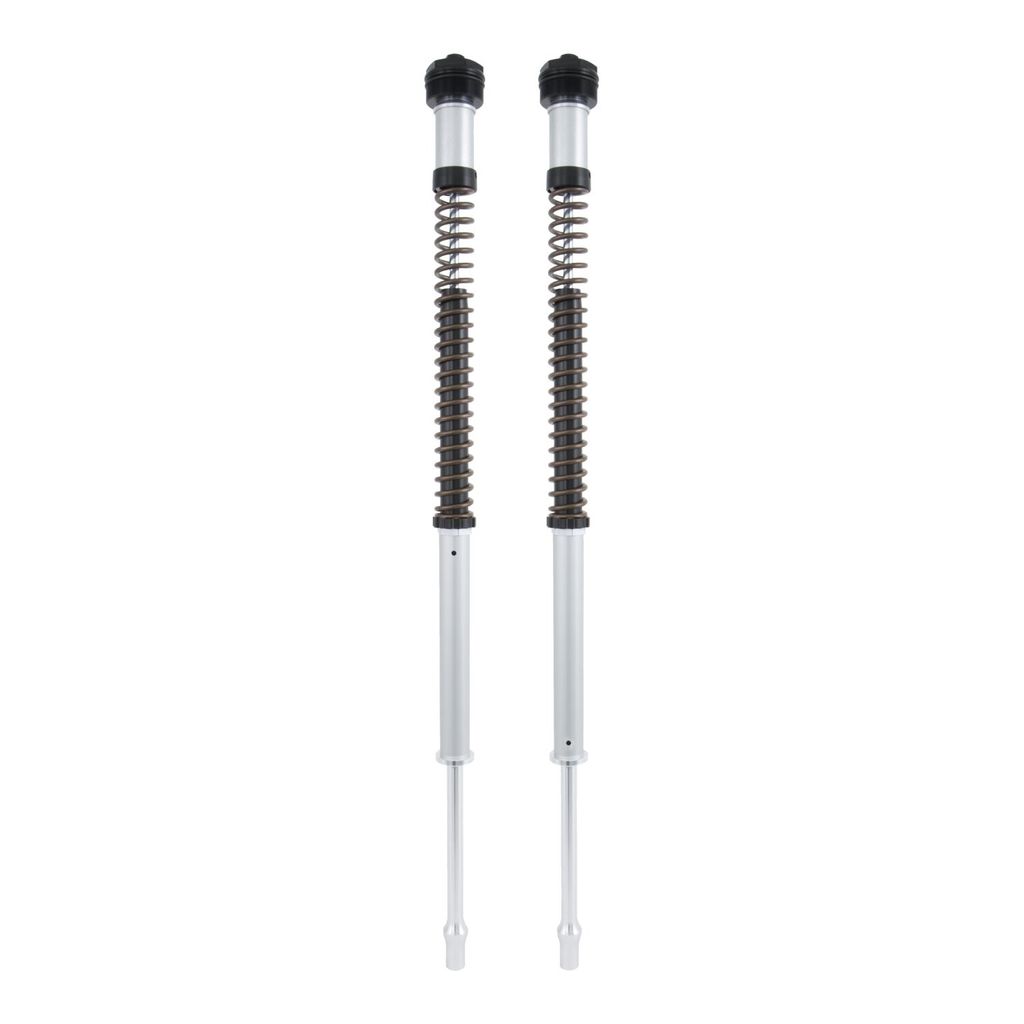

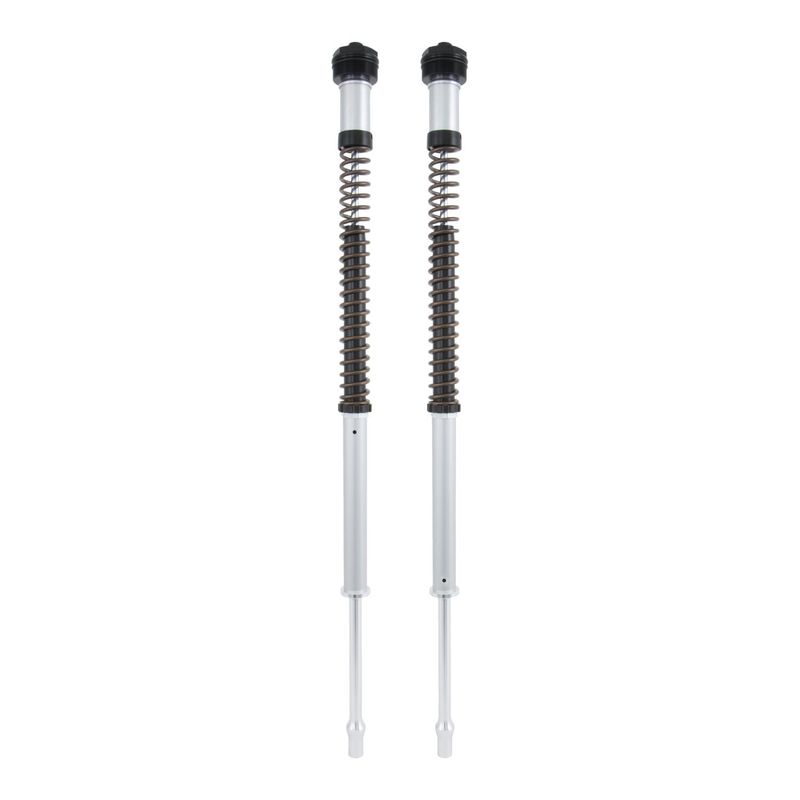

Gaffelpatron fram Öhlins NIX22 Softail Fat Boy 18-24

15 940 kr

Öhlins NIX 22 gaffelpatronsats för konventionella framgafflar
Läs mer

960409 Öhlins
  • Öhlins NIX-teknik med kompression i vänster ben och retur i höger ben
  • 22 mm kolvdiameter, kompatibel med konventionella framgafflar (ej upside-down)
  • Utvändig justering av kompression, retur och förspänning i topplocket
  • Slaglängd: 5.118"
  • Fjädrar ingår: 9.5 N/mm, 10 N/mm och 13 N/mm
  • Viktintervall förare: 150 lb – 350 lb
  • 1" sänkningssats ingår
  • Levereras i par och är ABE-godkänd

Rekommenderad gaffelolja är Öhlins R&T #5 (ca SAE 7.5W, art.nr 962112 eller 962113) med en oljenivå på 140 mm. Monteringsverktyg (pullup tool) och stoppbleck ingår ej.

Passar: Softail Fat Boy 18-24

Produkt-typ Fork springs
Kategori Fork springs

Fork Cartridge Kit

  • Öhlins NIX Technology
  • External Compression and rebound adjustment
  • External preload adjustment
  • 1" lowering kit included
  • 22 mm piston diameter
  • Öhlins setting bank
  • Piston diameter: 22mm
  • Position: front
  • Spring series: 08423-xx (order separately)
  • No lowering kit available
  • Recommend fork oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx SAE 7.5W)
  • Oil level mm: 140 mm
  • Packaging unit: pair
  • ABE approved Note: Springs are not included and must be ordered separately
  • Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed
  • Description: The Öhlins NIX 22 cartridge kit comes with 22mm pistons, which makes it compatible with motorcycles that are equipped with conventional (non-upside down) front forks
  • The proven 'NIX' design is derived from the technology that helpt provide championships on the highest level and each NIX 22 cartridge kit is made to fit the specific bike series to meet the requirements and characteristics of that bike
  • It features compression damping in the left leg and rebound damping in the right leg, allowing more precision, stability and feedback for improved rider confidence
  • All adjustments, including spring preload, are made at the top cap
  • It is a bolt-in installation into the original front fork, but springs must be ordered separately the match the rider's weight and preferences for the perfect set-up

Does not include pullup tool or stopper plate. Spring rates included: 9.5 n/m, 10 n/m and 13 n/m Stroke length: 5.118" Weight range (Based on rider only because it’s a front cartridge kit) – Min 150 lb – Max 350 lb

Fits: 18-24 Softail Fat Boy
