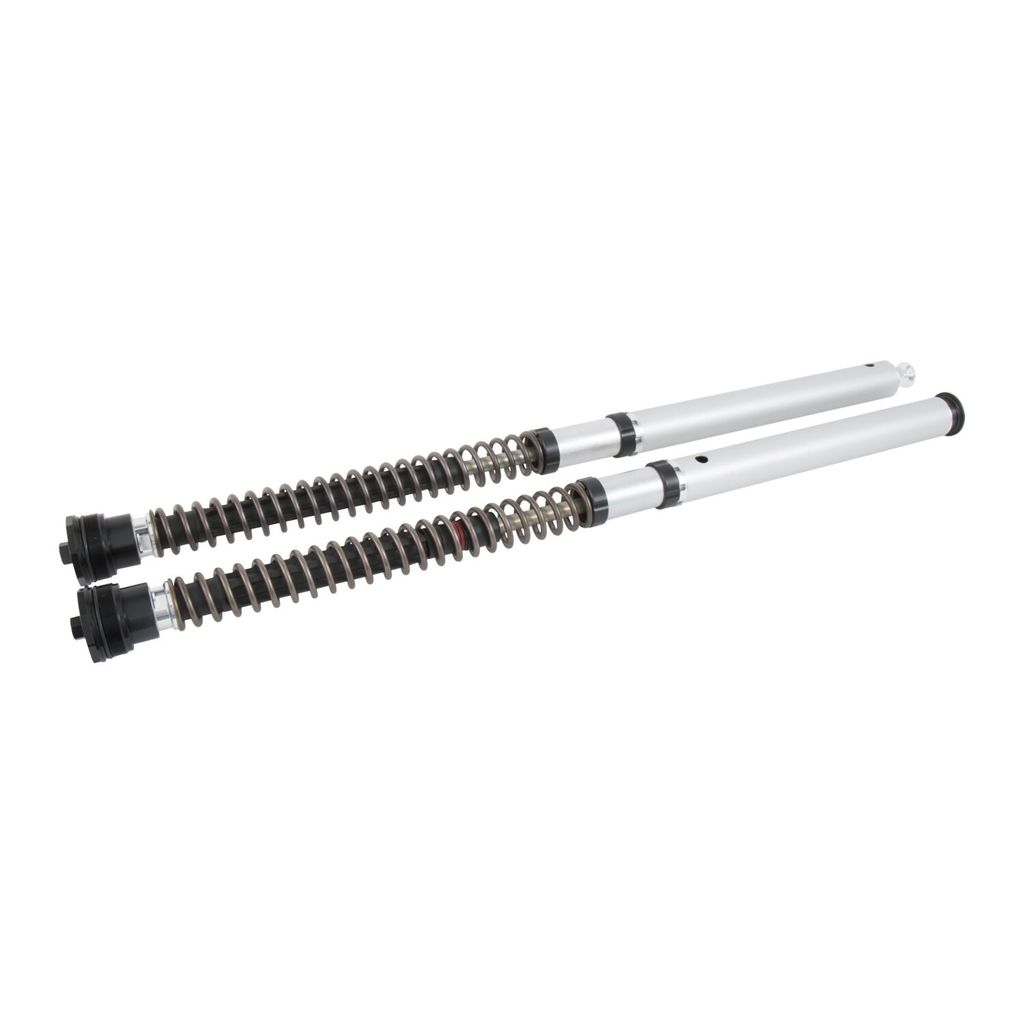

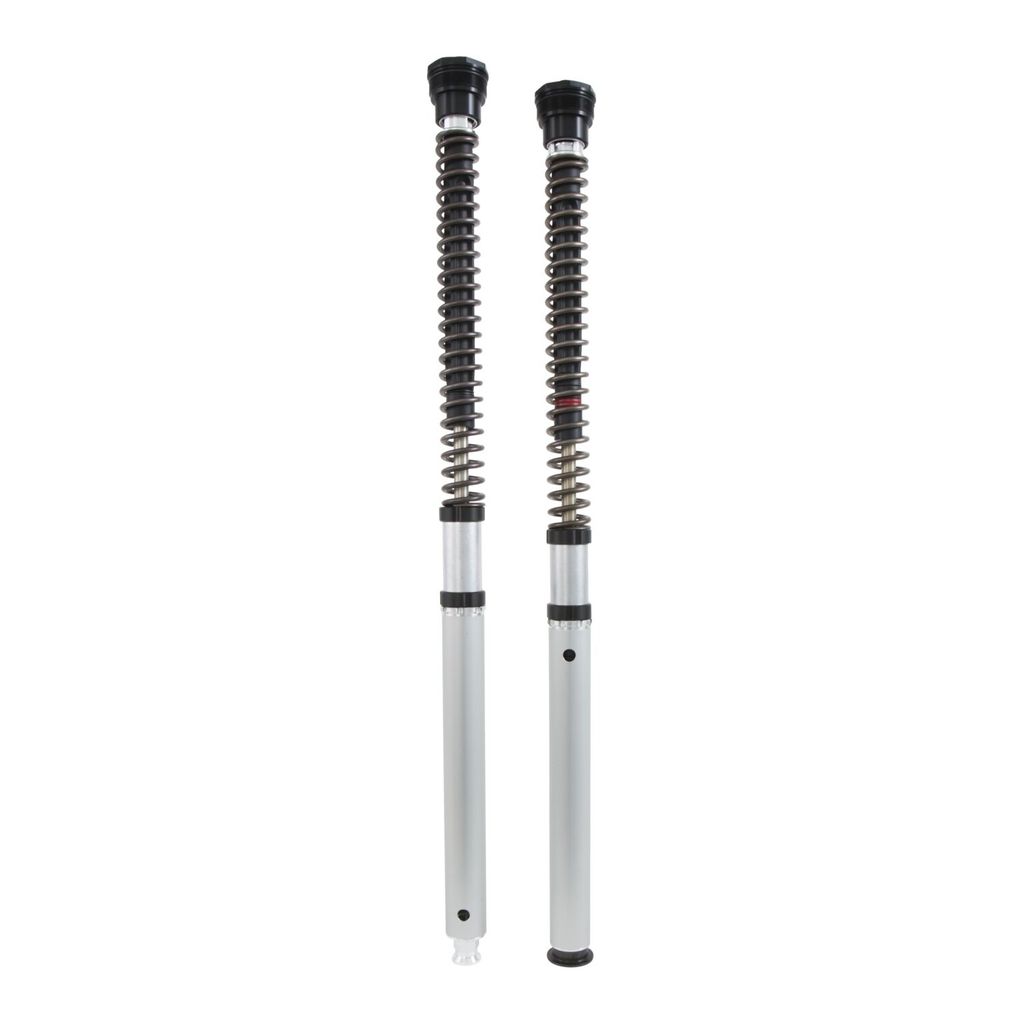

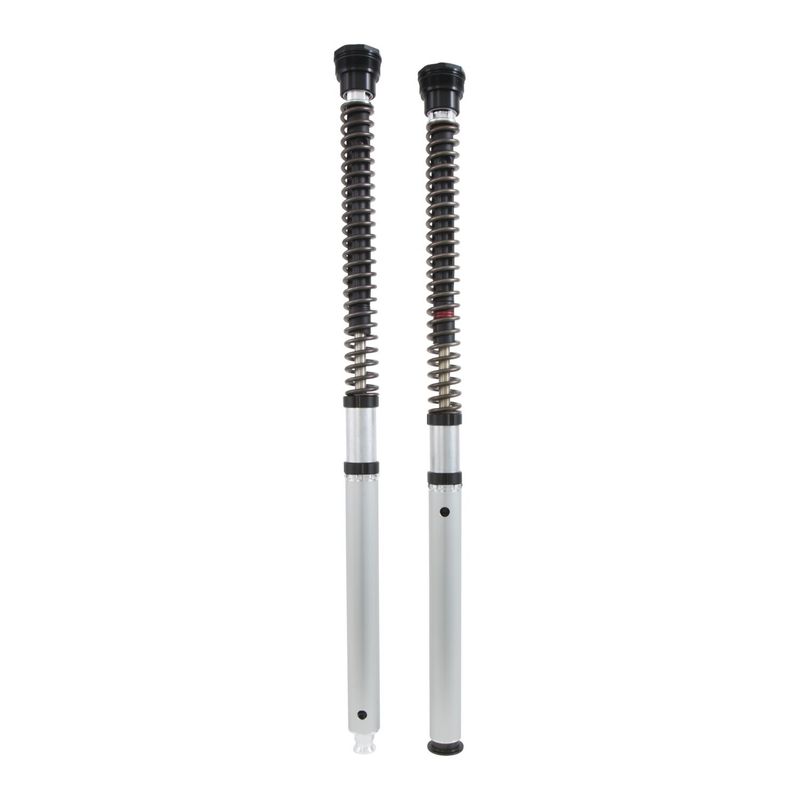

Gaffelpatron fram Öhlins NIX30 Softail FXFB Fat Bob 18-20
Öhlins NIX30 Street gaffelpatronkit för inverterade framgafflar
Läs mer
- Öhlins NIX-teknologi utvecklad från WSBK
- Separat justerbar kompression och returdämpning i respektive gaffelben
- Justerbar förspänning via svarta topplock
- Kolvdiameter: 30 mm
- Slaglängd: 120 mm (5.118")
- Fjädrar ingår: fjäderhastighet 9.5 N/mm, 10.0 N/mm och 11.0 N/mm
- Viktintervall förare: ca 68–159 kg (150–350 lb)
- Säljs i par
Bolt-in-installation i originalets inverterade framgaffel. Rekommenderad gaffelolja är R&T #5 (ca SAE 7.5W), artikelnummer 962112 (1 liter) eller 962113 (4 liter). Övriga fjädrar beställs separat.
Passar: FXFB Fat Bob 18-20
| Produkt-typ | Fork springs |
| Kategori | Fork springs |
FKS Cartridge Kit
- Ohlins NIX-technology
- External compression and rebound adjustment
- External preload adjustment
- 30 mm piston diameter
- NIX30 Street front fork cartridge kit. Softail
- This Öhlins cartridge system with a 30mm piston is for bikes with inverted forks
- Perfect for riders that have a focus on the best obtainable handling and feedback from their ride
- It is a bolt-in installation into the original front fork, but springs must match the rider's weight and preferences for the perfect set-up
- Provided is adjustable compression and rebound damping separated in each leg, as well as preload adjustment which is accessible from the black top caps
- The Öhlins 'NIX' technology is developed from high level racing such as WSBK (Superbike World Championship) to deliver you the utmost performance on road as well as on track for years to come
- Note: Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed
- Note: Recommend fork oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx SAE 7.5W) Note: See our website for additional information on exact model fitment, ABE approval and technical details
- Stroke: 120 mm
- Position: front
- Packaging unit: pair
- Other springs are must be ordered separately
- Springs are sold in pairs
- 962747 Spring rate 8.0 N/mm (custom)
- 50 kg rider / preload turns: 4)
- 60-70 kg rider / preload turns: 60kg 3, 70kg 5)
- 80-110 kg rider / preload turns: 80kg 3, 90kg 5, 100kg 7, 110kg 8)
Spring rates included: 9.5 n/m, 10.0 n/m and 11.0 n/m Stroke length: 5.118" Weight range (Based on rider only because it’s a front cartridge kit) – Min 150 lb – Max 350 lb
Fits: 18-20 (NU) FXFB Fat Bob (ABE approved); 18-24 (NU) FXFBS Fat Bob (ABE approved); 20-26 FXLRS Low Rider (no ABE); 22-26 FXLRST Low Rider ST
