Oljesticka Feuling FLT/Touring 93-06

4 840 kr

Ventilerad oljesticka i billet från Feuling, polerad finish
Läs mer

10120259 Feuling
  • Ventilerar vevhustryck från oljetanken via ett PCV-liknande system

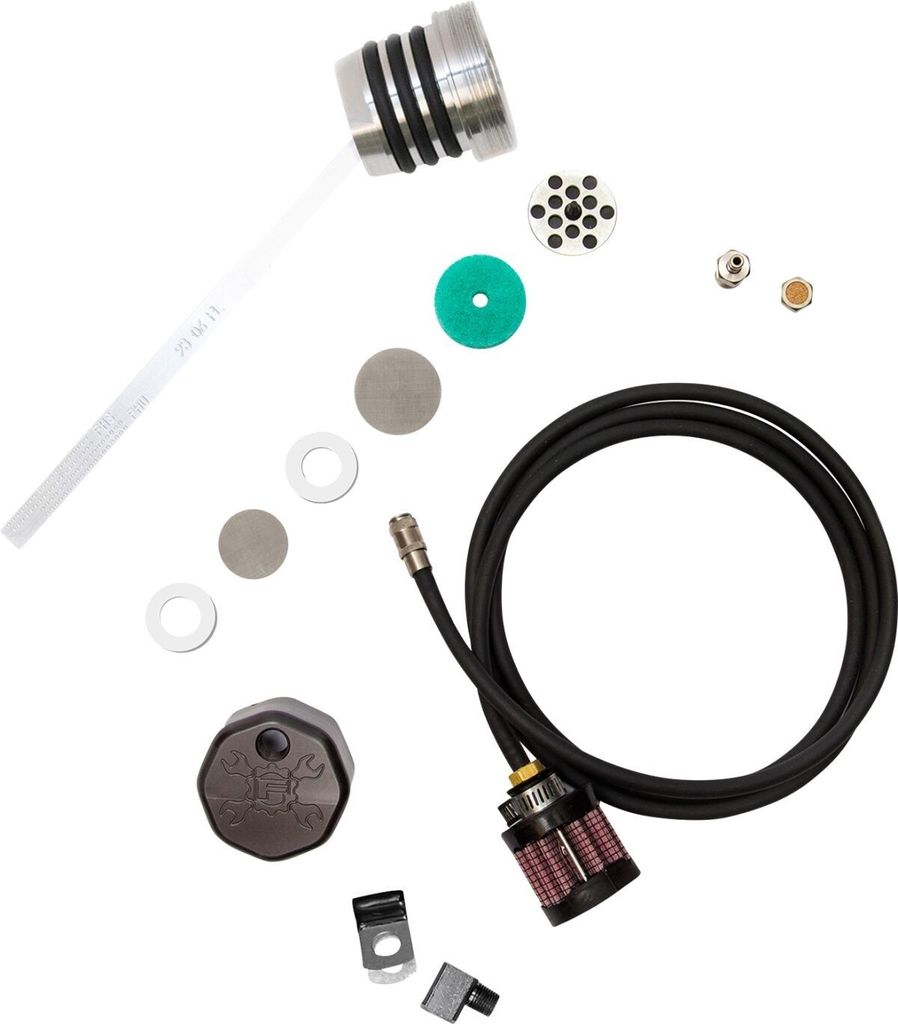

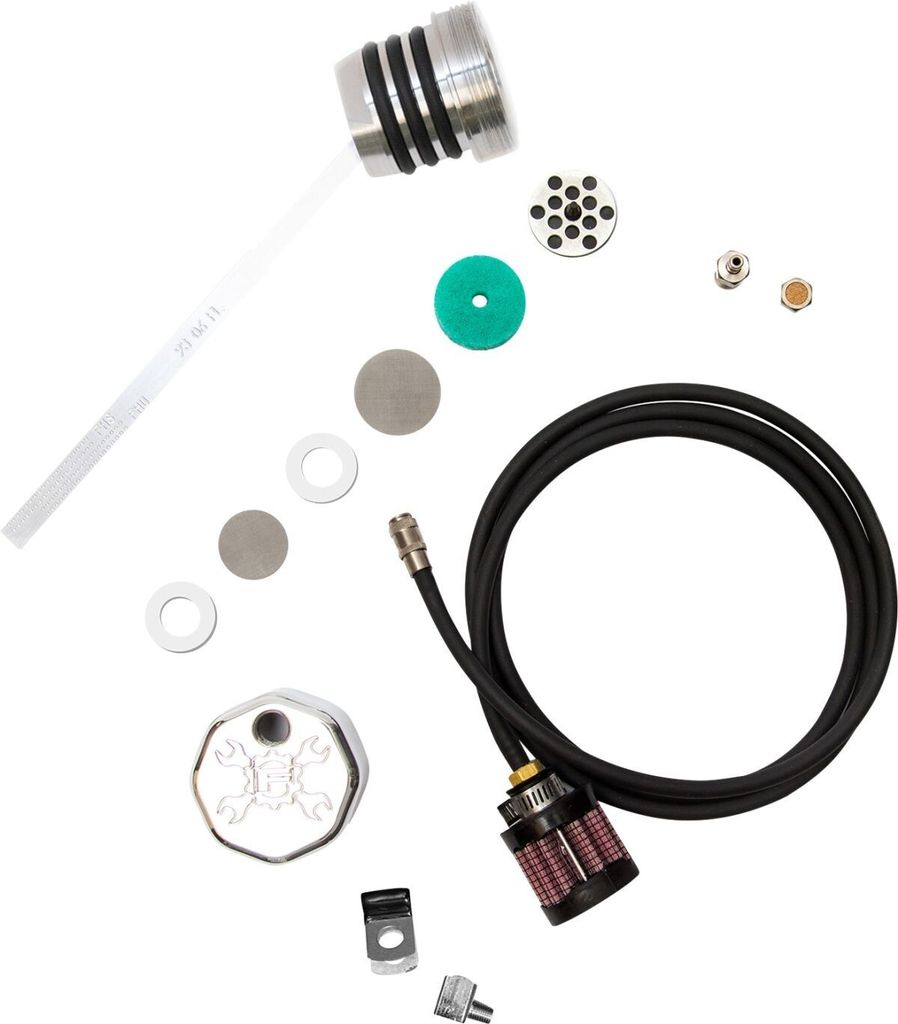

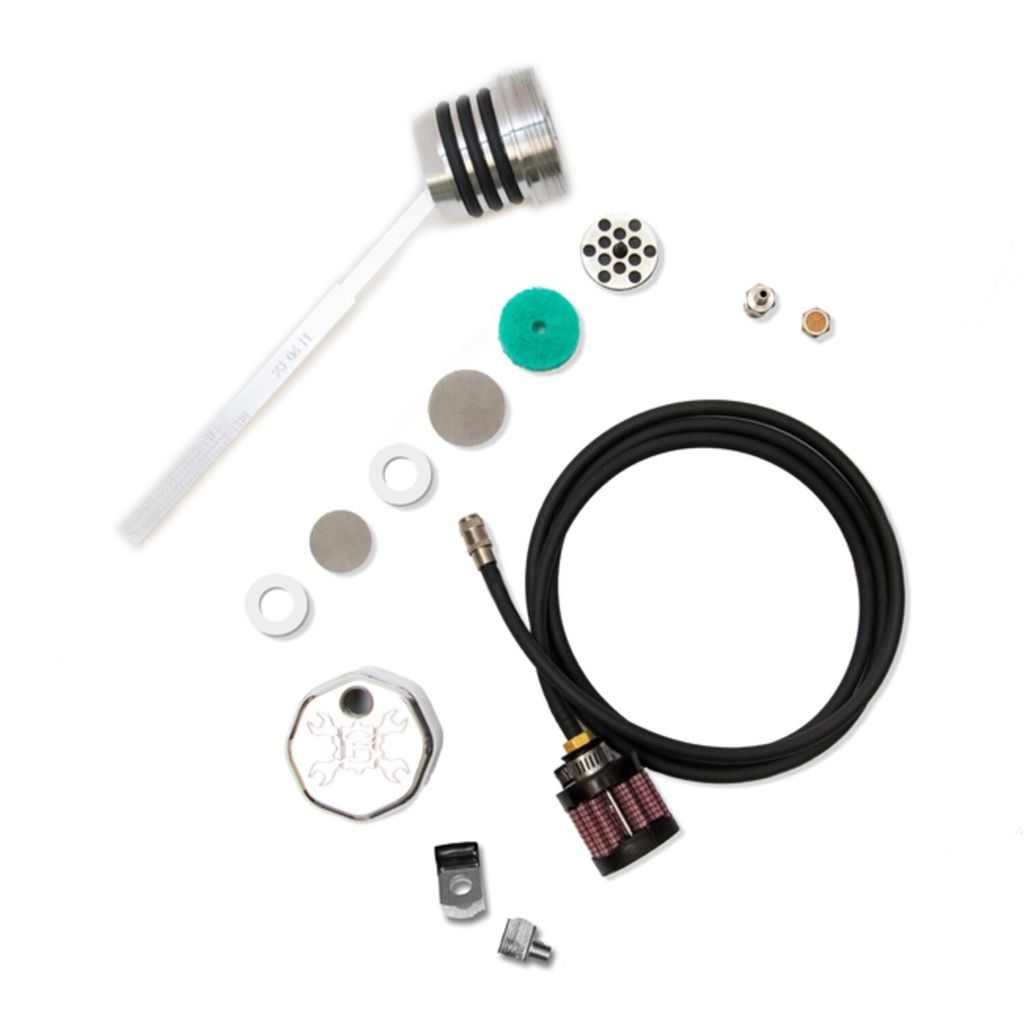

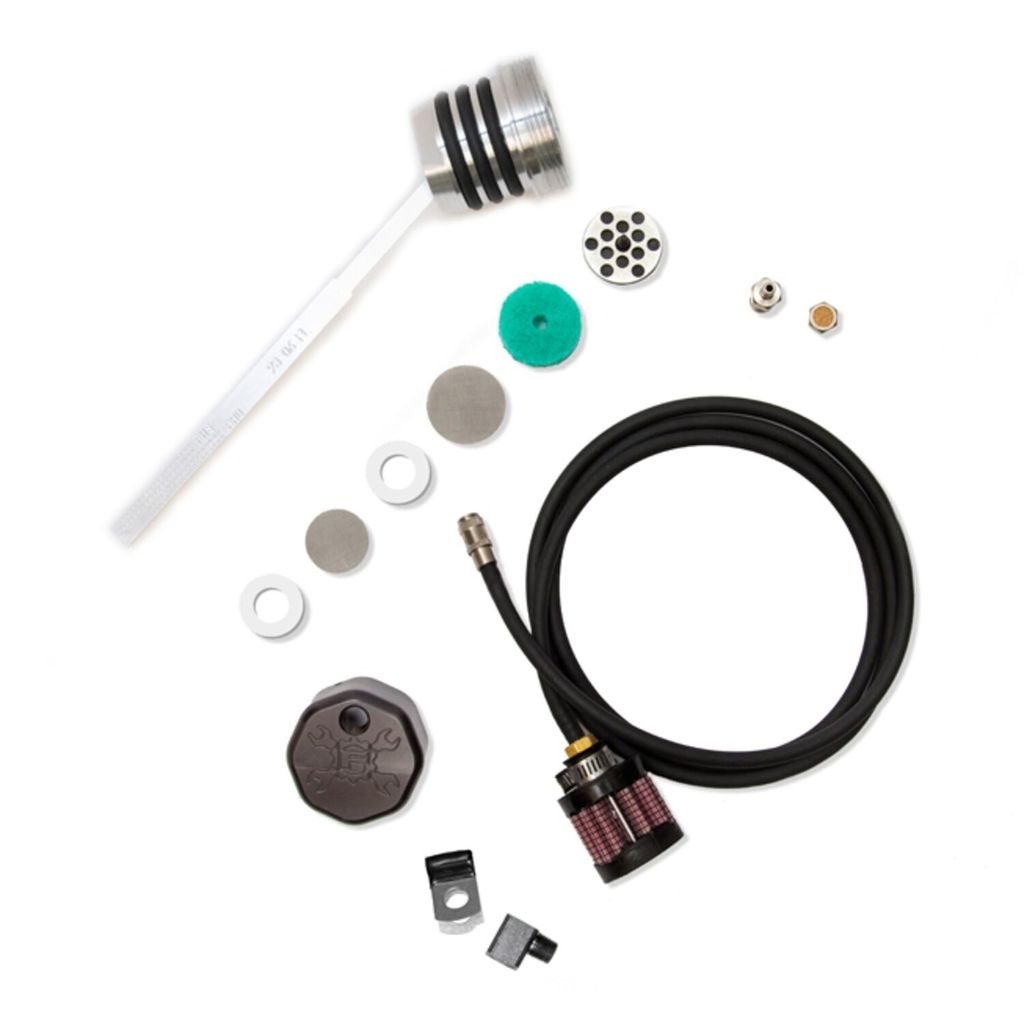

  • Systemet innehåller oljeseparator, perforerad skiva, utbytbar filterinsats och paraplyventil
  • Två valbara ventilationstyper ingår: 1/8 NPT-anslutning med invändig porös filterinsats, eller snabbkoppling med gummislang och filterinsats
  • Ersätter original och gängas direkt i fabrikens oljepåfyllningsrör
  • Tillverkad i billet med polerad finish
  • Två avläsningslägen för varm motor: på sidostödet (FHS) eller upprätt (FHU)
  • Tillverkad i USA

Feuling rekommenderar att oljenivån hålls på 90–99 % vid varm motor. Oljestickan blir varm under körning, så använd handske vid kontroll. Varmkörning på sidostödet rekommenderas inte då oljenivån i tanken kan missvisas.

Passar: FLT/Touring 93-06

Vented Dipstick

  • Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve
  • Includes two different venting style options for installing the dipstick: option 1 - 1/8 NPT breather vent fitting with internal porous filter element, option 2 - quick disconnect coupler fitting with rubber hose and filter element
  • There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) Full Hot Stand or the bike upright and level (FHU) Full Hot Upright
  • The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
  • Fueling test results show a decrease in engine oil sump levels, more freely/smoothe revving engine and increased MPG and decreased blowby
  • Blowby is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank
  • It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot
  • Removes unwanted build-up of blow by pressure in the oil tank
  • Screws into the factory oil fill spout as a stock replacement part
  • Made in the USA
  • This dipstick does get hot, use a glove when checking oil level.
  • Vented dipstick. Black
  • Black hard anodized finish
  • NOTE: All internal combustion engines have a certain amount of blow by
  • Larger cubic inch engines as well as engines with worn and or loose ring clearances will have increased blow by
  • Engines pushed to their limits will also produce excessive build up of ‘power robbing’ blow by
  • This option gives a clean look however it can produce an oil misting/residue out of the element on engines with excessive leak down/blow by
  • However this option does requires disconnecting the fitting in order to check the oil
  • For option 2, we recommend routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail
  • We recommend the following steps to achieve proper oil level: 1
  • Ride the bike until operating temperature is reached
  • 3
  • Shut the bike off while still in the upright position. (This insures an accurate reading)
  • 4
  • 5
  • Add or remove oil as needed
  • NOTE: Feuling in house testing shows venting the air cleaner to atmosphere may be problematic resulting in oil carry over/misting out of the breathers

Fits: 93-06 FLT/Touring (NU)
