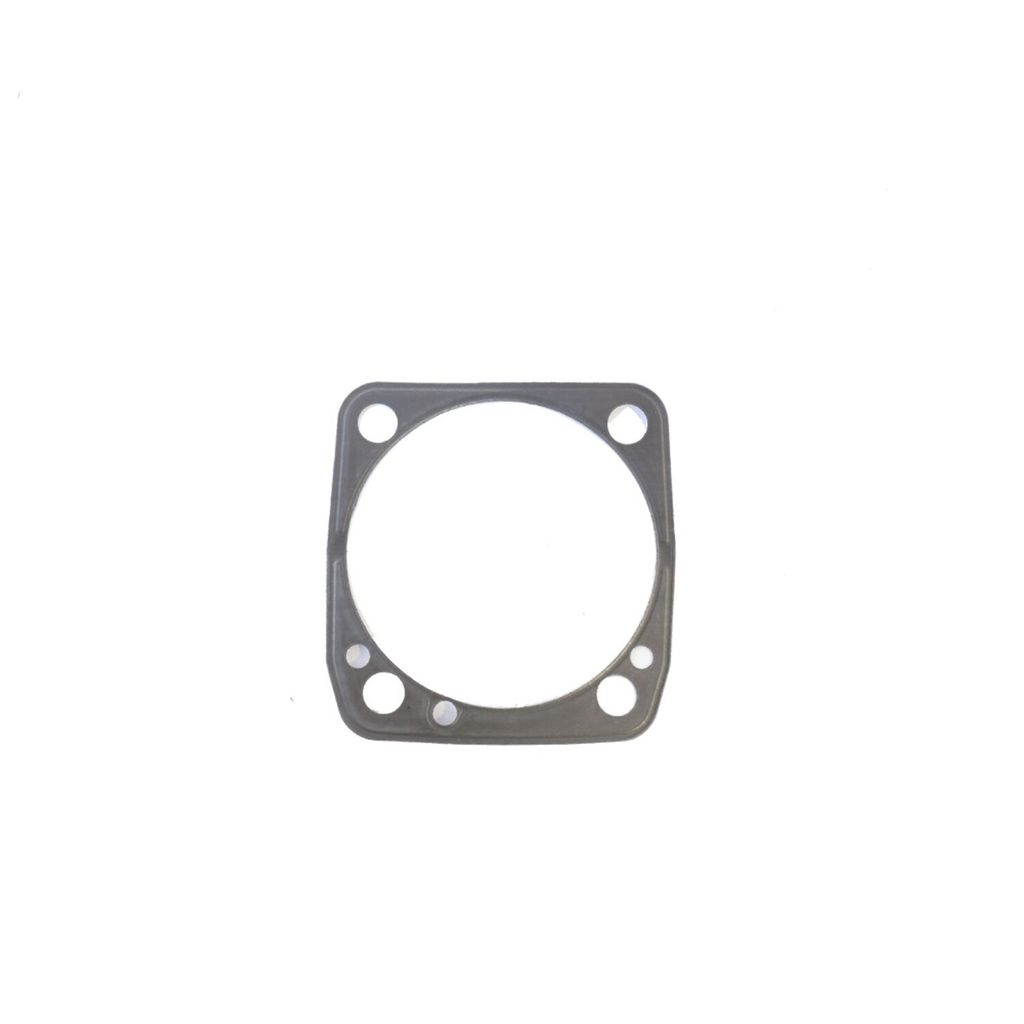

Packningssats Athena S410195006013/1 RCS 3-5/8" .020" fram/bak Evo Big Twin 84-99
Cylinderfotspackningar för 3-5/8" big bore, fram och bak
Läs mer
- Säljs styckvis – bilden kan visa flera, priset gäller 1 st
- För 3-5/8" big bore
- Packningssats för både främre och bakre cylinder
- Packningstyp 'A'
- Tjocklek: .020"
- RCS (Rubber Coated Steel) med präglad stålkärna
- Belagd på båda sidor med .001" värmebeständigt nitrilgummi
Typ 'A' följer cylinderfotens kontur perfekt på 84-99 1340cc Evo Big Twin. Passar även 86-22 Evo XL, men sticker då ut vid cylinderfoten. Typ 'A' och 'B' har identisk innerdiameter samt hålbild för olja och pinnbultar – endast ytterkonturen skiljer.
Passar: Evo Big Twin 84-99
OEM-nr: 16777-94S
3-5/8" cylinder base gasket set. FR/RR .020" RCS
- 3-5/8" big bore
- Front & rear gasket set
- Type 'A' gasket. .020" thick RCS (Rubber Coated Steel)
- Gasket with an embossed steel core with a .001" thick coating of heat resistant nitrile rubber on both sides
- OEM replacement reference none
- Note: Type A' gasket explained: Type A' was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly
- They will fit 86-22 Evo XL, but stick out at the cylinder base
- This can be a problem with silicone beaded base gaskets
- Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations
- Only difference between the 'A' & 'B' gaskets is the outside perimeter
Fits: 84-99 Evo Big Twin; 86-22 XL Sportster. With 3-5/8" big bore cylinders (NU)
