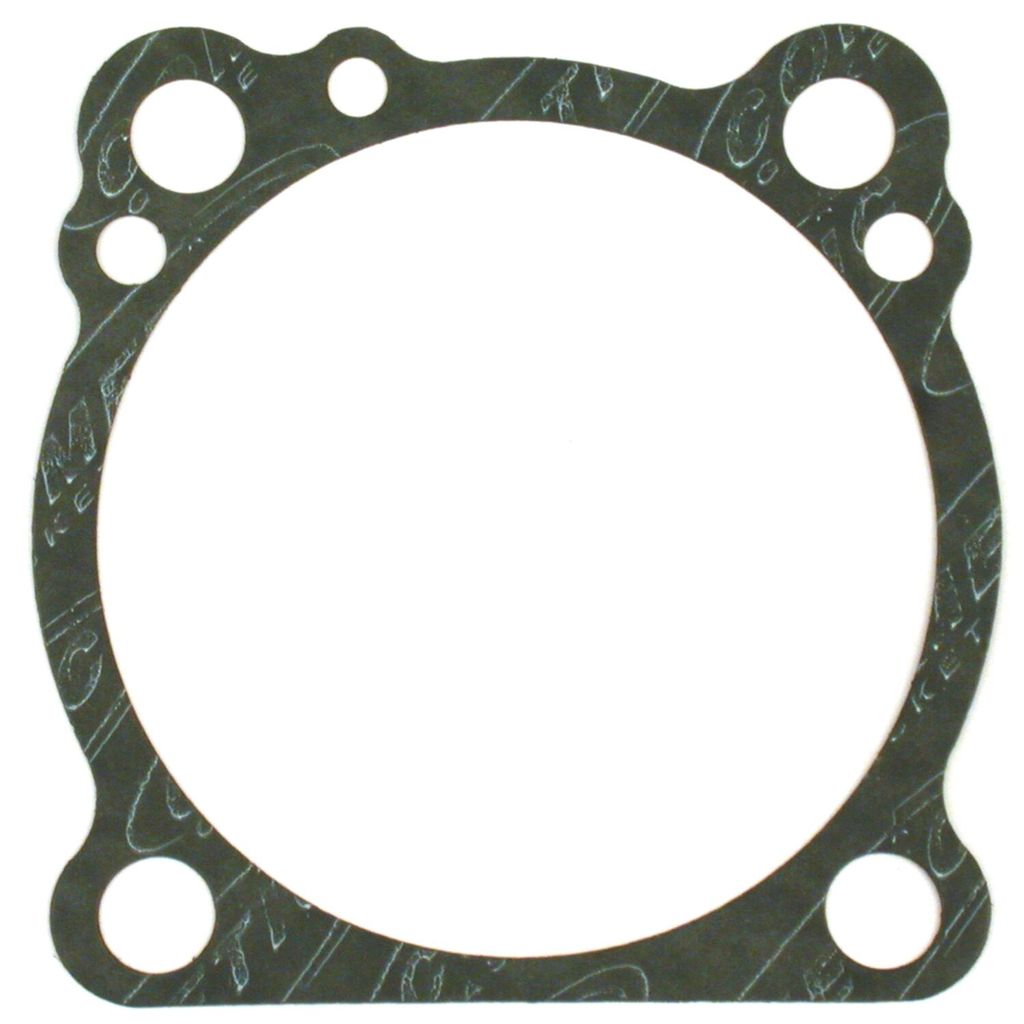

Packningssats cylinderfot Cometic C9008 .020" fiber fram/bak Evo Big Twin 84-99
Cylinderfotspackningar för främre och bakre cylinder
Läs mer
- Säljs styckvis – bilden kan visa flera, priset gäller 1 st
- Packningssats för cylinderfot (fram och bak)
- Tillverkade i .020" tjock fiber
- Högdensitetsmaterial som tål höga temperaturer och motverkar krypning
- Kräver ingen efterdragning eller extra tätningsmedel
- Bränsletåliga och asbestfria
- Typ B (senare modell)
- Identiska packningar för främre och bakre cylinder
- Samma innerdiameter samt hål för olja och pinnbultar som typ A
Typ B har samma innerdiameter och hålbild som typ A, den enda skillnaden är den yttre profilen.
Passar: Evo Big Twin 84-99
OEM-nr: 16774-86D, 16789-04
Cylinder base gasket set FR/RR. .020" fiber
- Type 'B'. .020" thick fiber, a premium hi-temperature, hi-density creep resistant material that requires no re-torquing, no additional sealants, is fuel resistant and asbestos free
- OEM replacement reference 16774-86D, 16789-04
- Type 'A' (early style) and type 'B' (late style) gaskets explained: There are 2 types of cylinder base gaskets for Evolution models available
- For convenience sake we'll call them 'type A' (early) and 'type B' (late). *Type A' gasket was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contoures of the cylinder base perfectly
- They will fit 86-22 Evo XL, but stick out at the cylinder base
- The 'type B' is the only gasket type that 'The Factory' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models
- Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations
- Gaskets for front & rear cylinder are identical
- Only difference between the 'A' & 'B' gaskets is the outside perimeter
Fits: 84-99 Evo Big Twin; 88-22 XL Sportster1200 (Excl. 08-12 XR1200) (NU)
