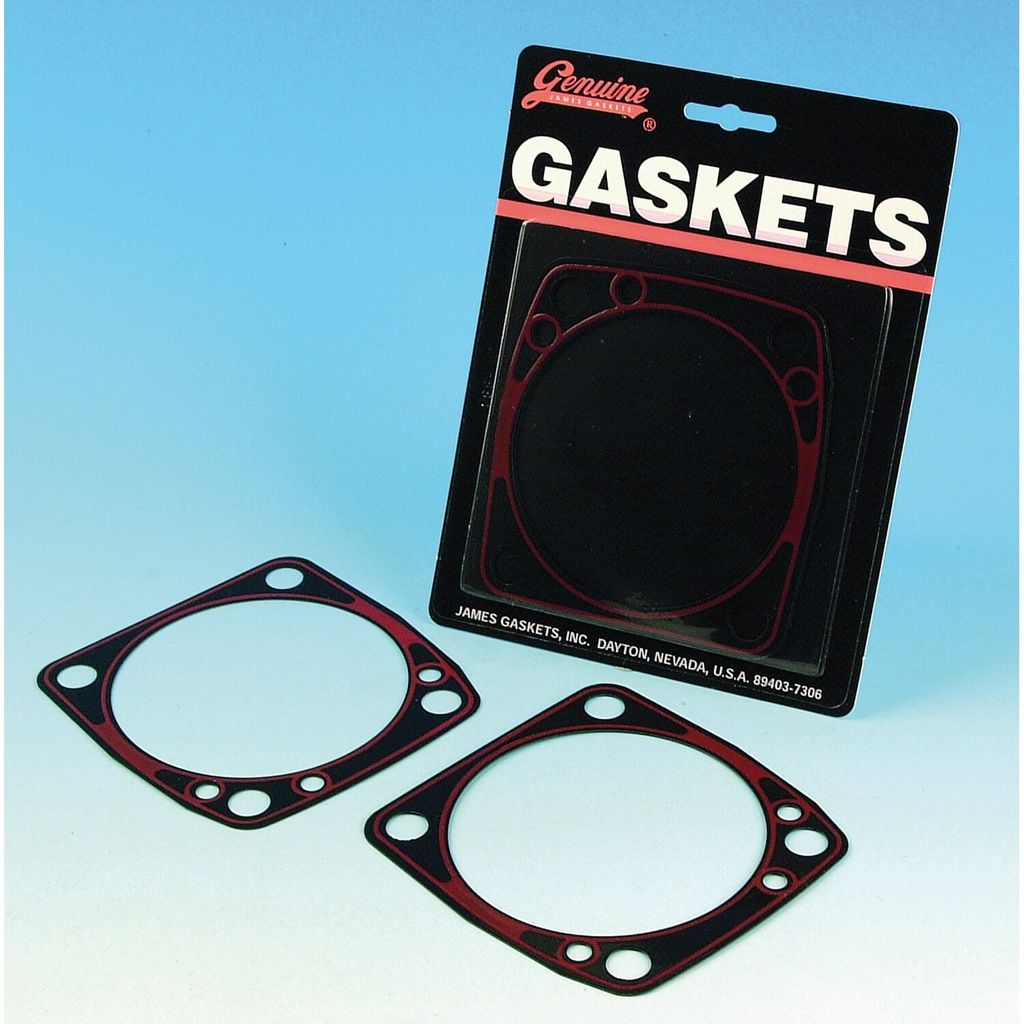

Packningssats cylinder James Gaskets 16777-94 RCM .022" Evo Big Twin 84-99

610 kr

Packningssats för cylinderfot från James Gaskets
Läs mer

500340 James Gaskets
  • Typ A
  • Tjocklek .022" RCM (Rubber Coated Metal)
  • Kompressionstjocklek .020"
  • Kärna av .020" rostfritt fjäderstål belagd med .001" värmebeständigt Viton-gummi på båda sidor
  • Kräver ingen efterdragning
  • Blir inte spröd och bränns inte sönder
  • Identiska packningar för främre och bakre cylinder

Typ A följer cylinderfotens konturer perfekt på 84-99 1340cc Evo Big Twin. Passar även 86-22 Evo XL, men sticker då ut något vid cylinderfoten.

Passar: Evo Big Twin 84-99

OEM-nr: 16774-84A

James gasket set, cylinder base. RCM .022"

  • 022" RCM (Rubber Coated Metal)
  • Type 'A'
  • Final crush .020"
  • James' RCM gaskets consists of a .020" thick stainless spring steel base covered with a .001" thick heat resistant Viton rubber on both sides
  • A very strong gasket which requires no re-torquing
  • Gaskets will not become brittle or burn out
  • OEM replacement reference 16774-84A
  • Note: Type 'A' and 'B' Evolution base gaskets explained
  • There are 2 types of cylinder base gaskets for Evolution models available
  • For convenience sake we call them 'type A' (early style) and 'type B' (late style)
  • Type A' gasket: Was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly
  • They will fit 86-22 Evo XL, but stick out at the cylinder base
  • This can be a problem with silicone beaded base gaskets
  • The 'type B' is the only gasket type that 'The Factory' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models
  • Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations
  • Gaskets for front & rear cylinder are identical
  • Only difference between the 'A' & 'B' gaskets is the outside perimeter

Fits: 84-99 Evo Big Twin (NU)
