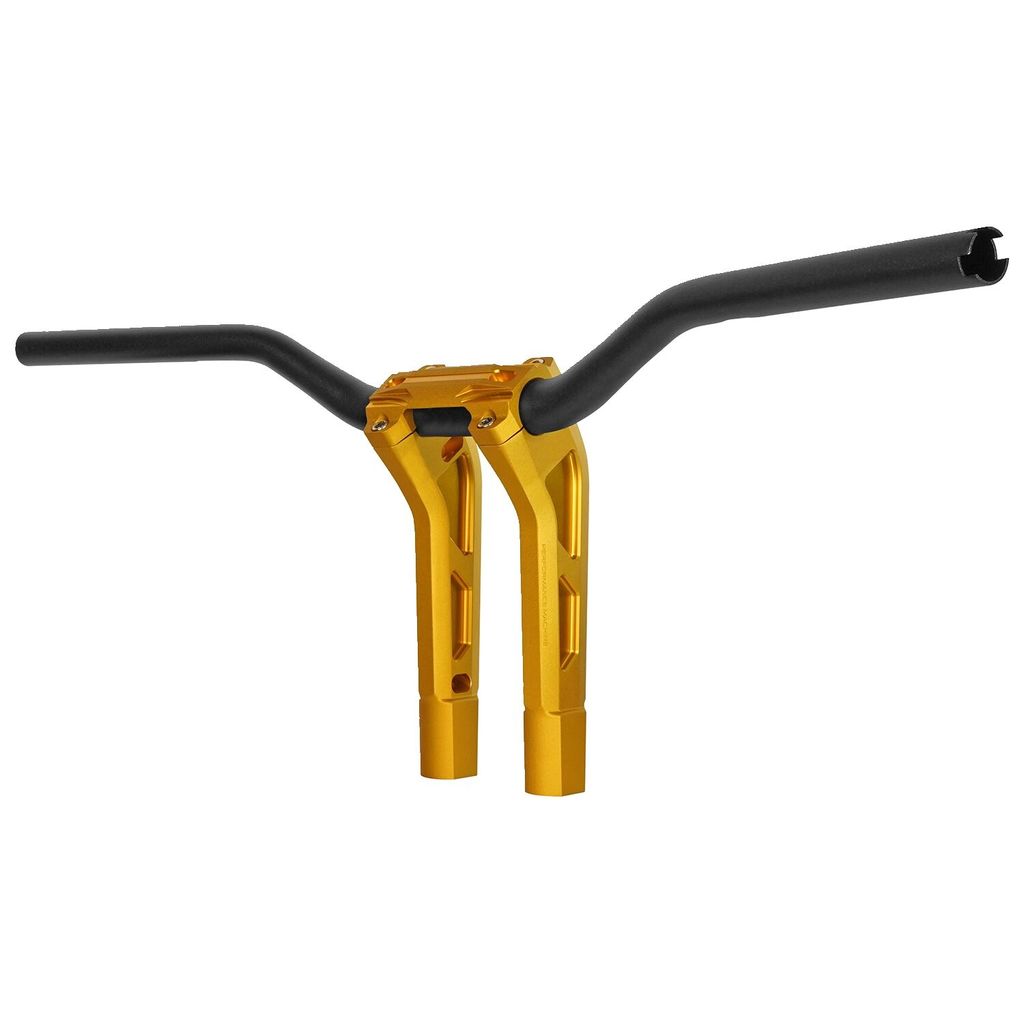

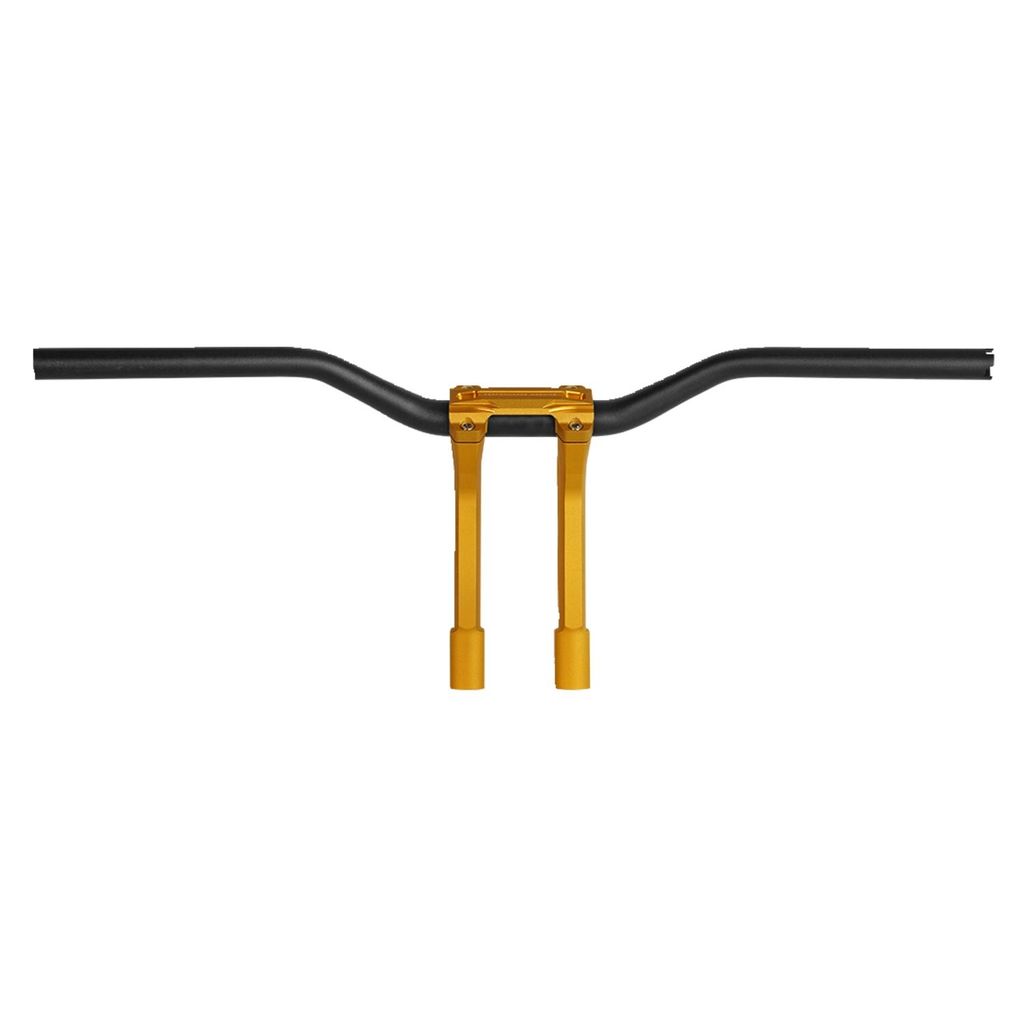

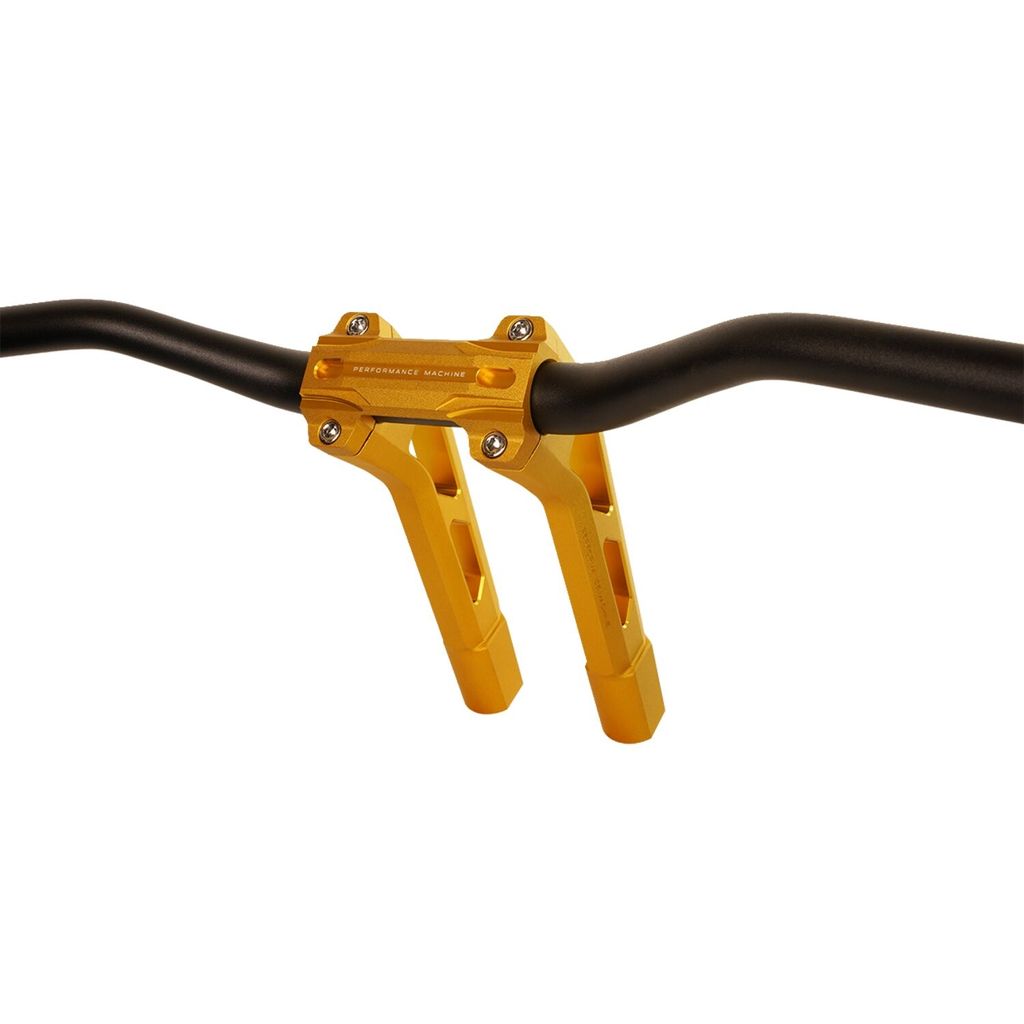

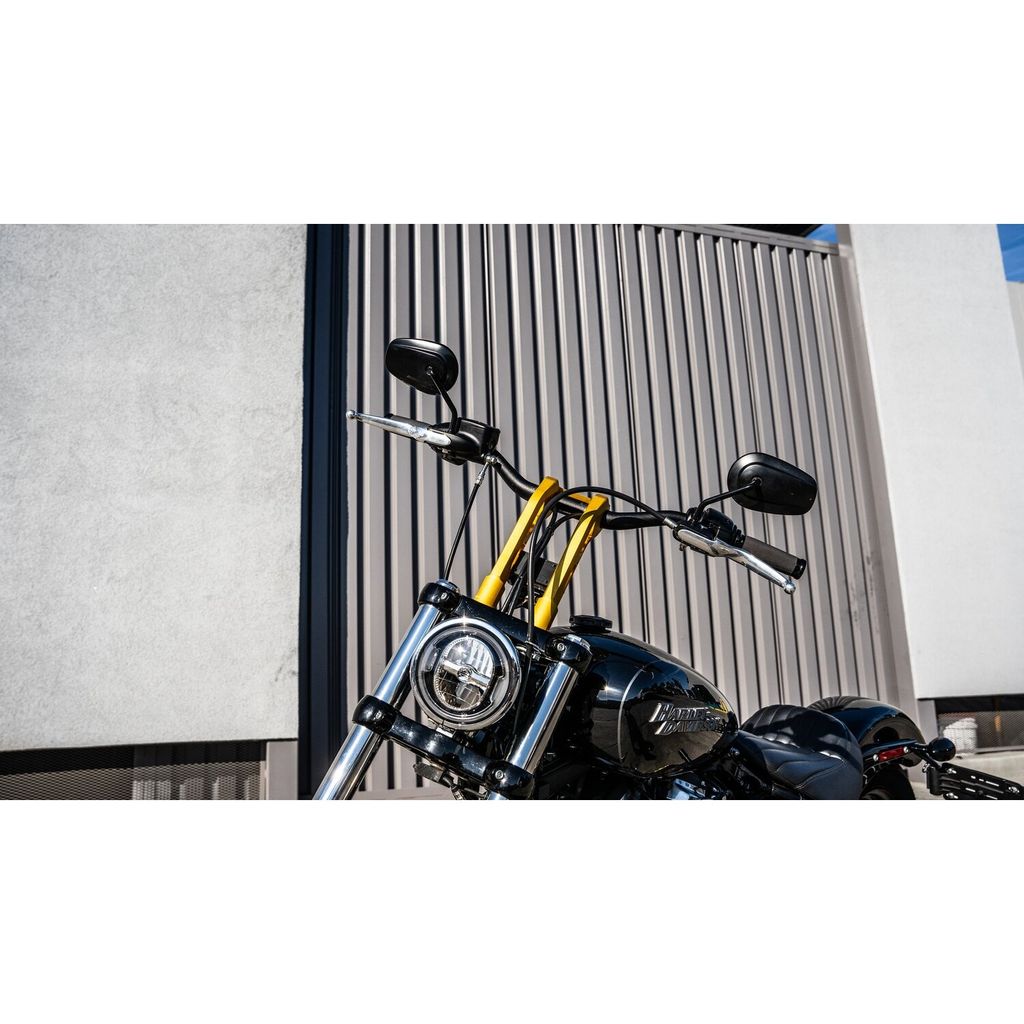

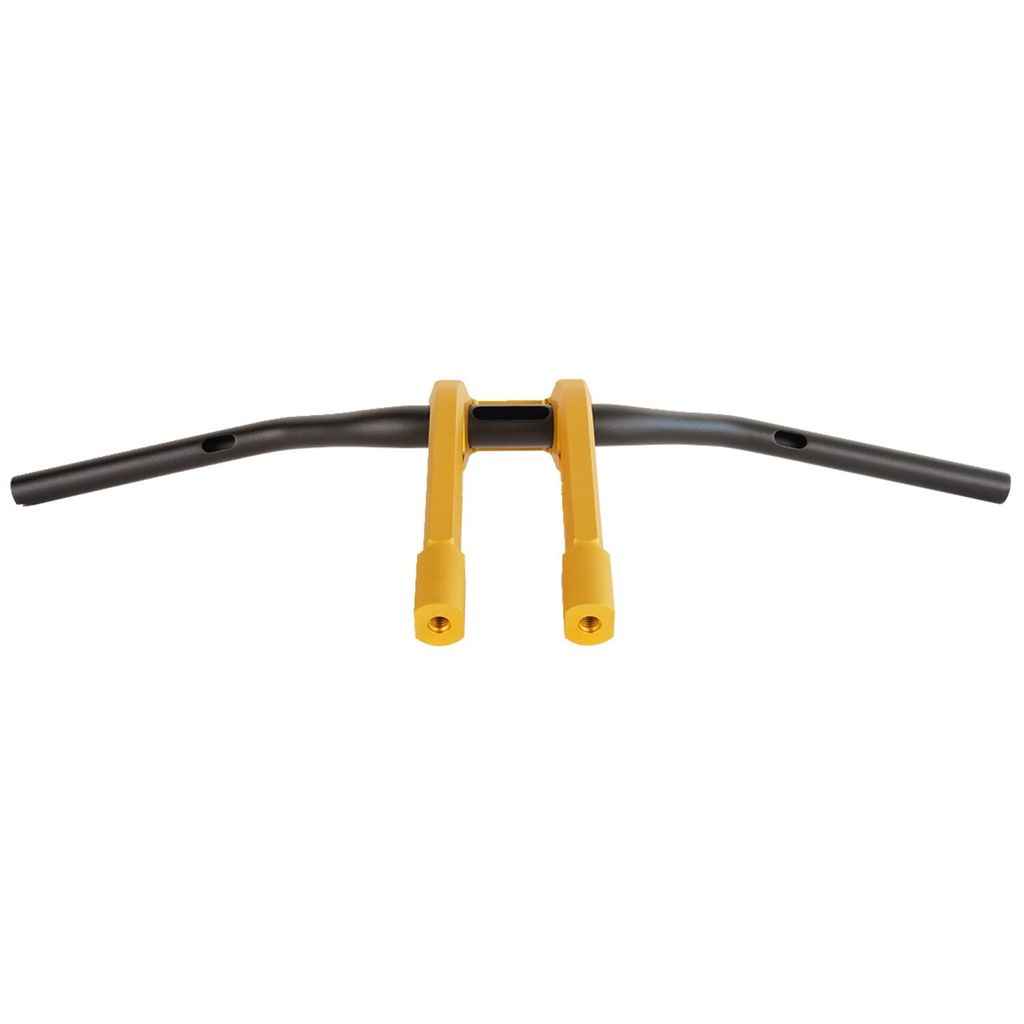

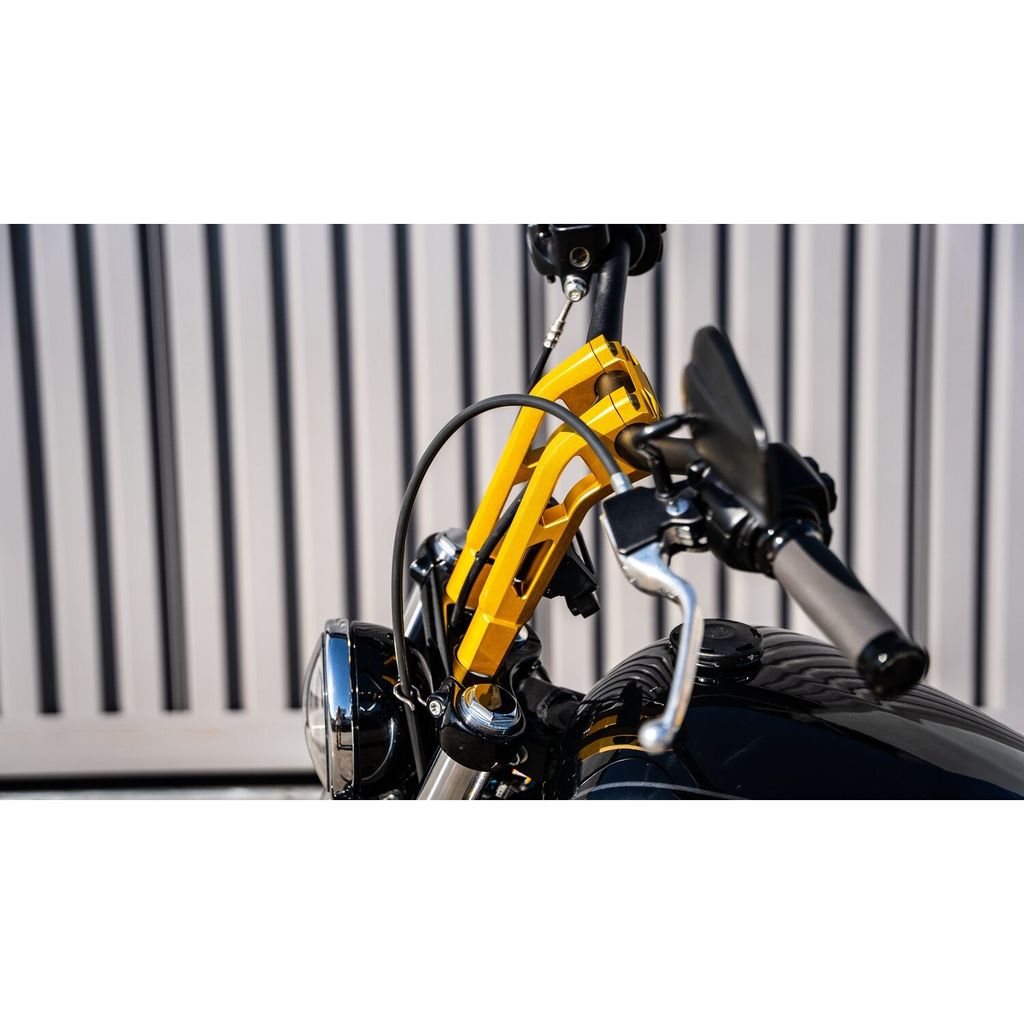

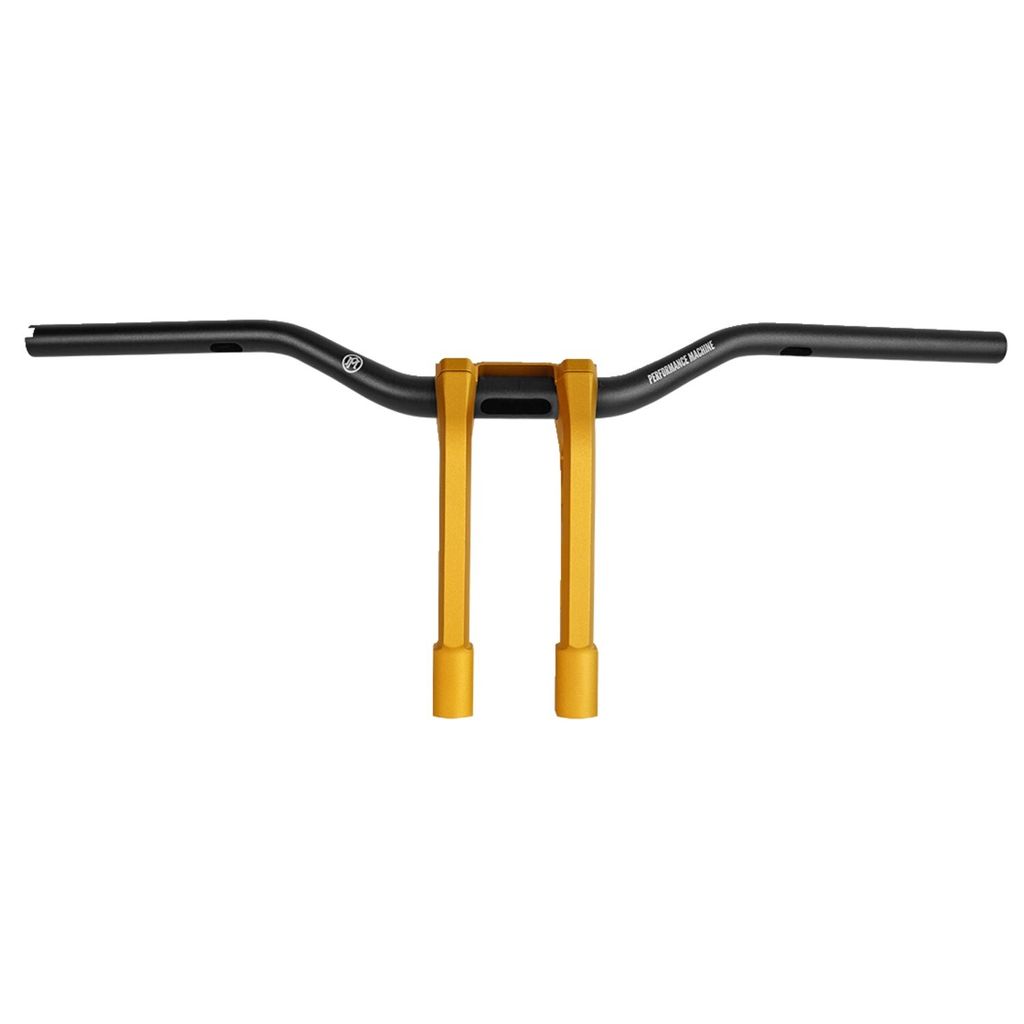

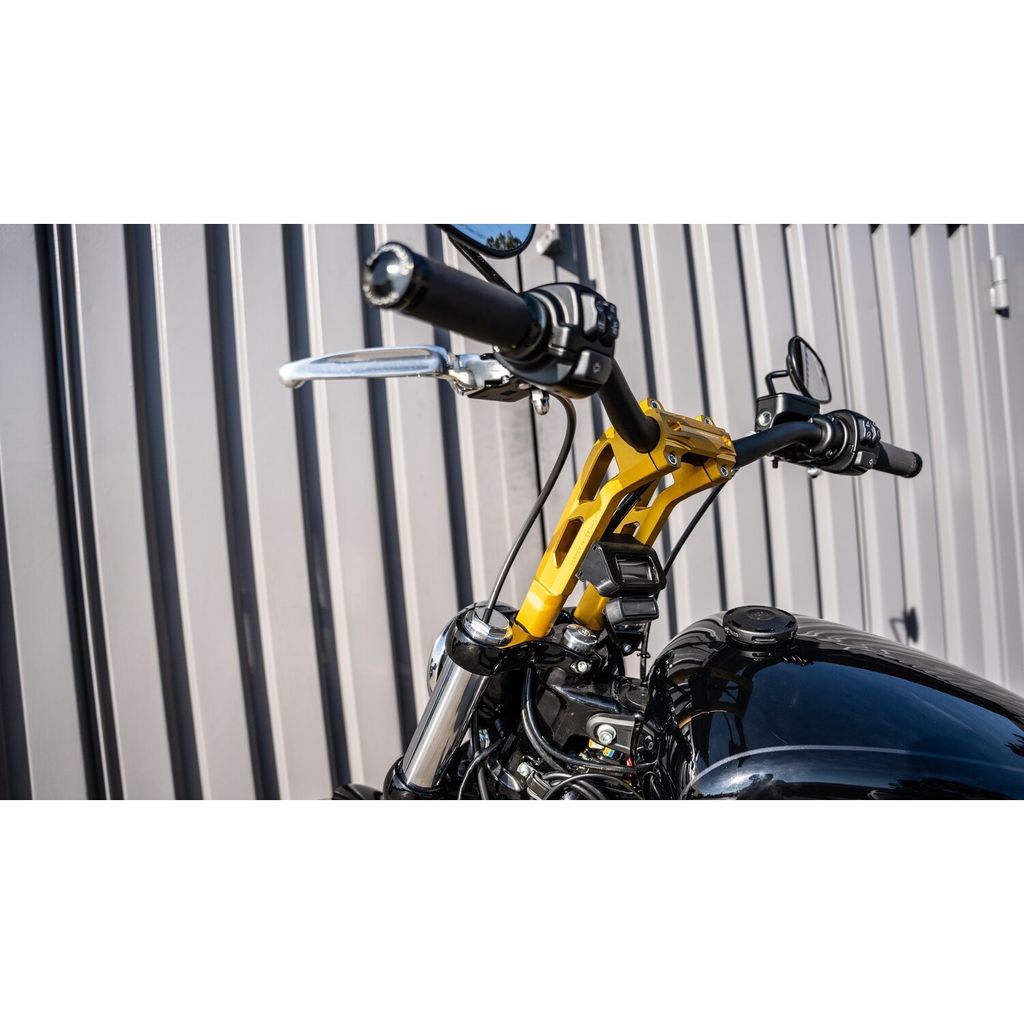

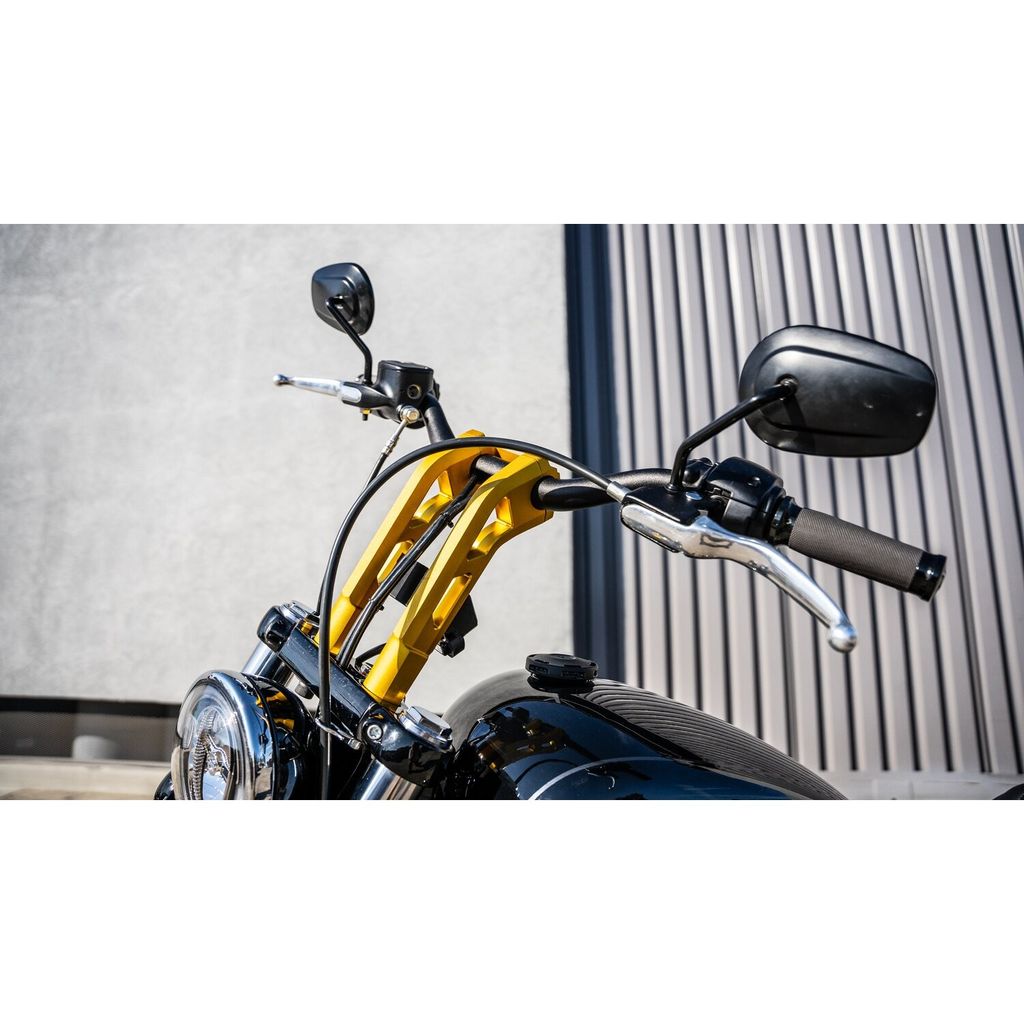

Riser Performance Machine Phatbar
Styre och risersats med 12" total resning från Performance Machine
Läs mer

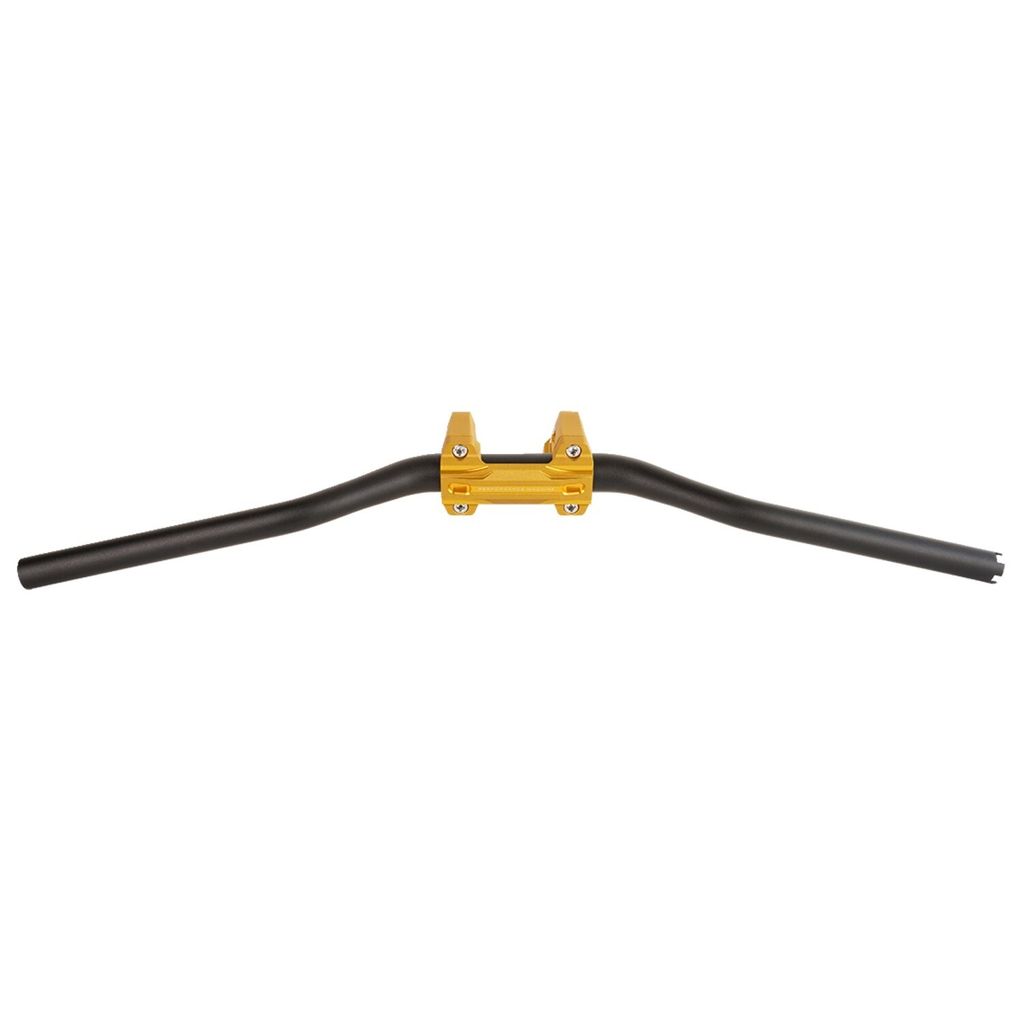

- Styre tillverkat i 7050-T6 aluminium med 3" resning och uttag för invändig kabeldragning

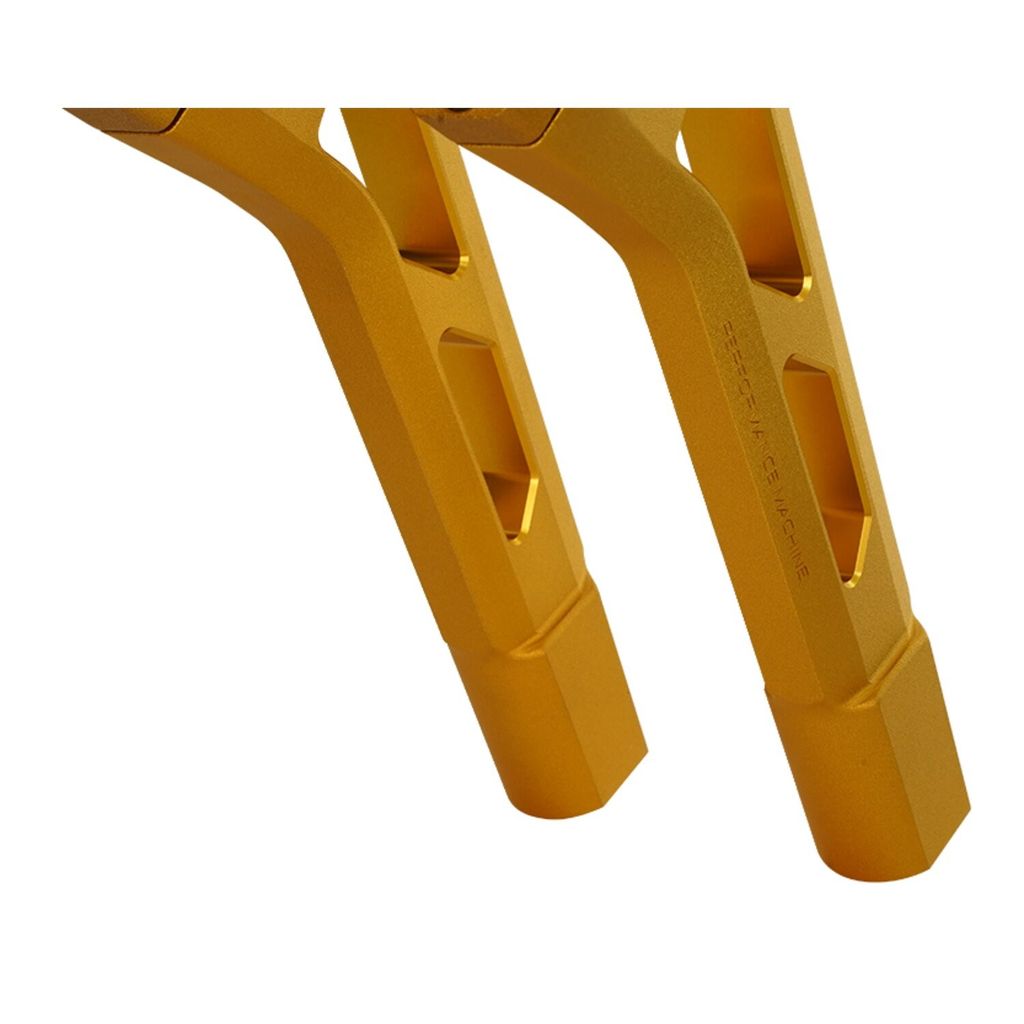

- Risers CNC-frästa i fräst aluminium (9" höga) med Gold Ops-finish (blank guld och skrynklat guld)
- Totala mått: 12" höjd, 32" bredd och 3" pullback
- Stångdiameter på 1-1/4" som är konisk ner till 1" för originalreglage utan modifiering
- Standard Harley-Davidson bultmönster (3-1/2" centrum-till-centrum)
- Kompatibel med mekanisk gasvajer och elektronisk gas (TBW)
- Risers avsedda för utvändig kabeldragning
Kräver styrklammer 999873 (Black Ops) eller 999874 (Gold Ops) för kompatibilitet med flyttsats mätare. Vid montering av H-D digital mätare beställs flyttsats separat: 999870 (rektangulär mätare) eller 999871 (4" rund mätare). För modeller med 4" rund mätare och varningslampor finns flyttsats för varningslampor som 999872.
Passar: H-D mek. eller e-gas med
Phatbar & Riser Kit
- Bar made from 7050-T6 aluminum with a 3” rise and slots for internal wiring
- Bar features an 1-1/4" clamping area tapered down to 1" to accommodate stock hand controls without any modifications
- Compatible with cable throttle and electronic throttle applications
- Stock Harley-Davidson bolt pattern (3-1/2" on-center)
- Risers are made CNC machined from billet aluminum
- PM, 1-1/4" Phatbar & 12" riser kit. Gold Ops
- With 9" risers & 3" rise handlebar for 12" overall rise
- With Gold Ops (a subtle gloss gold & wrinkle gold combination finish) risers for external wiring
- Compatible with both mechanical and electronic throttle
- Dimensions overall: 12" tall, 32" wide, 3" pullback
- Bar diameter: 1.25" tapers to 1"
- Note: This early Phatbar & Riser Kit requires 999873 (Black Ops) or 999874 (Gold Ops) riser top clamp for gauge relocation compatibility
- When installing the stock H-D digital gauge you must separately order the gauge relocation kit, available as 999870 (rectangular style gauge) or 999871 (4" round style gauge)
- For 4" round gauge models with warning lights a warning light relocation kit is available as 999872
Fits: 82-24 H-D mech. or e-throttle with 3-1/2" mount bolt spacing (NU)
