Bensinkran Pingel Power-Flo Vacuum Operated vänster höger Big Twin, XL Sportster 75-06

4 980 kr

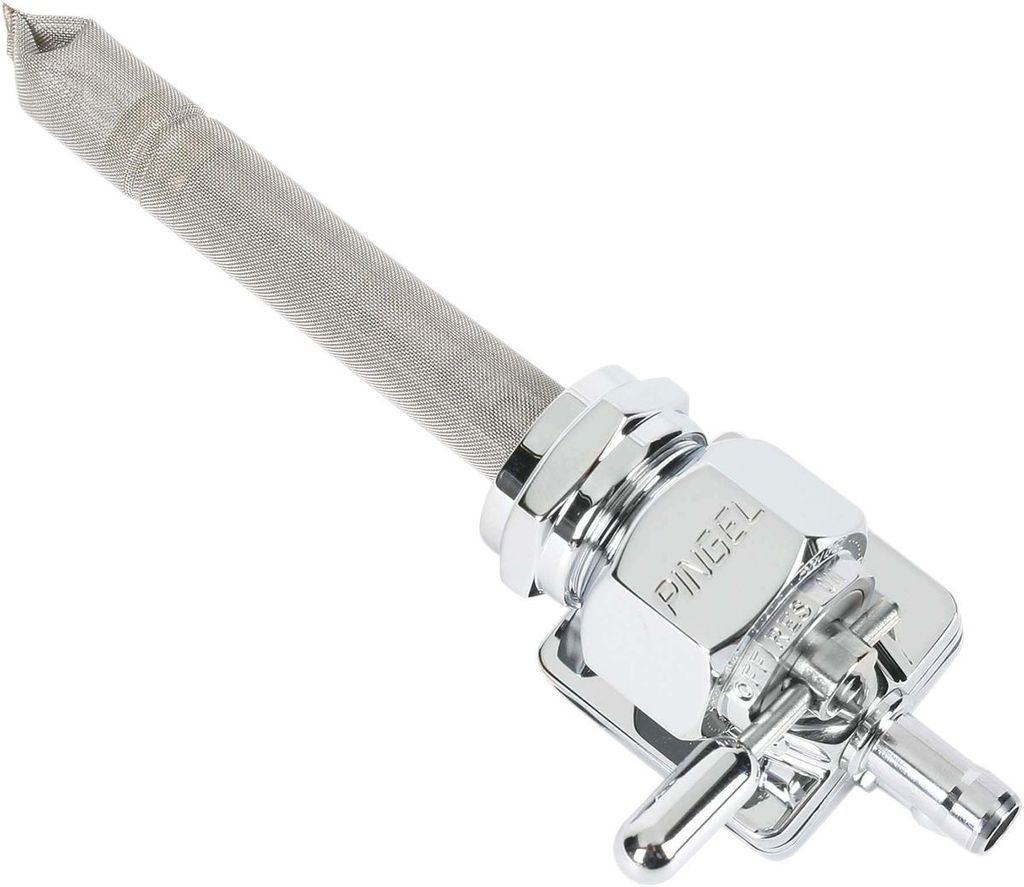

Vakuumstyrd bensinkran i krom med högt bränsleflöde från Pingel
Läs mer

21070004 Pingel
  • Vakuumstyrd funktion som automatiskt stänger av bränsleflödet när motorn stängs av
  • Högt bränsleflöde ur Pingels Power-Flo-serie som förhindrar bränslebrist vid höga varvtal
  • Blank kromfinish av hög kvalitet
  • Utlopp bakåt (rear outlet) med 5/16" (8 mm) slanganslutning
  • Vakuumanslutning för 3/16" (4,8 mm) original vakuumslang
  • 22 mm gänga och mutter
  • Tillverkad i USA

Kranen kan vridas 90 grader för att rikta utloppet åt vänster eller höger med bibehållen funktion på vredet. Kräver en ansluten vakuumkälla på modeller från 1984–1993.

Passar: H-D 75-24

Färg Chrome
Produkt-typ Fuel Valve
Tillverkarens Art. Nr. 6391-CHV

Vacuum Fuel Valve

  • The same feature as OEM vacuum fuel valves - when valve is left in the "on" position with the motor off, fuel flow is shut off automatically
  • High-quality, lustrous chrome finish is the same as Pingel's Power-Flo line of fuel valves
  • Outlet is a single 5/16" hose barb and will accept the stock vacuum line
  • Available for '75-'93 models with a 22 mm external thread - will also work for '94-'99 models with 22 mm thread to eliminate vacuum shut off - available for '66-'74 tanks internally threaded for 3/8 NPT
  • Made in the USA
  • All descriptions are made from a seated position on the motorcycle with a reference from outlet position to the reserve position of the fuel valve lever.
  • Will also fit '84-'93 models if a vacuum source is tapped.
  • Power-Flo vacuum operated petcock
  • Chrome; 22mm & nut; 5/16 (8mm) fuel hose; 3/16 (4.8mm) vacuum hose; rear outlet
  • If you need a petcock that is made without compromises, you'll want a Pingel
  • Pingel petcocks are world famous for their gas guzzling capabilities and if you think you don't need a high flow petcock... think again
  • With a regular petcock, when traveling at high speed, even with a stock engine, it can happen that your bike uses more fuel than a regular petcock can deliver
  • The engine sucks the float bowl dry, literally starving the engine
  • With High Performance Big Inch motors the problem increases
  • Pingel petcocks can supply the amount of fuel your engine needs to perform
  • Note: This petcock has a rear outlet
  • If you rotate the complete 'rear outlet' petcock 90 degrees, you can make the outlet point to the left or right and are still able to control the fuel valve handle
  • This makes a pretty universal set-up for future gas tanks where petcock location may be different

Fits: 75-06 Big Twin, XL Sportster (NU) (Excl. inj. models); customs with 75-up style threaded tanks
