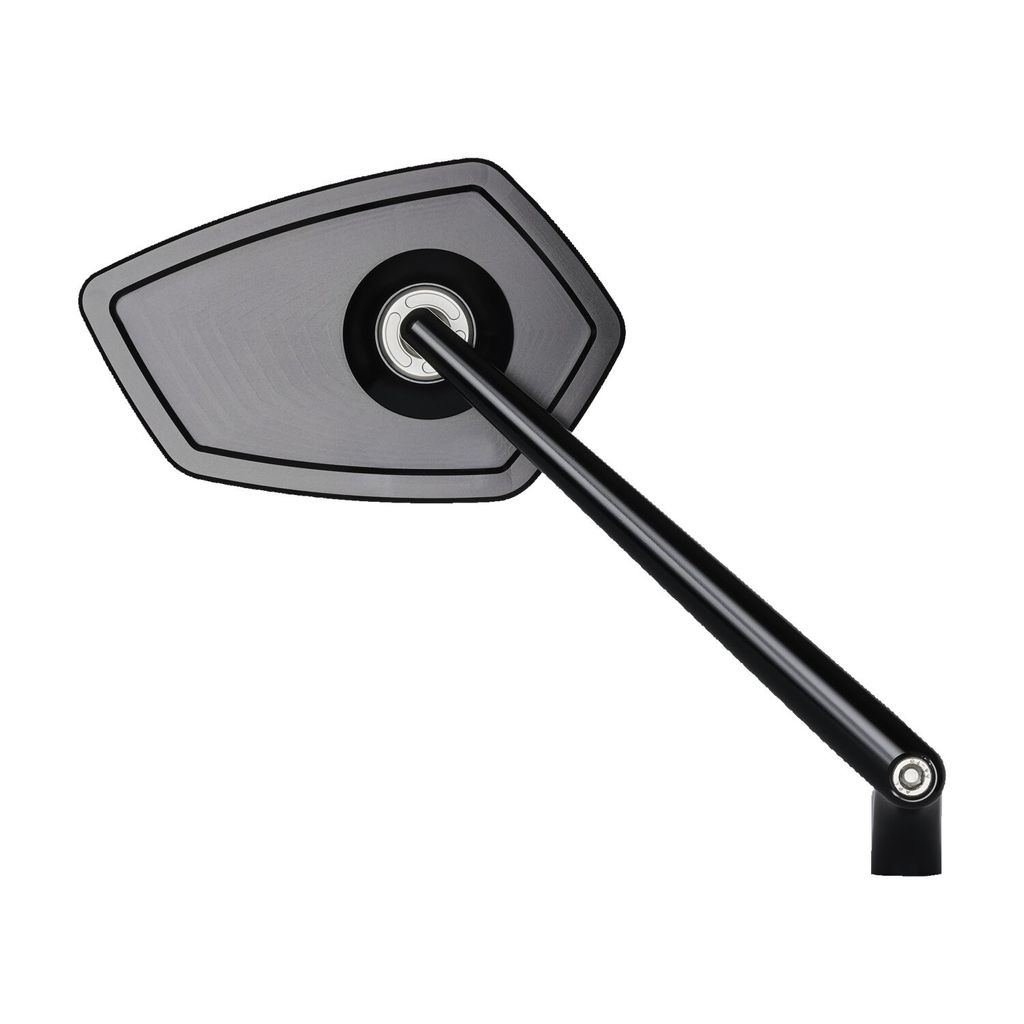

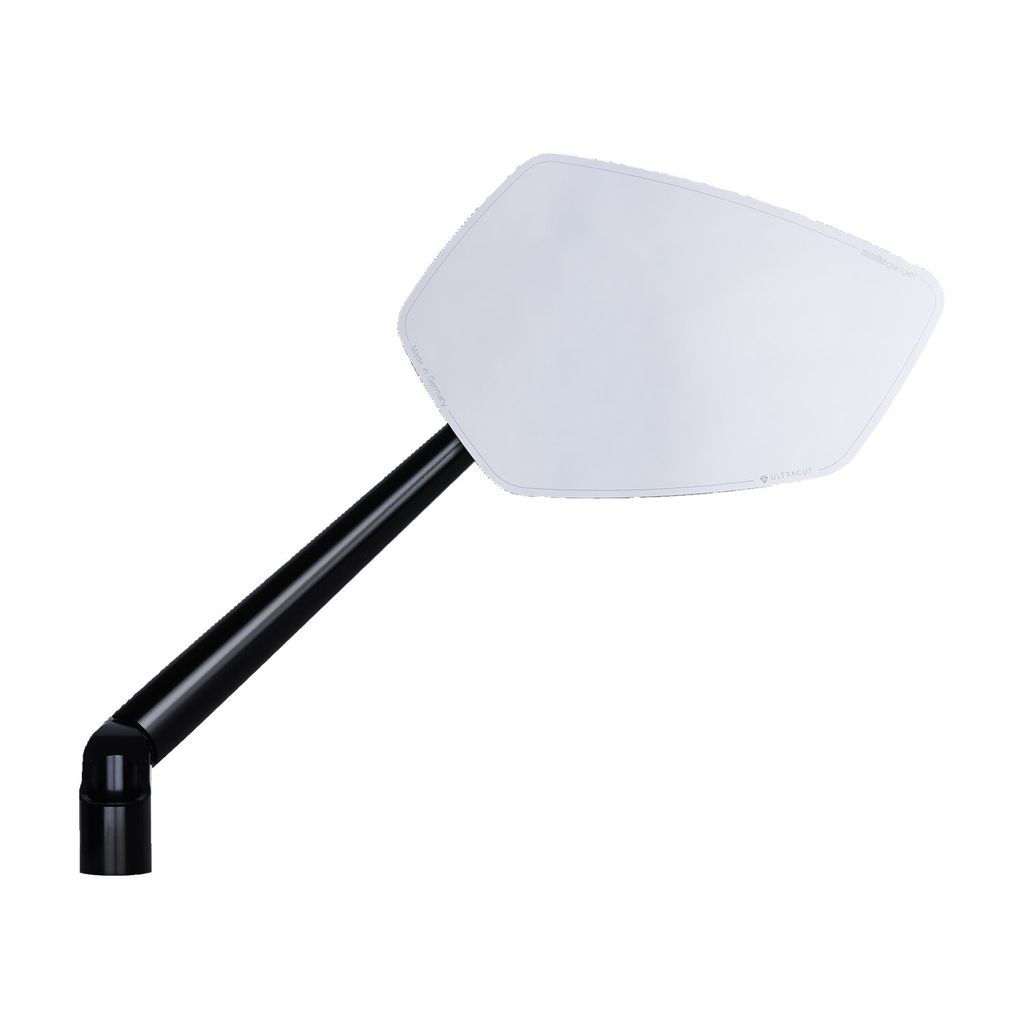

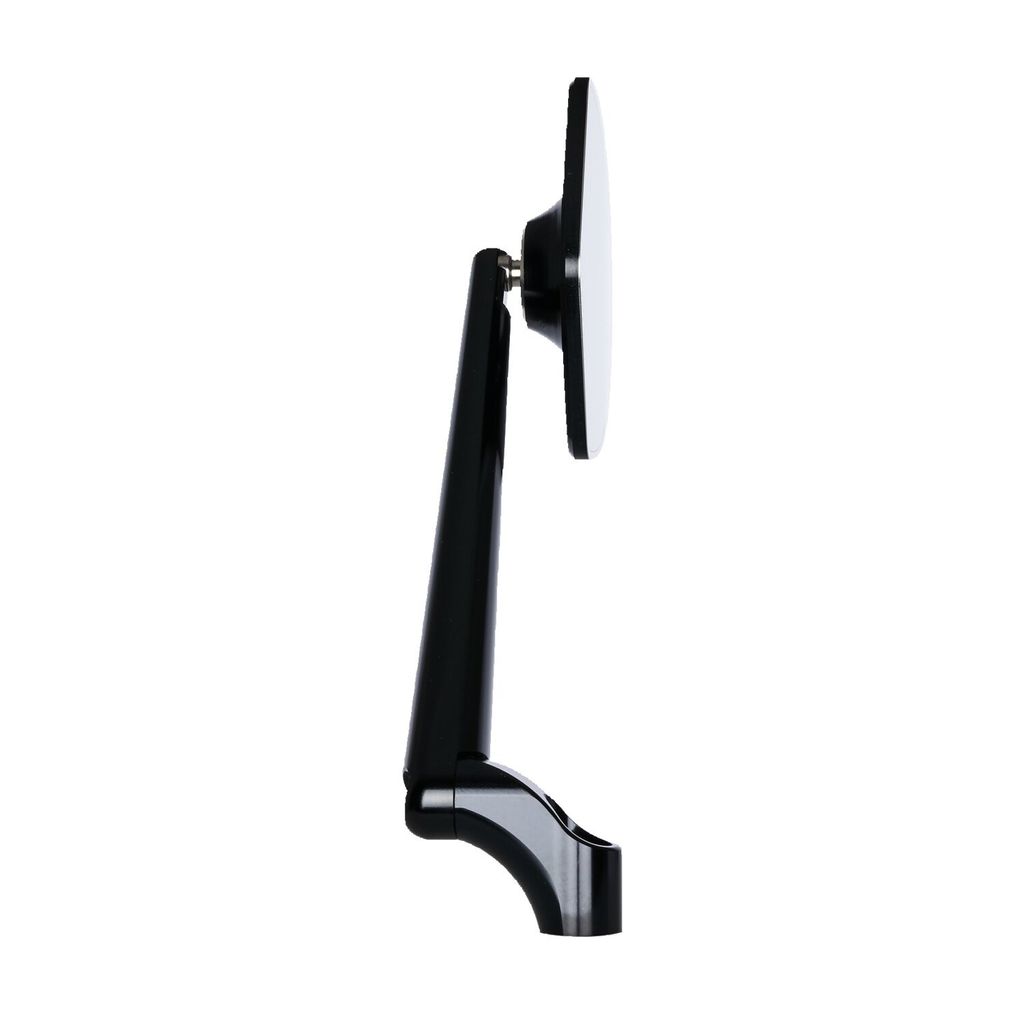

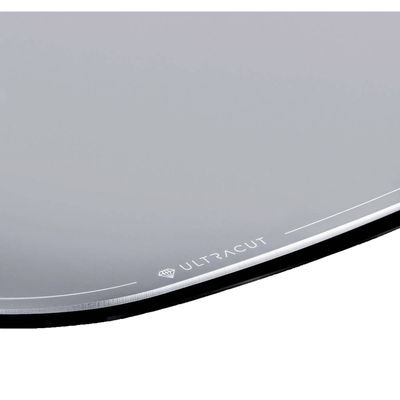

Spegel glaslös Motogadget mo.view Race 150 höger
Motogadget mo.view race 150 mm glaslös spegel i aluminium
Läs mer
- Patenterad glaslös design där den konvexa spegelytan är bearbetad direkt ur aluminiumet
- CNC-fräst ur enfärgad aluminium med högkvalitativ anodiserad finish och rostfria skruvar
- Mycket tunn och lätt konstruktion utan ram, motståndskraftig mot oxidation, korrosion och repor
- Exakt kulled för stabil och enkel justering
- Mått spegelhus: 129 mm bredd x 80 mm höjd x 4,5 mm tjocklek (utan kulled)
- Spegelarmslängd: 150 mm rak arm, vikt: 175 g
- ECE-godkänd
- Levereras med spegelarm samt tre fästskruvar (M10 x 1,5, M10 x 1,25 högergängad, M10 x 1,25 vänstergängad) och manual

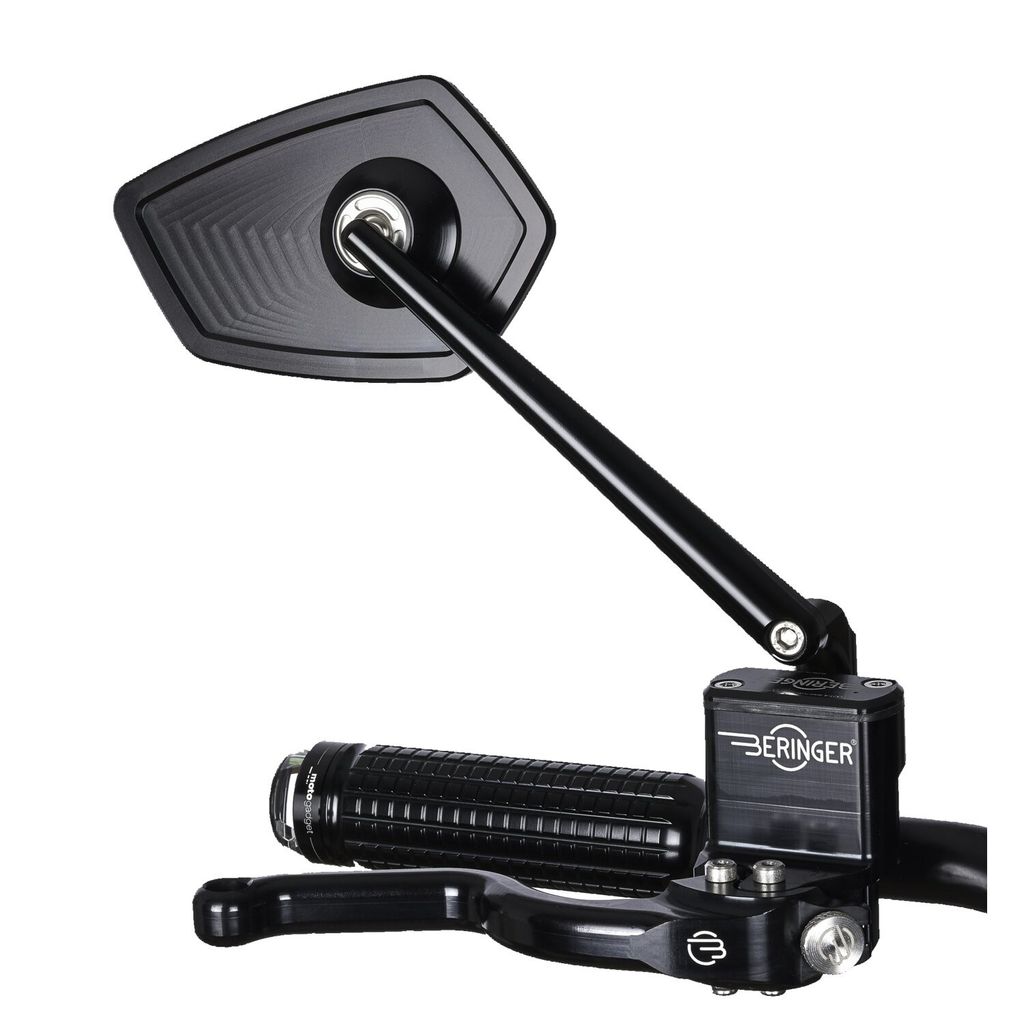

Passar alla M10-spegelgängor samt montering direkt på eller i 22 mm eller 1" styren ovanför eller under styränden. För montering på Harley-Davidson krävs mo.view skruvsats (artikelnr 0641-0255, säljs separat). Kompatibel med Motogadget styrändsblinkers, mo.grip samt reglagen mo.switch och mo.switch mini.
Passar: för alla gängade hål med M10-storlek, Alla motorcyklar med M10 x 1.50, M10 x 1.25 vänster- & M10 x 1.25 högergängade spegelmonteringshål
mo.view Race 150 mm Mirror
- Dynamic and sporty, the mo.view race can be fitted to any M10 mirror thread.
- With the mo.view screw kit (available separately, part: 0641-0255), it is also suitable for Harley Davidson brand vehicles.
- Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.

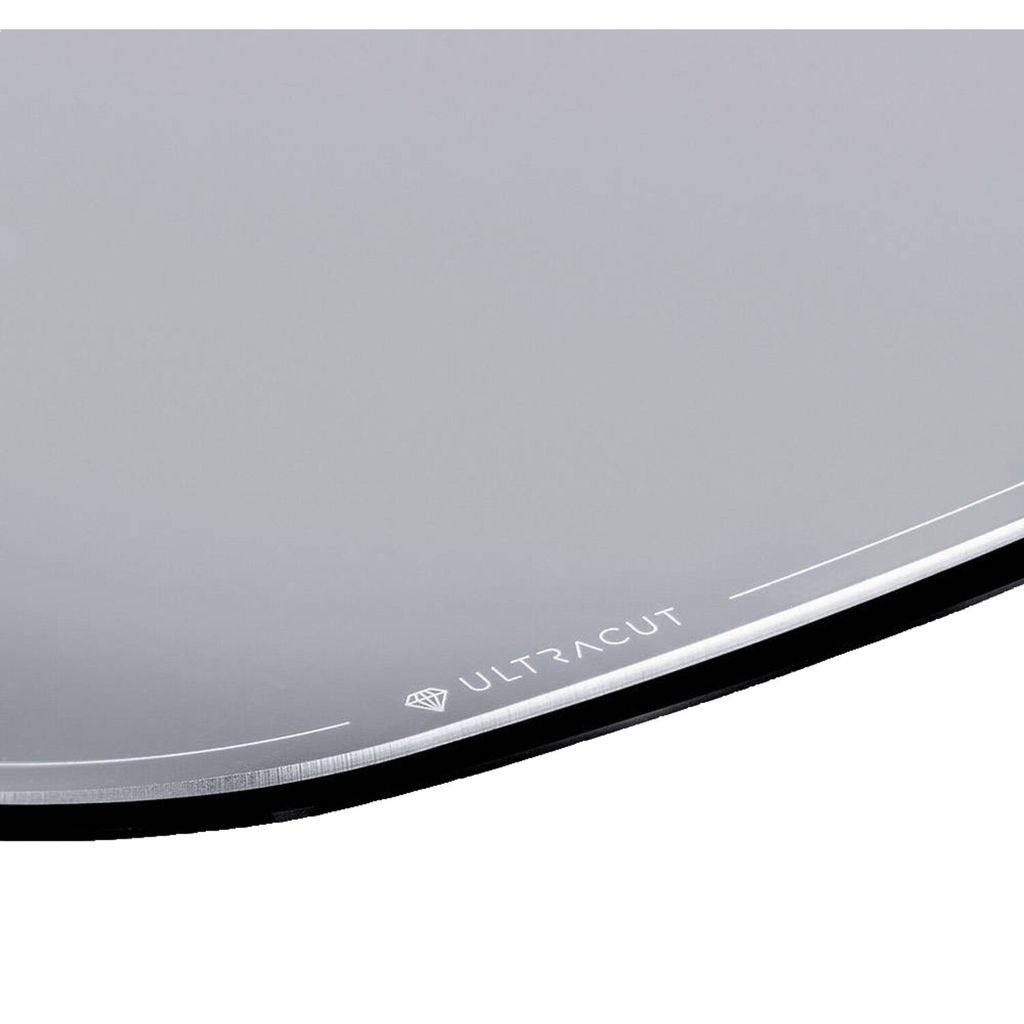

- The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.
- The mirror body, mirror arm and the clamp for the handlebar end are milled on CNC machines from the solid aluminium and anodized high quality. All screws are made of stainless steel.
- The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or fallen out glasses are simply not possible.
- The add-on mirror fits many motorcycles perfectly. It can be fitted to any M10 mirror thread on the handlebars. Three fastening screws with different threads are supplied.
- Mirror body width: 129 mm.
- Mirror body height: 80 mm.
- Thickness of the mirror body without ball head: 4.5 mm.
- Length mirror arm: 150 mm.
- Weight: 175 g.
- Scope of delivery: 1x mo.view race left or right (with ECE marking) incl. arm, 1 x screw M10 x 1.5, 1 x screw M10 x 1.25 right-hand thread, 1 x screw M10 x 1.25 left-hand thread & instructions manual.
- ECE approved; aluminum; asymetric; width 129mm, height 80mm; straight stem 150mm; resistant to oxidation, corrosion and scratches; for right side
- CNC machined from aluminum and finish-anodized, but a regular glass lens is not used
- Allows above or below bar end installation and mounts directly onto or into 22mm or 1" diameter handlebars
- Body thickness approx
- Note: Installation compatible with Motogadget bar end turn signals, the mo.grip and the push button controls mo.switch and mo.switch mini
Fits: for all threaded holes with M10 size || All bikes with M10 x 1.50, M10 x 1.25 left-hand & M10 x 1.25 right-hand mirror mount holes
