Spegel Motogadget 60" svart for 22mm and 1 inch handlebar
Motogadget mo.view Sport 60 mm styrändespegel
Läs mer
- ECE-godkänd styrändespegel
- Glaslös konstruktion där den konvexa spegelytan är bearbetad direkt ur metallen
- CNC-fräst ur massivt aluminium och högkvalitativt anodiserad
- Skruvar i rostfritt stål och exakt kulled för stabil justering
- Kan monteras över eller under styret samt på höger eller vänster sida
- Klämdiameter: passar 22 mm och 1" styren (klämbredd: 10 mm)
- Mått spegelkropp: 122 mm bred, 83 mm hög, tjocklek 4,5 mm utan kulled
- Stamlängd: 60 mm (spegelarm 72 mm), vikt: 128 g
Levereras med styrklammer och manual. Kan monteras direkt på styret eller med mo.view adapter om handtag och reglage inte kan flyttas. Kompatibel med Motogadget styrändeblinkers, mo.grip samt reglagen mo.switch och mo.switch mini (styrändeadaptrar 575353 och 575352 säljs separat).
Passar: för 22 mm och 1 tums styre

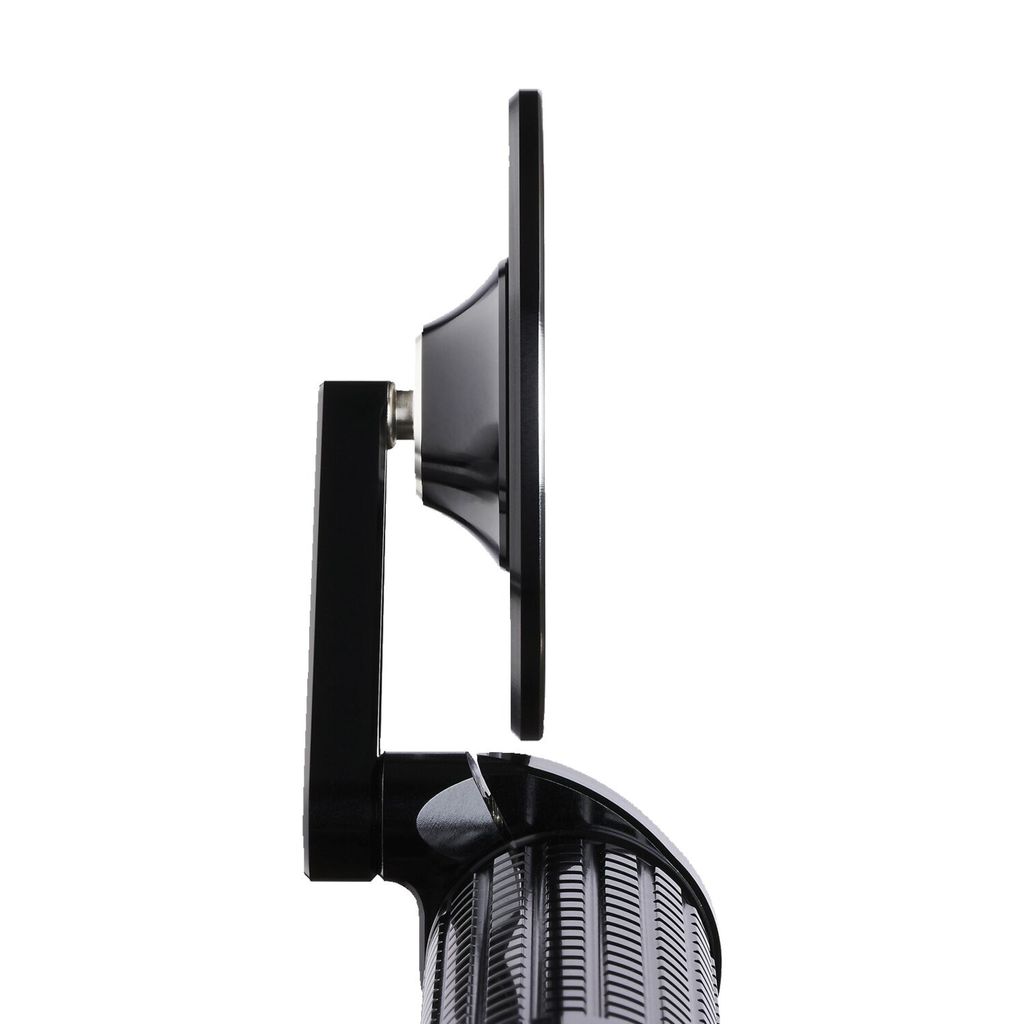

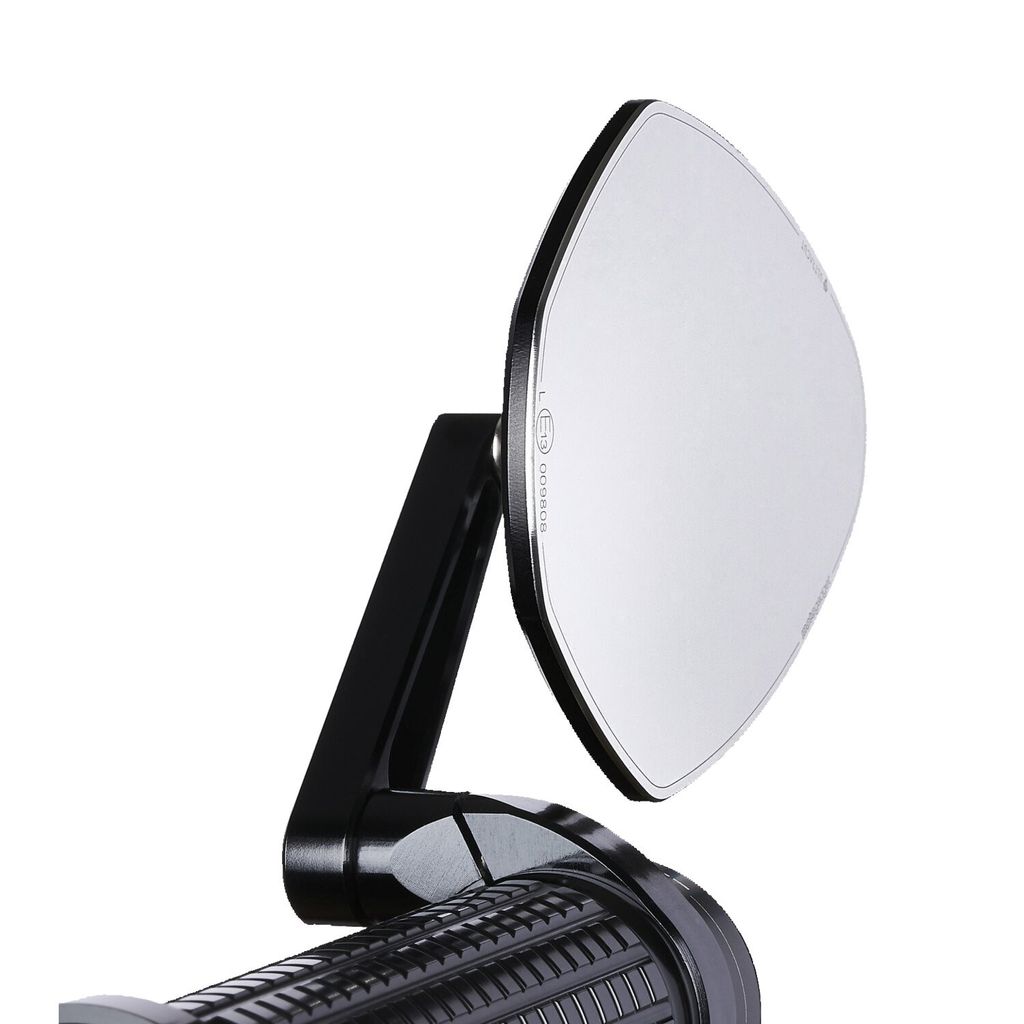

mo.view Sport 60 mm Handlebar End Mirror
- The handlebar end mirror can be mounted above or below the handlebar. The angle of the mirror arm is individually selectable.
- Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.
- The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.
- The mirror body, mirror arm and the clamp for the handlebar end are milled on CNC machines from the solid aluminium and anodized high quality.
- All screws are made of stainless steel.
- The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or fallen out glasses are simply not possible.
- The handlebar end mirror can be mounted above or below the handlebars.
- The small arm can be swivelled.
- The mirror is suitable for the right and left side. It can be mounted directly on the handlebar end (22 mm and 1 inch) or, if the grips and fittings cannot be moved, using the mo.view bar adapter.
- Mirror body width: 122 mm.
- Mirror body height: 83 mm.
- Thickness of the mirror body without ball head: 4.5 mm.
- Length of the mirror arm: 72 mm.
- Clamp diameter: can be used for 22 mm and 1 inch handlebars.
- Clamp width: 10 mm.
- Weight: 128 g.
- Scope of delivery: 1x rear-view mirror mo.view sport 60 (with ECE marking) with arm, 1x clamp & instructions manual.
- ECE approved; handlebar end mirror; aluminium; 122mm wide x 83mm high; Stem length 60mm
- CNC machined from aluminum and finish-anodized, but a regular glass lens is not used
- Left & right side compatible, except where noted, allows above or below bar end installation and mounts directly onto or into 22mm or 1" diameter handlebars
- Body thickness approx
- Note: Installation compatible with Motogadget bar end turn signals, the mo.grip and the push button controls mo.switch and mo.switch mini
- Note: Mirror comes with handlebar clamp but optional bar-end adapters (575353 clamp-on or 575352 clamp-in) are available and sold separately
Fits: for 22mm and 1 inch handlebar
