Spegel Motogadget Club 130" svart for 22mm and 1 inch handlebar
mo.view Club 130 mm styrändsbackspegel
Läs mer
- ECE-godkänd backspegel
- Glaslös spegel där den konvexa spegelytan är direkt integrerad i aluminiumet
- CNC-fräst ur massivt aluminium med högkvalitativ anodiserad finish
- Skruvar i rostfritt stål och exakt kulled för stabil justering
- Kan monteras ovanför eller under styret, passar både höger och vänster sida
- Mått spegelkropp: 114 mm bred, 80 mm hög, tjocklek 4,5 mm (utan kulled)
- Spegelarmslängd: 110 mm, klämbredd: 12 mm, vikt: 150 g
- Klämdiameter: passar 22 mm och 1 tums styren
Kan monteras direkt på styrets ände eller med mo.view styradapter om reglage och handtag inte kan flyttas. Kompatibel med Motogadget styrände-blinkers, mo-grip samt knappstyrningarna mo-switch och mo-switch mini. Levereras med styrklammer, men alternativa styrändsadaptrar (575353 eller 575352) finns som tillval och säljs separat.
Passar: för 22 mm och 1 tums styre
mo.view Club 130 mm Handlebar End Mirror
- The handlebar end mirror with ECE marking can be mounted above or below the handlebar. The angle of the mirror arm is rigid.
- Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.
- The mirror body itself is very thin and light, resulting in a weightless design without a rim or frame.

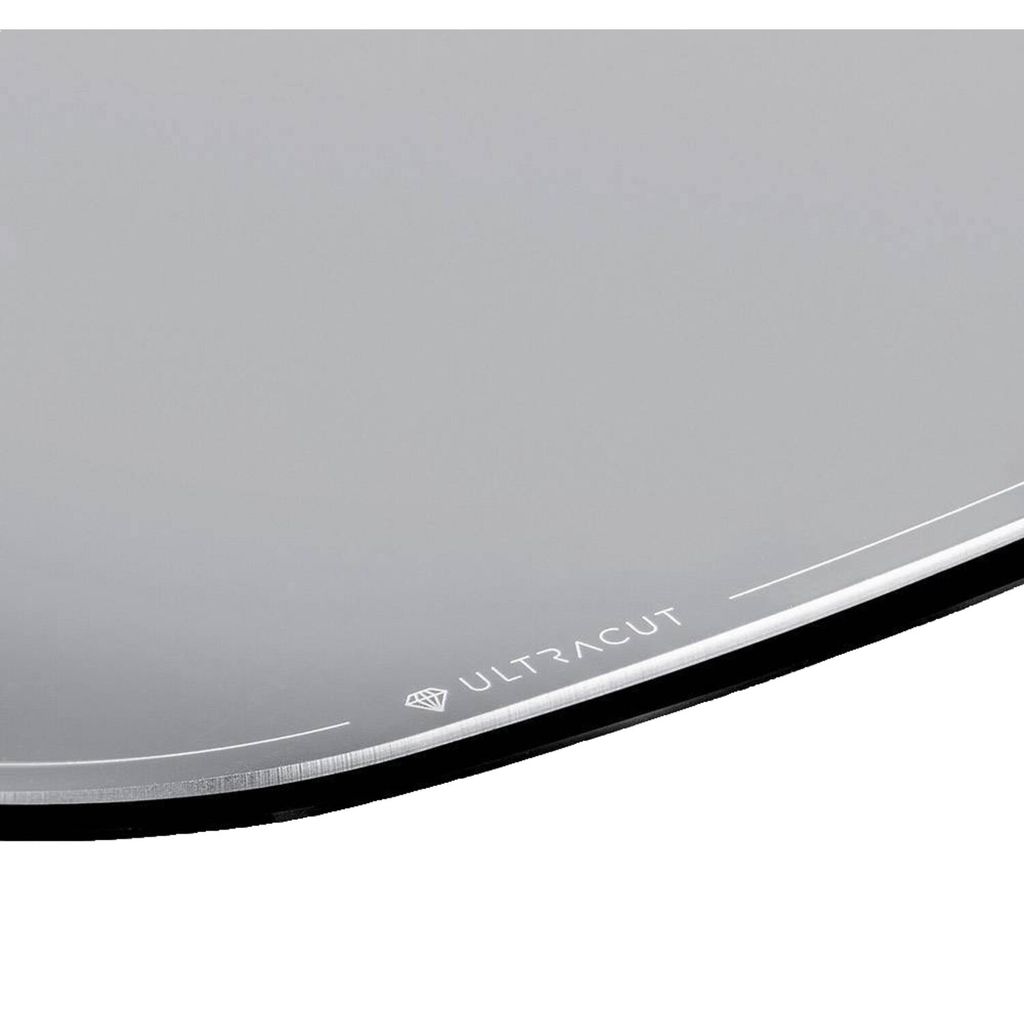

- The convex mirror surface is produced by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

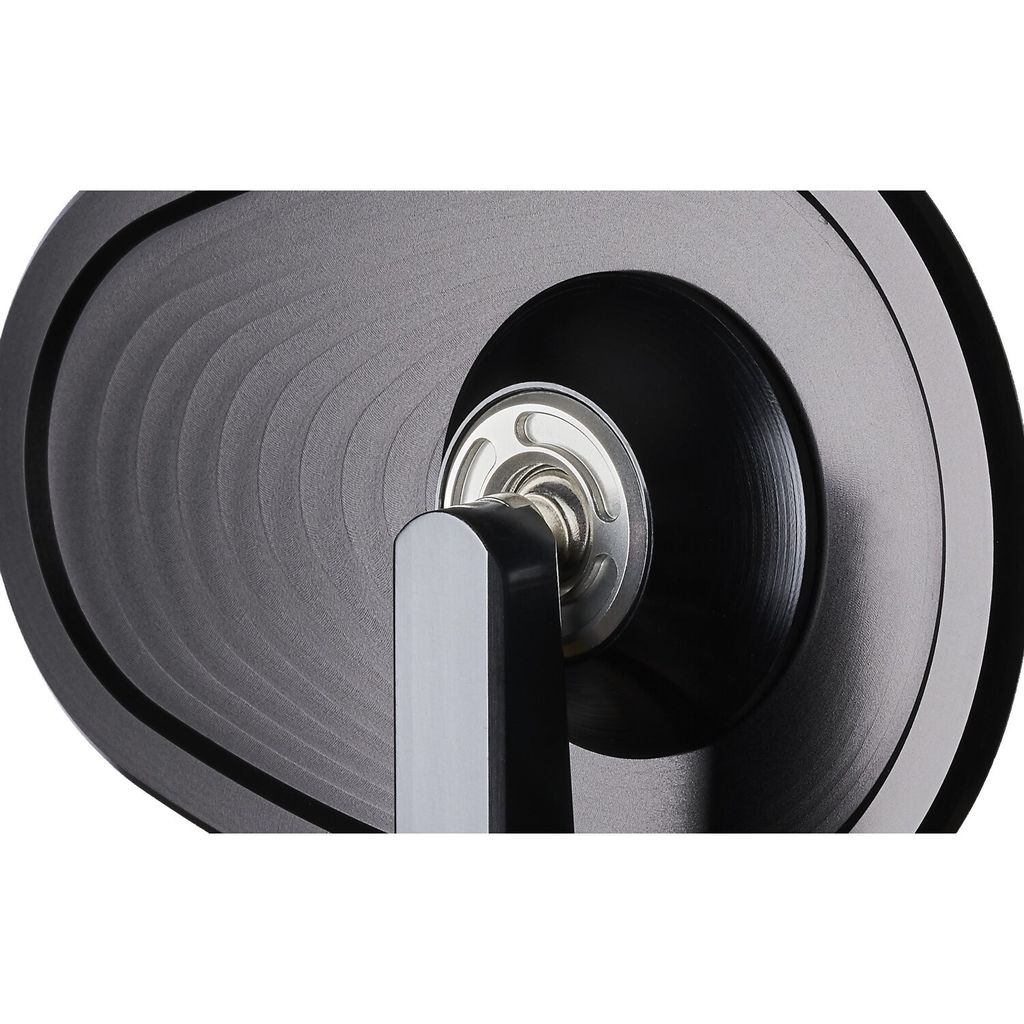

- The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

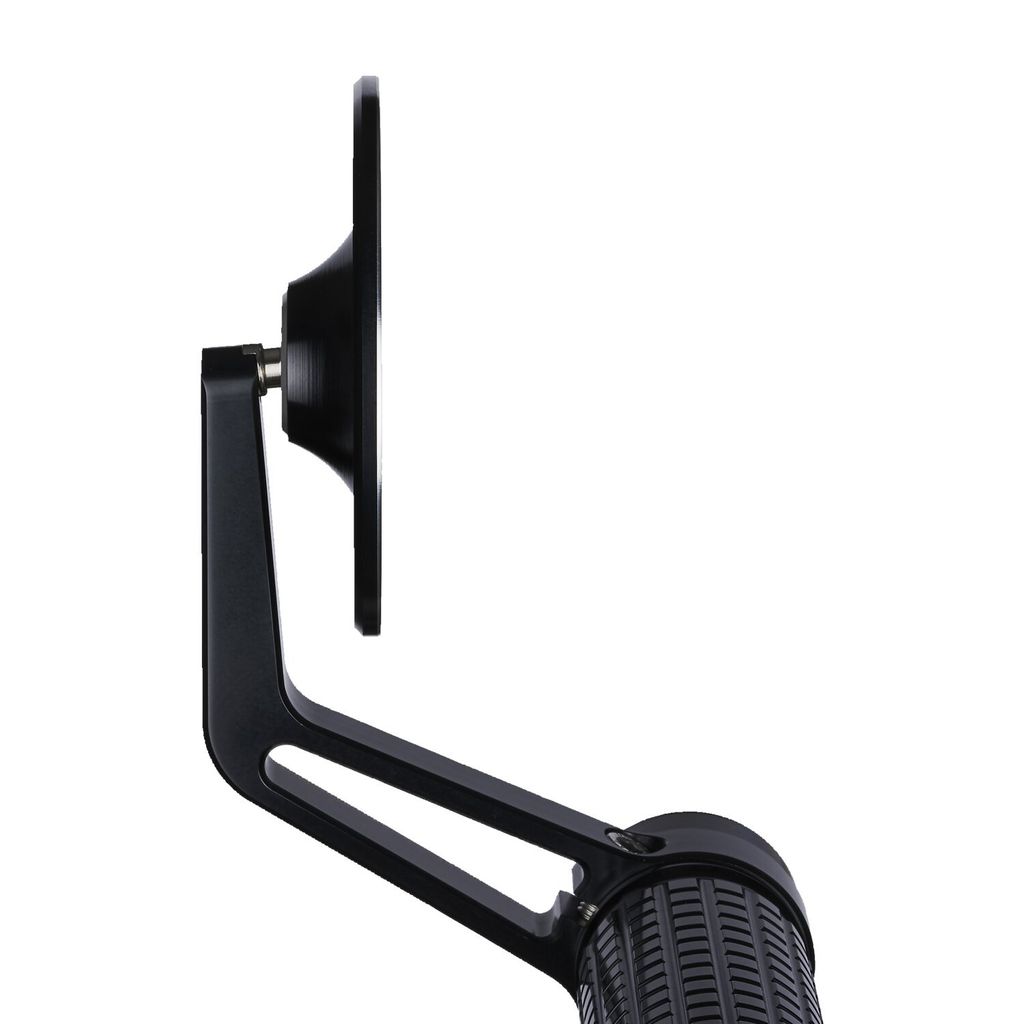

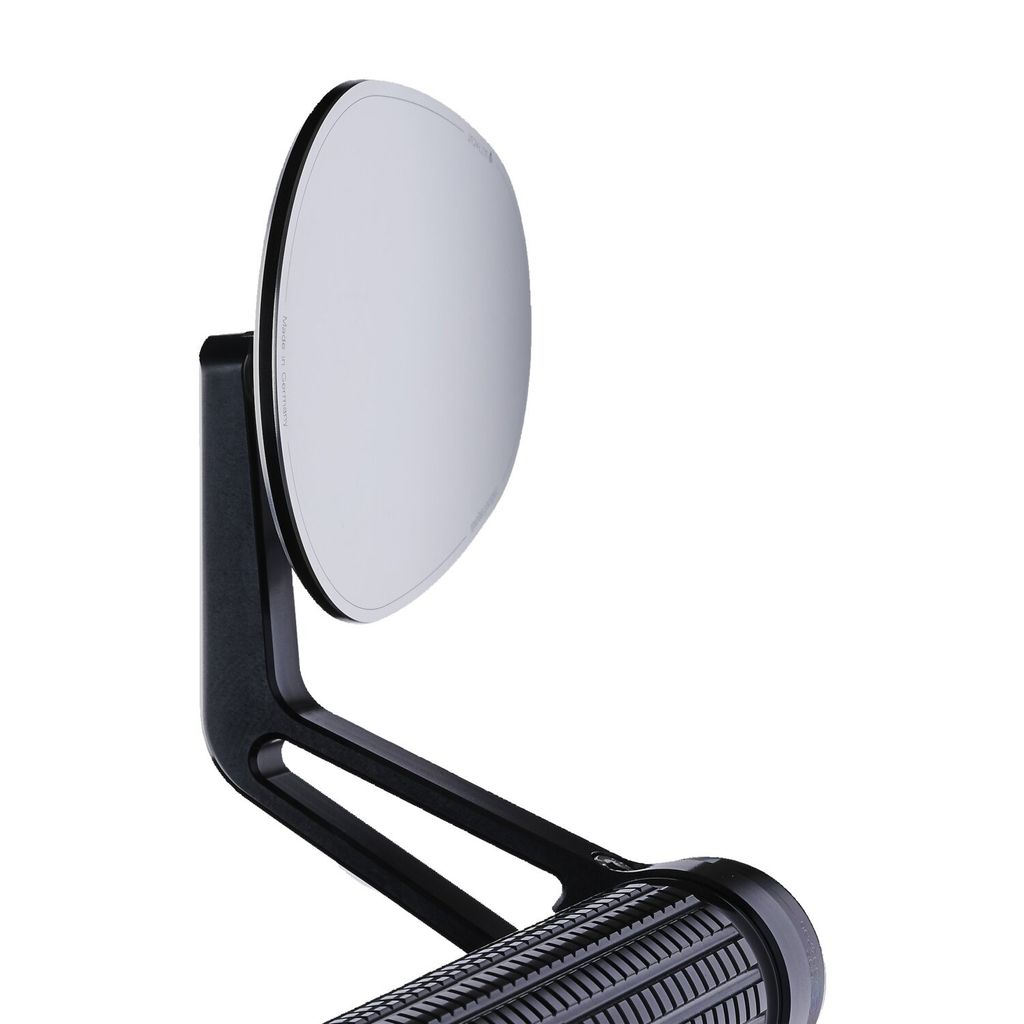

- The handlebar end mirror can be mounted above or below the handlebars.

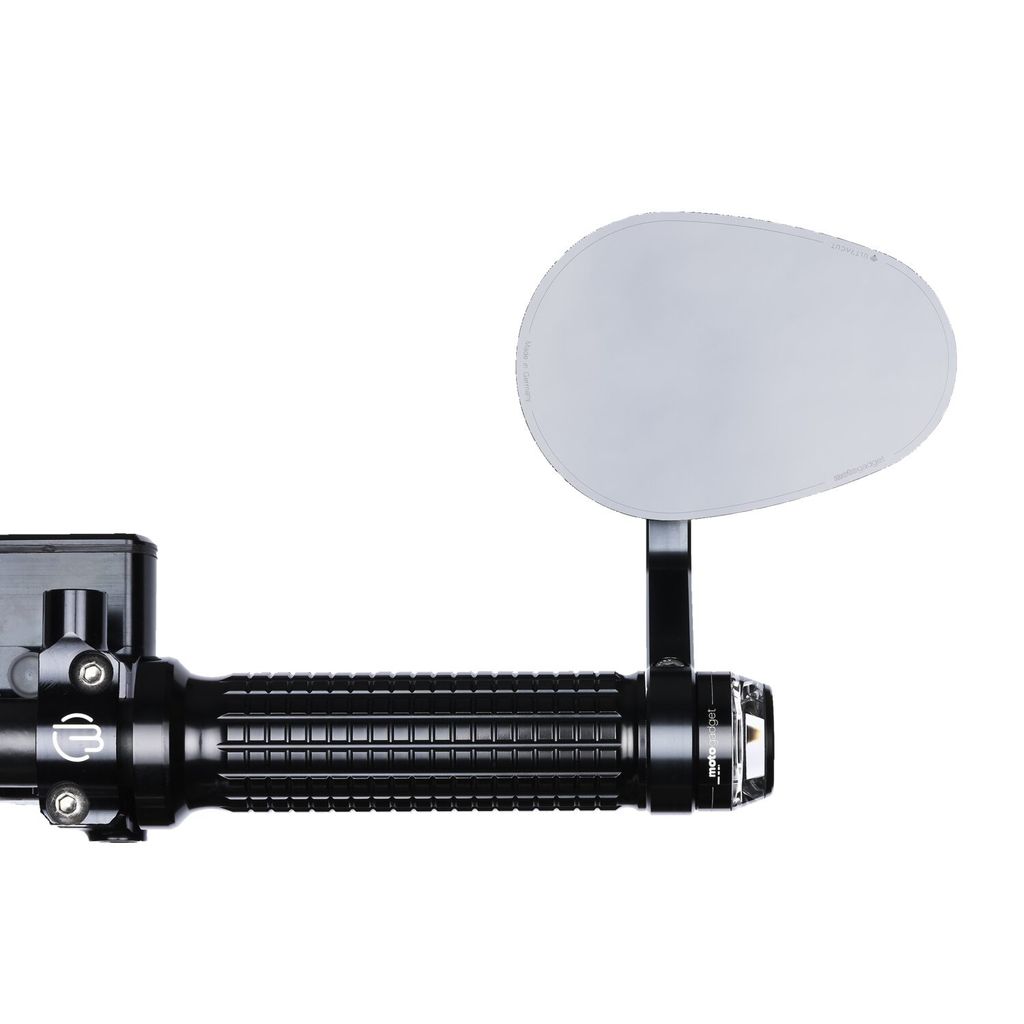

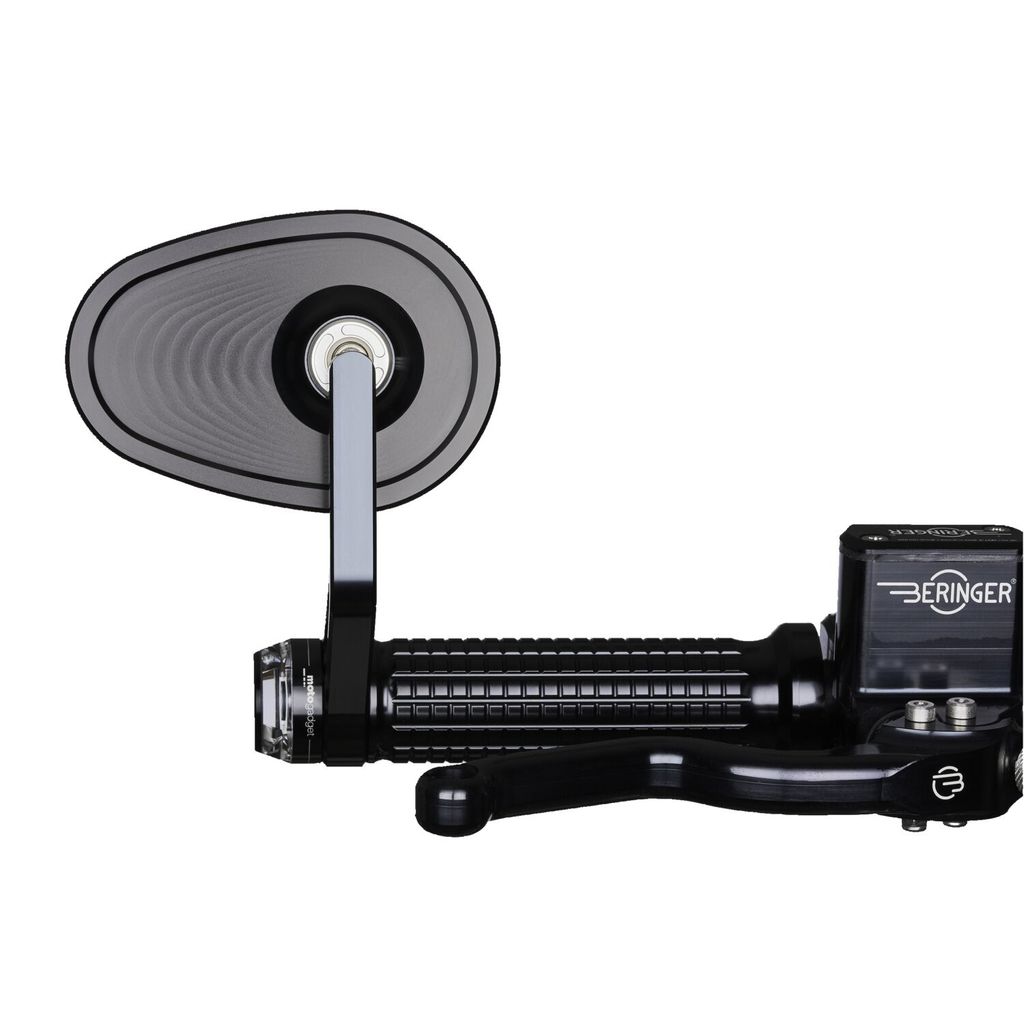

- The small arm can be swivelled. The mirror is suitable for the right and left side. It can be mounted directly on the handlebar end (22 mm and 1 inch) or, if the grips and fittings cannot be moved, using the mo.view bar adapter.
- Mirror body width: 114 mm.
- Mirror body height: 80 mm.
- Length of the mirror arm: 110 mm.
- Clamp diameter: can be used for 22 mm and 1 inch handlebars.
- Thickness of the mirror body without ball head: 4.5 mm.
- Clamp width: 12 mm.
- Weight: 150 g
- Scope of delivery: 1x rear-view mirror mo.view club 130 (with ECE marking) with arm, 1 x clamp & instructions manual.
- ECE approved; aluminum; Oval, 114mm wide x 80mm high
- Angled stem 110mm
- CNC machined from aluminum and finish-anodized, but a regular glass lens is not used
- Body thickness approx
- Note: Installation compatible with Motogadget bar end turn signals, the mo-grip and the push button controls mo-switch and mo-switch mini
- Note: Mirror comes with handlebar clamp but optional bar-end adapters (575353 clamp-on or 575352 clamp-in) are available and sold separately
Fits: for 22mm and 1 inch handlebar
