Spegel glaslös styrände Motogadget mo.view Flight 22mm och 1" styre
Glaslös styrändsbackspegel i aluminium med integrerad spegelyta
Läs mer
- Glaslös konstruktion där själva aluminiumet utgör den konvexa spegelytan
- CNC-fräst ur massivt aluminium och högkvalitativt anodiserad
- Skruvar i rostfritt stål och stabil kulled för enkel justering
- Bredd: 122 mm, höjd: 83 mm, armlängd: 110 mm, tjocklek: 4,5 mm
- Klämdiameter: passar för 22 mm och 1" styren (klämbredd: 12 mm)
- ECE-godkänd och lämplig för montering på både höger och vänster sida
- Vikt: 156 g
- Levereras med spegel mo.view sport 130 med arm, styrklammer och manual
Kan monteras ovanför eller under styret direkt på styränden, eller via mo.view bar adapter om handtag och reglage inte kan flyttas. Kompatibel med Motogadget styrände blinkers, mo-grip samt knappreglagen mo-switch och mo-switch mini. Styrändsadaptrar (575353 eller 575352) säljs separat.
Passar: för 22 mm och 1 tums styre
mo.view Sport 130 mm Handlebar End Mirror
- The handlebar end mirror can be mounted above or below the handlebar. The angle of the mirror arm is rigid.

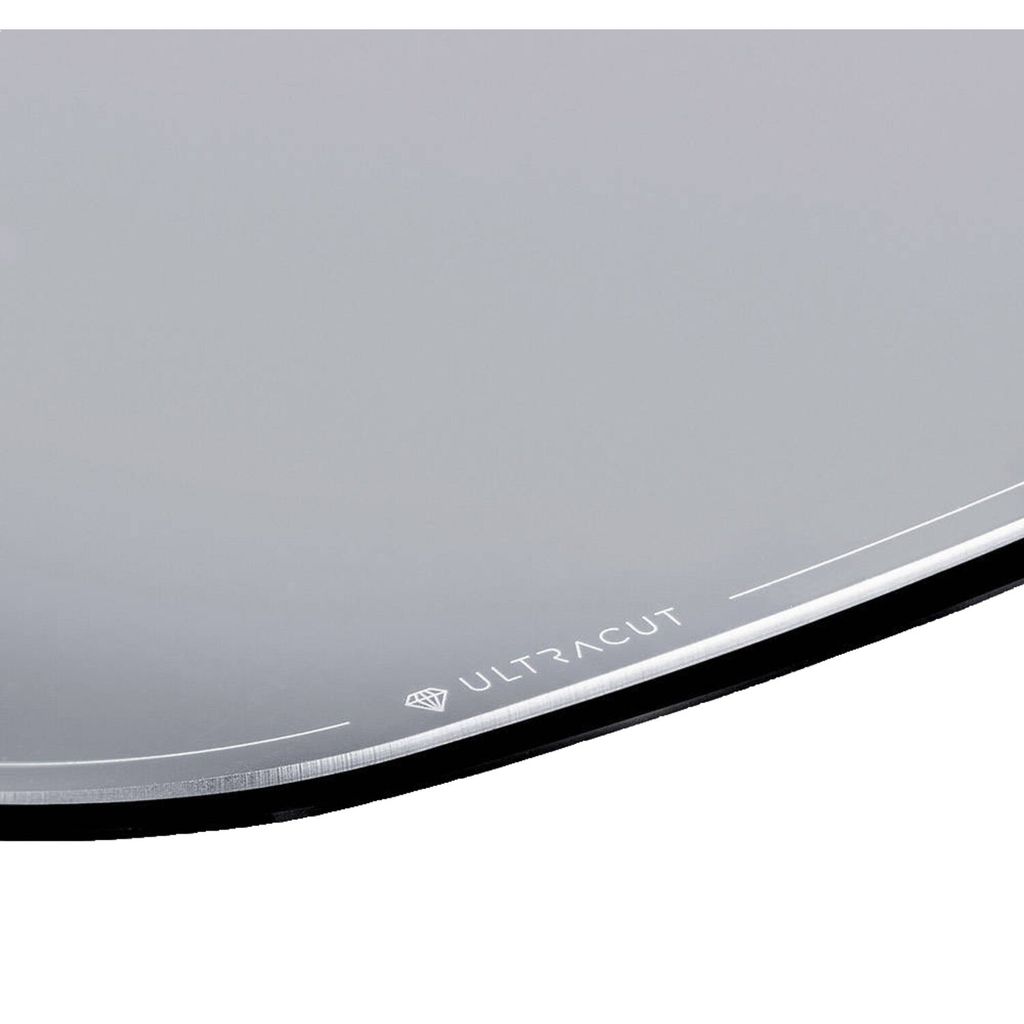

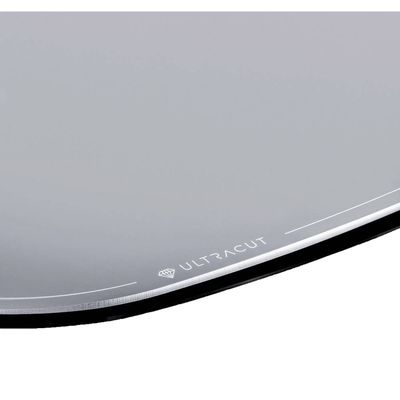

- Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.
- The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.
- The mirror body, mirror arm and the clamp for the handlebar end are milled on CNC machines from the solid aluminium and anodized high quality. All screws are made of stainless steel. The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or fallen out glasses are simply not possible.
- The handlebar end mirror can be mounted above or below the handlebar.
- The small arm can be swivelled.
- The mirror is suitable for the right and left side. Mounting is directly on the handlebar end (22 mm and 1 inch) or if the grips and fittings can not be moved, using the mo.view bar adapter.
- Mirror body width: 122 mm.
- Mirror body height: 83 mm.
- Length of the mirror arm: 110 mm.
- Thickness of the mirror body without ball head: 4.5 mm.
- Clamp diameter: can be used for 22 mm and 1 inch handlebars.
- Clamp width: 12 mm.
- Weight: 156 g.
- Scope of delivery: 1x rear-view mirror mo.view sport 130 (with ECE marking) with arm, 1x clamp and mounting instructions & instructions manual.
- ECE approved; aluminum; Oval, 122mm wide x 83mm high; angled stem 110mm; Motogadget mo.view mirrors are glassless
- CNC machined from aluminum and finish-anodized, but a regular glass lens is not used
- Body thickness approx
- Note: Installation compatible with Motogadget bar end turn signals, the mo-grip and the push button controls mo-switch and mo-switch mini
- Note: Mirror comes with handlebar clamp but optional bar-end adapters (575353 clamp-on or 575352 clamp-in) are available and sold separately
Fits: for 22mm and 1 inch handlebar
