Spegel glaslös styrände Motogadget mo.view Spy 22mm och 1" styre
mo.view Spy 50 mm styrändsbackspegel utan glas från Motogadget
Läs mer
- Patenterad glaskonstruktion där spegelytan är bearbetad direkt ur metallkroppen
- Konvex spegelyta med plasmabeläggning i vakuum mot oxidation, korrosion och nötning
- CNC-fräst spegelkropp, arm och styrklammer i anodiserad aluminium
- Skruvar i rostfritt stål och stabil kulled för justering
- Kan monteras på höger eller vänster sida, ovanför eller under styret
- Diameter spegelkropp: 75 mm, tjocklek utan kulled: 4 mm, armlängd: 61 mm
- Klämdiameter: passar 22 mm och 1" styren (klämbredd 8 mm), vikt: 86 g
- Levereras styckvis med arm, styrklammer och monteringsanvisning
Ej ECE-godkänd, endast för showbruk. Monteras direkt på styränden eller med mo.view styradapter om handtag och reglage inte kan flyttas (adaptrar 575353 eller 575352 säljs separat). Kompatibel med Motogadget styrändsblinkers, mo.grip samt reglagen mo.switch och mo.switch mini.
Passar: för 22 mm och 1 tums styre

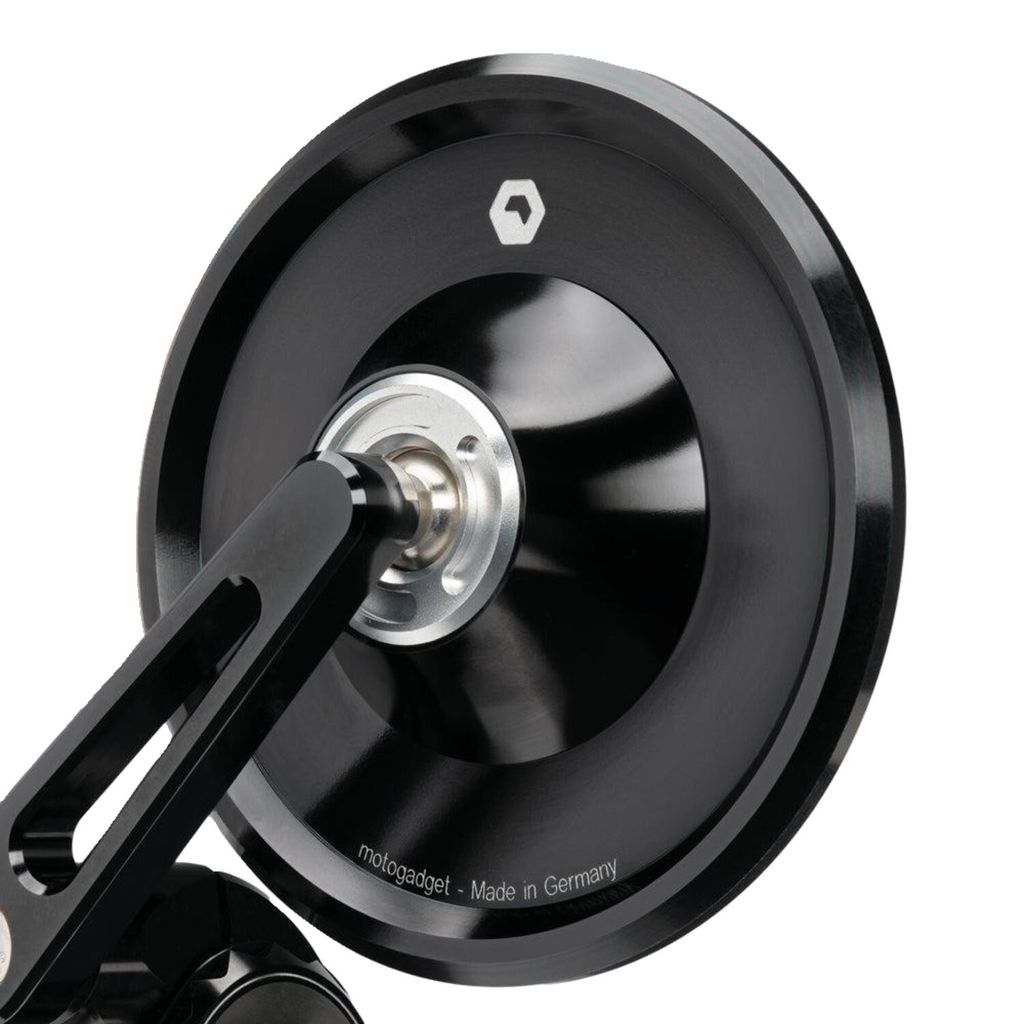

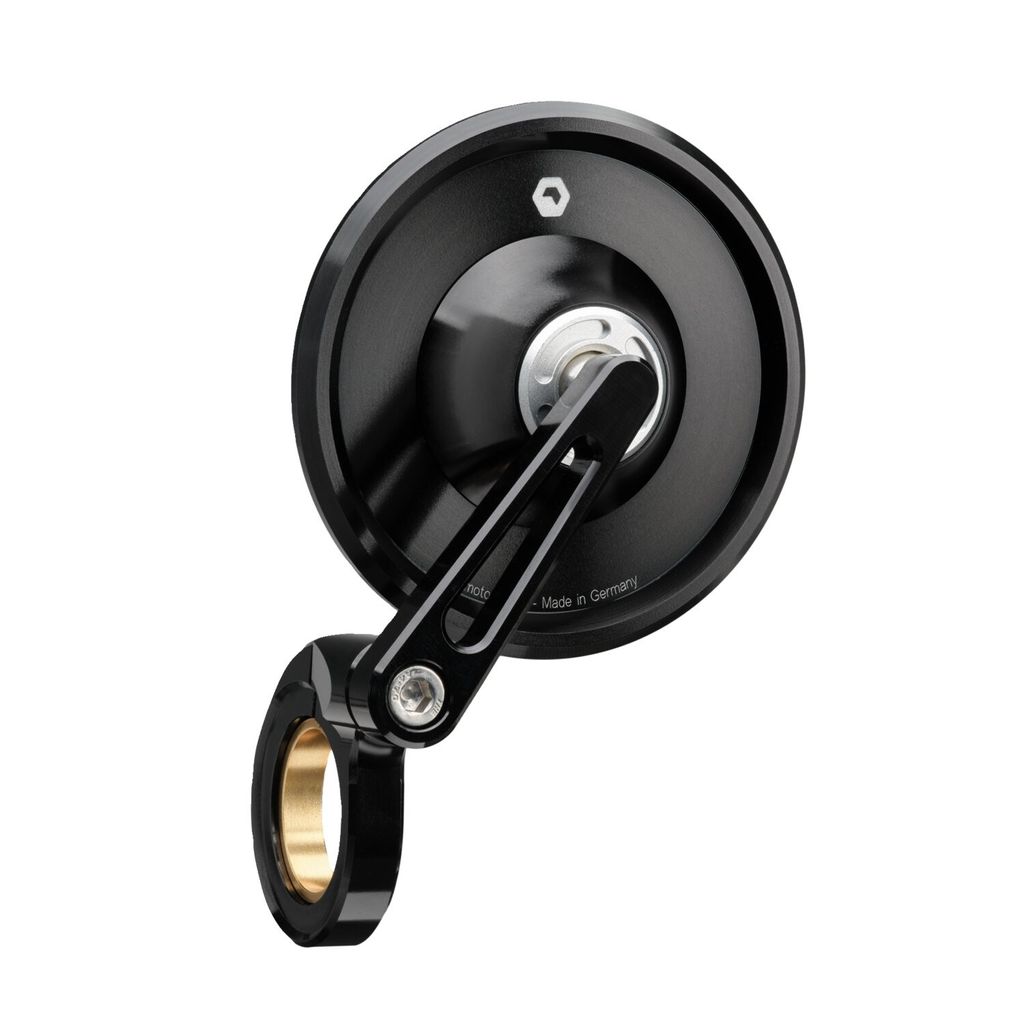

mo.view Spy 50 mm Handlebar End Mirror

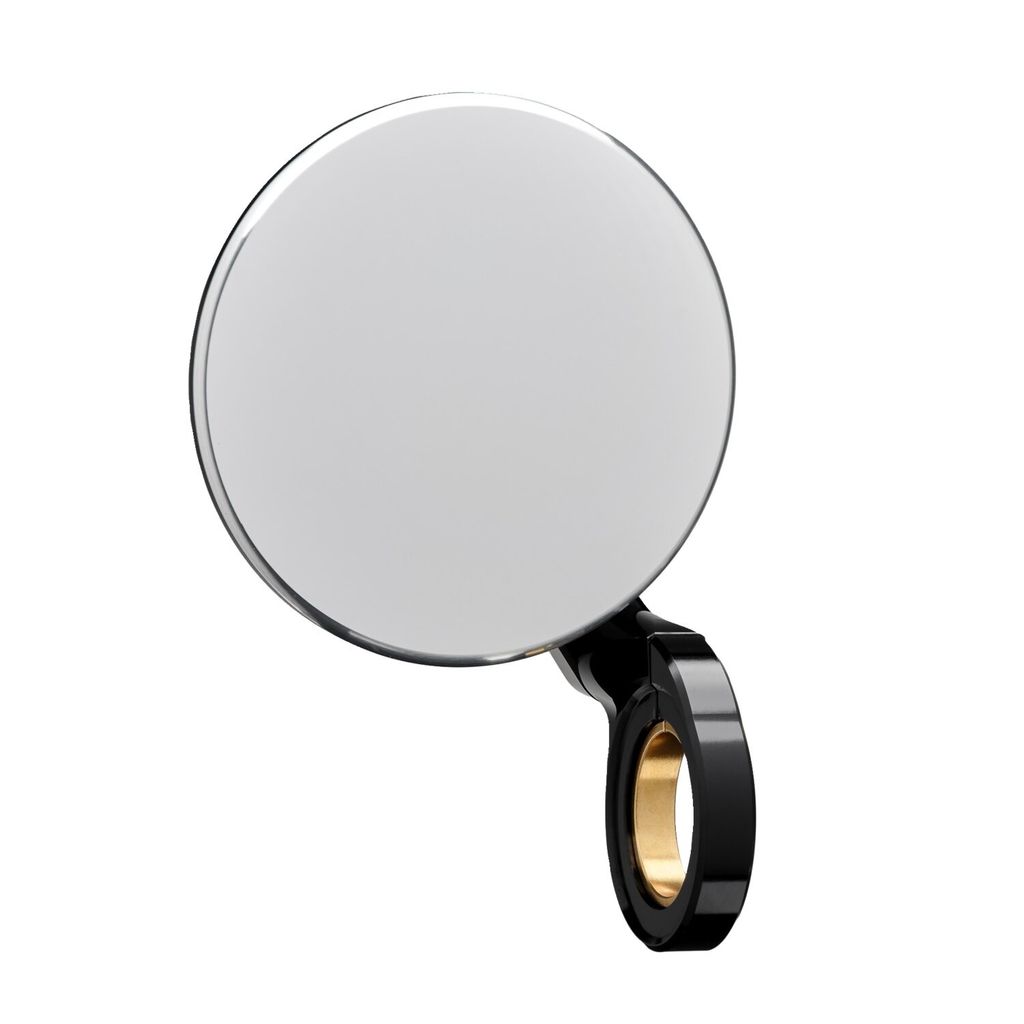

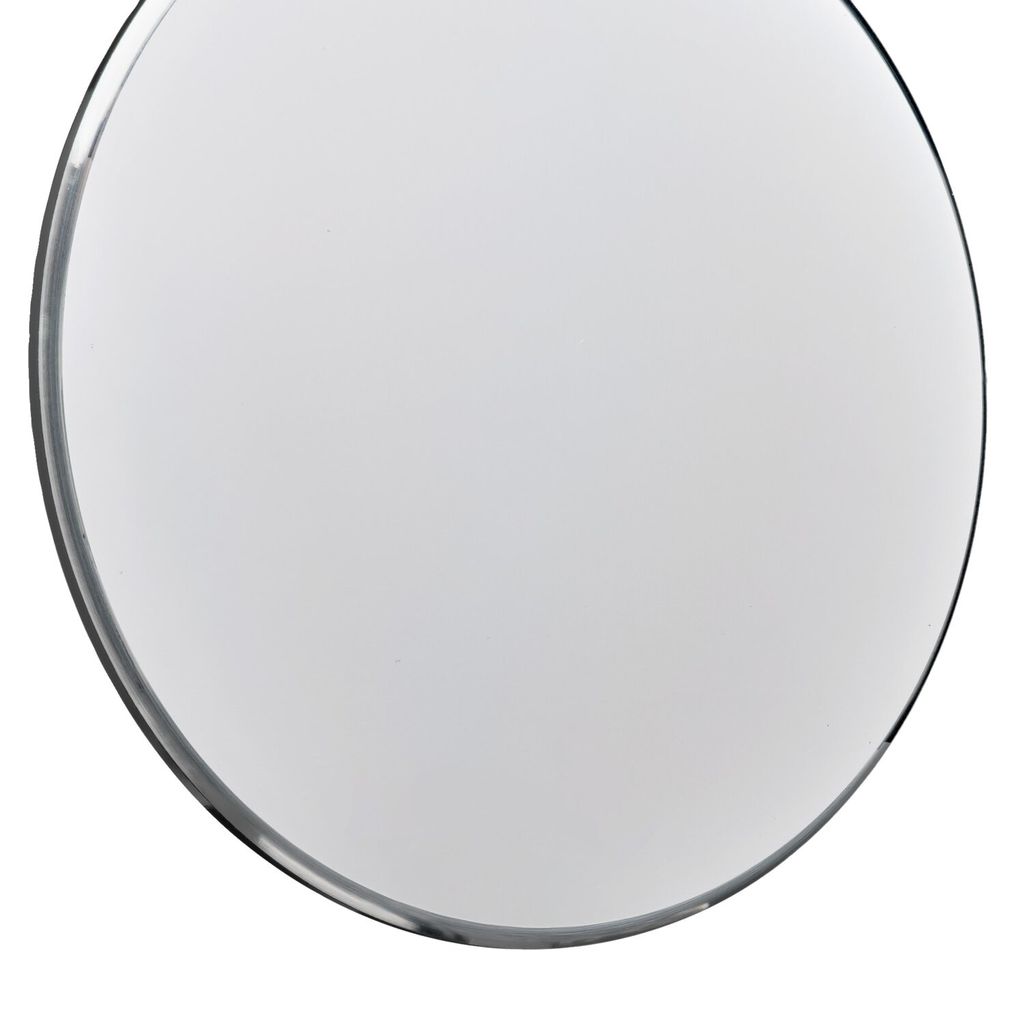

- Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminum itself is the mirror surface.

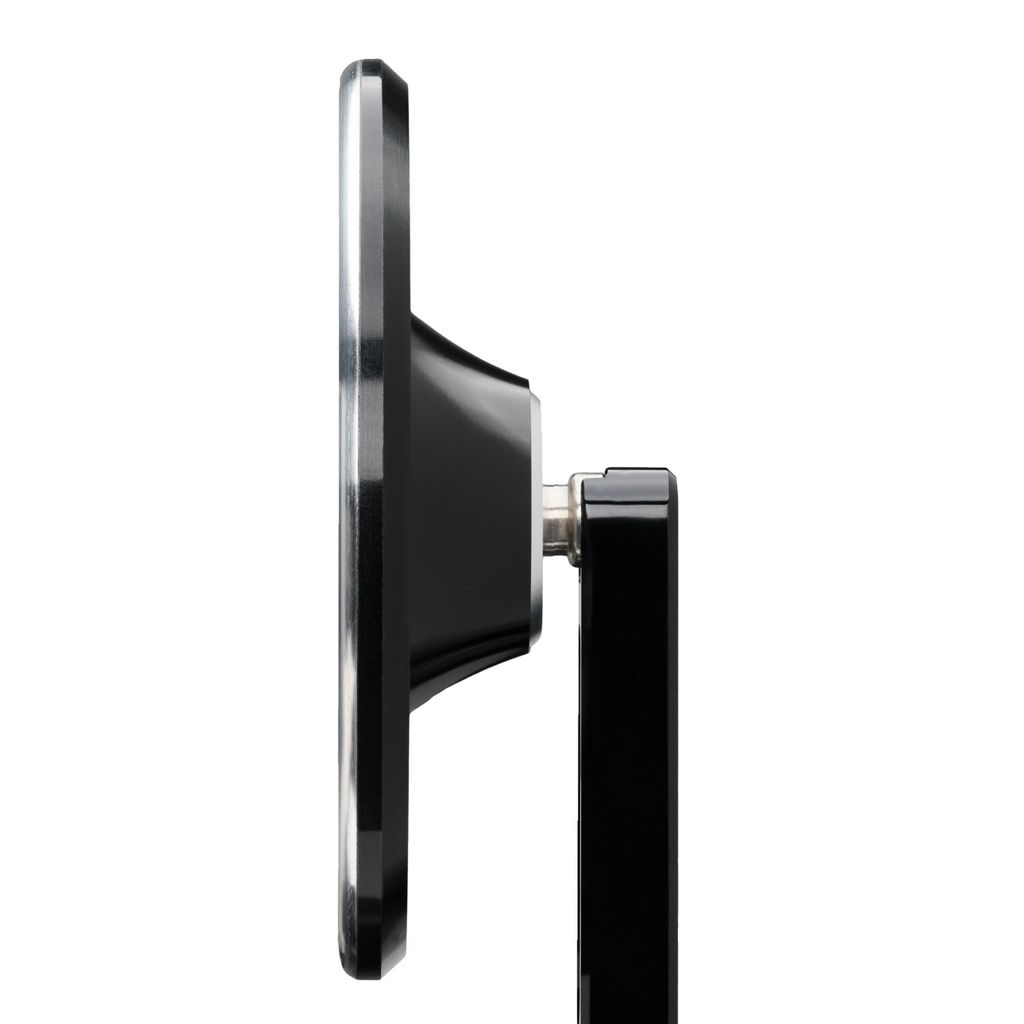

- The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by flycutting using diamond tools on ultra-precision machines in Berlin. I
- t is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.
- The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC-machined from solid aluminium and anodized to a high quality.
- All screws are made of stainless steel.
- The precise ball joint enables the convenient and very stable adjustment of the mirror. Glass breakage or glass falling out is simply not possible.
- The handlebar end mirror can be mounted above or below the handlebar.
- The small arm can be swivelled.
- The mirror is suitable for the right and left side.

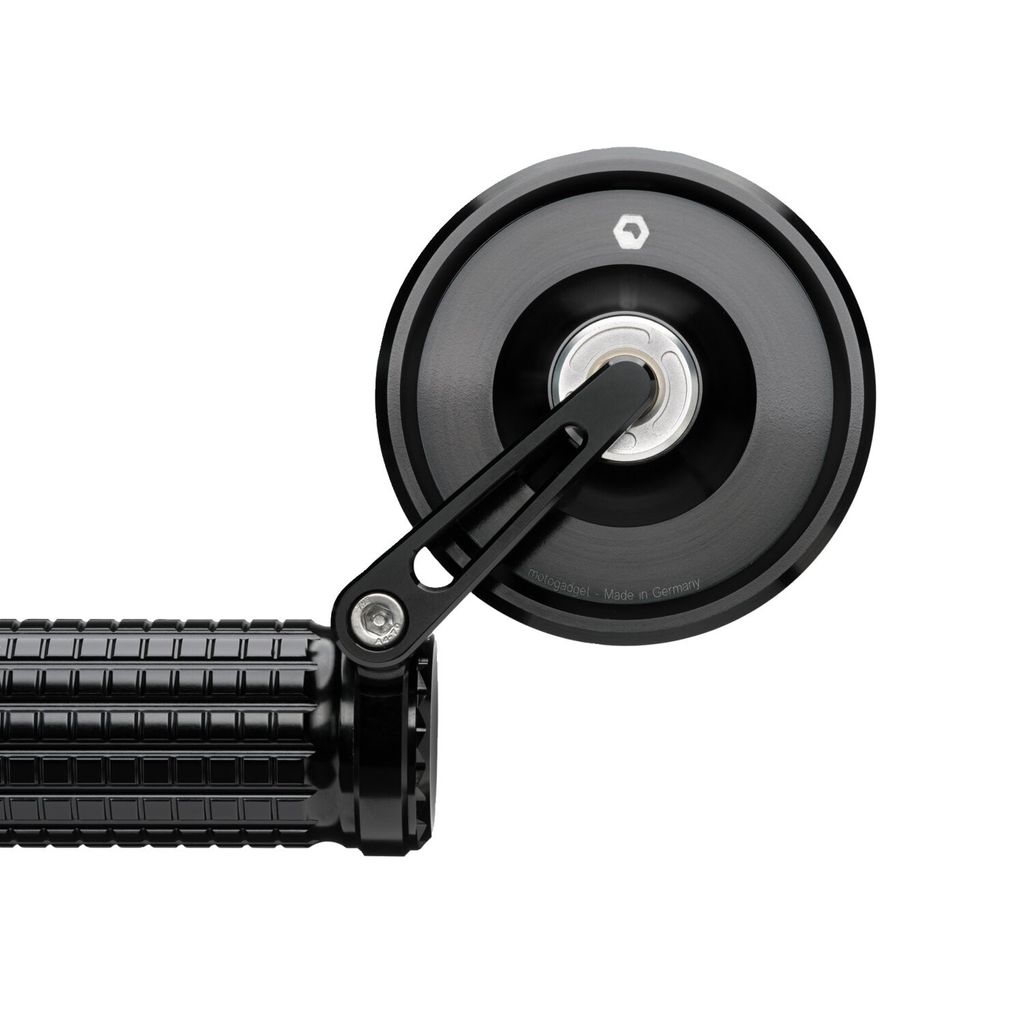

- Mounting is directly on the handlebar end (22 mm and 1 inch) or if the grips and fittings can not be moved, using the mo.view bar adapter.
- Mirror body diameter: 75 mm.
- Thickness of the mirror body without ball head: 4 mm.
- Length of the mirror arm: 61 mm.
- Clamp diameter: can be used for 22 mm and 1 inch handlebars.
- Clamp width: 8 mm.
- Weight: 86 g.
- Scope of delivery: 1 x mo.view spy mirror with arm, 1 x clamp & mounting instructions.
- This mirror is not approved for use on public roads within the EU.
- Not ECE approved, for show use only; aluminum; round, diameter 75mm; stem 61mm
- CNC machined from aluminum and finish-anodized, but a regular glass lens is not used
- Left & right side compatible, allows above or below bar end installation and mounts directly onto or into 22mm or 1" diameter handlebars
- Body thickness approx
- Note: Installation compatible with Motogadget bar end turn signals, the mo-grip and the push button controls mo-switch and mo-switch mini
- Note: Mirror comes with handlebar clamp but optional bar-end adapters (575353 clamp-on or 575352 clamp-in) are available and sold separately
Fits: for 22mm and 1 inch handlebar
