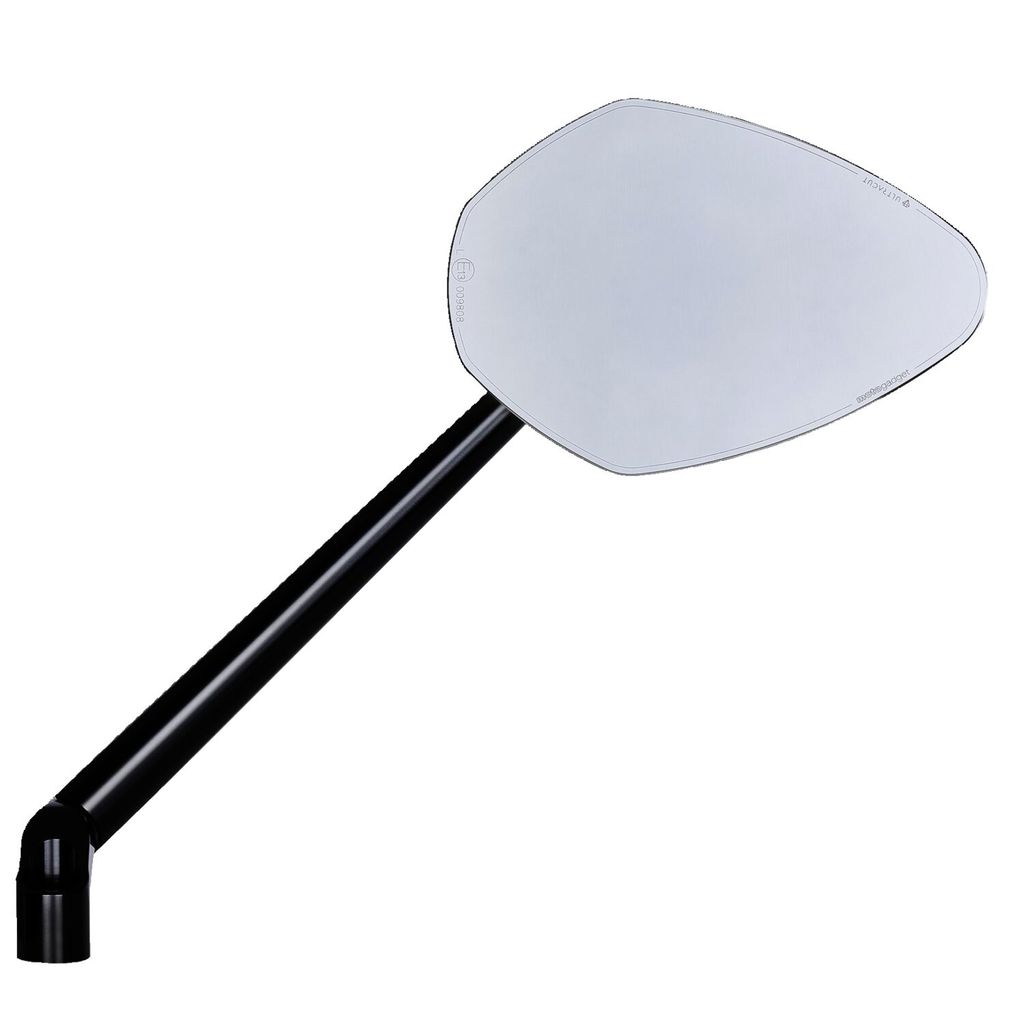

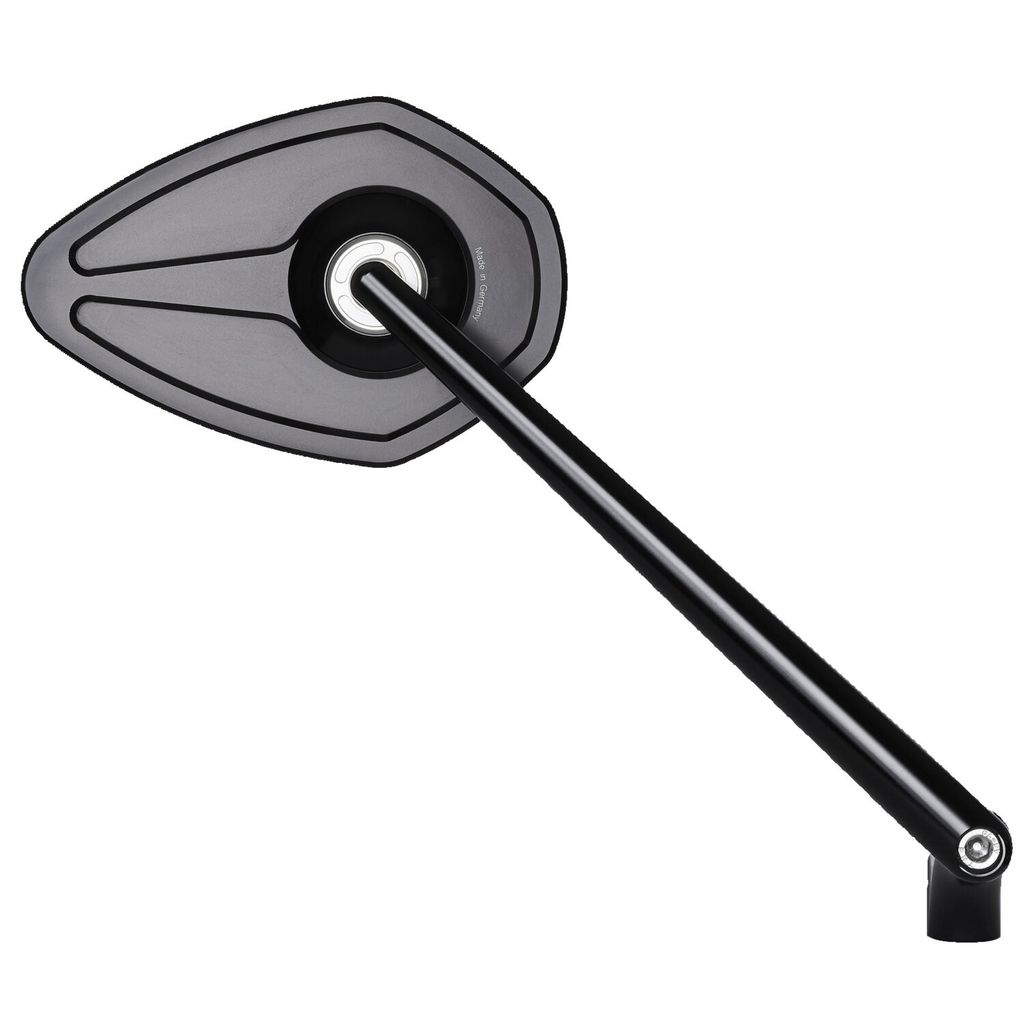

Spegel glaslös Motogadget mo.view Sport XL 122mm 83mm svart universal
CNC-fräst spegel i aluminium utan glas, för M10-spegelgänga
Läs mer
- Patenterad glashös spegelyta bearbetad direkt ur metallkroppen
- Tillverkad i CNC-fräst och anodiserad aluminium med skruvar i rostfritt stål
- ECE-godkänd
- Bredd: 122 mm, höjd: 83 mm
- Tjocklek på spegelkropp utan kulled: 4,5 mm
- Stam, längd: 180 mm
- Vikt: 178 g
- Levereras med 1 spegel, 1 st. M10 x 1,5 skruv, 1 st. M10 x 1,25 högergängad skruv samt 1 st. M10 x 1,25 vänstergängad skruv
Kan monteras på höger eller vänster sida på valfri M10-spegelgänga. För vissa modeller, som Harley-Davidson, finns anpassad mo.view skruvsats tillgänglig separat (artikelnummer 06410255).
Passar: Universal
mo.view Sport 180 mm Mirror
- The add-on mirror can be easily fitted to any M10 mirror thread on the handlebars. Depending on preference or vehicle type, there are two arm lengths to choose from that can be perfectly attached to the handlebars. For some models - such as Harley-Davidson motorcycles - a matching mo.view screw kit is also available separately (part: 06410255)
- Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.
- The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.
- The mirror body and mirror arm are milled from solid aluminium on CNC machines and anodized to high quality. All screws are made of stainless steel.
- The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or falling out is simply not possible.

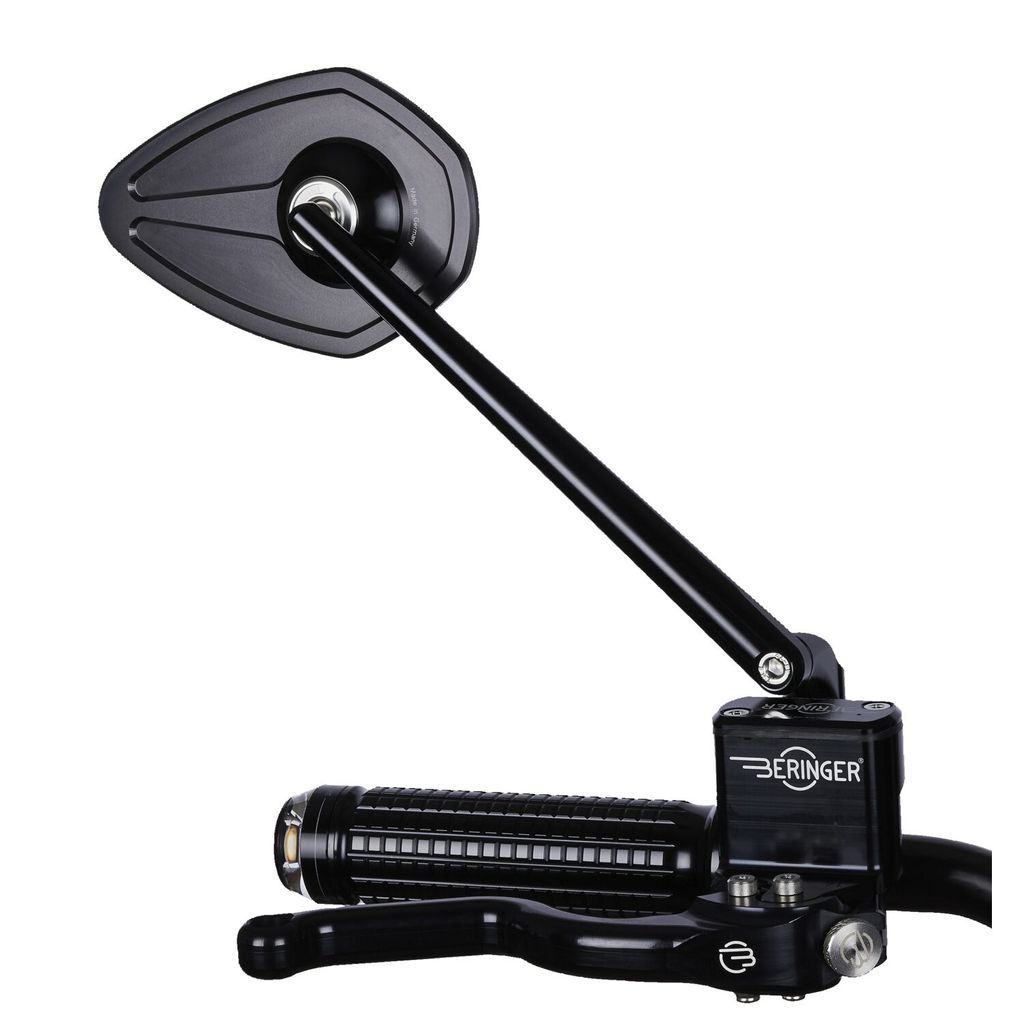

- The mounting mirror can be mounted on any mirror thread M10 on the handlebar. Three mounting screws with different thread are supplied. The mirror is suitable for the left and right side.
- Mirror body width: 122 mm.
- Mirror body height: 83 mm.
- Length mirror arm: 180 mm.
- Thickness of the mirror body without ball head: 4.5 mm.
- Weight: 178 g.
- Scope of delivery: 1x mo.view sport mounted mirror with arm (with ECE marking), 1 x screw M10 x 1.5, 1 x screw M10 x 1.25 right-hand thread, 1 x screw M10 x 1.25 left-hand thread & instructions manual.
- ECE approved; handlebar end mirror; aluminum; 122mm wide x 83mm high; Stem length 180mm
- CNC machined from aluminum and finish-anodized, but a regular glass lens is not used
- Left & right side compatible, except where noted, allows above or below bar end installation and mounts directly onto or into 22mm or 1" diameter handlebars
- Body thickness approx
- Note: Installation compatible with Motogadget bar end turn signals, the mo.grip and the push button controls mo.switch and mo.switch mini
- Note: Installs to all M10 holes
- Incl
Fits: Universal
