Vevhus S&S Super Stock standardborr silver H-D 83-91

27 040 kr

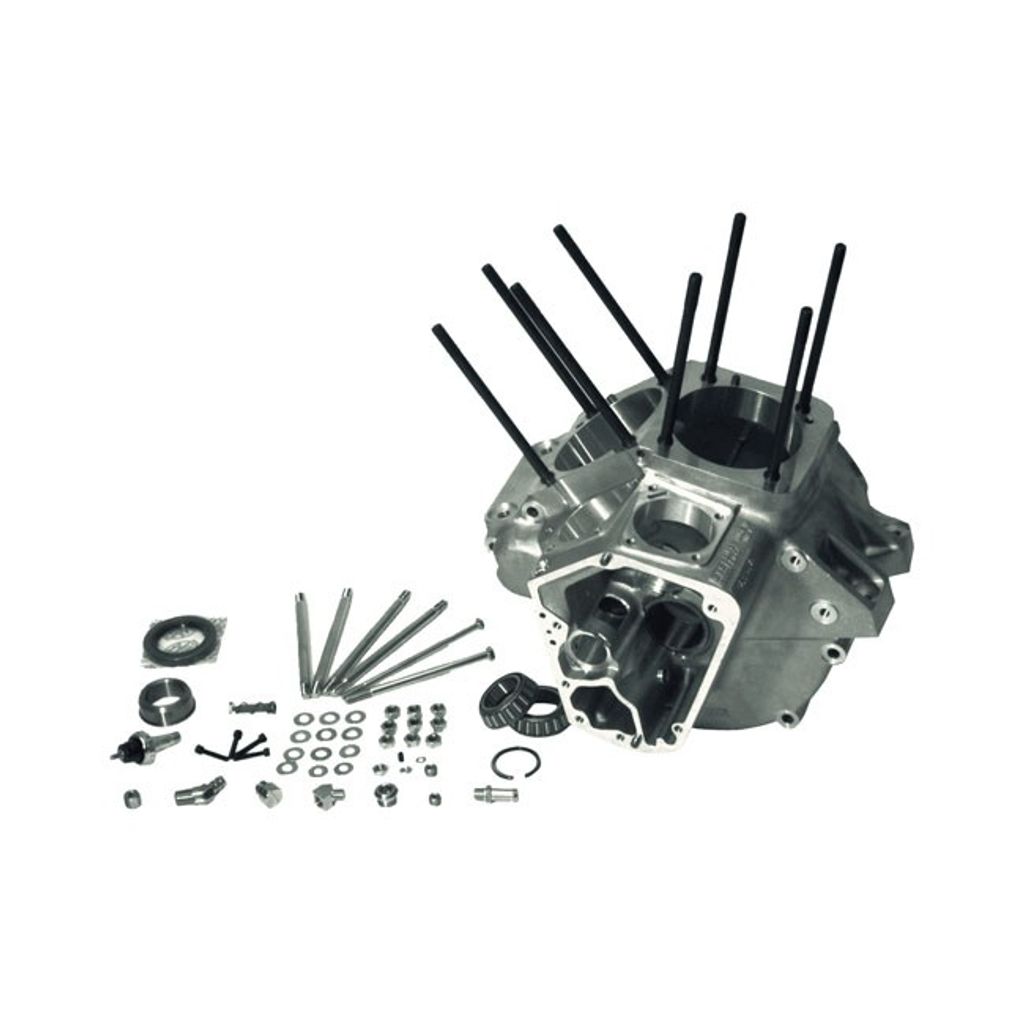

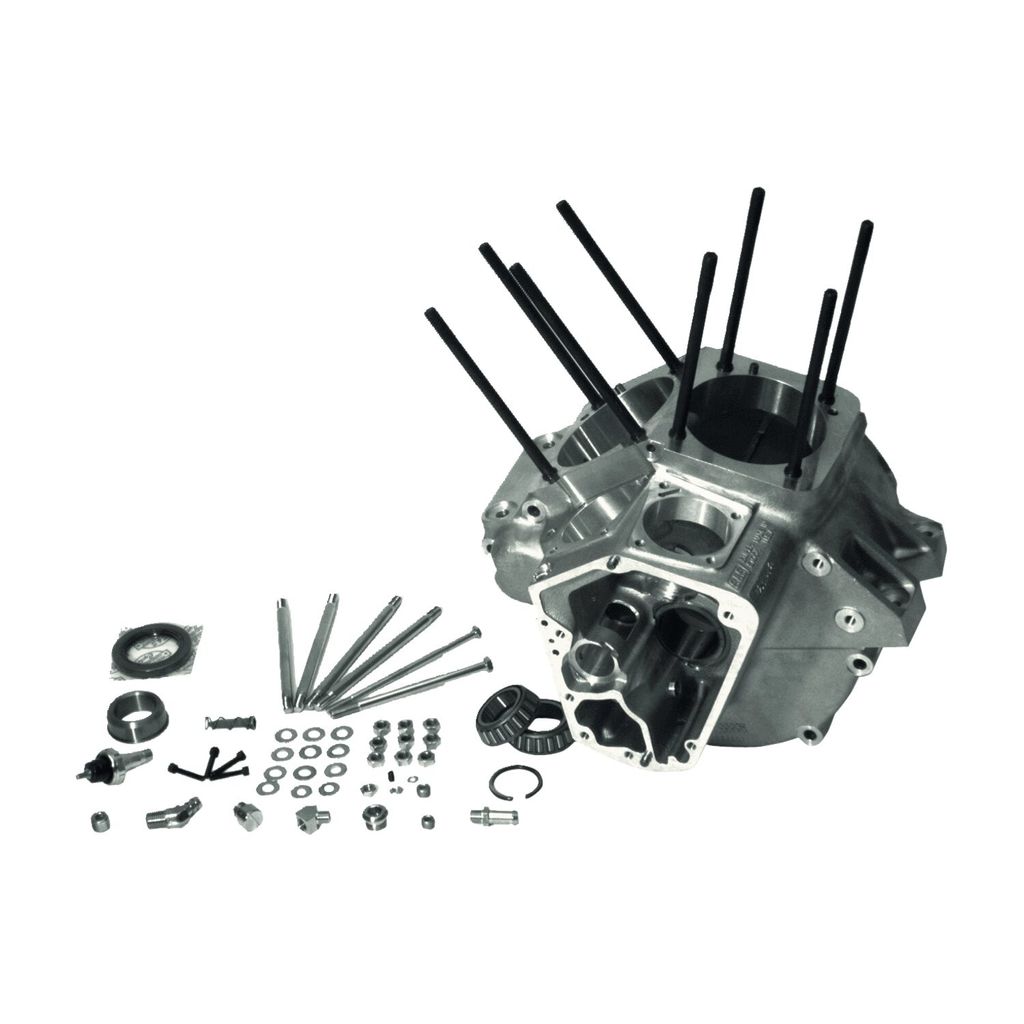

S&S Super Stock vevhus i aluminium med standardborr
Läs mer

512341 S&S
  • Tillverkat i 356-T6 aluminium med natur-finish
  • 3,5" standardborr med frigång för slaglängd upp till och med 5" och de flesta vevstakar i originallängd
  • Svänghjulsskrapare bearbetade för original 8-1/2" svänghjulsdiameter
  • Bearbetat för oljefiltermontering i framkant samt förberett för EFI
  • Linjehönade lagerlägen och precisionsbearbetat vevhusventilationsutrymme
  • Satsen innehåller vevhusbultar, brickor, muttrar och pinnbultar för cylindrar
  • Innehåller Timken-lager och oljetätning för drevaxel samt lagerbana för pinjongaxel
  • Innehåller kamnållager, bussning för oljepumpens drivaxel, oljetrycksgivare, oljesil, pluggar och kopplingar

För 84-E85 Evo Big Twin-modeller måste en topplocksbultsats av L85-91-typ användas. Tillverkat i USA.

Passar: Evo Big Twin 84-91

OEM-nr: 26190-73, 24469-83A

Kategori ¢
Produkt-typ Crankcases
OEM-nr 24469-83A

Super Stock Alternator Style Engine Case

  • 3.5" stock bore cylinder case for any stroke up to and including 5" and most stock length connecting rods
  • Machined to accept an oil filter assembly that mounts on the front of stock motor cases
  • All races are line-honed and breather cavity is precision-machined to optimize breather timing for maximum oil scavenging
  • Kit includes crankcase bolts, washers and nuts, cylinder mounting studs, timing hole plug, magnetic drain plug, assorted breather and oil line fittings, oil pressure switch, oil screen, spring and plug, sprocket shaft Timken bearing assembly and oil seal, pinion shaft main bearing race, cam needle bearing assembly, oil pump drive shaft bushing and installation instructions
  • Machined for EFI fitment
  • Made in the USA
  • 84-91 crankcase assembly, STD bore. Natural
  • S&S Superstock crankcases, made from 356-T6 aluminum, are much stronger than the OEM case
  • OEM cases can/may break in high performance or even stock applications, like more than a few of us found out the hard way
  • These S&S Superstock cases can be used for both stock replacement and racing applications
  • Important to the engine builder are the substantial savings in labor when using S&S cases
  • Additional parts that are supplied include Timken sprocket shaft bearings, cylinder studs, nickel plated case bolts, crankcase fittings, oil pressure sensor, timing & magnetic crankcase drain plugs and a special S&S design alternator stator plug clamp screw
  • The flywheel scrapers are machined to match the original 8-1/2" diameter flywheels
  • S&S cases are clearanced up to and including 5", no additional clearancing for strokers will be necessary
  • Note: For 84-E85 Evo Big Twin models you must use a L85-91 style cylinder head bolt kit
  • These can be ordered separately as MCS 505266 (Gardner-Westcott) or 989599 (Colony) in standard lengths only
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required

Kit Includes: • Engine Case • Crankcase Bolts • Washers and Nuts • Cylinder Mounting Studes • Timing Hole Plug • Magnetic Drain Plug • Assorted Breather and Oil Line Fittings • Oil Pressure Switch • Oil Screen • Spring and Plug • Sprocket Shaft Timken Bearing Assembly • Oil Seal • Pinion Shaft Main Bearing Race • Cam Needle Bearing Assembly • Oil Pump Drive Shaft Bushing • Installation Instruction

Fits: 84-91 Evo Big Twin (NU)
