Drev vevhusventilation S&S stål Evo Big Twin H-D 77-99

1 720 kr

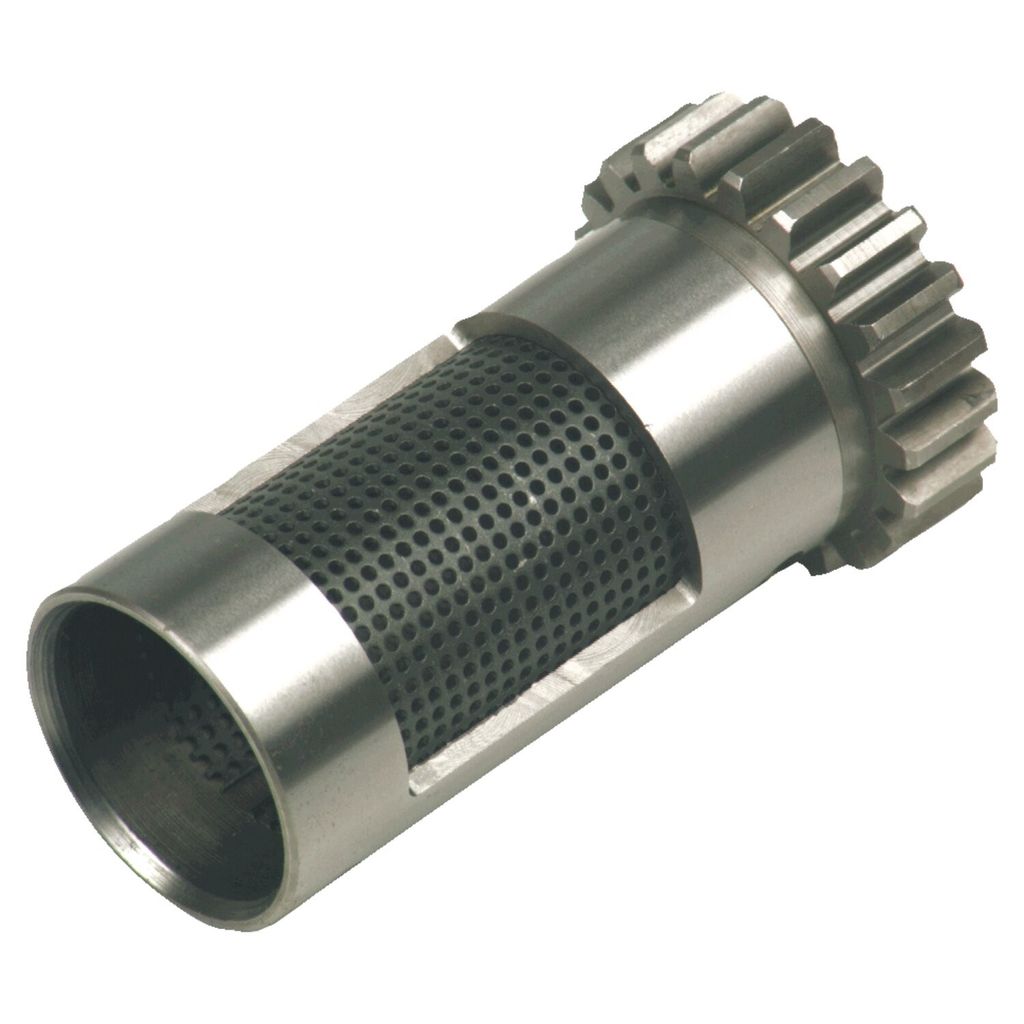

Roterande ventil i stål för vevhusventilation från S&S
Läs mer

09320124 S&S
  • Tillverkad helt i stål med fastsvetsad sil
  • Standardstorlek (STD) för originalmotorer eller högprestandabyggen
  • Högre flöde än original
  • Avlångt evakueringshål ger längre vakuumcykel och suger mer olja från topplocken
  • Förbättrar oljereturen och minskar överskottsolja vid stor cylindervolym

Kräver distanser i stål, blanda inte stål- och plastkomponenter. För slitna eller skadade vevhus finns en .030" överstorlek tillgänglig (art.nr 518662) som används med JIMS brotsch (MCS 978343). På sena 77-84 Shovel och 84-99 Evo Big Twin kan äldre timing erhållas genom att kugghjulets märkning monteras en kugg medsols relativt kammens märkning.

Passar: L77-99 Big Twin

OEM-nr: 25313-77A

Material Steel
Produkt-typ Gear
Tillverkarens Art. Nr. 33-4241
OEM-nr 25313-77C

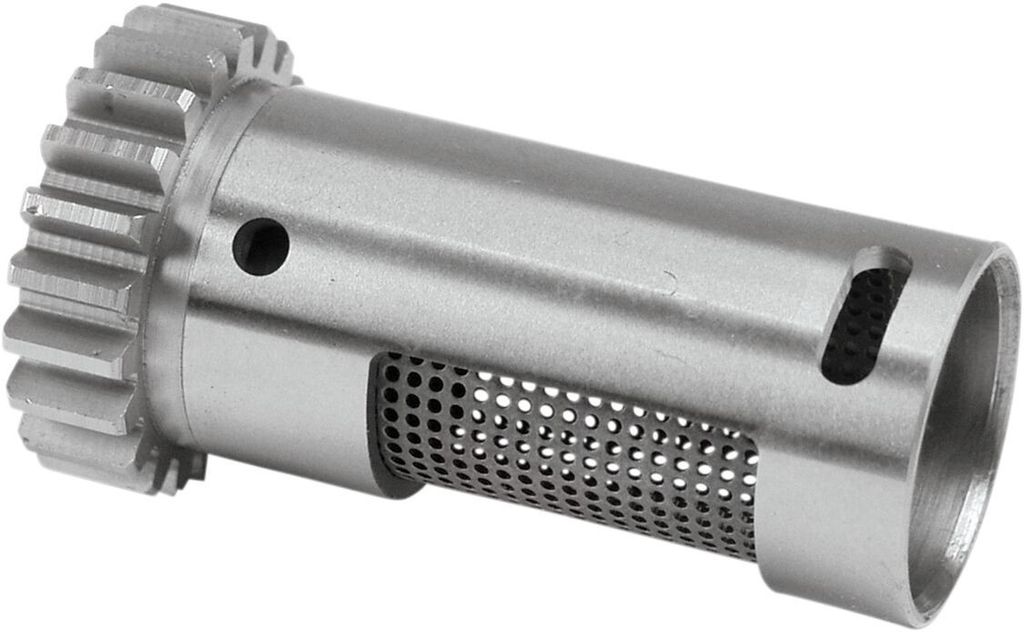

Steel Rotary Breather Gear

  • All-steel construction
  • Welded-in screen
  • Higher flow than stock
  • Elongated breather pocket scavenge hole for increased suction
  • Steel breather valve. STD
  • High quality steel breather valve for use as stock or high performance replacement
  • Note: S&S breather valves come with elongated breather holes to increase the duration of the vacuum, allowing more oil to be drawn from the cylinder heads
  • This has no disadvantage in any model year, either stock or Big Inch motor
  • Note: that steel breathers require steel breather valve spacers
  • Plastic breathers require plastic spacers
  • Do not intermix steel and plastic parts
  • Note: A .030" oversize breather is available to save worn or damaged crankcases as 518662
  • A JIMS breather hole reamer (MCS 978343) will ream the damaged hole to +.030" so a +.030" breather can be used
  • Tech tip: The timing for S&S breather valves, only for late 77-84 Shovel and 84-99 Evo Big Twin models, has been changed by S&S in the year 2000
  • This is done to improve oil scavenging and reduce oil carry-over in high performance / large displacement engines
  • Old opening was at TDC and closing at 65° after BDC
  • The old timing specification can be obtained by installing the timing mark on the breather gear one tooth clockwise from the timing mark on the cam gear
  • Also the breather's cavity oil evacuation hole (opposite of the drive gear), which used to be a round hole, has been elongated (made longer) to increase the duration of suction to the crankcase breather 'settling' cavity
  • The new specifications are not useful in most stock engines, but harmless
  • Breather windows in S&S cases will typically open at 7° after TDC and close 92° after BDC
  • Builders using other crankcases may modify crankcase breather opening to obtain these specifications for maximum breather efficiency and performance

Fits: L77-99 Big Twin (Excl. TC)
