Cylindersats S&S 136" svart utan framhävda kylflänsar M8
S&S 136" Big bore-sats med cylindrar och kolvar
Läs mer
- Ger 136" (2222 cc) cylindervolym med 4,320" big bore-cylindrar och 4-5/8" strokersvänghjul
- Svart pulverlackerad skrynkelfinish (wrinkle) med svarta kylflänsar
- Behåller original motorhöjd för frigång mot ram och avgassystem
- Passar i original vevhus utan krav på uppborrning
- Innehåller 2 cylindrar med foder i segjärn samt 2 smidda kolvsatser
- Levereras med MLS-topplockspackningar, cylinderfotspackningar, O-ringar och kamkåpe-emblem
- Kan monteras direkt på 114" och 117" med original svänghjul för att ge 132" med hög kompression
För att uppnå 136" krävs S&S 4,625" strokersvänghjul (art.nr 923271, säljs separat). Passar inte modeller med variabla ventiltider (VVT) och är ej kompatibel med H-D 4-5/8" strokersvänghjul. Rekommenderas inte för Tri-Glide eller andra trehjulingar. Justering av bränsleinsprutning och tändning krävs vid montering.
Passar: M8-modeller 17-25
136" Big Bore Kit
- The 136" displacement is a combination of 4.320" big bore cylinders and an S&S 4-5/8" (4.625") stroker flywheel (sold separately)
- Maintains original factory engine height to ensure stock frame and exhaust clearance
- Retains original engine serial numbers
- Direct bolt-on for 114" and 117" with stock flywheel to make 132" high-compression displacement, to get 136" displacement will require an upgrade to the S&S 4.625" stroker flywheel.
- 107" engine requires S&S 4.625" stroker flywheel assembly in order to achieve 136" displacement.
- Does not fit models equipped with Variable Valve Timing (VVT).
- Not compatible with H-D 4-5/8" stroke flywheel.
- 2222cc kit
- Black powder coated wrinkle finish cylinders with black (non-highlighted) fins
- Works with stock crankcases, case boring is not required
- 4-5/8" stroker flywheels are required, these must be purchased separately as 923271
- Note: S&S measured 150.5HP and 147.5TQ with a 590 cam, CNC heads, Big Bore throttle body and a high flow Stealth air cleaner kit
- Available as 923271 (without balancer gear)
- Comes with full width wrist pin connecting rods, which is required for S&S pistons
- Note: S&S 576972 extra strong head bolt kit or similar is advised
- Note: Tuning of fuel injection and ignition is required
- Note: S&S does not advise this kit for use on any Tri-Glide or other three wheelers, including conversions, due to the lugging nature of these bikes

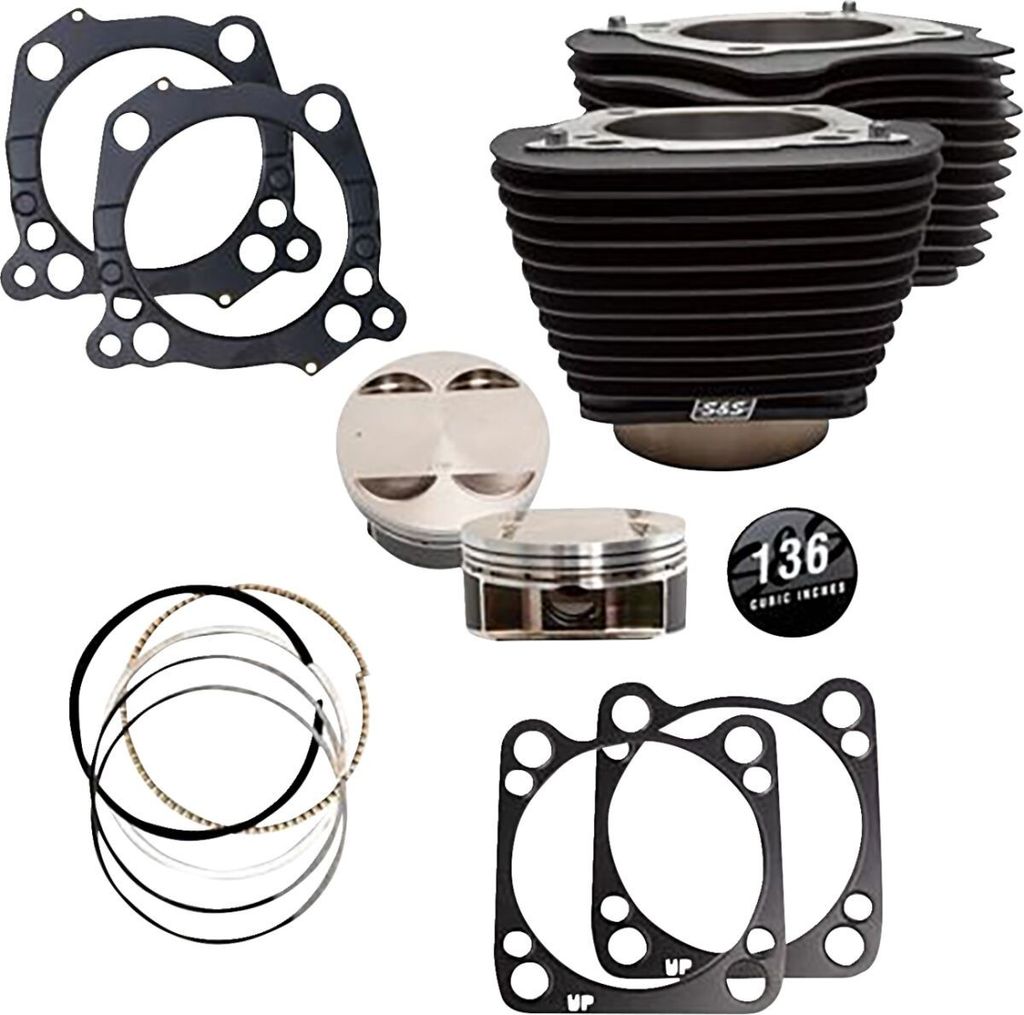

Includes: • 2x Cylinders with Ductile Iron Liners • 2x Forged Piston Kits • 2x Multi-Layer Steel (MLS) Head Gaskets • 2x Base Gaskets and Cylinder O-Rings • 1x S&S Cycle 136" Cam Cover Badge
Fits: 17-25 M8 models (excl. 2025 Softail; 23-25 CVO; 24-25 FLTRX; 24-25 FLHX; 2025 FLHXU; all Trikes) (NU)
