Cylindersats med kolvar S&S Big Bore 106″ svart Twin Cam H-D 03-17

18 210 kr

S&S Big bore-sats 96" till 106" med svarta cylindrar
Läs mer

09310434 S&S
  • Ökar cylindervolymen från 96" till 106" på Big Twin-modeller med 4-3/8" slaglängd
  • Cylindrar gjutna i premiualuminium med ingjutna gjutjärnsfoder och svart pulverlackering

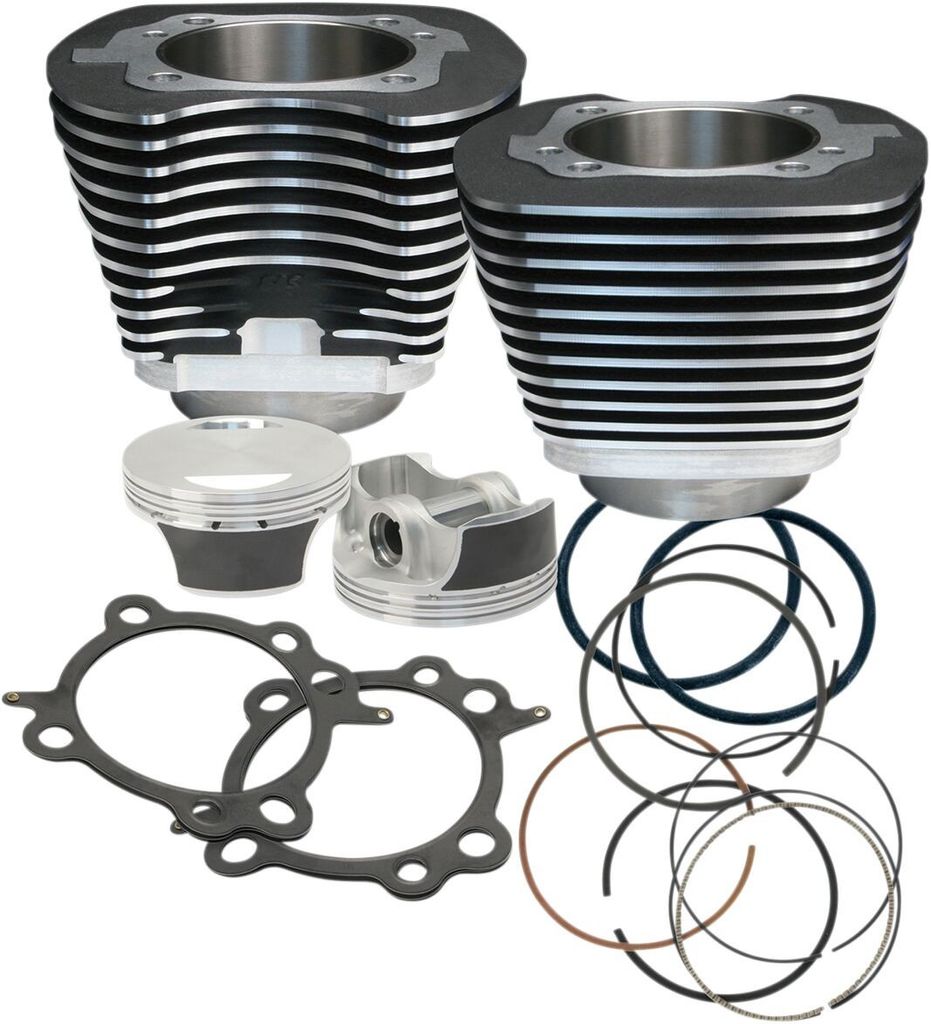

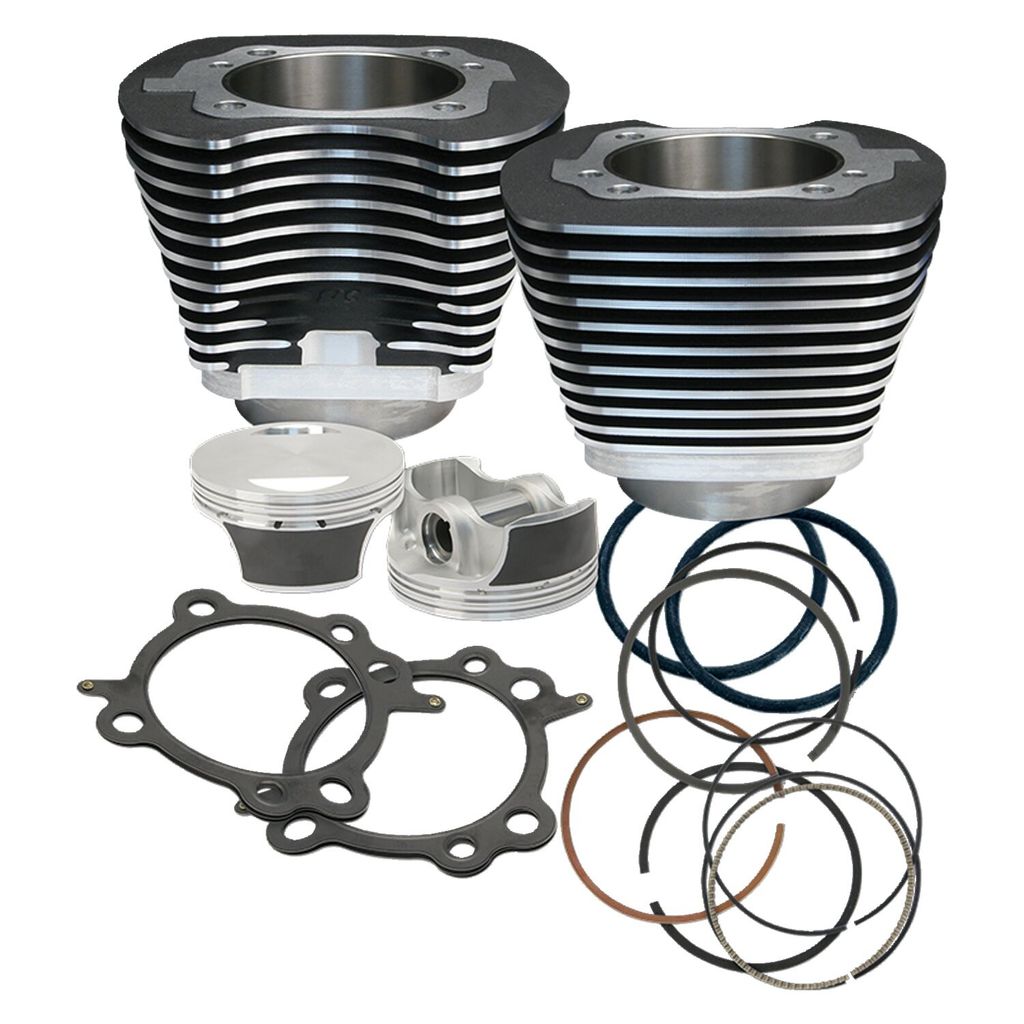

  • Satsen innehåller cylindrar, smidda kolvar, kolvringar samt topp-, cylinderfots- och avgastätningar
  • 3.927" cylinderdiameter som monteras utan att vevhuset behöver borras eller delas
  • Smidda kolvar med förstorade ventilfickor för lyftstarka kamaxlar och överdimensionerade ventiler, kräver ingen ombalansering av svänghjulet
  • Kompressionsförhållande 10:1 med original 89cc topplock och 10.7:1 med S&S 79cc topplock
  • En överstorlek på kolvar finns tillgänglig (artikelnummer 917501)
  • Tillverkad i USA

Passar även Twin-Cooled-motorer. Montering kräver en erfaren mekaniker, och installatören ansvarar för att kontrollera alla spel och monteringsspecifikationer.

Passar: H-D 03-17

Färg Black
Material Aluminum
Produkt-typ Cylinder Kit
Tillverkarens Art. Nr. 910-0206

Big Bore Cylinder Kit

  • Big Bore kit yields excellent results with stock cylinder heads
  • Easy installation no need to bore or split existing cases, just swap the cylinders (unless otherwise noted)
  • Cylinders are constructed from premium aluminum castings with cast-in iron liners
  • Kit includes cylinders, pistons, rings and gaskets (head, base and exhaust)
  • Made in the USA
  • Project requires a skilled technician. It is the responsibility of the person assembling the parts to check all clearances and assembly specifications.
  • 96" to 106" big bore cylinder & piston kit. Black
  • Black powder coated cylinders
  • With 3.927" bore S&S feels this is the largest bore possible that can be safely used with stock bore crankcase spigots
  • With a set of S&S .585 cams, S&S teardrop air cleaner and S&S mufflers the 106" S&S test bike showed a very noticeable 60 to 91 horsepower jump
  • The forged pistons requires no flywheel re-balancing and valve pockets are enlarged to acommodate oversize valves and higher lift cams
  • Fits stock 4-3/8" stroke 96" Big Twin models and increases capacity to 106"
  • 10:1 CR with stock 89cc cylinder heads and 10.7:1 CR with S&S 79cc heads
  • Note: S&S does not recommend boring OEM cylinders to a bore this large because of possible failing of structural integrity
  • Just one piston oversize (917501) available for this kit

Will fit Twin Cooled motors.

Fits: 06-17 96" Dyna; 07-17 96" Softail; 07-16 96" FLT/Touring (NU)
