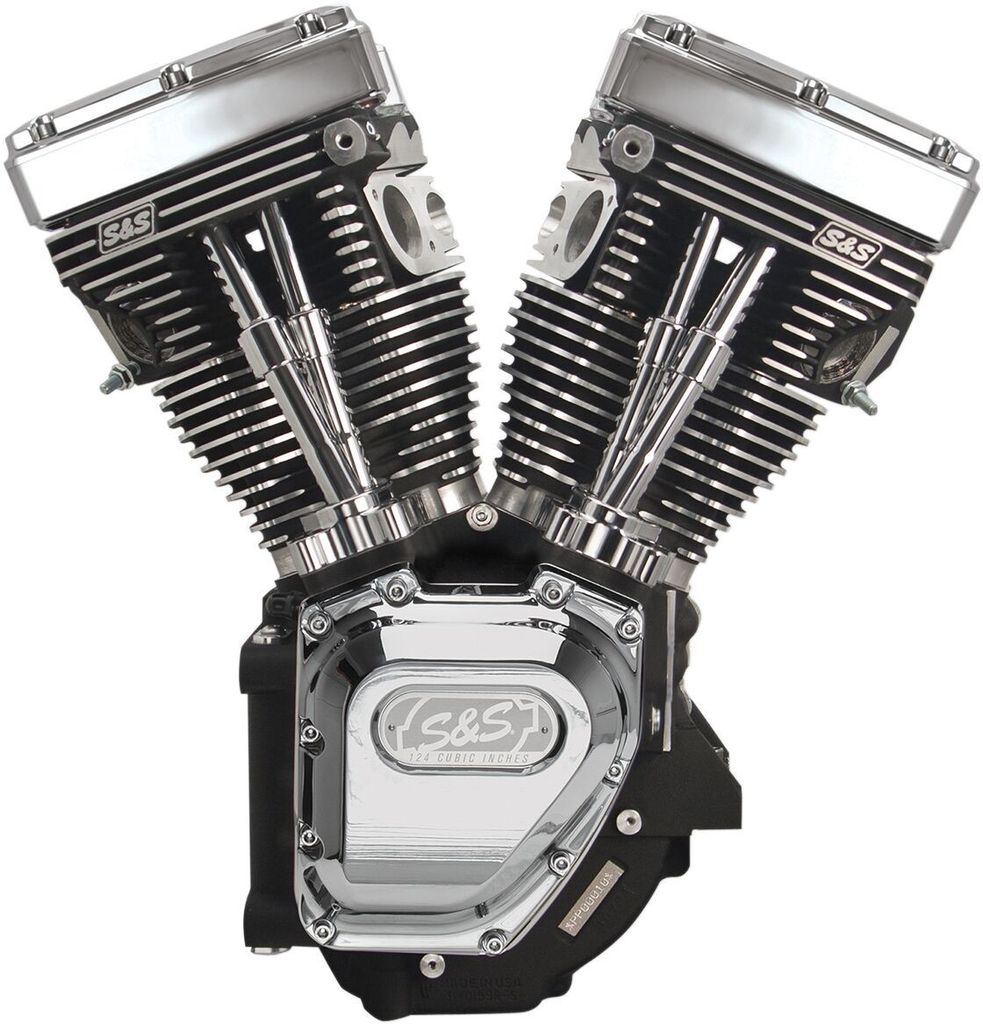

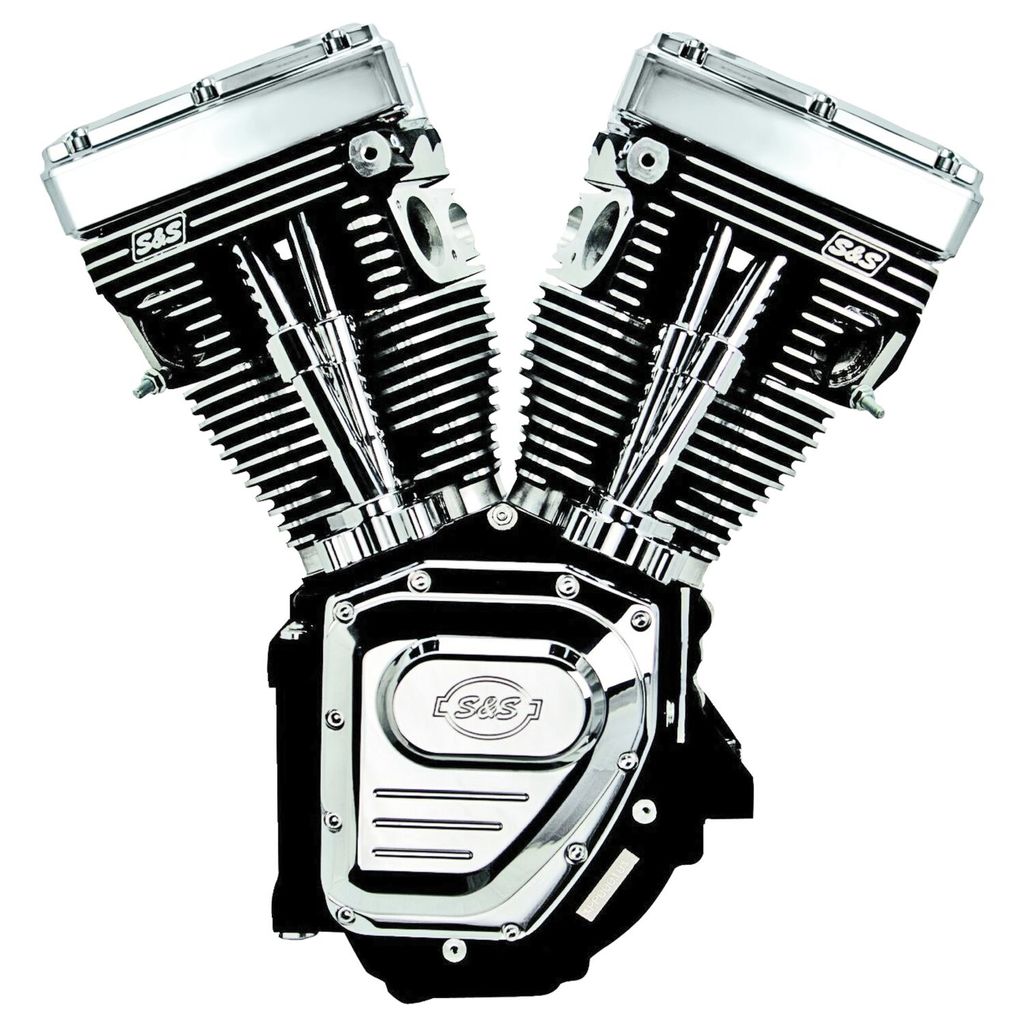

Motor S&S 124″ Long-Block Twin Cam 4-1/8″ borrning låg kompression svart/krom Dyna 99-05, Touring 99-06
S&S T124 Low Compression Long Block-motor med 4-1/8" borrning
Läs mer
- 124" Twin Cam Long Block-motor med 4-1/8" borrning och svart/krom-finish
- Låg kompression (10.2:1) med skålade, smidda kolvar minskar risken för spikningar och ger längre livslängd
- Inkluderar Super Stock-topplock, T2-vevhus, oljepump med högt flöde, kamkåpa och Easy Start 585 kugghjulsdrivna kammar (585GP)
- Specialbearbetade topplock som kompenserar för cylinderlängd och passar insug med originallängd (S&S-storlek 405)
- Vevhusventilation i originalstil och fästhål i standardposition gör motorn kompatibel med de flesta luftfilter
- Omarbetad oljedragning för 99–06 Touring gör att en separat monteringssats för oljeslang inte längre behövs
Levereras som Long Block utan bränslesystem, insug, tändsystem eller laddsystem. Topplocken är av 99–05-stil, vilket gör att 06-modeller kräver förskjutna insugsflänsar av 99–05-stil. Förgasarmotorer kräver tändsystem med justerbar tändkurva samt stor förgasare, medan laddsystem kräver drevaxeldistans 1.750" OD x 1.255" ID x 1.095" tjocklek.
Passar: Dyna 99-05
| Produkt-typ | Engine |
| Färg | Wrinkle Black |
| Tillverkarens Art. Nr. | 310-0326A |
T124 Low Compression Long Block Engine
- Includes Super Stock heads, T2 crankcase, high flow oil pump, cam cover and easy start 585 gear drive cams
- Special head machining fits stock length intake manifolds (S&S manifold size 405)
- Stock style breathing system; compatible with stock and most performance air cleaners
- No fuel system or ignition systems included.
- Revised oil routing on '99-'06 Touring models make it so an oil line istallation kit is no longer required.
- Cylinder heads on T-Series long block engines are '99 - '05 style. Owners of '06 models will need to purchase a set of '99 - '05 style, offset intake flanges.
- Cylinder heads on these engines are specially machined to compensate for the non-stock cylinder length. As a result, they are compatible with manifolds and throttle bodies with stock length intake runners. In addition, the breather vent bolt locations have been adjusted so they are in the stock location, so stock style air cleaner back plates will bolt up to these engines.
- 4-1/8" bore 124" long block TC engine. Black/chrome
- Low compression is less sustainable to knocking and will give longer engine life
- Engine comes with 10.2:1 CR dished forged pistons and 585GP easy-start cams
- Engine is sold as 'Long Block', meaning these are engines without any intake components or ignition
- Stock compatible air cleaners and breathers will also fit
- Carburetor, throttle housing, manifold, ignition and charging system is not included
- Note: A large throttle housing and high performance ECU is required for best performance
- Carbureted engines will require a ignition system with adjustable advance curves and large carburetor, as the S&S Super G or similar
- Note: 99-05 Dyna requires 902298 oil line installation kit, which is no longer available
- Custom installation is required
- Note: Charging system requires an early style (MCS 591077) sprocket shaft spacer of 1.750" OD x 1.255" ID x 1.095" thick
Fits: 99-05 Dyna; 99-06 FLT/Touring (NU)
