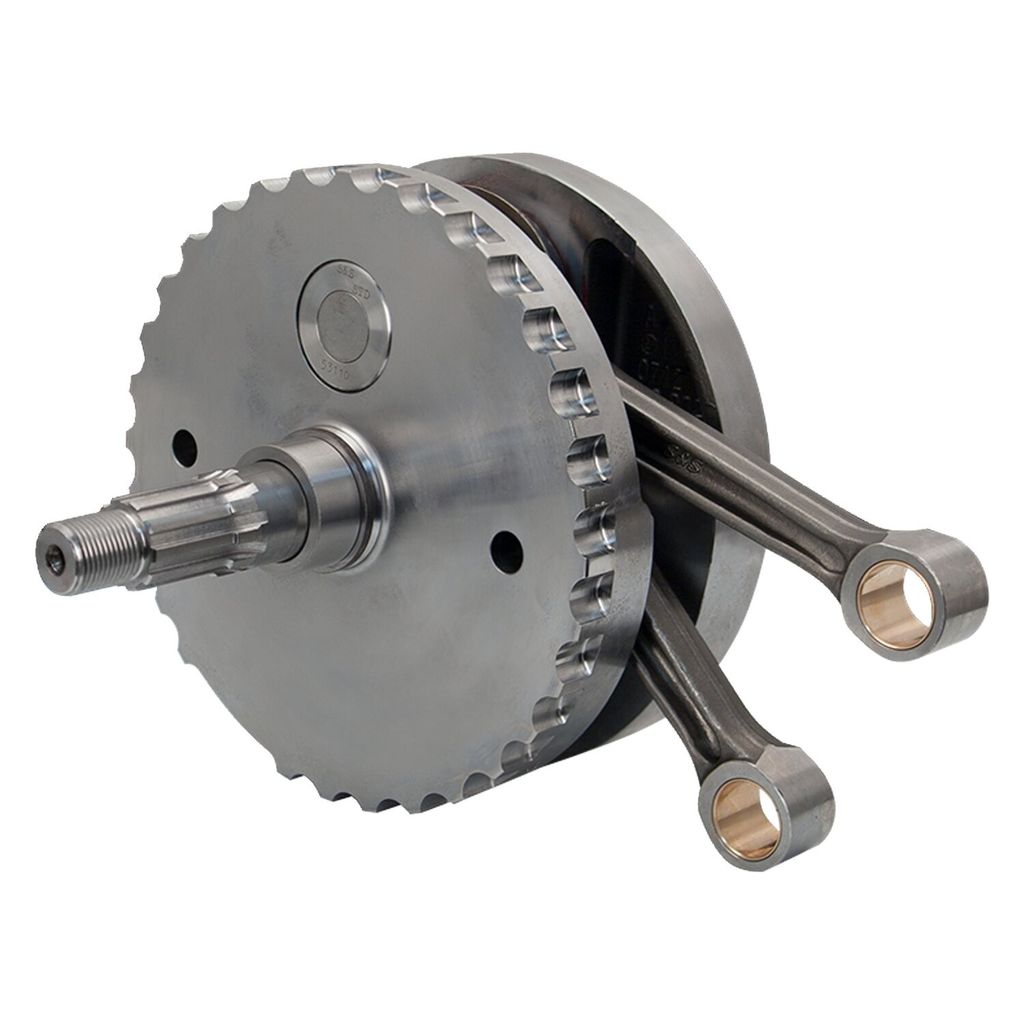

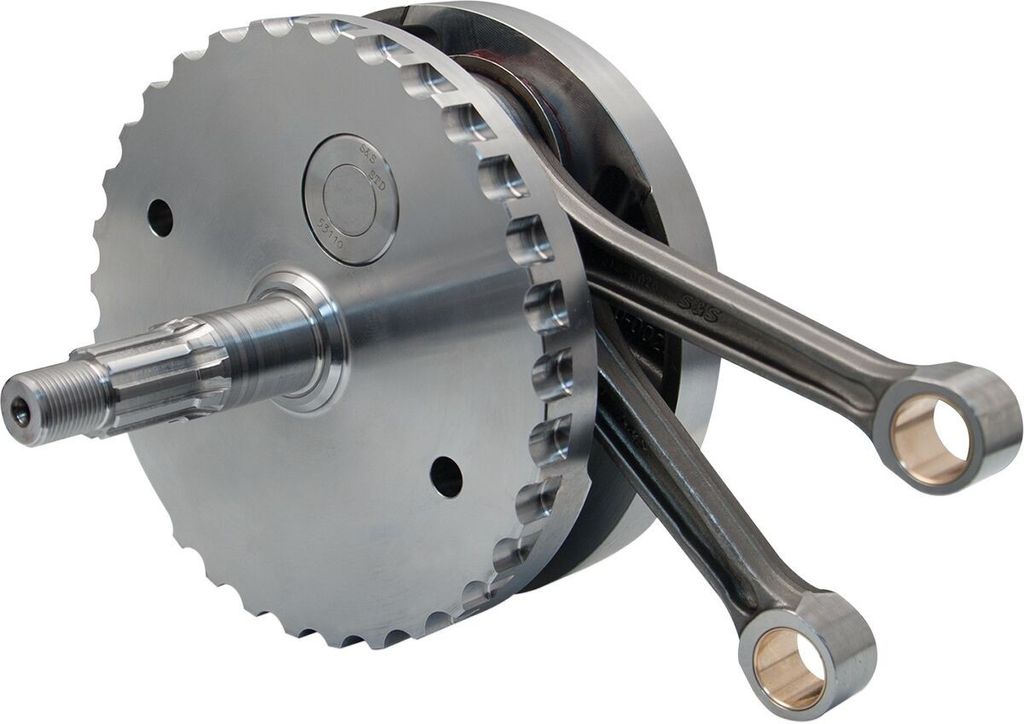

Svänghjul S&S 3 Piece 4-3/8STRK 88B H-D 99-06

28 730 kr

S&S tredelat svänghjul med 4-3/8" slaglängd för Twin Cam
Läs mer

09210524 S&S
  • Tillverkat i 4140 stål med integrerade huvudaxlar och 1,671" vevtapp
  • Passar direkt i originalvevhus utan modifieringar
  • Slaglängd: 4-3/8"
  • Balanserat för en total kolvvikt på 1035 gram
  • Konstruerat för användning med Timken-konvertering (levereras utan lagerbana)
  • Möjliggör utbytbara lagerbanor i vevstakarnas nedre ände
  • Tillverkat i USA

Avsett för 93", 96", 103", 106", 110" och 117" motorer med original- eller S&S-kolvar. Kräver Timken-lager på transmissionsaxeln, passar direkt på 99–02 original- och alla S&S-block, medan 03–17 modeller kräver Timken-konvertering (säljs separat) då rullager inte godkänns av garantin. Motorer med slaglängd över 4" kan kräva S&S kolvoljemunstycken och modifiering av kolvkjolen för frigång.

Passar: Twin Cam 99-06

OEM-nr: 24004-03B, 24605-07

Material Steel
Produkt-typ Flywheel Assembly
Tillverkarens Art. Nr. 320-0361

Replacement Flywheel Assembly

  • S&S 3-piece flywheels with integral main shafts are the strongest yet, made from 4140 steel and feature a larger 1.671" crankpin
  • Fits directly in stock crankcases with no modifications
  • Made in the U.S.A.
  • Flywheel assembly without sprocket bearing race are designed for use with Timken bearing conversion (sold separately).
  • 99-06 4-3/8" stroke flywheel assembly
  • Used with 93/103/106 and 110/117 engines
  • Balanced to 1035 gram total piston weight
  • Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
  • Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
  • The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
  • The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins
  • Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
  • Note: Following is regarding 03-17 models
  • S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications
  • Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution
  • However, S&S feels this roller bearing will not take the side loads produced in a high performance motor
  • S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used
  • To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available
  • Bearing inserts only are available as 978519, bearings only as 508960
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required

For 96"/103"/106"big bore /110"/117" with stock or S&S pistons.

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
