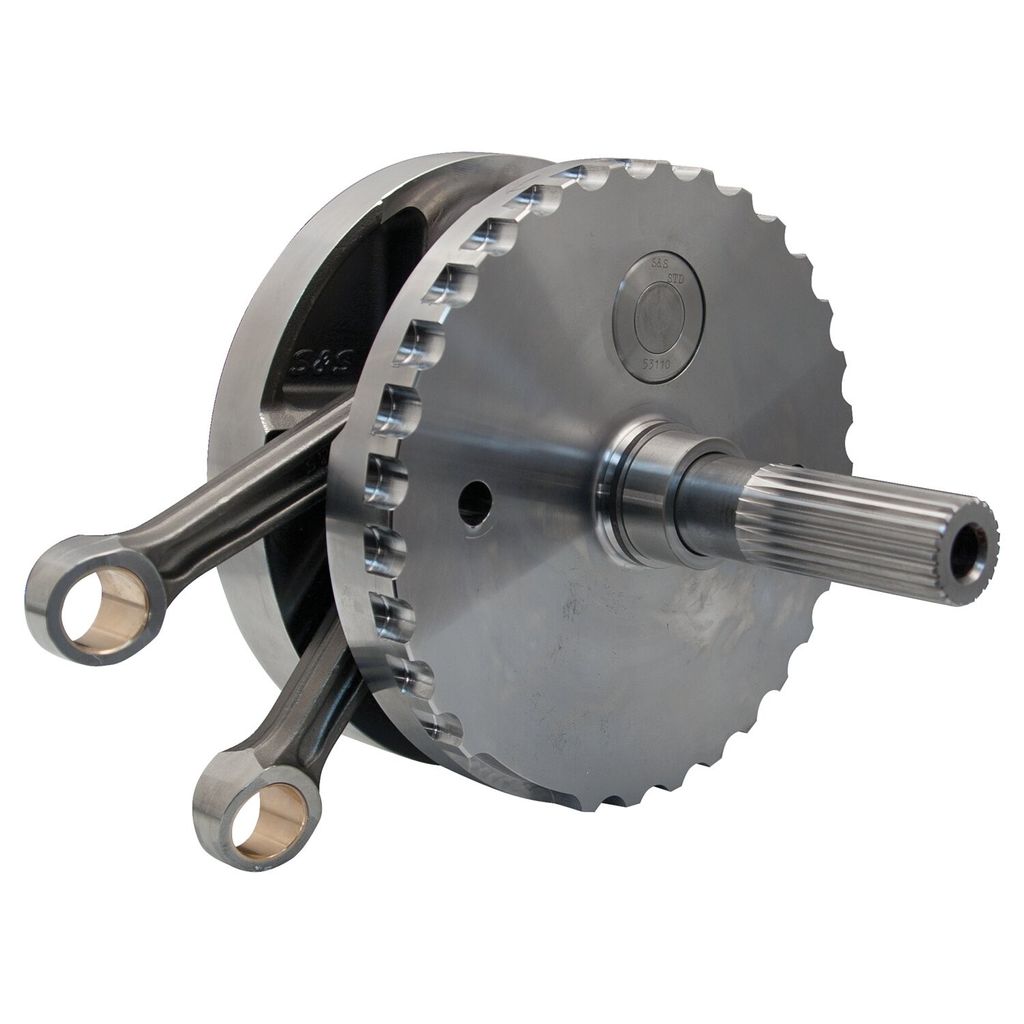

Svänghjul S&S koniska H-D 07-15

30 420 kr

S&S 3-delat svänghjulspaket med vevstakar
Läs mer

09220122 S&S
  • Tillverkat av 4140-stål med integrerade huvudaxlar
  • Slaglängd på 4-3/8"
  • Grövre vevtapp på 1.671"
  • Vevstakar med koniska kolvbultsändar kompatibla med originalkolvar
  • Pressad lagerbana för kedjehjulssidan kompatibel med OEM 24004-03B rullager
  • Balanserat för en total kolvvikt på 1035 gram (OEM-kompatibel)
  • Passar direkt i originalvevhus utan modifieringar
  • Tillverkat i USA

Motorer med slaglängd över 4" kan kräva S&S kolvkylningsmunstycken samt urtag i kolvkjolen för frigång. Svänghjulet har utbytbara lagerbanor i vevstakarnas nedre ände och vevtappsdiametern matchar OEM. Montering och nödvändiga justeringar bör utföras av en erfaren mekaniker.

Passar: Softail 07-15

OEM-nr: 24004-03B

Material Steel
Produkt-typ Flywheel Assembly
Tillverkarens Art. Nr. 320-0358
OEM-nr 23912-07B

Replacement Flywheel Assembly

  • S&S 3-piece flywheels with integral main shafts are the strongest yet, made from 4140 steel and feature a larger 1.671" crankpin
  • Fits directly in stock crankcases with no modifications
  • Made in the U.S.A.
  • Flywheel assembly without sprocket bearing race are designed for use with Timken bearing conversion (sold separately).
  • 07-15 Softail 4-3/8" stroke flywheel assembly. For OEM
  • OEM compatible
  • Stock 96", 103", 110" stroke is 4-3/8"
  • These S&S conrods have a (non Timken) pressed-on sprocket shaft roller bearing race for use with the stock 24004-03B sprocket shaft bearing, a weaker solution but compatible with OEM components
  • Complete with tapered wrist pin ends that are compatible with stock H-D pistons
  • Balanced to 1035 grams total piston weight, which is compatible with OEM
  • Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
  • Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
  • The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
  • Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required

Fits: 07-15 Softail (NU)
