Kolvsats S&S Std-size 3-5/8″ smidd H-D 36-84

6 890 kr

S&S smidd 3-5/8" kolvsats
Läs mer

09101992 S&S
  • Smidda kolvar för hög hållfasthet
  • Avancerad legering och kolvkjoldesign för låg ljudnivå och lång livslängd
  • Kolvtoppens volym: 30 cc
  • Kolvhöjd (deck height): 1.260"
  • 93" HC specifikation: 4-1/2" slaglängd, 8-1/2" svänghjulsdiameter, 9.1:1 i kompressionsförhållande, 5.363" cylinderlängd

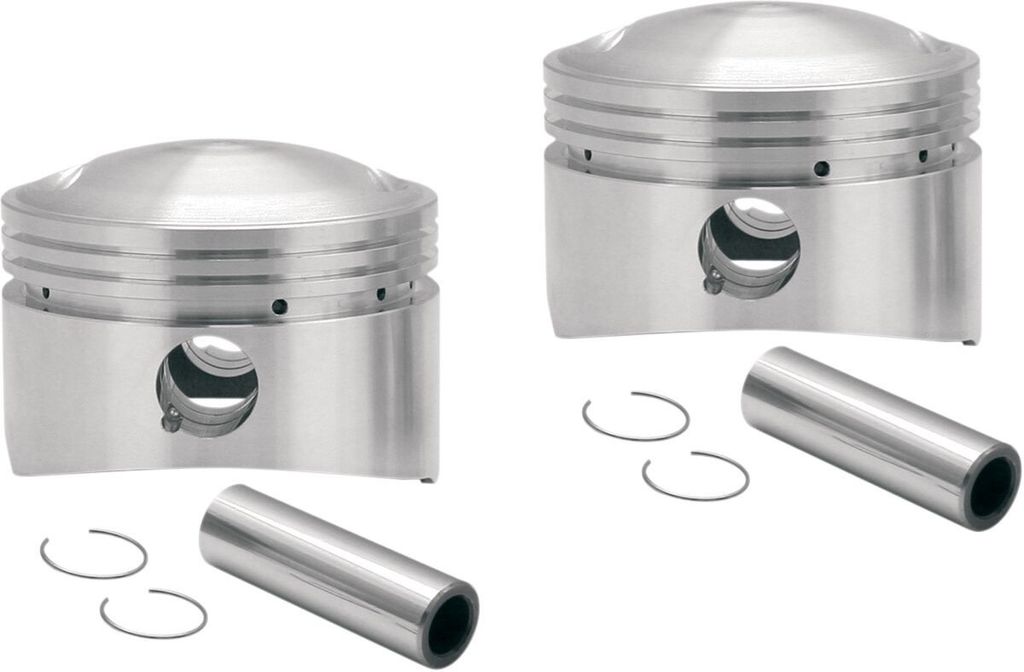

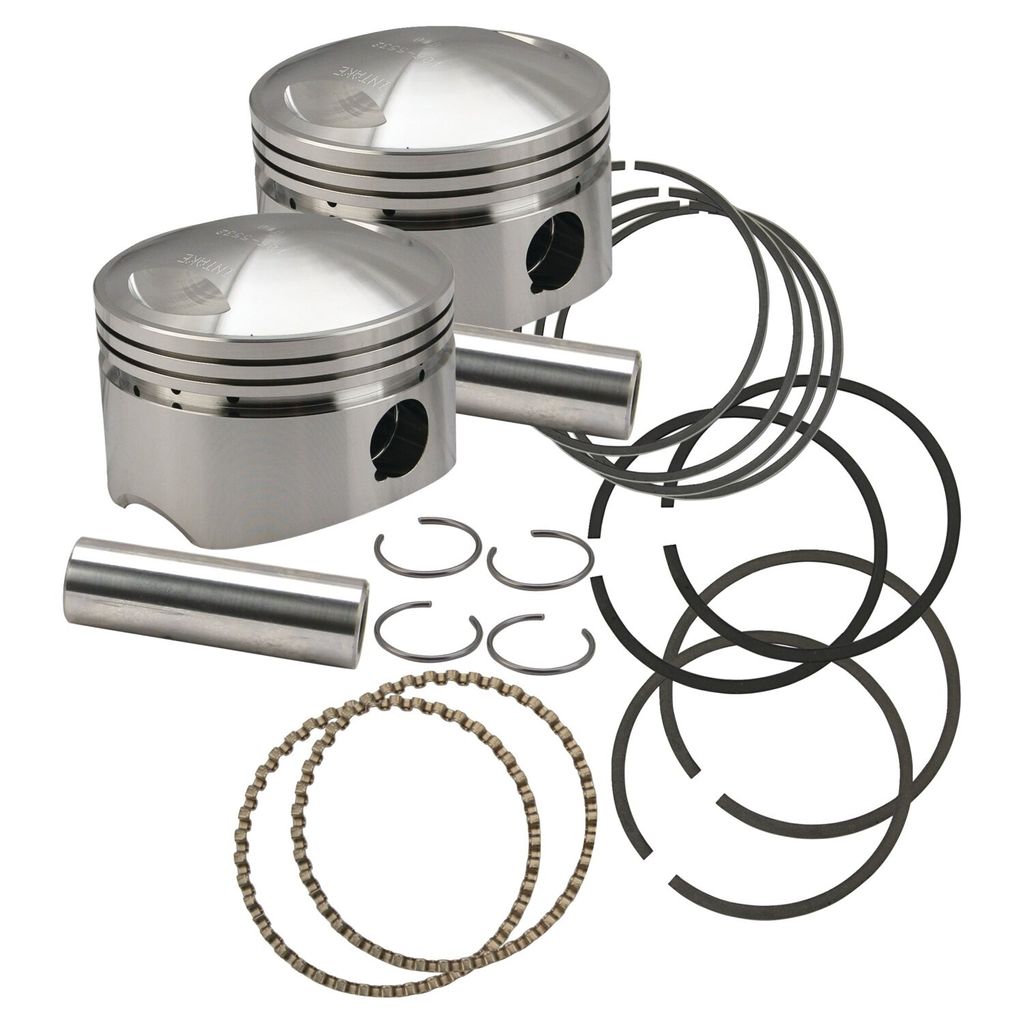

  • Innehåller kolvar, kolvringar, kolvbultar och clips

För 3-5/8" big bore 36-84 B.T.-modeller med 4-1/4" till 5" slaglängd och 8-1/2" svänghjulsdiameter, notera att 4-3/4" och 5" slaglängd kräver 8-1/4" svänghjul med mindre diameter, i kombination med passande cylinderlängd. För högre kompressionsförhållande rekommenderar S&S att cylindrarna kortas (.060" ger ca 1 enhet högre kompressionsförhållande). Montering och justering ska utföras av kunnig mekaniker, och standardmässiga inkörningsprocedurer för renoverade motorer måste följas.

Passar: 88", 93", 93"HC, 96", 98" och

Material Aluminum
Produkt-typ Piston Kit
Tillverkarens Art. Nr. 106-5535

Forged 3-5/8" Bore Piston Kit

  • Forged pistons for superior strength
  • Modern alloys and piston skirt profiles for low noise and long engine life
  • Includes set of pistons, rings, wristpins, and clips
  • Fits all 3-5/8" big bore 36-84 B.T. models with 4-1/4" to 5" stroke flywheels with the correct flywheel diameter of 8-1/2
  • Note that 4-3/4" & 5" strokes require 8-1/4 small diameter flywheels, all in combination with the appropriate cylinder length like mentioned below
  • Advanced alloy and piston skirt profile is used for low noise and long engine life
  • Piston dome volume 30cc, piston deck height 1.260"
  • 93" HC (4-1/2" stroke, 8-1/2" flywheel dia., 9.1:1 CR, 5.363" cyl. length)
  • Pistons include wrist pins, wrist pin clips and piston rings
  • Note: For a higher compression ratio S&S advises shortening the cylinders
  • Shortening cyl. .060" will produce approx
  • 1 point increase in CR
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required
  • The rider must follow standard break-in and riding procedures for overhauled engines

Fits: 36-84 88", 93", 93"HC, 96", 98" and 103" Big Twin with appropriate cylinders and flywheel stroke (NU)
