Kolvsats S&S Std-size Standard 106″ smidd H-D 99-06

9 160 kr

Kolvsats 106" Stroker för Twin Cam
Läs mer

09200001 S&S
  • Krävs för S&S 106" stock bore stroker kit med 4-1/2" stroke svänghjul
  • Kompatibel med original eller S&S Super Stock topplock
  • Smidda kolvar med platt topp, samma vikt som original
  • Ger 9,7:1 kompressionsförhållande med original topplock
  • Deckhöjd 1,020"
  • Satsen innehåller kolvar, ringar, kolvbultar och låsringar
  • Tillverkad i USA

Passar 99-06 88" Twin Cam med original cylindrar borrade till 3-7/8" och utrustade med 4-1/2" stroke svänghjul. Fungerar även som ersättning för S&S 106" Hot Set-Up kits. Ingen borrning eller ombalansering av vevhuset krävs, och montering ska utföras av kunnig mekaniker som följer gällande inkörningsrutiner för renoverade motorer.

Passar: H-D 99-06

Material Aluminum
Produkt-typ Piston
Tillverkarens Art. Nr. 92-1210

Piston Kit 106" Stroker

  • Required for S&S 106" stock bore stroker kit with 4-1/2" stroke flywheels
  • Compatible with stock or S&S Super Stock cylinder heads
  • Piston kit includes forged pistons, rings, wrist pins and clips for a complete motor
  • Made in the USA
  • Twin Cam 106" big bore piston kit. Std
  • Fits 99-06 88" Twin Cam with stock cylinders that have been bored to 3-7/8", and equipped with 4-1/2" stroker flywheels
  • Gives 9.7:1CR with stock heads
  • The forged pistons have a flat top, weight is same as stock
  • 1.020" deck height
  • Also as replacement for S&S 106" Hot Set-Up kits
  • Crankcase boring and re-balancing is not required and pistons are compatible with S&S and stock cylinder heads
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required
  • The rider must follow standard break-in and riding procedures for overhauled engines

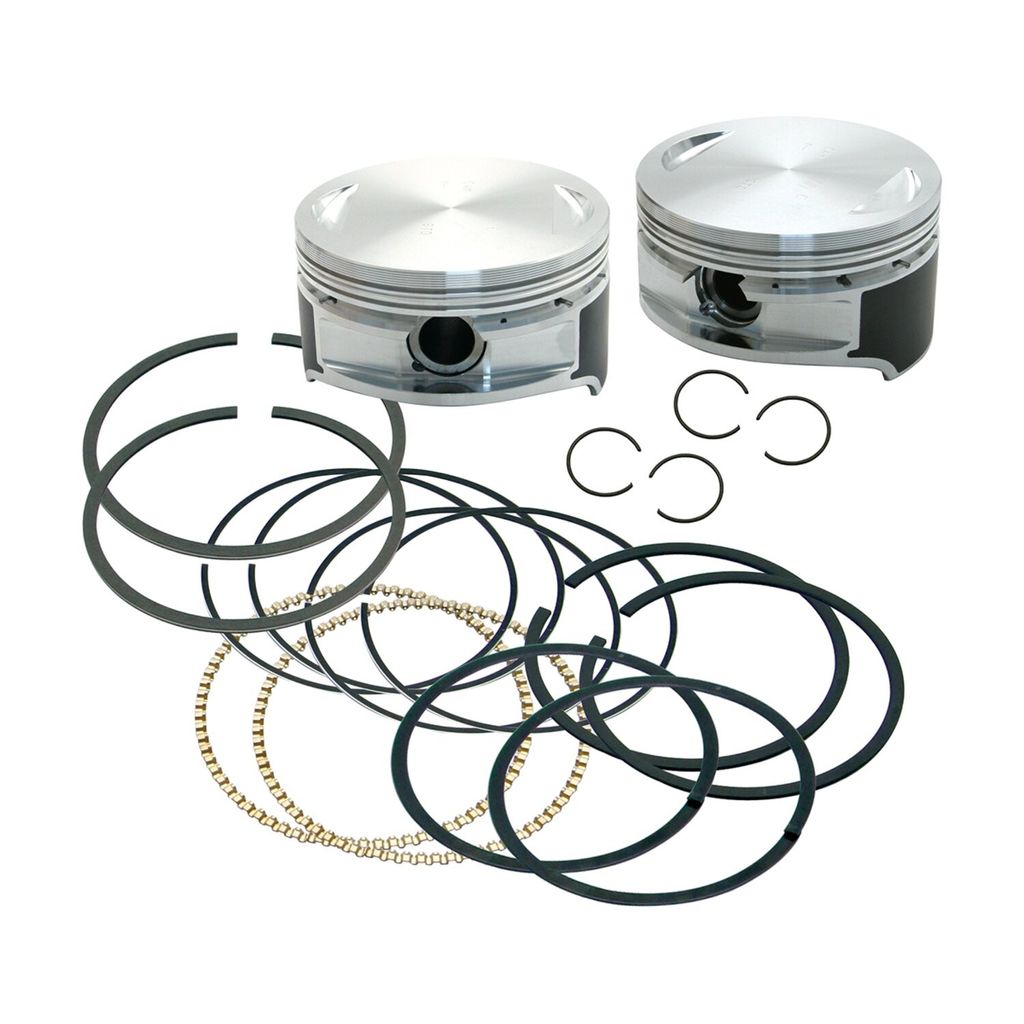

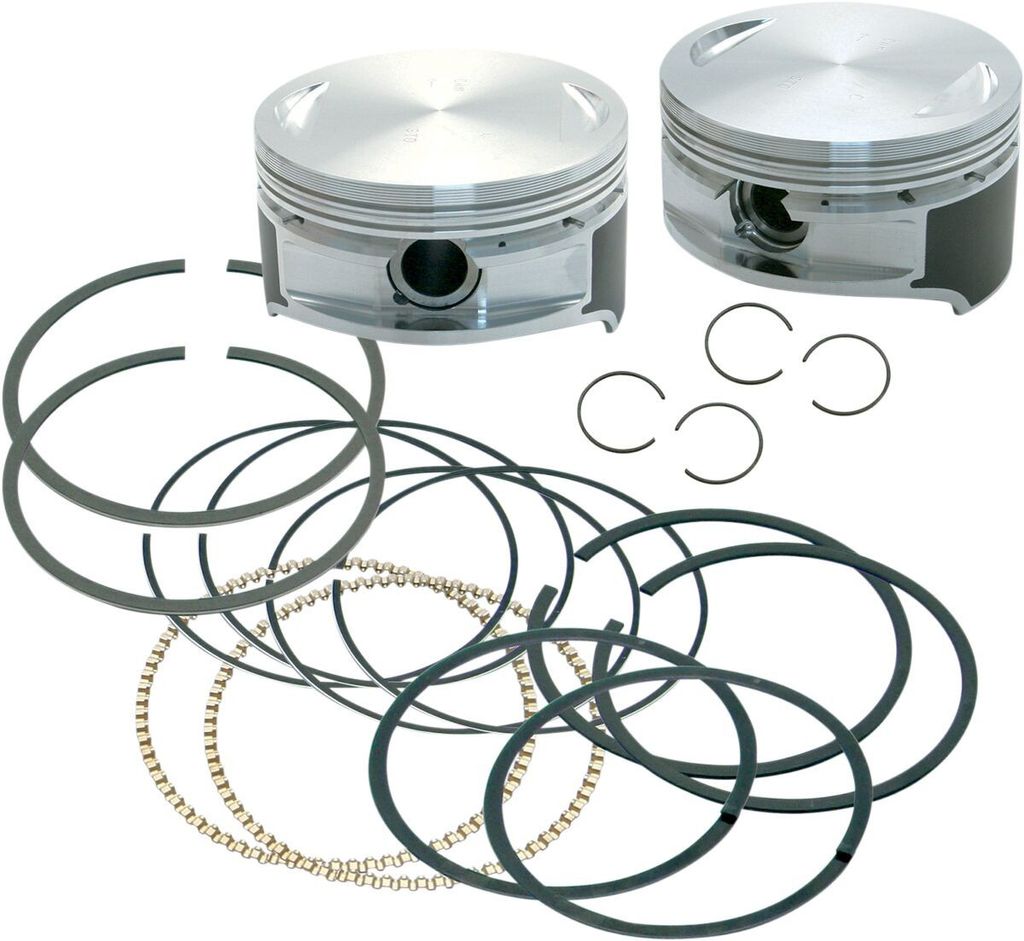

Includes: • Pistons • Rings • Wrist Pins • Circlips

Fits: 99-06 88" Twin Cam with 4-1/2" stroker flywheels; 99-06 Twin Cam A/B with 106" Hot Set-Up kit (NU)
