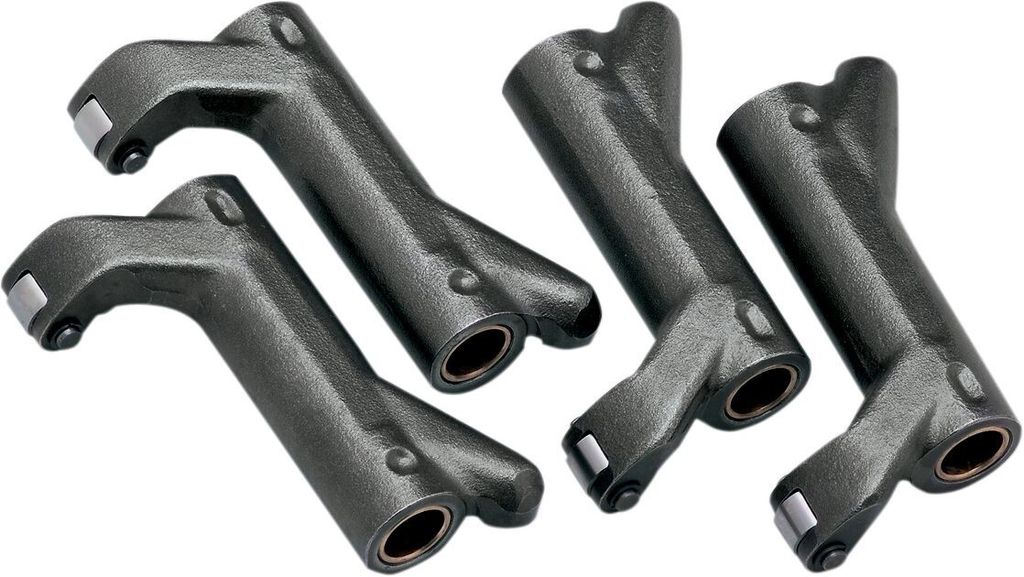

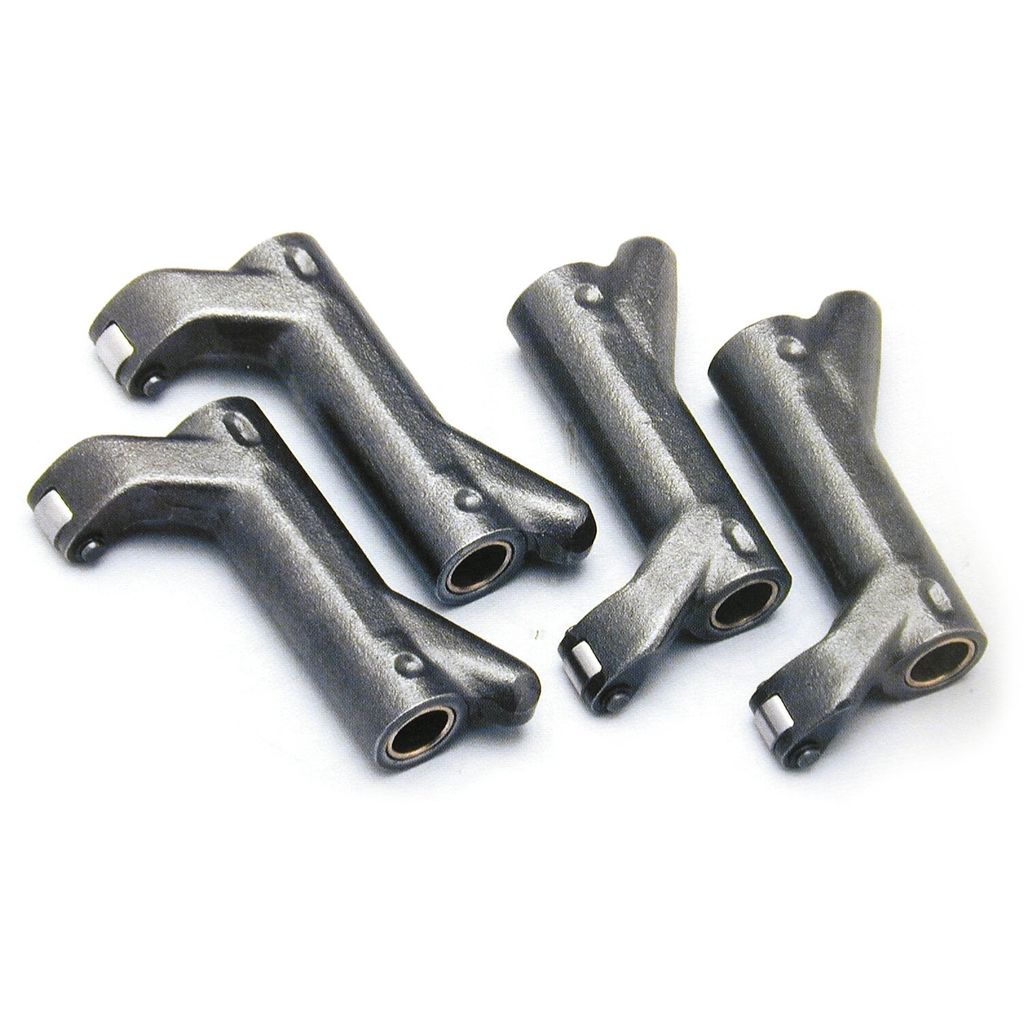

Vipparmar S&S smidda med rulle H-D 84-22 (4-pack)

9 610 kr

S&S rullvipparmar med 1,625" utväxling
Läs mer

09270015 S&S
  • Smidd av 8620-stål som värmebehandlats och kulblästrats för extra styrka och hållbarhet
  • Utväxling på 1,625" för original ersättning
  • Inpressade 3/4" (0,750") långa bussningar istället för nållager
  • Modifierat smörjsystem med obehindrad smörjning till rullarna
  • Rullspets i flygplansklassat stål med 0,50" diameter för maximal slitstyrka
  • Satsen innehåller två främre och två bakre vipparmar
  • Tillverkade i USA

Måste användas med justerbara stötstänger (säljs separat) för att uppnå korrekt ventilspel. S&S rekommenderar rullvipparmar vid kamaxlar med mer än 0,585" lyft, samt att nya vipparmsaxlar monteras samtidigt (säljs separat).

Passar: H-D 84-22

Produkt-typ Rocker Arm
Tillverkarens Art. Nr. 900-4065A
Material 8620 Steel- Forged
OEM-nr 17360-83A

Roller Rocker Arms

  • Forged from 8620 steel, heat-treated then shot-peened for additional strength and durability
  • 3/4" long bushings instead of 1/2" long bushings found on most other rocker arms
  • Features a modified lubrication system with unrestricted roller oiling
  • Set includes two each front and rear rocker arms
  • Made in the USA
  • Must be used with adjustable pushrods (sold seperately).
  • Recommended that new rocker shafts be used when installing roller rocker arms (sold seperately).
  • 84-22 roller rocker arm set
  • With stock 1.625" ratio for a stock application replacement
  • In these rockerarms pressed-in, extra 0.750" wide, bushings are used instead of needle bearings
  • A 0.50" diameter aircraft grade steel roller tip ensures wear resistancy and maximum reliability
  • For replacement parts see: 531870 Rocker arm
  • Front exhaust or rear intake
  • 531871 Rocker arm
  • 531368 Bushing .750"
  • 531367 Complete rebuild kit which includes retaining rings (6), 531368 bushings (8), rollers (4) and shafts (4)
  • Note: S&S advises the use of adjustable pushrods to obtain the required correct valve clearance
  • Note: Roller rockers are recommended by S&S with cams having more than 0.585" lift
  • Note: S&S does not recommend 1.745 ratio roller rocker arm sets for street bikes
  • These will increase stress on cams, tappets, and pushrods
  • For this reason they are recommended for racing only and not for street applications

Fits: 84-17 Big Twin (Excl. M8); 86-22 XL Sportster; 08-12 XR1200; 91-10 Buell XB (NU)
