Oljepump S&S billet Evo Big Twin 92-99 31-6205
S&S oljepump i billet-aluminium med universallock
Läs mer

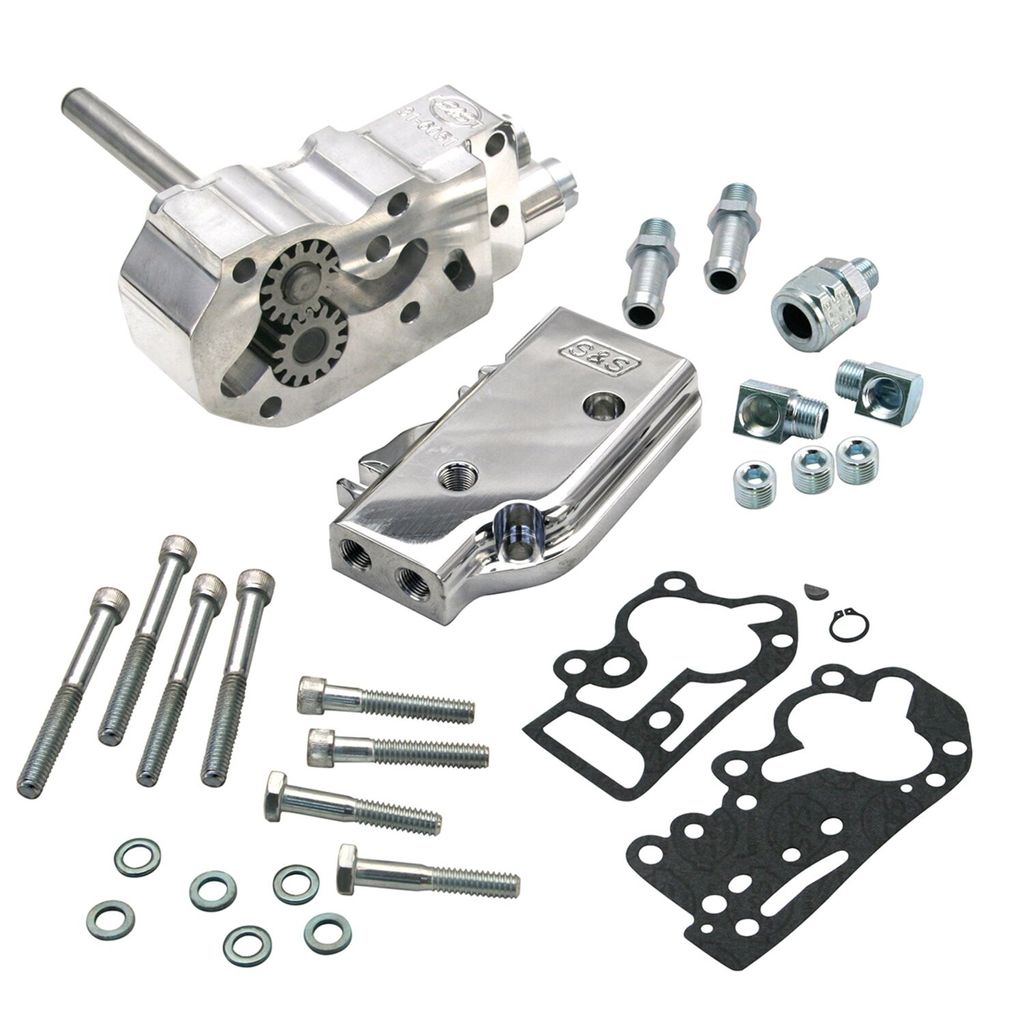

- Satsen innehåller oljepump, universallock med anslutningar uppe och nere, monteringsbultar, matar- och returdrev, drivaxel med krysskilar och låsringar, backventilskula och fjäder, övertrycksventil och fjäder, skruvar med O-ringar, slanganslutningar, pluggar, skruvar och packningar
- Universallocket erbjuder flexibla anslutningsmöjligheter för oljematning och retur, både OEM-stil nertill och anpassad placering upptill
- Helt CNC-bearbetad för snäva toleranser och hög precision
- Tornen för övertrycksventilen är .300" lägre än på OEM-pumpen för ett smidigare format
- Avpassad för 3/8" oljeslangar i gummi
- Övertrycksavluftningskanal och bypass leder överskottsolja direkt till matarsidan vilket minskar skumbildning och kavitation samt ger jämnt oljetryck
- Saknar uttag för smörjning av bakre kedja
- Tillverkad i USA
Renoveringssats till oljepump finns tillgänglig separat. Beroende på vevhusets utförande kan borrning eller pluggning krävas, borrjigg finns separat som MCS 518150 eller DS-197009 (rekommenderas för modeller '73–'80).
Passar: H-D 92-99
| Produkt-typ | Pump |
| Tillverkarens Art. Nr. | 31-6205 |
Billet Oil Pump Kit

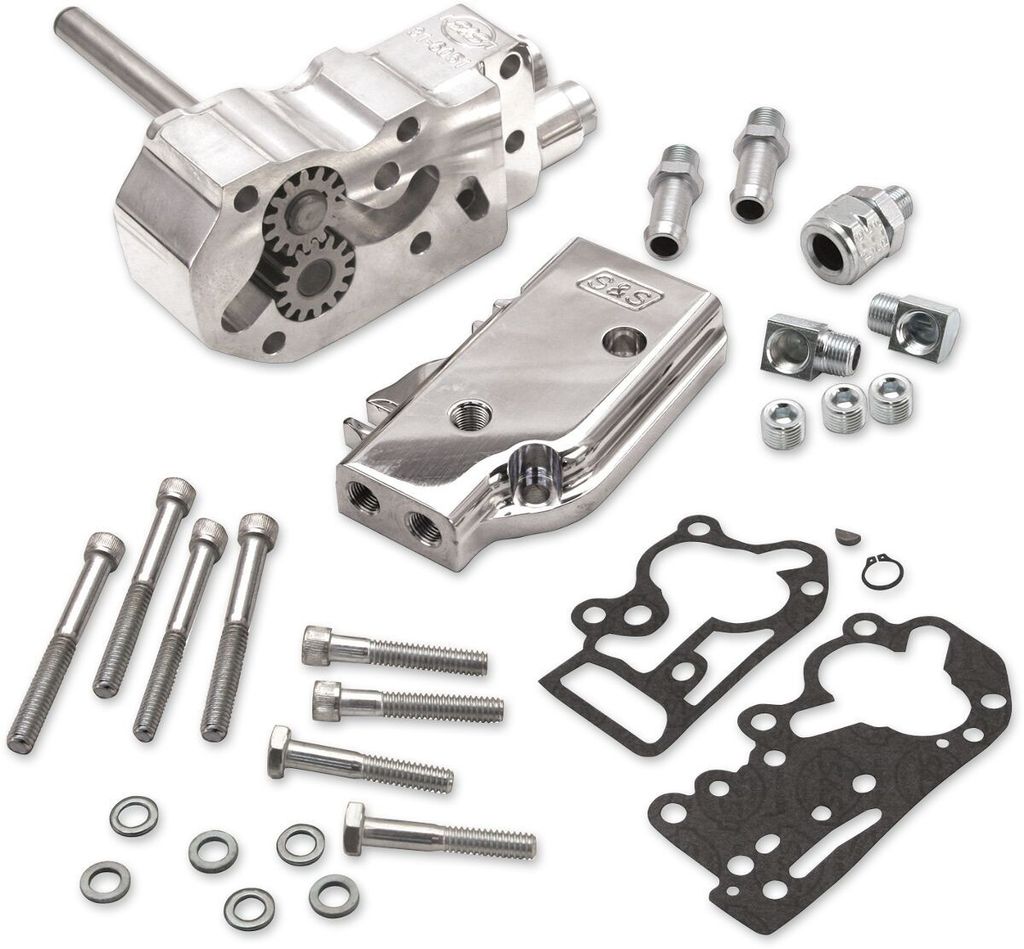

- Kit includes oil pump, universal cover with top and bottom feeds, mounting bolts, supply and return gears, drive shaft with keys and snap rings, check ball and spring, pressure relief valve and spring, check ball and release valve cover screws with O-rings, miscellaneous hose fittings, plugs, screws and gaskets
- Standard covers features top and bottom feeds, universal covers have a number of oil feed and return options, allowing maximum flexibility for customized applications
- Pump features a smoother design and pressure relief towers that are .300" shorter than the OEM oil pump
- Accepts 3/8" rubber oil lines
- Made in the USA
- Oil pump rebuild kit available separately.
- '73-'80 models may require drilling; use drilling jig PART # DS-197009 (sold separately).
- Billet oil pump. 92-99 style. Universal cover
- The custom oil pump cover offers both OEM style bottom feed and return oil line placement and custom top side placement options
- Fully CNC machined to maintain close tolerance and strict quality control
- This pump is not equipped with a rear chain oiling provision
- All S&S billet pumps comes complete with everything you need to replace the stock pump and include mounting instructions
- Machined with an oil pressure relief bleed off passageway & relieves pressure build up on top of the valve to maintain consistent oil pressure
- Oil pressure regulation bypass routes excess oil directly to the supply side of the pump & reduces the amount of oil returned to the tank, less foaming and cavitation
- Note: There may be more differences in Harley-Davidson crankcases than you might think
- Plugging or drilling a hole is sometimes necessary
- S&S offers a drill jig as MCS 518150
- This is a special tool that is mounted on the crankcase and used as a guide to help you drill holes correctly
Pump Only Kit.
Fits: 92-99 Evo Big Twin (NU)
