Oljepump S&S Gears billet H-D 92-99

9 650 kr

Komplett oljepumpsats i billet-aluminium från S&S
Läs mer

09320151 S&S
  • Hel CNC-bearbetad oljepump för snäva toleranser och hög kvalitet
  • Smidigare design med tryckavlastningstorn som är .300" lägre än OEM-oljepumpen
  • Universallock med flera anslutningsmöjligheter för oljematning och retur
  • Anpassad för 3/8" oljeslangar i gummi
  • Utan uttag för bakre kedjesmörjning för ett renare utseende

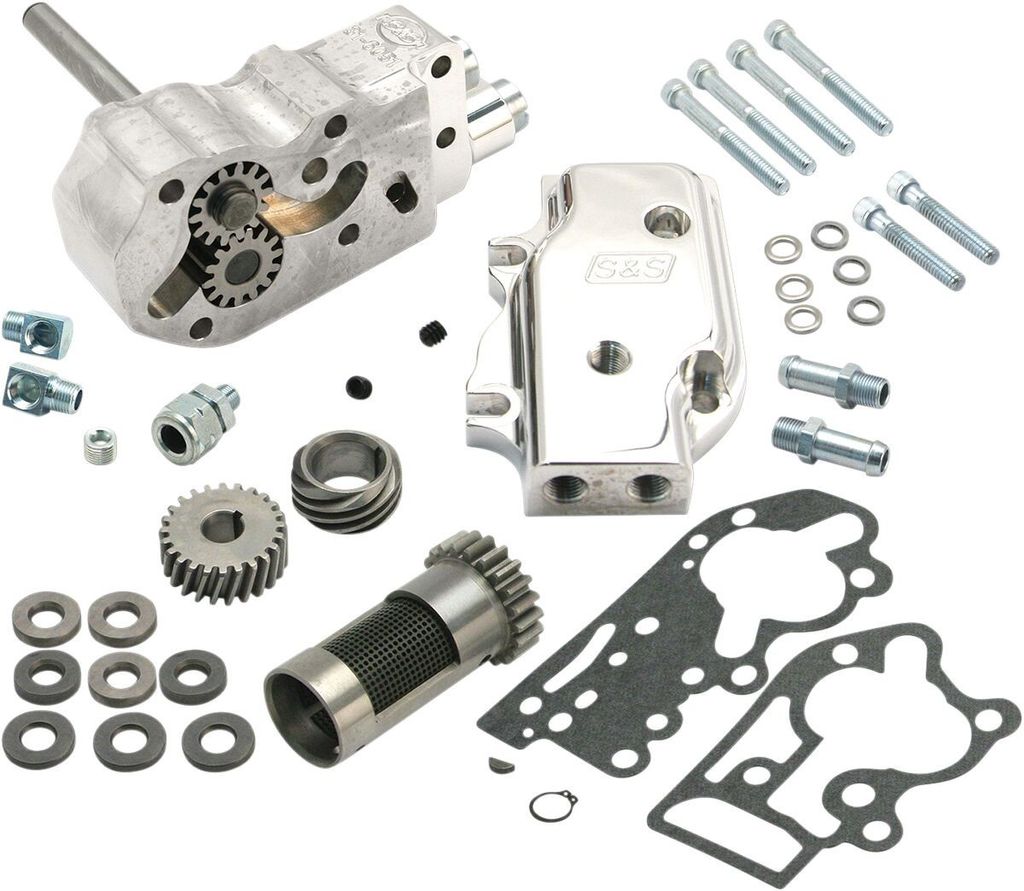

  • Satsen innehåller oljepump, drev, drivaxel, vevhusventilationsdrev, shimssats, packningar och fästelement
  • Tillverkad i USA

Medföljande drivdrev passar endast 84–89 pinjongaxel (flerdelade svänghjul) och passar inte sena 90–99 raka pinjongaxlar i en del med svänghjulen. Modeller 73–80 kan kräva borrning i vevhuset med borrjigg (art.nr DS-197009 / MCS 518150, säljs separat). Renoveringssats finns tillgänglig separat.

Passar: H-D 92-99

Material Aluminum
Färg Polished
Produkt-typ Pump
Tillverkarens Art. Nr. 31-6296

Billet Oil Pump Kit

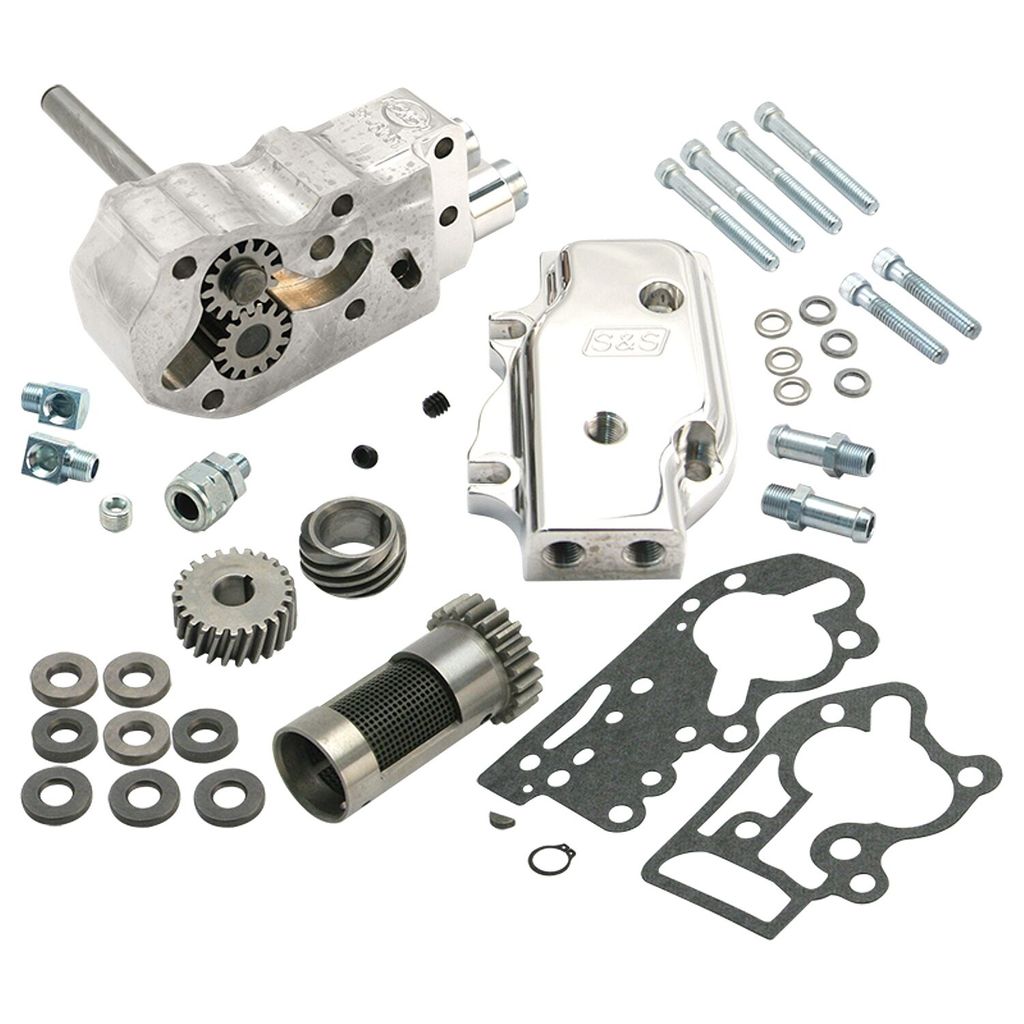

  • Kit includes oil pump, universal cover with top and bottom feeds, mounting bolts, supply and return gears, drive shaft with keys and snap rings, check ball and spring, pressure relief valve and spring, check ball and release valve cover screws with O-rings, miscellaneous hose fittings, plugs, screws and gaskets
  • Standard covers features top and bottom feeds, universal covers have a number of oil feed and return options, allowing maximum flexibility for customized applications
  • Pump features a smoother design and pressure relief towers that are .300" shorter than the OEM oil pump
  • Accepts 3/8" rubber oil lines
  • Made in the USA
  • Oil pump rebuild kit available separately.
  • '73-'80 models may require drilling; use drilling jig PART # DS-197009 (sold separately).
  • Oil pump kit with gears. 92-99 style
  • Complete kit that includes it all
  • The oil pump assembly complete with mounting hardware, fittings, gaskets, pinion shaft pump drive gear, woodruff key, clip, oil pump shaft driven gear, breather gear & a shim kit
  • The oil pump is fully CNC machined to maintain close tolerance and strict quality control
  • For the cleanest look possible, this pump is not equipped with a rear chain oiling provision
  • Note: Drive gears, supplied in this 'Pump Kit', will fit 84-89 pinion shafts only (models with multiple parts flywheels) and will not fit late OEM 90-99 straight pinion shafts that are one-piece with the flywheels
  • This kit is designed to be used with models that are custom fitted with earlier (pre-1990) multiple parts flywheels
  • Note: There may be more differences in Harley-Davidson crankcases than you might think
  • Plugging or drilling a hole is sometimes necessary
  • S&S offers a drill jig as MCS 518150
  • This is a special tool that is mounted on the crankcase and used as a guide to help you drill holes correctly

Fits: 92-99 Evo Big Twin with pre-90 style multiple-parts flywheels only (NU)
