Drev pinjongaxel S&S 33-4148 B T röd L77-84 Shovelhead

2 610 kr

Drevsats för pinjongaxel från S&S
Läs mer

334148 S&S
  • Satsen innehåller 24-kuggars drivdrev för oljepump (mellanstorlek/röd), 6-kuggars drev för pinjongaxel, distans samt mutter för pinjongaxel
  • Färgkod röd för medelstorlek
  • Måste användas som en komplett sats eller tillsammans med motsvarande OEM-delar
  • Tillverkad i USA

Avsedd för 1977–1989 Big Twin-motorer samt S&S svänghjul för 1977–1999, inklusive S&S SH-serie och V-serie, eller som konverteringssats för 1990–1999 Big Twin med tidigare typ av pinjongaxel. Måste användas med ett drivet oljepumpdrev av 1973–1999-typ (S&S 531209). Se verkstadshandbok för anvisningar om optimalt kuggspel mellan kamdrev och pinjongdrev före beställning.

Passar: L77-84 Shovelhead

OEM-nr: 26345-73, 24006-80

Produkt-typ Conversion Kit
Tillverkarens Art. Nr. 33-4148

Pinion Shaft Gear Kit

  • Kit includes middle size (Red) oil pump 24T drive gear, 6T pinion shaft oil pump gear, pinion shaft spacer, and pinion shaft nut
  • Made in the USA
  • For use on '77-'89 big twin engines and S&S flywheels for '77-'99 engines, including S&S SH-Series and V-Series engines.
  • Must be used as a set or with OEM equivalents.
  • 90-99 B.T. pinion shaft gear/conversion kit. Red
  • Red color coded for average size
  • Stock replacement for all L77-89 B.T. models
  • For 1989 and earlier type pinion shafts used on 90-99 Evo B.T. models (engines that use S&S flywheels or other multiple parts flywheel assemblies) S&S offers this conversion package
  • Note see: 531306 Black (smallest), 531308 Blue (average), 904148 Red (average), 531309 Yellow (biggest)
  • Note: All kits must be used with a 73-99 B.T. style oil pump driven gear (S&S 531209 / OEM 26345-73)
  • Note: If the stock gear is unmarked and the size is unknown or you are scratch building an engine and without gear, S&S recommend a gear in the middle of the size range
  • These sizes were used more often and should provide adequate gear clearance under most circumstances
  • When in doubt, use a gear from the middle to the small side of the range, because a combination of looser fitting smaller gears will give a harmless clicking sound but to tight can cause a wining sound, binding and premature wear
  • Consult the factory service manual for information on optimum cam gear to pinion gear fit instructions before you order

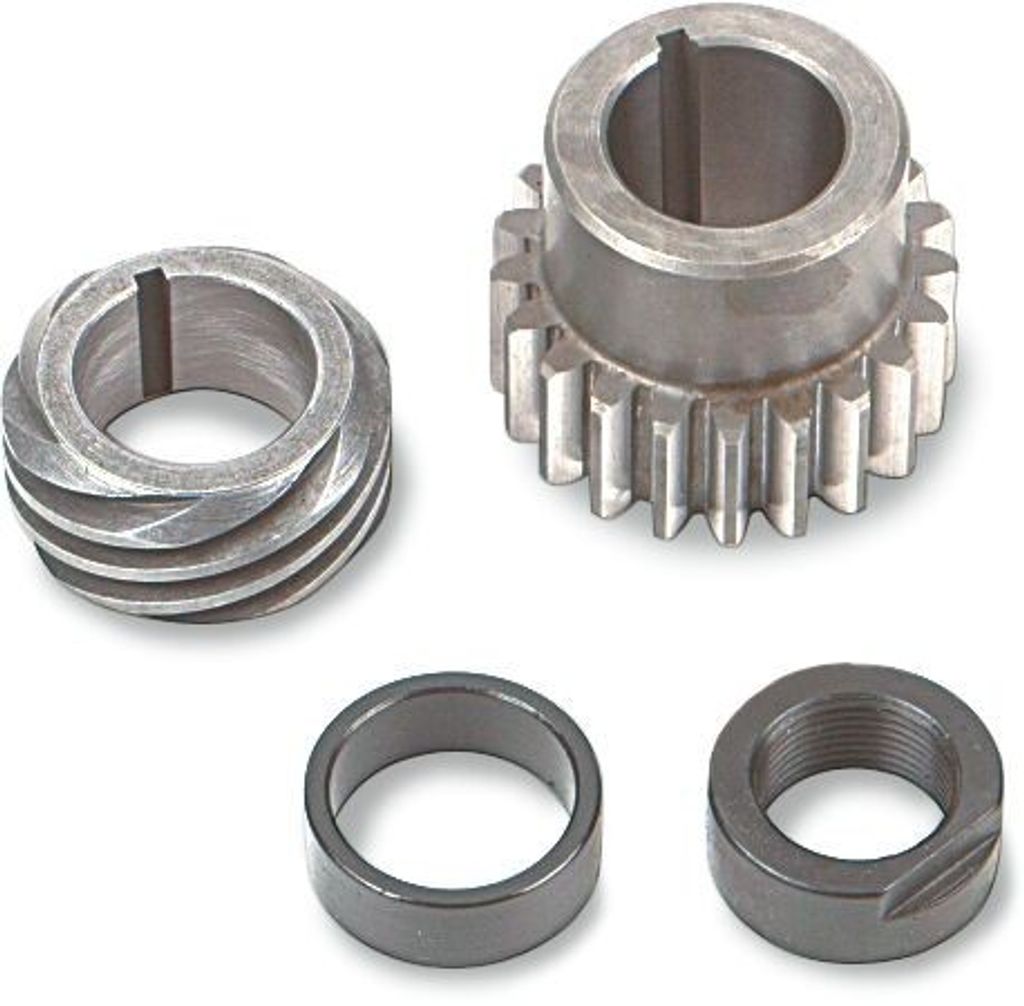

Kit Includes: • Middle Size (Red) Oil Pump 24 Tooth Drive Gear • 6 Tooth Pinion Shaft Oil Pump Gear • Pinion Shaft Spacer • Pinion Shaft Nut

Fits: L77-84 Shovelhead; 84-89 Evo Big Twin; Conversion kit for 90-99 Evo Big Twin when using custom pre-1990 multiple parts flywheel assemblies (NU) || Evolution Big Twin 1990→
