Trimsats S&S 100" svart H-D 99-06 330-0664

56 890 kr

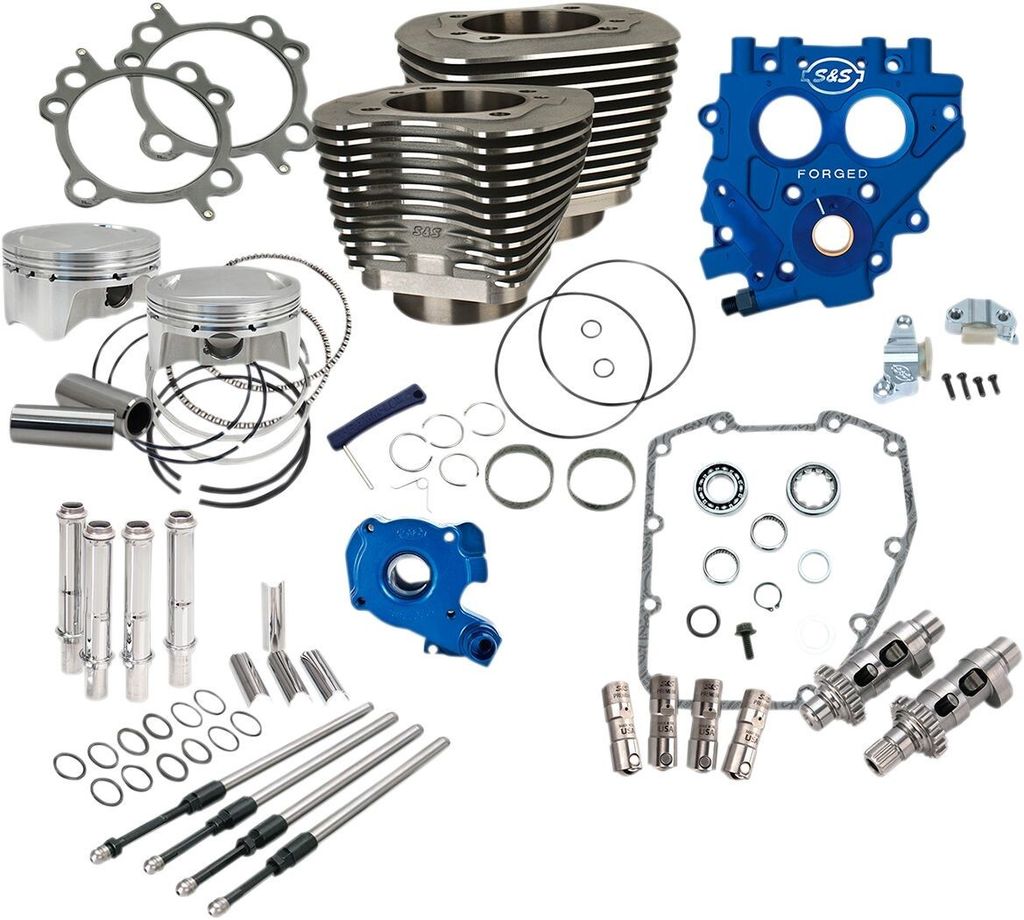

S&S 100" Power Package trimsats
Läs mer

09040026 S&S
  • Tillverkad i USA
  • Ökar motorns cylindervolym från 88" till 100"
  • Bolt-in-montering utan bearbetning, balansering eller klyvning av vevhus
  • Innehåller 4.000" cylindrar, kolvsats och S&S 585 Easy Start-kamaxlar
  • Innehåller justerbara Quickee-stötstänger med rör i krom samt hydrauliska ventillyftare
  • Innehåller TC3 kamstödsplatta och TC3 oljepump tillverkade i smidd aluminium
  • Ger ett kompressionsförhållande på 10.5:1 och fungerar med originaltoppar
  • Cylindrar med foder i segjärn med låg friktion

Passar inte '06 Dyna och är ej kompatibel med S&S 79 cc Super Stock-toppar. Rekommenderas inte för Tri-Glide eller andra trehjuliga modeller. Modeller av typen '99-'04 Twin Cam kräver komplettering med ventilfjädersats som säljs separat.

Passar: H-D 99-06

Färg Black
Produkt-typ Performance Kit
Tillverkarens Art. Nr. 330-0664

100" Power Package Engine Performance Kit

  • Made in the USA
  • S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit
  • S&S Cylinder
  • 2x S&S 4.000" bore cylinders
  • Low friction ductile cast iron liner
  • Bolt in
  • No maching, balancing, or splitting the crankcase
  • Can be used with stock heads
  • Increase displacement from 88 ci to 100 ci
  • Piston Kit
  • 2x 4.000" pistons for front and rear
  • 2x 0.927" piston pins
  • 4x Piston pin clips with installation tool
  • 2x Ring packs which includes the top, second, oil rail and expander rings
  • Provides 10.5:1 compression ratio
  • S&S 585 Easy Start Cam Specifications
  • Intake: Open 20° / Close 45° / Duration at 0.053" 245° / Valve Lift 0.585"
  • Exhaust: Open 60° / Close 20° / Duration at 0.053" 260° / Valve Lift 0.585"
  • S&S Quickee Pushrods
  • Adjustable with chrome tubes
  • TC3 Cam Support Plate and TC3 Oil Pump
  • Machined from aluminum forgings
  • Ensures consistent oil pressure and engine longevity
  • Precision Hydraulic Tappets
  • Close tolerances for low leak down rates
  • Reduced valve train noise from start to shut down
  • Not for '06 Dyna.
  • Not compatible with S&S 79 cc Super Stock heads.
  • Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
  • '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).
