Trimsats S&S 100" silver H-D 99-06 330-0662
S&S 100" Power Package trimsats
Läs mer
- Tillverkad i USA
- Ökar motorns cylindervolym från 88" till 100"
- Bolt-in-montering utan bearbetning, balansering eller klyvning av vevhus
- Innehåller 4.000" cylindrar, kolvsats och S&S 585 Easy Start-kamaxlar
- Innehåller justerbara Quickee-stötstänger med rör i krom samt hydrauliska ventillyftare
- Innehåller TC3 kamstödsplatta och TC3 oljepump tillverkade i smidd aluminium
- Ger ett kompressionsförhållande på 10.5:1 och fungerar med originaltoppar
- Cylindrar med foder i segjärn med låg friktion
Passar inte '06 Dyna och är ej kompatibel med S&S 79 cc Super Stock-toppar. Rekommenderas inte för Tri-Glide eller andra trehjuliga modeller. Modeller av typen '99-'04 Twin Cam kräver komplettering med ventilfjädersats som säljs separat.
Passar: H-D 99-06
| Färg | Silver |
| Produkt-typ | Performance Kit |
| Tillverkarens Art. Nr. | 330-0662 |

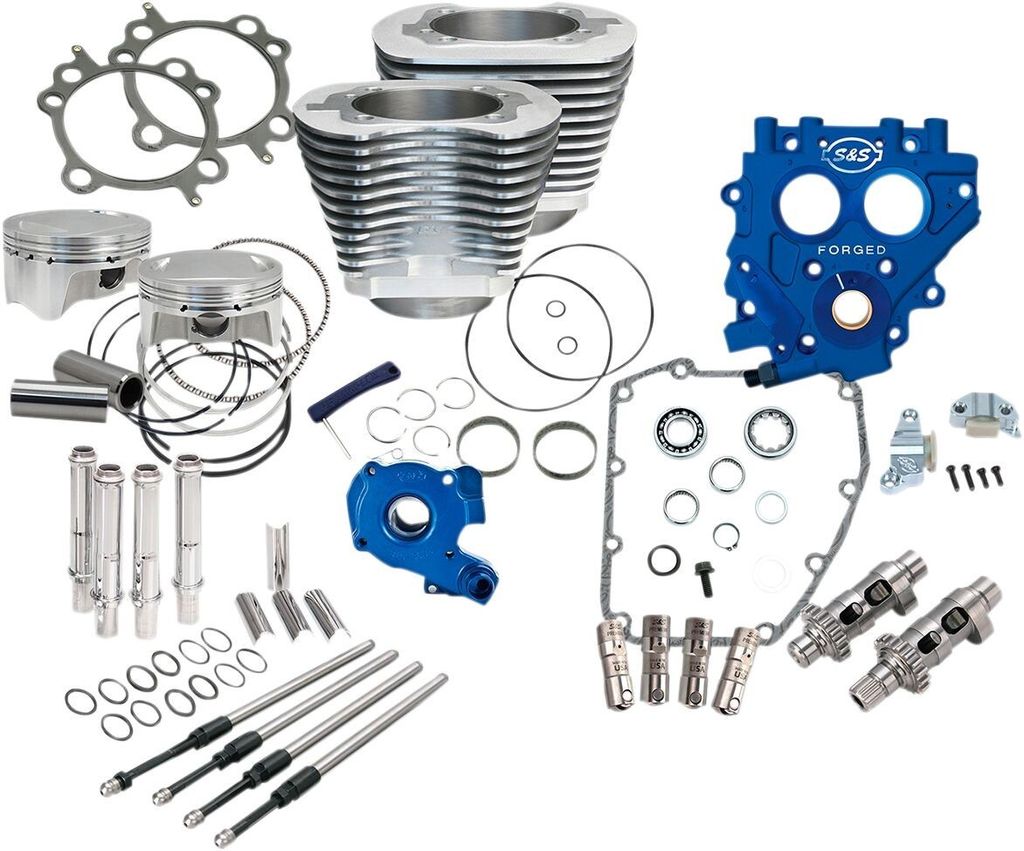

100" Power Package Engine Performance Kit
- Made in the USA
- S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit
- S&S Cylinder
- 2x S&S 4.000" bore cylinders
- Low friction ductile cast iron liner
- Bolt in
- No maching, balancing, or splitting the crankcase
- Can be used with stock heads
- Increase displacement from 88 ci to 100 ci
- Piston Kit
- 2x 4.000" pistons for front and rear
- 2x 0.927" piston pins
- 4x Piston pin clips with installation tool
- 2x Ring packs which includes the top, second, oil rail and expander rings
- Provides 10.5:1 compression ratio
- S&S 585 Easy Start Cam Specifications
- Intake: Open 20° / Close 45° / Duration at 0.053" 245° / Valve Lift 0.585"
- Exhaust: Open 60° / Close 20° / Duration at 0.053" 260° / Valve Lift 0.585"
- S&S Quickee Pushrods
- Adjustable with chrome tubes
- TC3 Cam Support Plate and TC3 Oil Pump
- Machined from aluminum forgings
- Ensures consistent oil pressure and engine longevity
- Precision Hydraulic Tappets
- Close tolerances for low leak down rates
- Reduced valve train noise from start to shut down
- Not for '06 Dyna.
- Not compatible with S&S 79 cc Super Stock heads.
- Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
- '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).
