Konverteringssats topplock S&S Retro Shovelhead till Panhead standardborrning H-D 66-84

66 920 kr

Konverteringskit för toppsats från Shovelhead till Panhead-look från S&S
Läs mer

09300089 S&S
  • Ger en Shovelhead-motor det klassiska utseendet av en Panhead
  • Innehåller S&S P-series topplock med vipparmsbryggor, rullvipparmar och axlar
  • Inkluderar hydraullyftare av Evo-typ, ventillyftarguider i billet, Quickee-stötstänger och clips
  • Topplocken levereras kompletta med ventiler och .590" lyft-ventilfjädrar
  • Bultmönster för Shovelhead, för standard 3-1/2" borrning
  • Ventilmekanismen baseras på Evo Big Twin med oljesmörjning genom stötstängerna
  • Passar original eller S&S O-ringsinsug samt alla avgassystem för Shovelhead
  • Komplett med nödvändiga packningar och monteringstillbehör

Ventilkåpor (pan covers) ingår inte och måste köpas separat. Beroende på årsmodell kan ytterligare delar krävas: 66-E78 kräver insug med O-ring, 70-E78 kräver ett L78-87 kamdrev (då Evo Big Twin-kam måste användas) och 66-69 originalmotorer kräver en generator-kam med 84-99-nockar.

Passar: Shovel med standardborrning

Material Aluminum
Produkt-typ Conversion Kit
Tillverkarens Art. Nr. 106-1070

Retro Top-End Conversion Kit

  • Give your Shovelhead engine that nostalgic look of a Panhead
  • Kit consists of a set of S&S P-series cylinder heads with rocker cradles, S&S roller rocker arms, S&S hydraulic tappets, billet tappet guides, Quickee pushrods, pushrod cover clips and all required gaskets and hardware for assembly
  • Heads have a Shovelhead bolt pattern, making them compatible with any stock or aftermarket cylinders for 66-84 Big Twins; heads come complete with valves and .590" lift valve springs
  • Accept stock or S&S O-ring-style manifolds for Shovelheads and any exhaust system made to fit a shovelhead engine
  • Kits do not include pan covers.
  • Shovel to Panhead cyl. head conversion kit
  • Standard 3-1/2" bore
  • This are Panhead look alike heads, as used by S&S on their P-series engines
  • These are actually S&S Shovelhead based heads with just a Panhead rocker cover so the whole set-up is basically identical as would be done with S&S Shovelhead heads
  • The valve train drive technique is based on the Evo Big Twin, so Evo hydraulic units, Evo billet tappet guides, Quickee pushrods with through the pushrod top end oiling, specialty P-Series rocker shafts, rocker cradle and S&S Shovel roller rocker arms are used

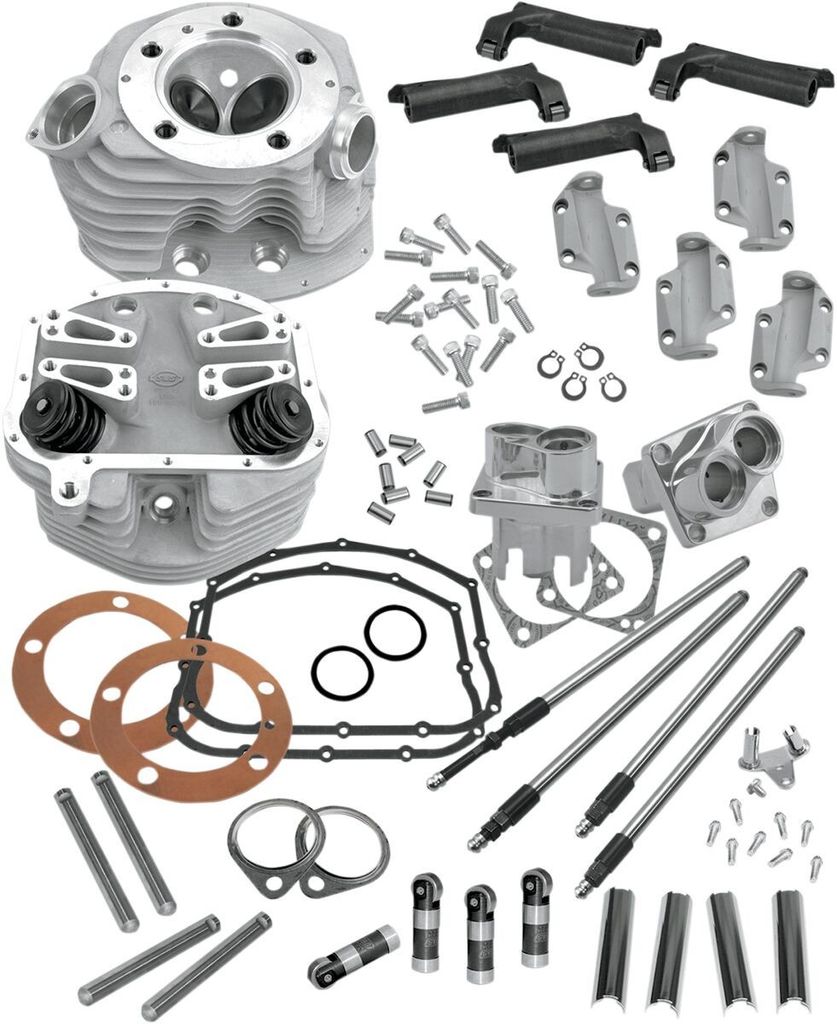

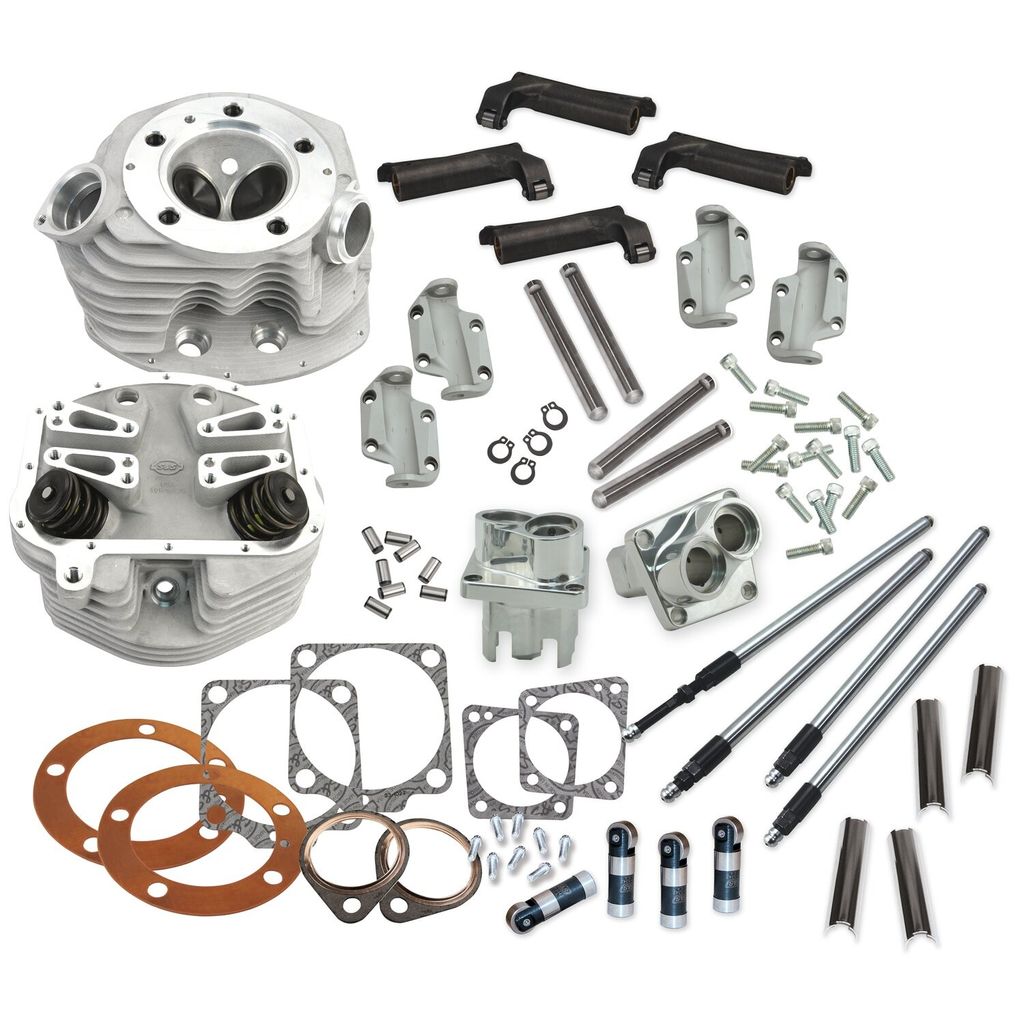

  • Kit comes complete as shown
  • Note: You may need to order separately one or more of the following parts: 1) 66-E78 O-ring style manifold
  • 2) 70-E78 stock engines require a L78-87 style pinion gear since an Evo B.T. cam must be used
  • 4) 66-69 stock engines require a special generator style cam with 84-99 style lobes

Fits: 66-84 Shovel with stock bore cylinders (NU)
