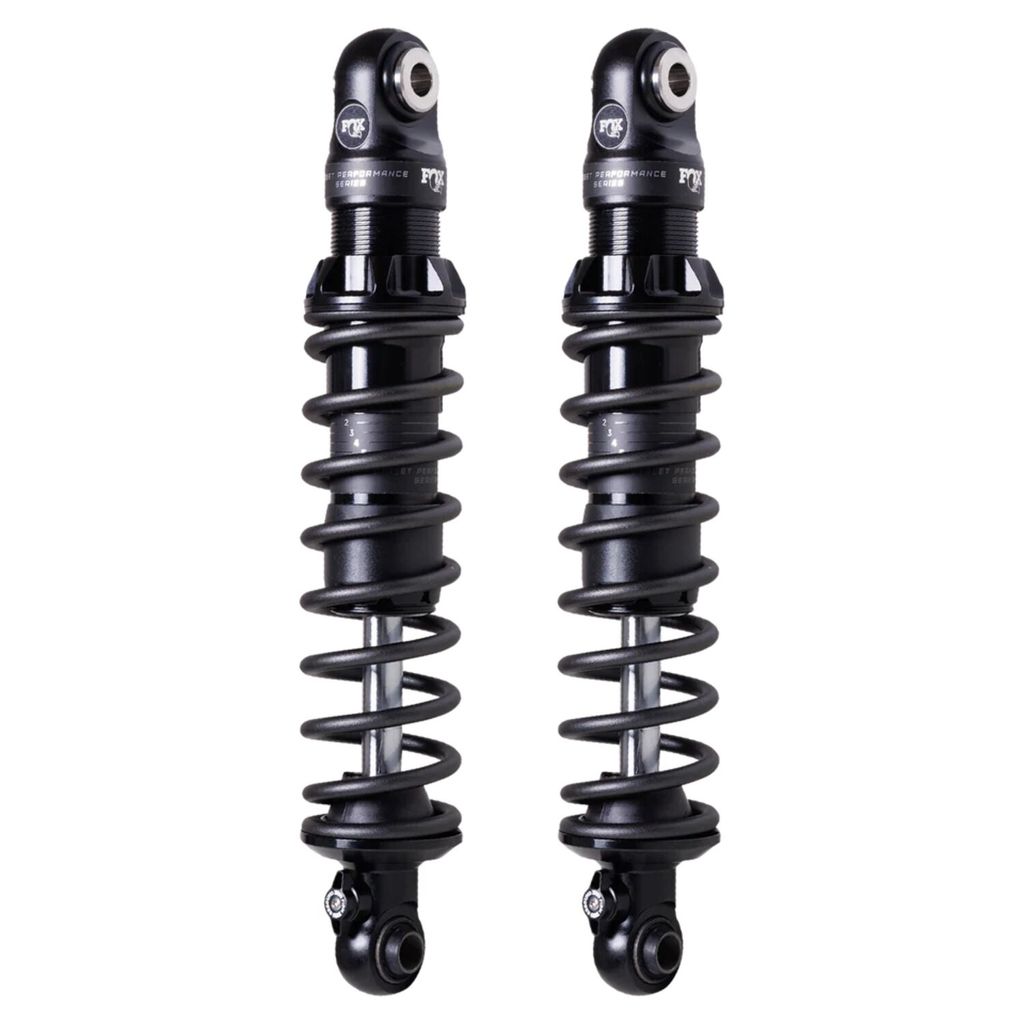

Stötdämpare Fox Factory IFP-QSR 14" Heavy Duty svart FLT/Touring 93-26

16 420 kr

Fox Factory IFP-QSR 14" stötdämpare i svart utförande
Läs mer

701750 Fox Factory
  • QSR (Quick Switch Rebound) med 3 justerbara returlägen: mjuk, medium och hård
  • Gasfylld enrörsdesign med invändig flytande kolv (IFP) som separerar kvävgas från olja
  • Stötdämparhus i 1,5" 6061-T6 aluminium med typ III hårdanodiserad yta
  • 5/8" kolvstång i lågfriktions, superfinish hård krom
  • Kraftiga fjädrar med linjär fjäderhastighet samt justerbar förspänning med markeringar
  • Fjädringsväg: 3,31", utdragen längd: 14,06", hoptryckt längd: 10,75"
  • Fäste med ögla uppe och nere
  • Helt renoveringsbar och ombestyckningsbar

Avancerad hastighetskänslig dämpning med 'deflective disc' och högt flöde. För en motorcykel med normal totalbelastning under 240 lbs / 109 kg (förare plus packning) är standardfjädrar det bästa valet.

Passar: FLT/Touring 93-26

IFP-QSR shocks 14". Heavy Duty. Black

  • With Heavy Duty springs
  • With the Fox QSR 3-position Quick Switch Rebound adjustment
  • The internal floating piston (IFP) will effectively separate the nitrogen gas from the shock oil
  • Oil without gas keeps the damping as designed by the Fox engineers, even when the shock is worked over a longer period
  • This main piston valving has been reconfigured and extensively ride tested in a full range of conditions to work in harmony with the new three-position Quick Switch Rebound (QSR) settings, making it easy make it easy to dial in one of the knob-adjustable three rebound settings for different riding situations
  • 1 Soft rebound: for comfort on bumpy backroads
  • 2 Medium rebound: For 'any road', a balance of control and comfort
  • 3 Hard rebound: For a 'glued to the asphalt' feeling on smooth twisty roads
  • Linear spring rate
  • Adjustable preload with setting guide marks
  • Top mount eyelet
  • Bottom mount eyelet
  • 3.31" travel
  • 14.06" extended length
  • 10.75" compressed length
  • Gas-charged mono-tube with internal floating piston (IFP)
  • 1.5-inch diameter 6061-T6 aluminum type III hard-anodized body
  • Fully rebuildable and re-valvable
  • Advanced high-flow, deflective disc velocity-sensitive damping
  • 5/8-inch diameter, low friction, super-finished hard chrome shaft
  • Standard spring rate, for riders up to 240lb (109kg)
  • This has nothing to do with quality but everything with what weight the bike will carry
  • For a bike usually loaded below 240Lbs./109kg (rider + luggage) the standard springs are the best choice

Fits: 93-26 FLT/Touring
