Stötdämpare bak Öhlins Ohlins STX36 Blackline 12″ guld Touring 14-26

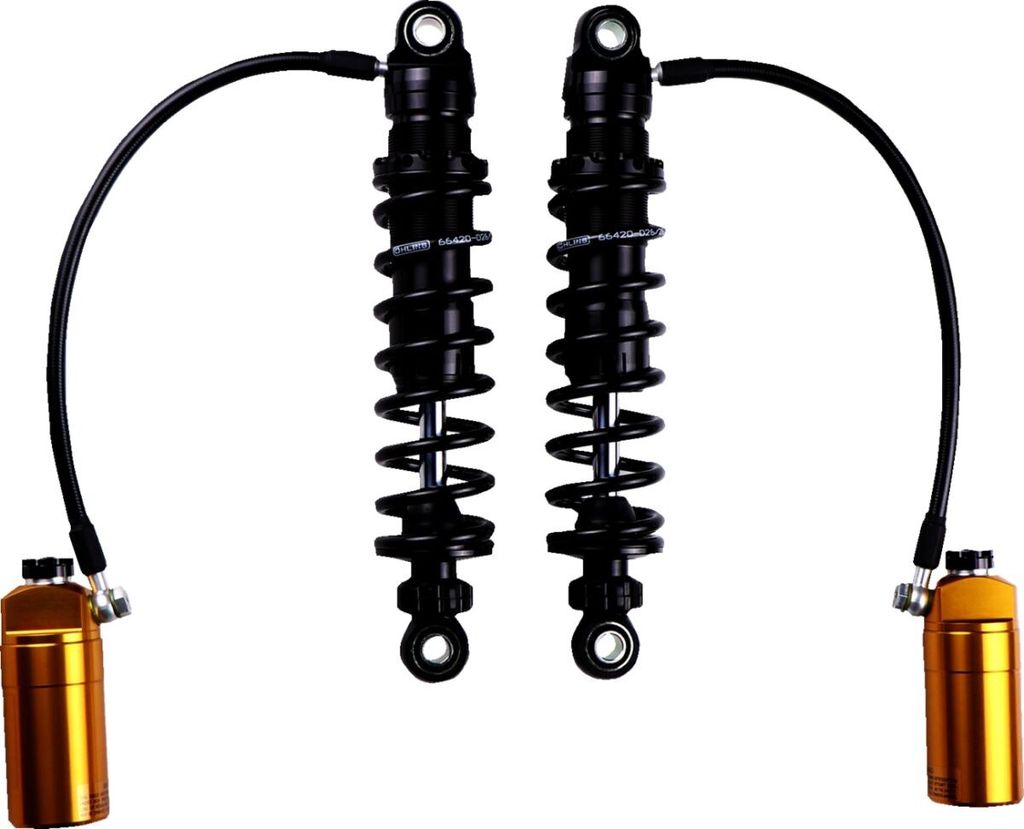

Öhlins STX36 Blackline stötdämpare bak med extern behållare, 12"
Läs mer
- 36 mm / 1.417" kolvdiameter och enkelrörskonstruktion (Single tube)
- Slaglängd: 78.5 mm (3.091")
- Fjäderhastighet: 26 N/mm (fjäder Ohlins artikelnummer 66420-026)
- Justerbar retur- och kompressionsdämpning samt justerbar förspänning
- Gasfylld med högtryckskväve och slangmonterad extern behållare i guld
- Hårdanodiserade CNC-frästa komponenter i helsvart utförande med svarta fjädrar
- Bussningar med 1/2" innerdiameter för smidig montering utan hylsor
- Levereras med Öhlins anodiserade aluminiumfästen för behållare samt förspänningsverktyg
Passar även modeller med Tour-Pak. Fullt servicerbara och anpassade för viktspannet 150 lb – Max 500 lb.
Passar: Touring 14-26
Shock Absorber STX36 Blackline
- 36 mm / 1.417" piston diameter
- Adjustable rebound and compression damping
- Multiple spring rates available
- Hard-anodized, CNC-machined components
- Length adjustable by .393"
- High-pressure nitrogen gas charged
- Adjustable preload with billet tool
- Low-friction shaft and sealhead design
- Fully serviceable and repairable
- Fits with Tour-Pak.
- Ohlins, STX36 Blackline rear shocks. Gold reservoir. 12"
- Black reservoir 12"/310,5mm
- Brackets for reservoirs included
- This short 12" Ohlins STX Pro is not adjustable
- Building on the success of the popular HD 044 model, this update features a refined all-black design with Ohlins’ signature gold reservoirs and adjuster nuts
- Now with black hoses, revamped billet compression adjuster knobs, and the iconic “O” logo on the reservoir
- The STX Pro offers confidence-inspiring stability and handling, with enhanced bump compliance and an exceptionally plush ride quality
- Upgrade your bike with this must-have shock and experience the difference of Öhlins suspension
- With ½” ID bushings for easy installation, no sleeves required
- The shocks include Ohlins-branded, anodized aluminum bracket arms for rear-mounted installation and a preload adjustment tool
- Black springs
- Black body
- Piston diameter: 36mm
- S: Single tube body
- Adjuster wheel above the end eye
- L: Non-adjustable length
- Oil: Öhlins 1309
- Spring Rate: 26 N/mm
- Stroke: 78.5 mm
- Length adjustable by 1/2” (51mm)
- Models covered by the approval: FL2: 14-16 FLTRXSE2 FL3: 14-16 FLHP, 14-22 FLHR, 13-18 FLHRC, 14-16 FLHRSE, 17-25 FLHRXS, 13-16 FLHTCU/L, 15-16 FLHTKL, 19-22 FLHT, 21 FLH Revival, 17-23 FLHXS/ST, 17-23 FLHXSE, 14-16 FLTRU, 15-16 FLTRXS/ST, 20-24 FLTRK, 17-19 FLTRU, 15-16 FLTRUSE, 18-22 FLTRXSE FL4: 24-26 FLHXSE, 24-26 FLTRX, 24-26 FLTRXSTSE, 24-26 FLTRXSE
Includes Spring: Ohlins Part # 66420-026 Stroke length: 3.091" Weight range: 150 lb – Max 500 lb Uses hose-mounted external reservoir. Brackets for reservoir are included.
Fits: 14-26 Touring (see approval model coverage in description))
