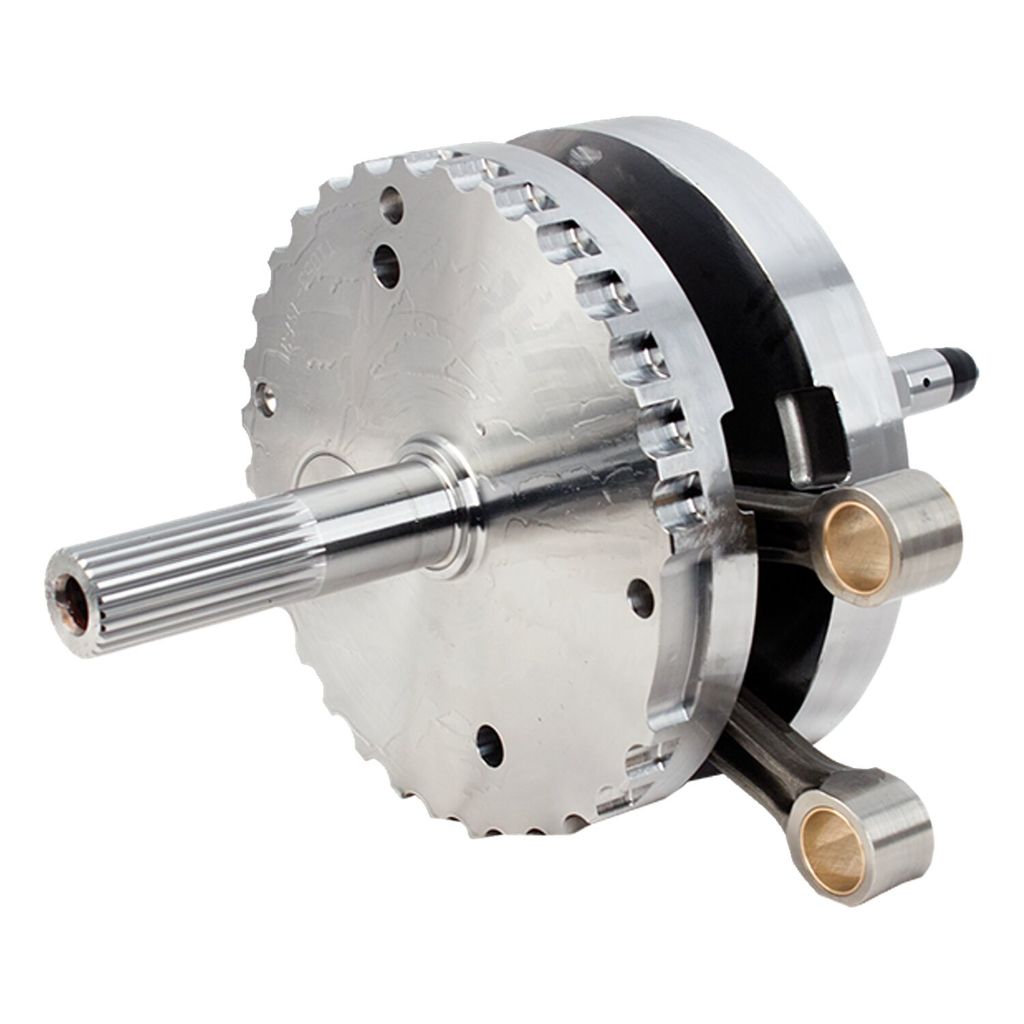

Svänghjul S&S 4-1/8" Dyna 06-17

24 190 kr

S&S svänghjulsenhet med 4-1/8" slaglängd för 111"-motorer
Läs mer

531884 S&S
  • Slaglängd: 4-1/8"
  • Avsett för 111"-motorer
  • Balanserat för en total kolvvikt på 1035 gram
  • Vevstakar har raka (ej koniska) kolvbultsändar och är ej kompatibla med original H-D-kolvar
  • Utformat för att användas med kedjeaxellager av Timken-typ
  • Vevtapp med 1,671" diameter (andra generationen) som möjliggör utbytbara lagerbanor

Motorer med slaglängd över 4" kan kräva S&S kolvoljemunstycken samt urtag i kolvkjolen för frigång. För montering i 03–17 Twin Cam-vevhus krävs konvertering till Timken-lager (med t.ex. JIMS konverteringsverktygssats MCS 978517), då S&S inte lämnar garanti vid användning av original rullager. Passar utan modifiering i vevhus från S&S samt original 99–02.

Passar: Dyna 06-17

OEM-nr: 24004-03B, 24605-07

06-17 4-1/8" stroke flywheel assembly

  • For 111" engines
  • S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings
  • Balanced to 1035 grams total piston weight
  • Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
  • Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
  • The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
  • The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins
  • Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
  • Note: Following is regarding 03-17 models
  • S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications
  • Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution
  • However, S&S feels this roller bearing will not take the side loads produced in a high performance motor
  • S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used
  • To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available
  • This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor
  • Bearing inserts only are available as 978519, bearings only as 508960
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required

Fits: 06-17 Dyna; 07-16 FLT/Touring (NU)
