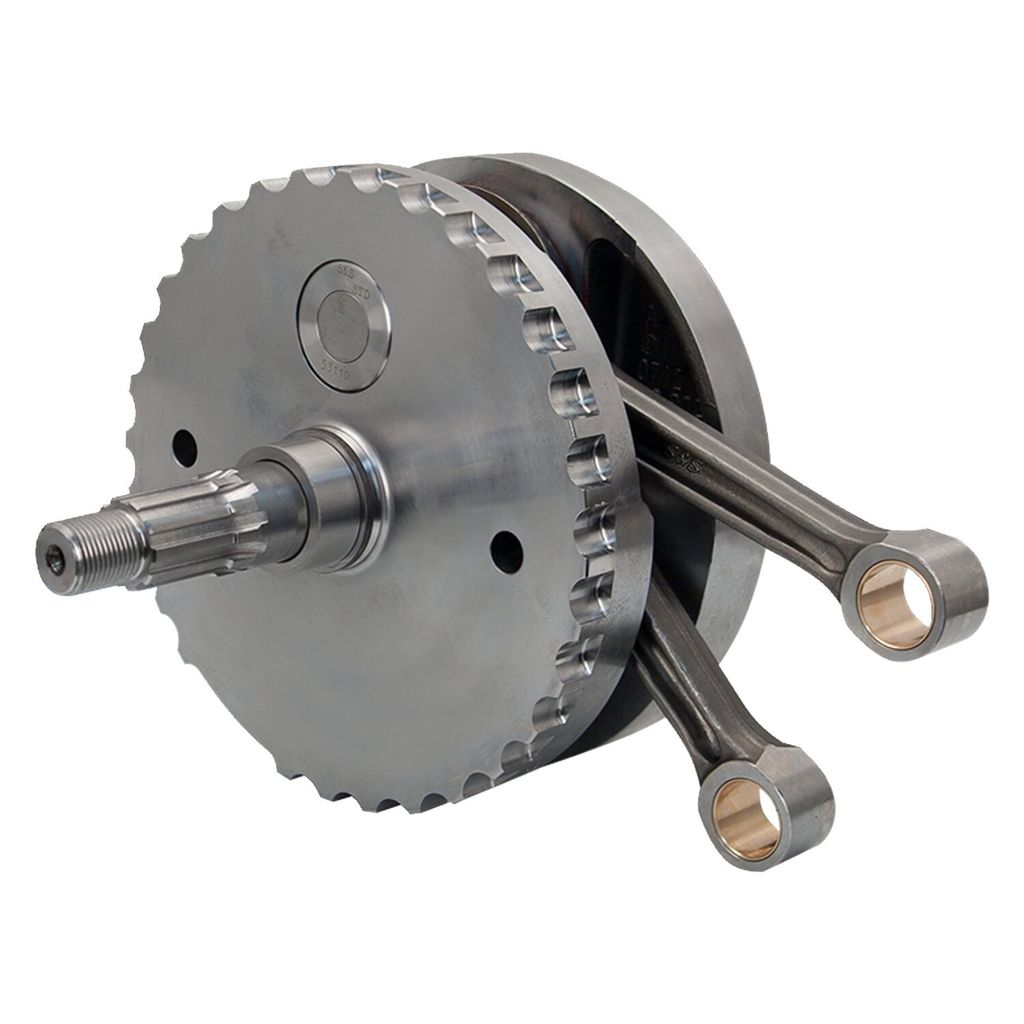

Svänghjul S&S 4-3/8" Softail 00-06
S&S komplett svänghjul med 4-3/8" slaglängd
Läs mer
- Slaglängd: 4-3/8"
- För 96", 103" och 106" big bore samt 110" och 117" S&S-motorer
- Balanserat för en total kolvvikt på 1035 gram
- Vevstakar saknar koniska ändar för kolvbult
- Vevtapp med 1,671" diameter och utbytbara lagerbanor i vevstakarnas storände
- Konstruerat för användning med Timken-drevaxellager
Vevstakarna är ej kompatibla med H-D originalkolvar eller original drevaxellager. För 03–17 modeller krävs konvertering till Timken-lager (t.ex. med JIMS konverteringssats 978517), S&S garanti gäller inte vid användning av original rullager. Motorer med slaglängd över 4" kan kräva S&S kolvkylningsmunstycken och bearbetning av kolvkjolen för frigång.
Passar: Softail 00-06
OEM-nr: 24004-03B, 24605-07
00-06 Softail 4-3/8" stroke flywheel assembly
- 96/103/106 big bore
- 110/117 S&S engines
- S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings
- Balanced to 1035 grams total piston weight
- Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
- Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
- The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
- The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins
- Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
- Note: Following is regarding 03-17 models
- S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications
- Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution
- However, S&S feels this roller bearing will not take the side loads produced in a high performance motor
- S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used
- To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available
- This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor
- Bearing inserts only are available as 978519, bearings only as 508960
- Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
- It is of importance that a knowledgeable mechanic will install & make adjustments as required
Fits: 00-06 Softail (NU)
