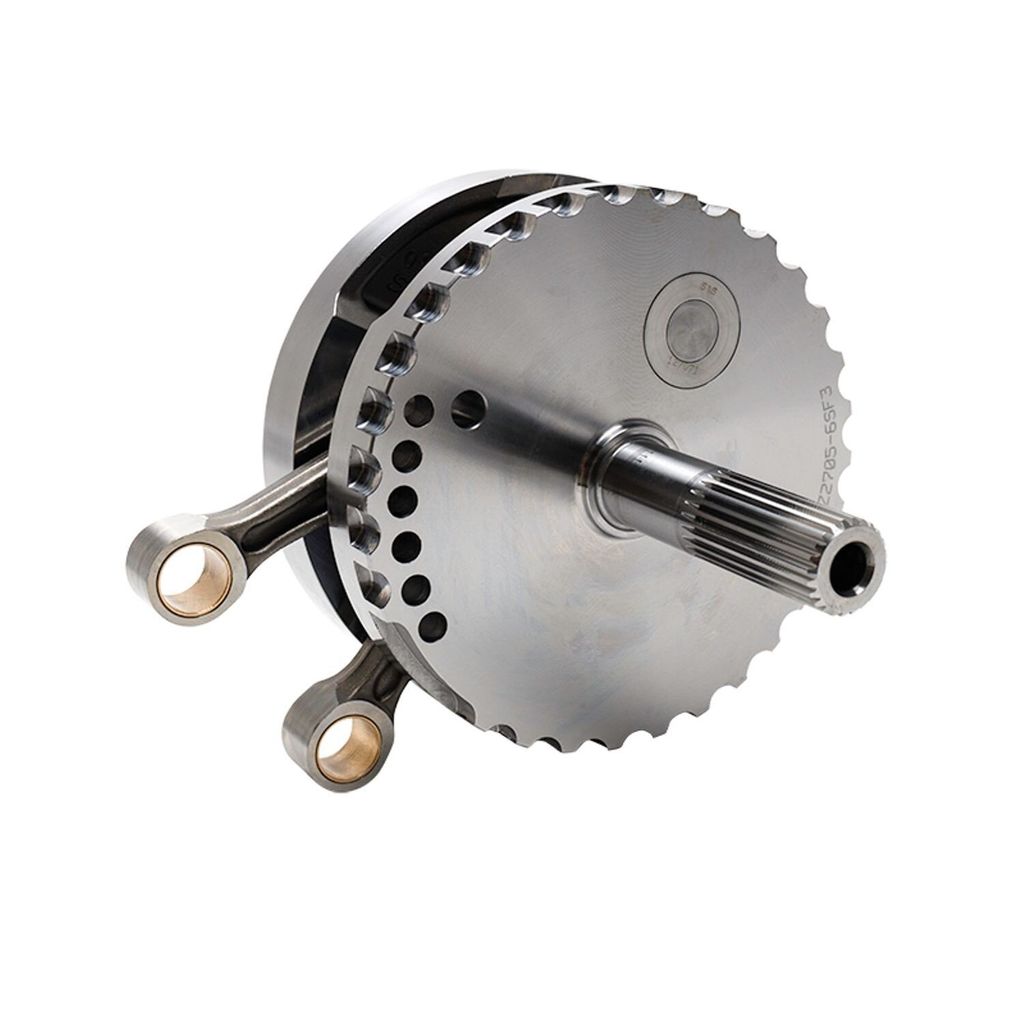

Svänghjul S&S 4-5/8" Softail 07-17
Komplett svänghjul med 4-5/8" slaglängd från S&S.
Läs mer
- Slaglängd: 4-5/8"
- Avsett för 116" och 124"-motorer
- Balanserat för en total kolvvikt på 1035 gram
- Vevstakar saknar koniska kolvbultsändar
- Vevtappar med 1.671" diameter möjliggör utbytbara lagerbanor i vevstakarnas storände
- Konstruerat för användning med Timken-kedjehjulslager
- Passar utan modifiering i originalblock 99-02 samt alla S&S-block
Vevstakarna är ej kompatibla med originalkolvar eller originalkedjehjulslager. Vid slaglängd över 4" kan S&S kolvoljemunstycken samt urtag i kolvkjolen krävas för frigång. För modeller 03–17 krävs konvertering till Timken-lager (med t.ex. JIMS verktygssats MCS 978517), då S&S inte lämnar garanti vid användning av original rullager.
Passar: Softail 07-17
OEM-nr: 24004-03B, 24605-07
07-17 Softail 4-5/8" stroke flywheel assembly
- 116/124 engines
- S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings
- Balanced to 1035 grams total piston weight
- Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
- Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
- The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
- The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins
- Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
- Note: Following is regarding 03-17 models
- S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications
- Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution
- However, S&S feels this roller bearing will not take the side loads produced in a high performance motor
- S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used
- To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available
- This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor
- Bearing inserts only are available as 978519, bearings only as 508960
- Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
- It is of importance that a knowledgeable mechanic will install & make adjustments as required
Fits: 07-17 Softail (NU)
