Svinggaffel Trask Performance billet aluminium Softail 'narrow tire models'
Lätt och vridstyv svinggaffel i aluminium från Trask Performance
Läs mer
- Precisionsbearbetad i T6061 billet-aluminium
- 25 % lägre vikt än original (Trask 19 lbs / 8,62 kg mot original 26,8 lbs / 12,16 kg)
- Ökad vridstyvhet med bultade fogar som eliminerar behovet av svetsning
- Justerbar längd upp till 2” (51 mm)
- Levereras med titanaxel, monteringsdetaljer i titan och rostfritt samt sfäriska lager
- Passar original bromsok med medföljande fäste
- Levereras omonterad i obehandlat maskinbearbetat utförande för valfri ytbehandling
Bultmonterad ersättning för M8 Softail-modeller med smalt bakdäck. Vid ytbehandling rekommenderas anodisering, var försiktig vid pulverlackering av anliggningsytor. Vid konvertering till kedjedrivning krävs ett anpassat kedjeglidskydd för att förhindra slitage på svinggaffeln.
Passar: Softail 'modeller med smalt däck'
OEM-nr: 47400099

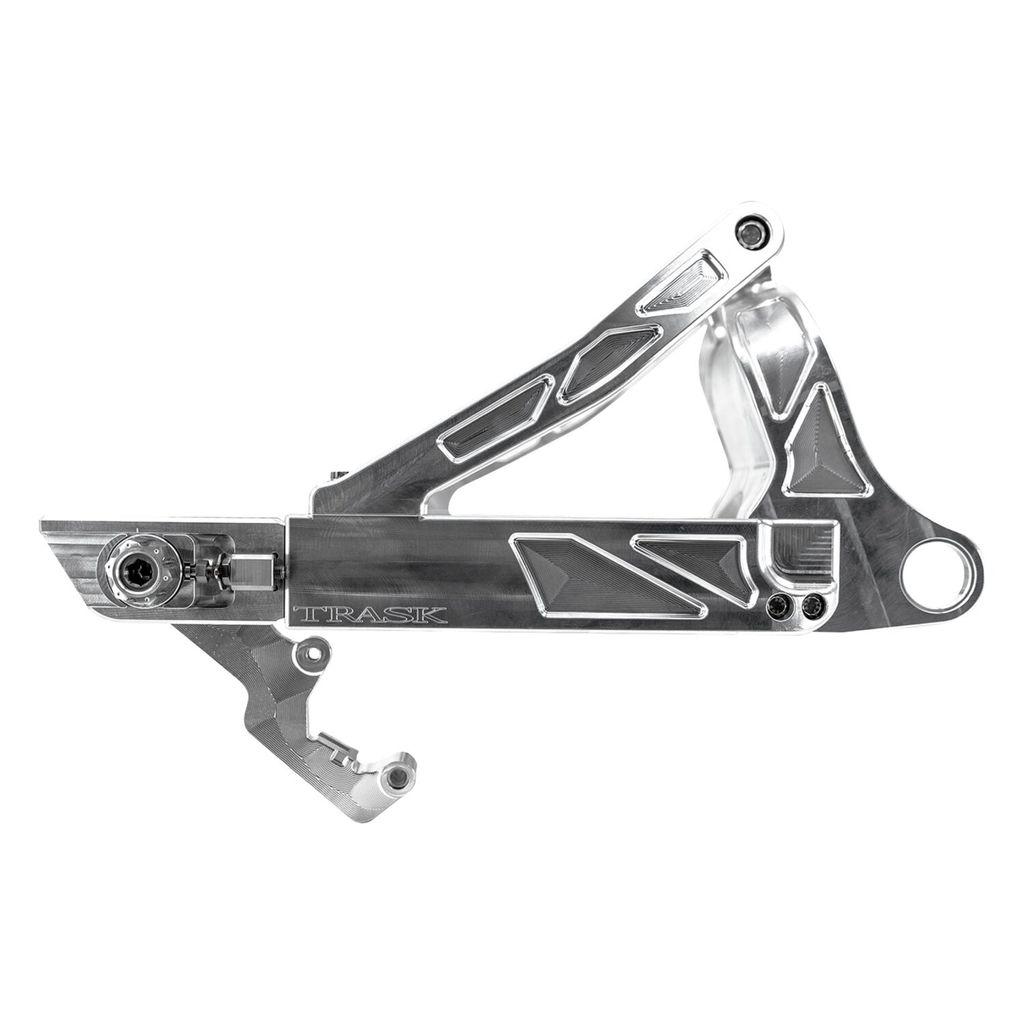

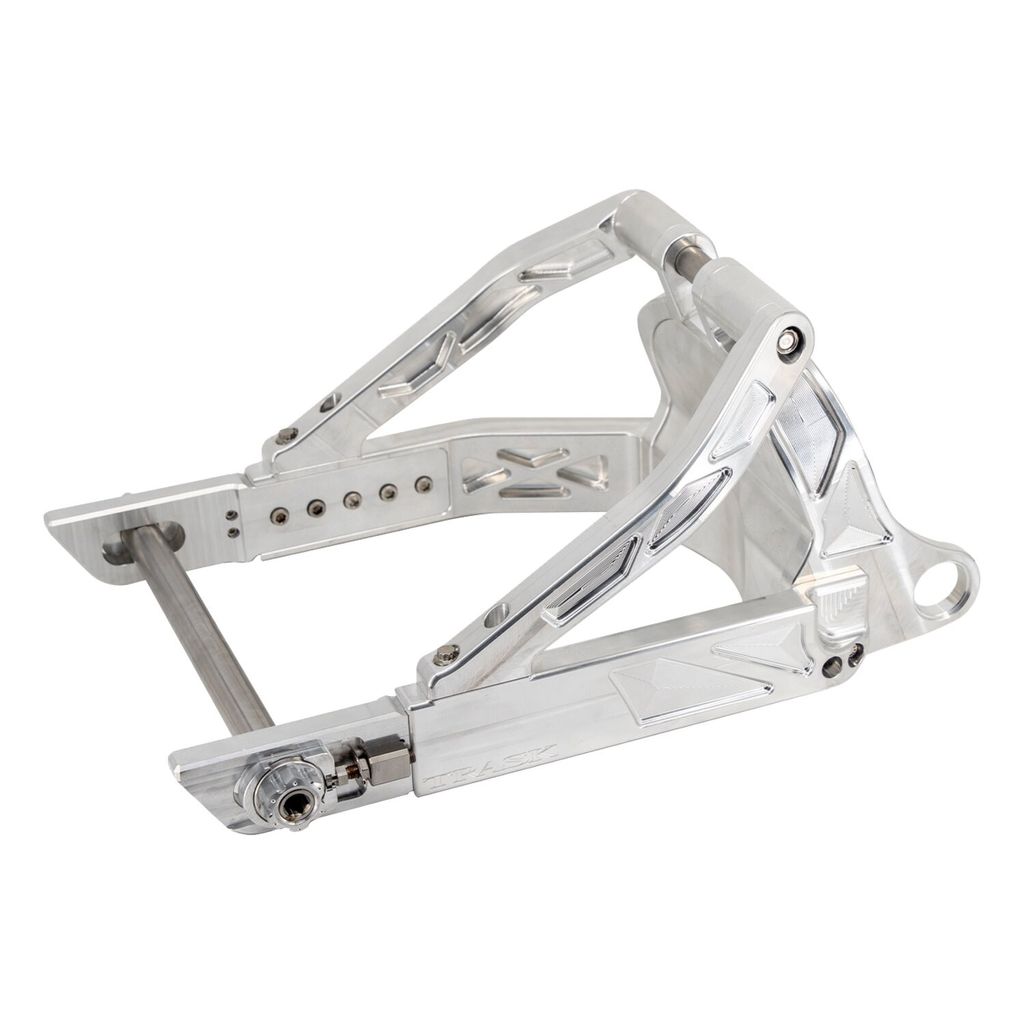

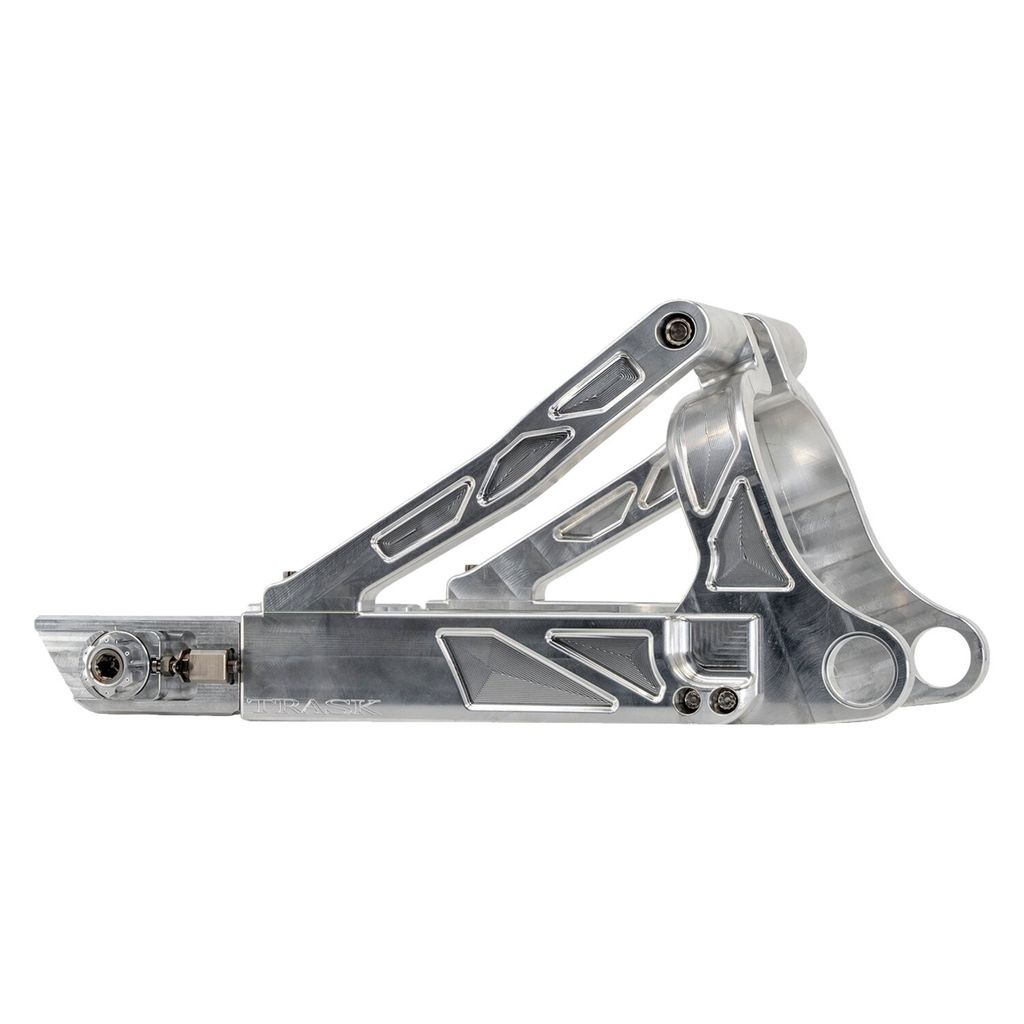

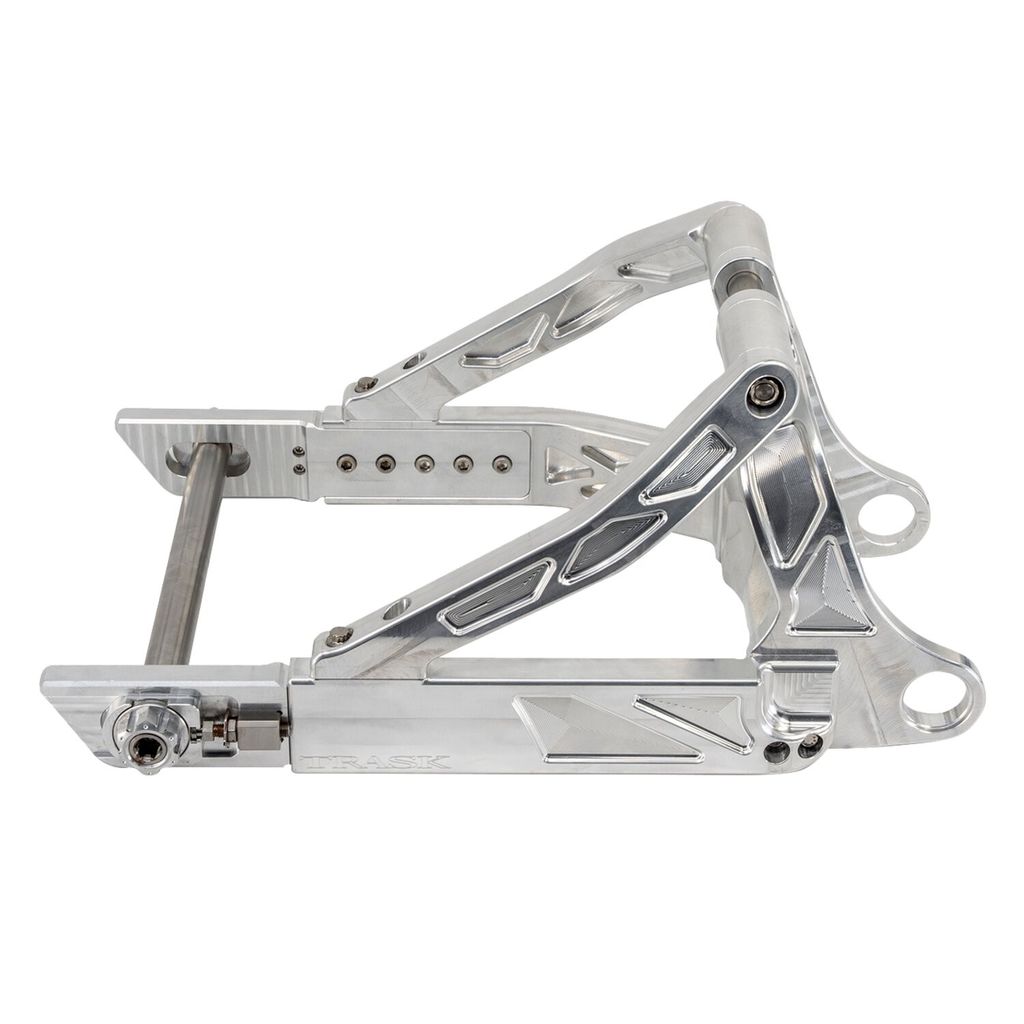

Swing Arm
- Precision machined from Billet T6061 Aluminum
- Race inspired design to increase rigidity while reducing weight
- Pocketed joints are engineered for maximum strength by eliminating the need for welding
- 100% bolt on factory replacement for seamless installation
- Includes Titanium axle and hardware for superior strength and weight savings

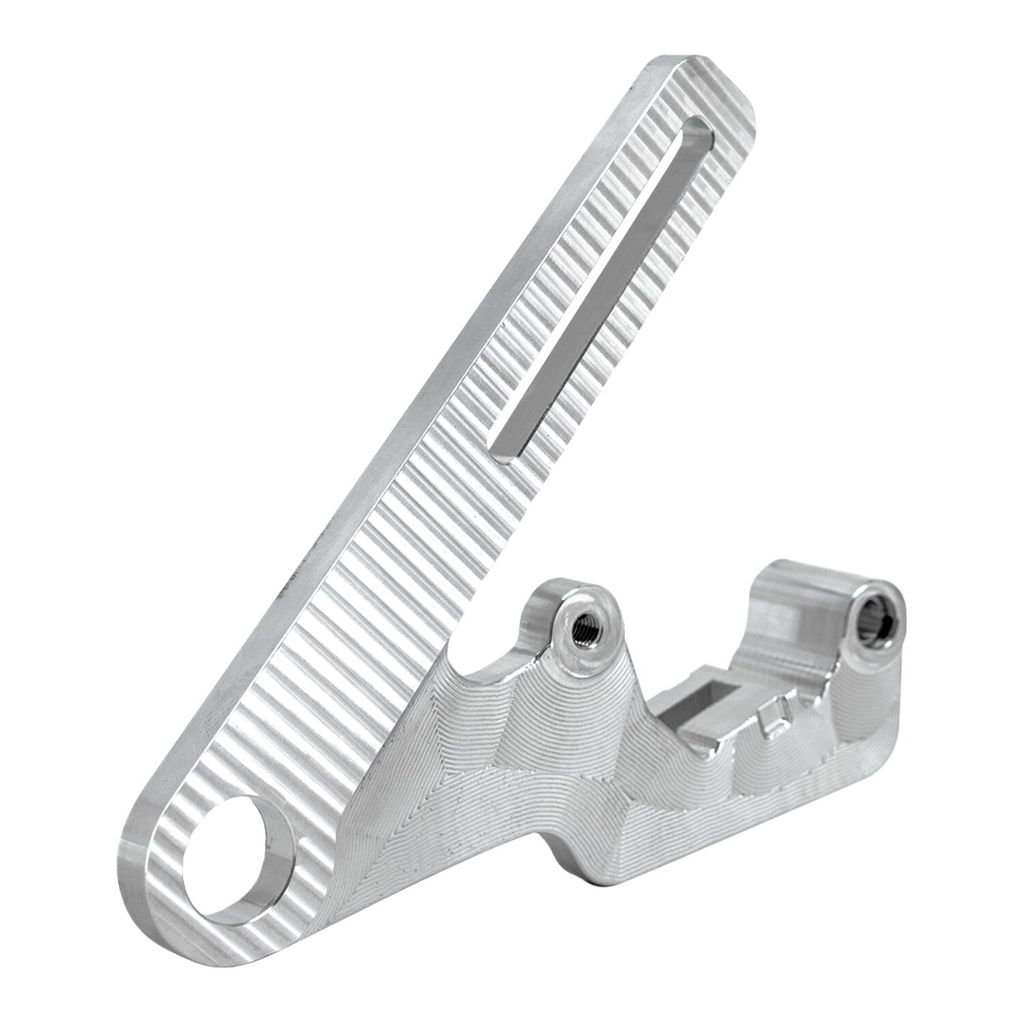

- Accepts OEM brake caliper with supplied bracket
- Includes new spherical bearings
- Come unassembled and in a raw machined finish to allow for custom finishing options.
- Please use caution when custom finishing, anodizing is recommended and please use caution when powder coating mating surfaces.
- If converting to a chain drive system, a custom chain slider should be fitted to prevent chain wear on the swingarm.
- Designed for less weight with superior stability allowing you to carve corners with increased control
- Perfect for stock and absolutely perfect for high horsepower builds
- Bolt-on installation for all M8 Softail 'narrow tire models', complete with stainless axle and hardware
- Bolt assembly eliminates the need for welding
- Stronger: Significantly increases rigidity for a smooth and controlled ride through every curve
- Reliable: 25% lighter than stock, without compromising reliability
- Weight: 26.8 lbs / 12.16kg (Stock), 19 lbs / 8.62kg (Trask) = 25% weight reduction
- Adjustable: Easily adjust the swingarm length up to 2” (51mm) for enhanced control and stability during launches
- Customizable: Packaged raw and unassembled for personalized finishing
- Same race-proven technology that placed the Trask Race team at the top of the Bagger Racing League
- OEM replacement reference 47400099 Note: Special order product
- Contact your MCS sales representative
Fits: 18-26 Softail 'narrow tire models' (will not fit 'wide tire' Fat Boy and Breakout models)
