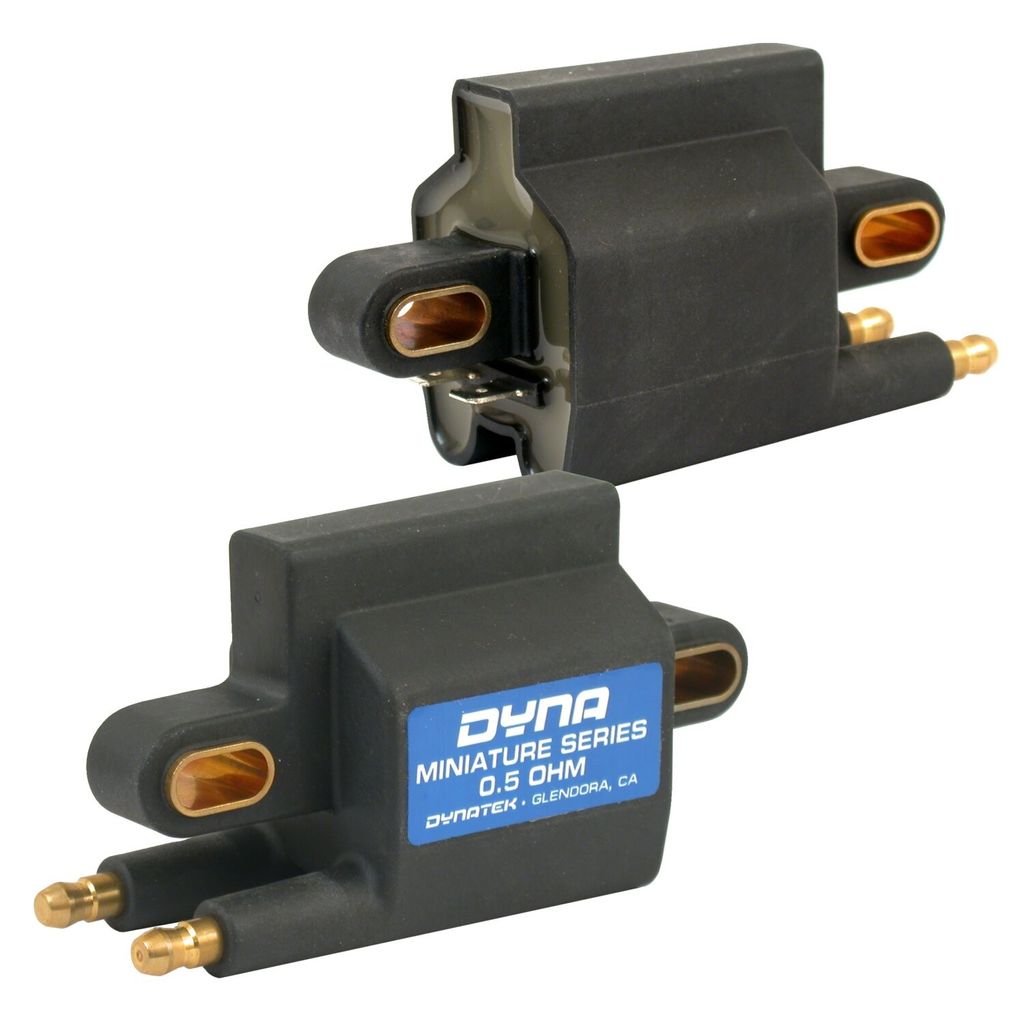

Tändspole Dynatek Dyna Miniature 12V 0.5 dubbel Twin Cam models in custom
Dynatek miniatyrtändspole, dubbelt uttag, 12 V, 0,5 ohm
Läs mer
- Dual fire-tändspole med dubbla uttag för 2 tändstift per spole
- Primärresistans på 0,5 ohm, anpassad för Twin Cam-tändsystem med lågresistansspolar
- Utspänning på 40 000 volt
- Kompakta yttermått: 4.2" x 2.3" x 1.6" (10,7 cm x 5,8 cm x 4,1 cm)
- Justerbart avstånd för monteringshål: 2.9" till 3.5" (7,3 cm till 8,8 cm)
- Säljs styckvis, två krävs vid dubbla tändstift per topplock (totalt 4 tändstift) för single fire
Utmärkt för custombyggen där tändspolen behöver döljas. Det rekommenderas att använda tändmodul och tändspolar från samma tillverkare, då blandning av olika fabrikat kan leda till förtida haveri.
Passar: Twin Cam-modeller i custom
Dyna Miniature coil. Dual tower, 12V, 0.5 ohm
- Dual tower for 2 plugs per coil
- Dual fire coil
- Sold each, two required for use in dual plugged heads (4 spark plugs total) in single fire operation
- 0.5 ohm primary resistance, designed for Twin Cam ignition systems that are designed to be used with Twin Cam style low resistance coils
- 40.000 volt output
- One of the smallest coils available
- Great for customs where coils need to be out of sight
- Overall dimensions 4.2" x 2.3" x 1.6" (10.7cm x 5.8cm x 4.1cm)
- Mounting hole distance 2.9" min. to 3.5" max. (7.3cm to 8.8cm)
- Note: It is recommended to use ignition modules & coils of the same manufacturer
- Intermixing different brands may cause premature failure
- This is the way the earlier, pre-Twin Cam, engines work
- This is the simplest system
- The 'wasted' spark is sometimes said to be horsepower robbing
- Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
- It is said that these engines vibrate less and can improve power
- The effects will become more pronounced with hotter cams and higher RPM
Fits: 99-17 Twin Cam models in custom applications. (0.5 Ohm, carbureted or fuel injected) (NU)
