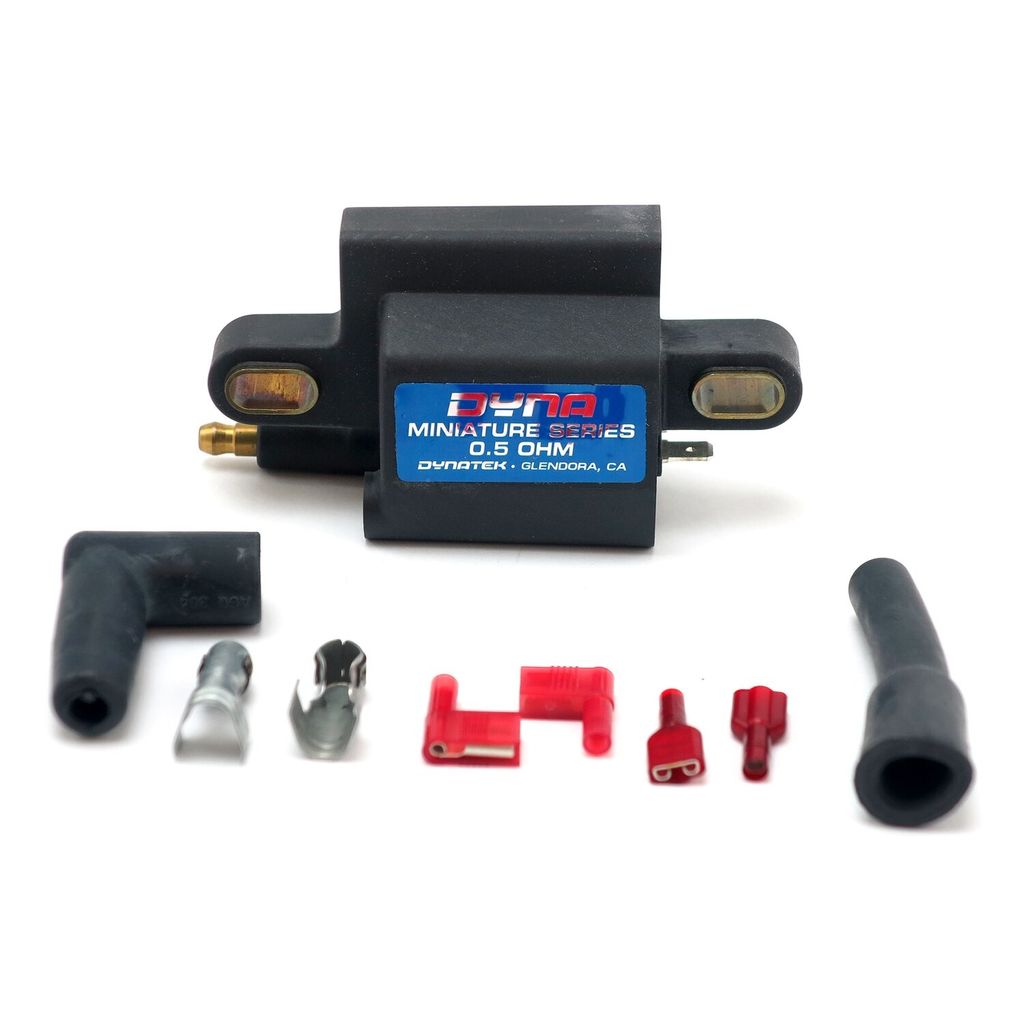

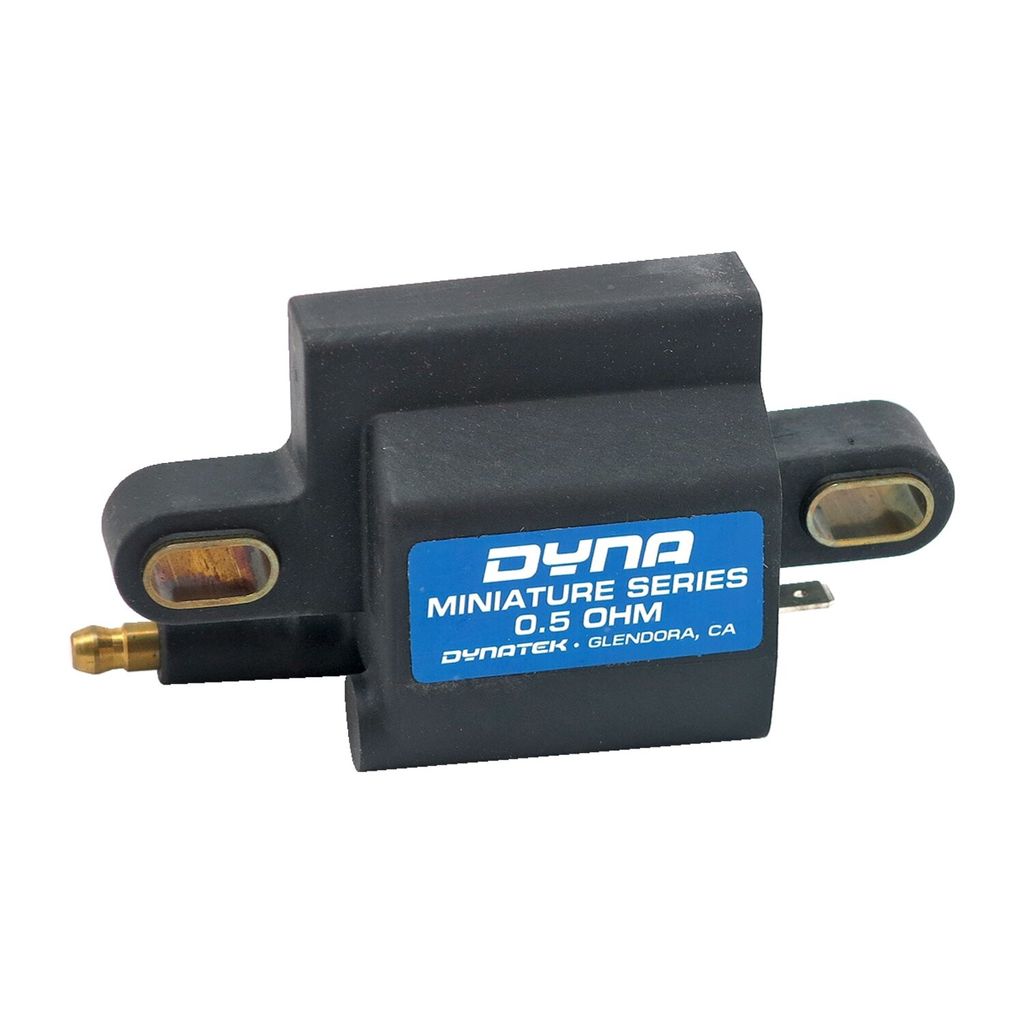

Tändspole Dynatek Dyna Miniature 12V 0.5 enkel Twin Cam models in custom DC12-2

2 280 kr

Dynatek miniatyrtändspole, 12V, 0.5 ohm med enkelt tändkabeluttag
Läs mer

902584 Dynatek
  • Enkelt tändkabeluttag (1 tändstift per tändspole)
  • Primärresistans på 0.5 ohm
  • Sekundärspänning på 40 000 V
  • Mått: 4.2" x 2.3" x 1.6" (10.7 cm x 5.8 cm x 4.1 cm)
  • Hålavstånd för montering: 2.9" min till 3.5" max (7.3 cm till 8.8 cm)
  • Mycket kompakt format – idealisk för custombyggen där tändspolen ska döljas
  • Säljs styckvis (två krävs för en motor)

Konstruerad för Twin Cam-tändsystem avsedda för lågresistiva tändspolar i Twin Cam-stil. Det rekommenderas att använda tändmodul och tändspolar från samma tillverkare, då blandning av olika fabrikat kan leda till förtida haveri.

Passar: Twin Cam-modeller i custom

Dyna Miniature coil. Single tower, 12V, 0.5 ohm

  • Single tower for 1 plug per coil
  • Sold each, two required for one engine
  • 0.5 ohm primary resistance, designed for Twin Cam ignition systems that are designed to be used with Twin Cam style low resistance coils
  • 40.000 volt output
  • One of the smallest coils available
  • Great for customs where coils need to be out of sight
  • Overall dimensions 4.2" x 2.3" x 1.6" (10.7cm x 5.8cm x 4.1cm)
  • Mounting hole distance 2.9" min. to 3.5" max. (7.3cm to 8.8cm)
  • Note: It is recommended to use ignition modules & coils of the same manufacturer
  • Intermixing different brands may cause premature failure
  • Note: Standard Twin Cam ignition is a single fire system
  • Note: Difference between Single & Dual Fire:
  • This is the way the earlier, pre-Twin Cam, engines work
  • A single coil is used and both spark plugs fire simultaneously
  • This is the simplest system
  • The 'wasted' spark is sometimes said to be horsepower robbing
  • Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
  • It is said that these engines vibrate less and can improve power
  • The effects will become more pronounced with hotter cams and higher RPM

Fits: 99-17 Twin Cam models in custom applications. (0.5 Ohm, carbureted or fuel injected) (NU)
