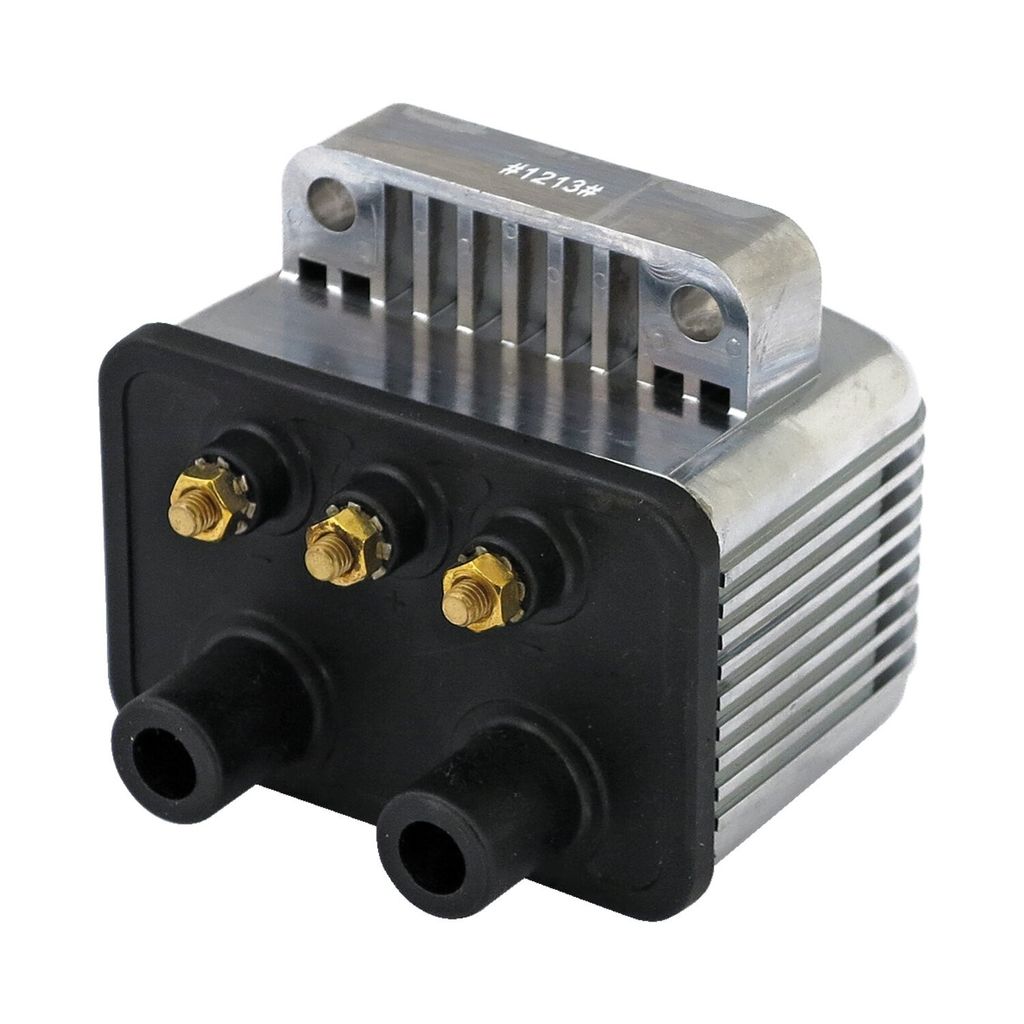

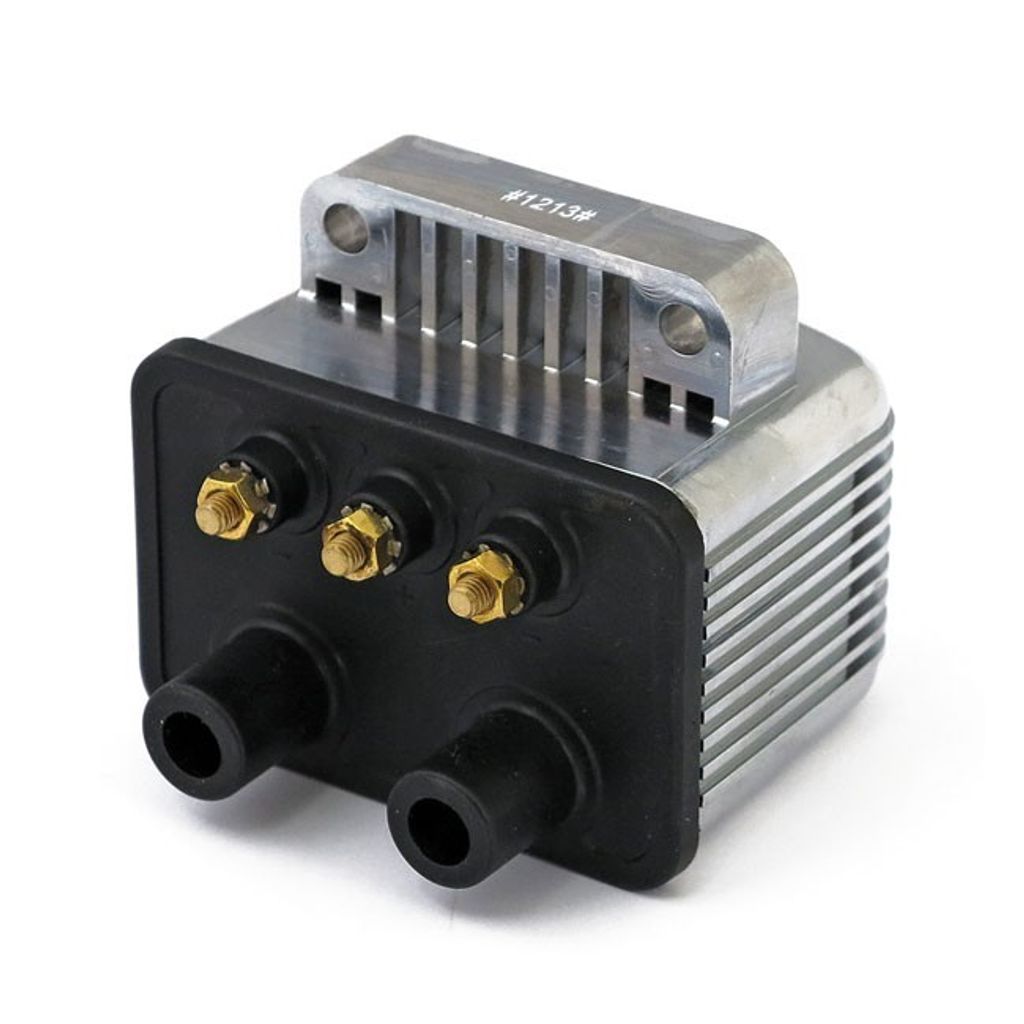

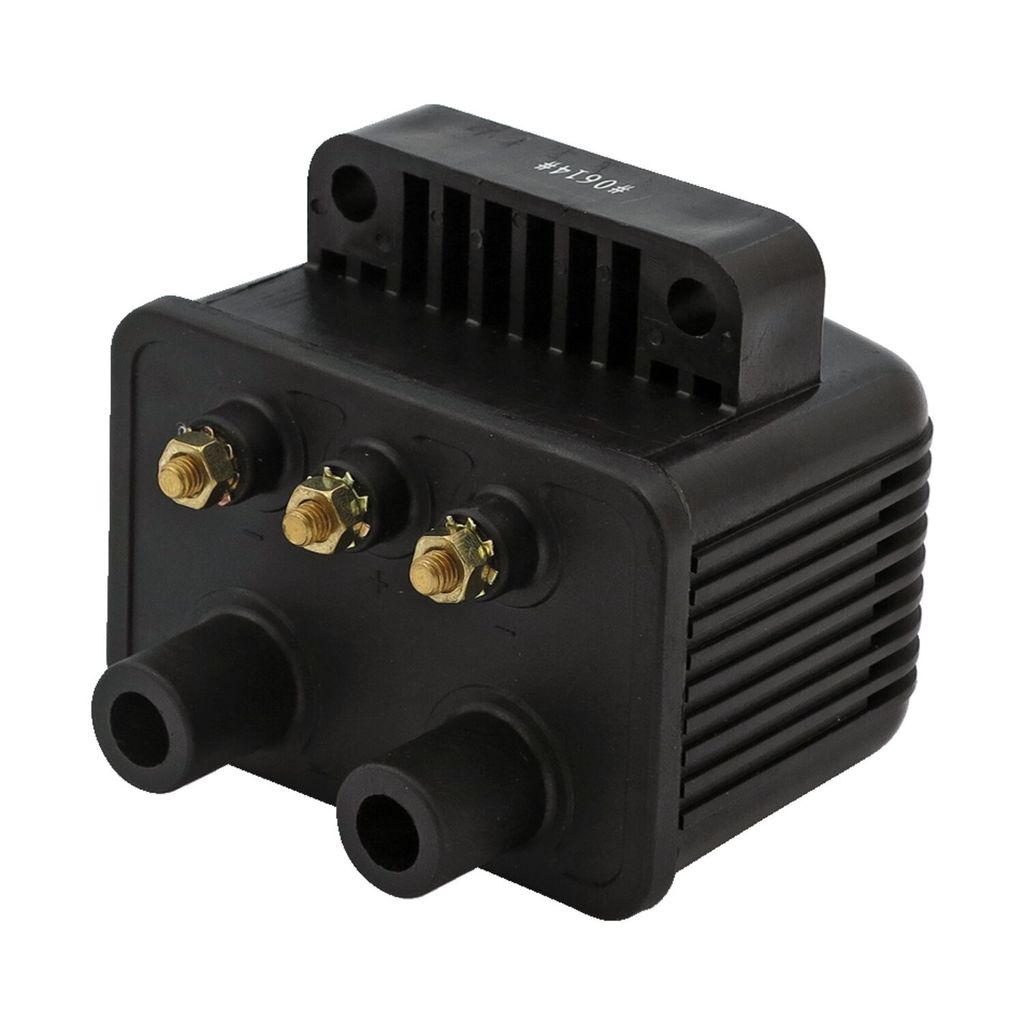

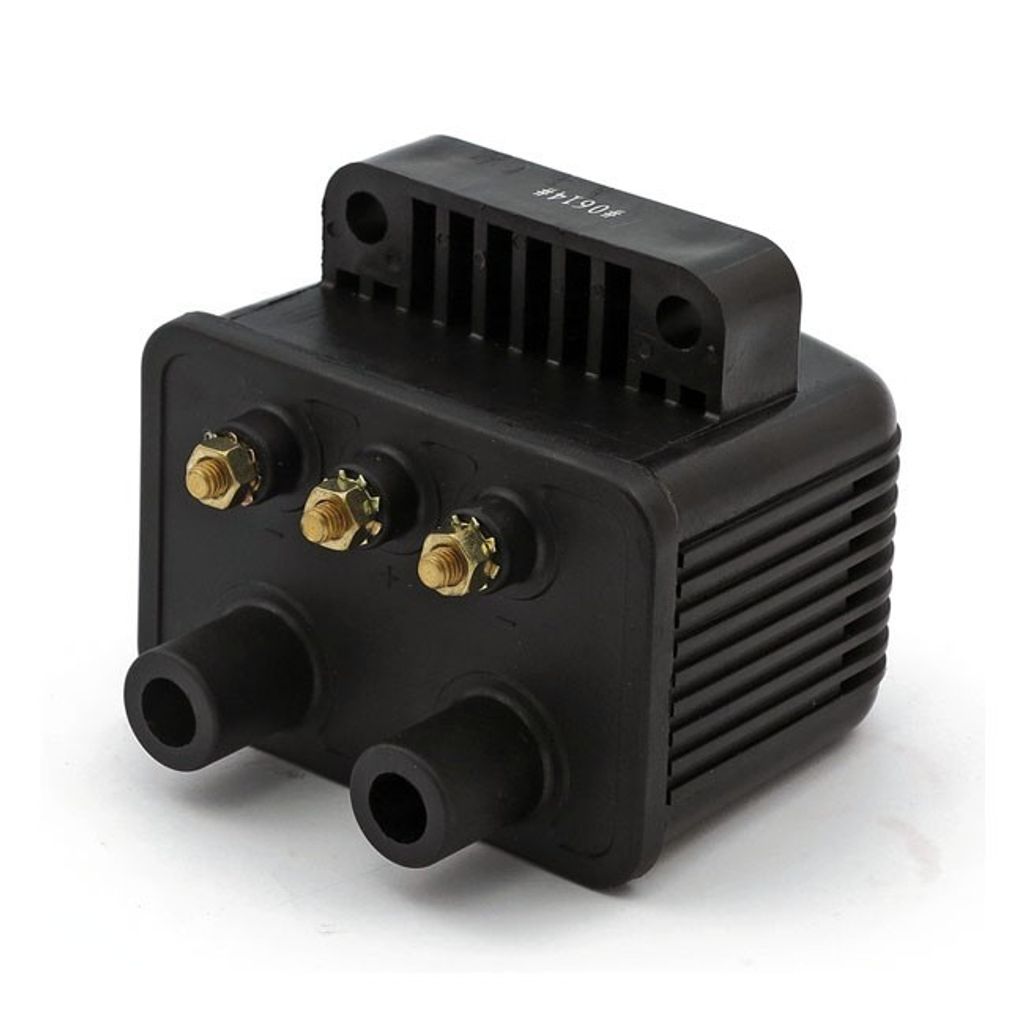

Tändspole MCS 3 12v enkel Big Twin 65-99

1 010 kr

Mini single fire tändspole, 12V 3 ohm
Läs mer

516818 MCS
  • Single fire tändspole i miniformat
  • 12V, 3,0 ohm primärresistans och 15 000 ohm sekundärresistans
  • Primärinduktans 16 MHY, sekundärinduktans 42 HY
  • Kapacitet för över 40 000 V uteffekt på varje sida
  • Primär- och högspänningsanslutningar i mässing
  • Kylflänsar på höljet för förbättrad kylning av kärnan
  • Kromfinish

Single fire innebär att tändstiften tänder separat så att endast cylindern i kompressionstakt får gnista, vilket minskar vibrationer och kan förbättra effekten.

Passar: Big Twin 65-99

Kategori Coils
Produkt-typ Coils

Mini single fire coil. 12v, 3 ohm. Black

  • 3.0 Ohm primary resistance, 15.000 Ohm secondary resistance
  • Primary inductance 16 MHY, secondary inductance 42 HY capable of +40.000V output on each side
  • Brass primary and high voltage terminals
  • Case fins aid in additional core cooling
  • Note: Difference between Single & Dual Fire:
  • This is the way the earlier, pre-Twin Cam, engines work
  • A single coil is used and both spark plugs fire simultaneously
  • This is the simplest system
  • The 'wasted' spark is sometimes said to be horsepower robbing
  • Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
  • It is said that these engines vibrate less and can improve power
  • The effects will become more pronounced with hotter cams and higher RPM

Fits: 65-99 Big Twin; 65-03 XL Sportster. For carbureted models with custom single fire electronic ignition (Excl. Twin Cam & other single fire applications) (NU)
