Avgassystem 2-1 Vance & Hines Hi-Output RR PCX borstad 114″ FLT/Touring 17-24
Vance & Hines Hi-Output RR avgassystem i rostfritt stål
Läs mer
- PCX-teknik (Power Chamber Exhaust) med integrerad högflödeskatalysator för ökat vridmoment
- Stegade grenrör från 1-3/4" till 1-7/8" till 2"
- Mid-length 4" ljuddämparkropp i megafondesign
- Tillverkat i högkvalitativt 304 rostfritt stål med borstad 'works'-finish
- Handsvetsat med TIG-svetsning
- Vinklad kollektor för förbättrad markfrigång och nedläggningsvinkel
- Upp till 20 % mindre värme vid fotplattor/fotpinnar och 50 % mindre värme vid kollektorn
- Monteringsdetaljer och monteringsanvisning ingår
Passar med standard sidoväskor (ej förlängda). Passar inte '17-'22 Triglide/Freewheeler och rekommenderas inte för Touring-modeller med förlängda väskor. Rostfria värmeskydd finns som tillval (97492 borstad eller 974973 svart keramiska).
Passar: Touring 17-24
-
Hämta27321.pdf3.73 MB

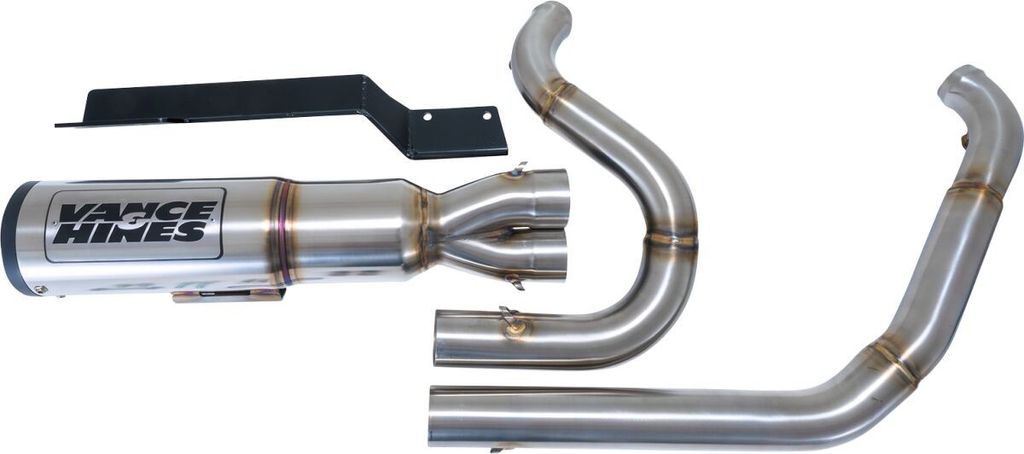

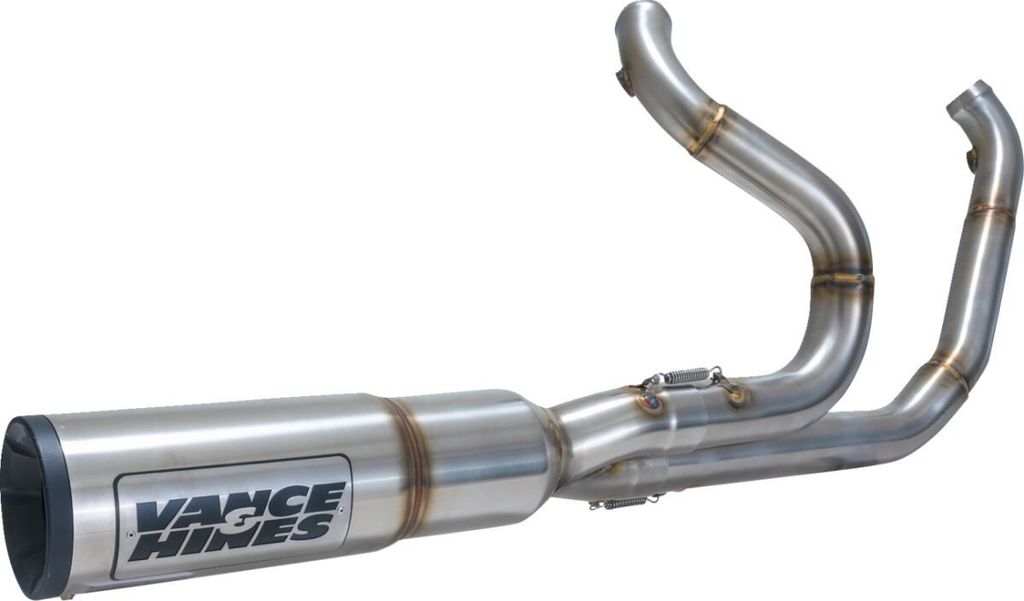

Hi Output Exhaust System
- PCX (Power Chamber Exhaust) technology
- Chambered high-flow catalyst cartridge designed to increase torque
- Headers step from 1-3/4" to 1-7/8" to 2"
- 4" Muffler body
- Lightweight high grade 304 stainless steel construction
- Hand TIG welded
- Fits with standard (non-stretched) saddlebags

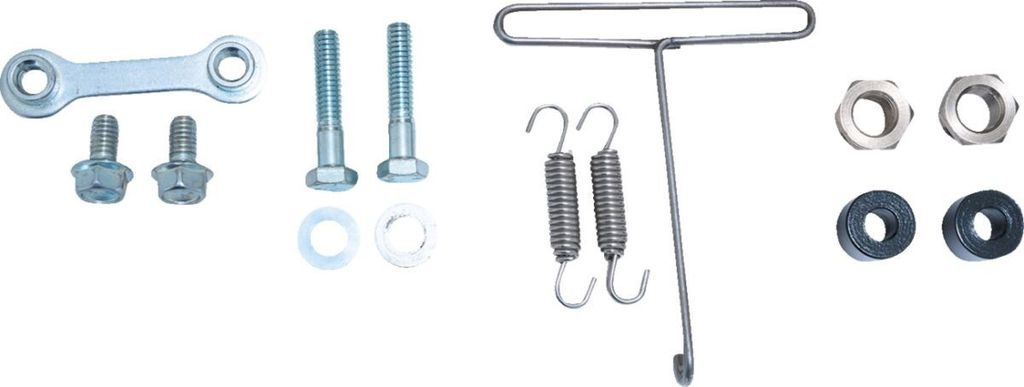

- Include hardware and mounting instructions
- 304 stainless steel with a brushed 'works' finish

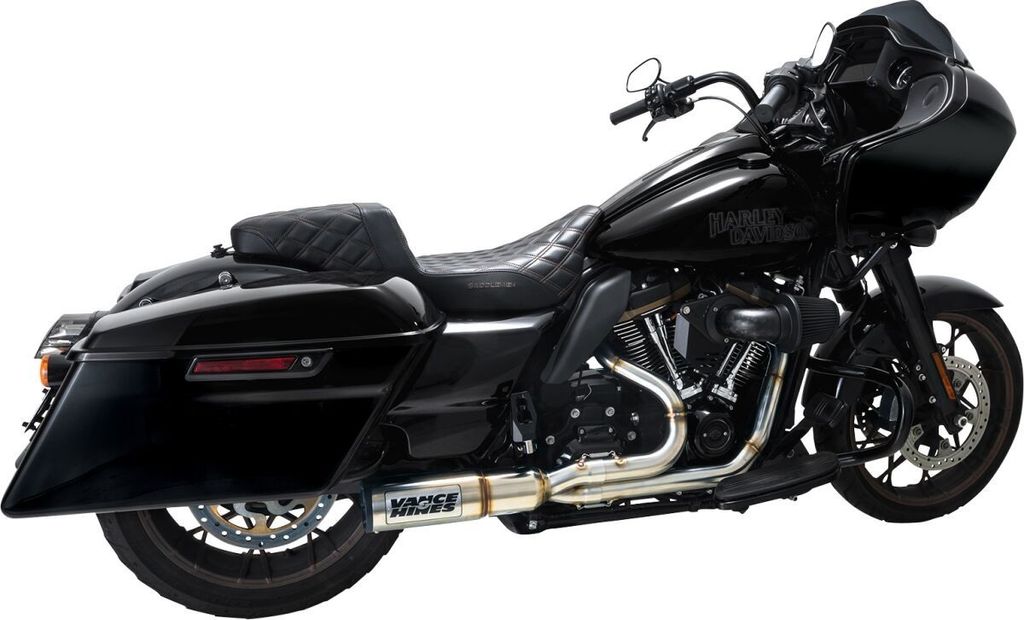

- Inspired by the Vance & Hines Race team competing in the King of the Baggers class of the MotoAmerica Road Racing Championships, the Hi-Output RR (Race Replica) captures every pulse-quickening element of the racing exhaust system into one you can put on your M8 Touring model as part of your own performance bagger build

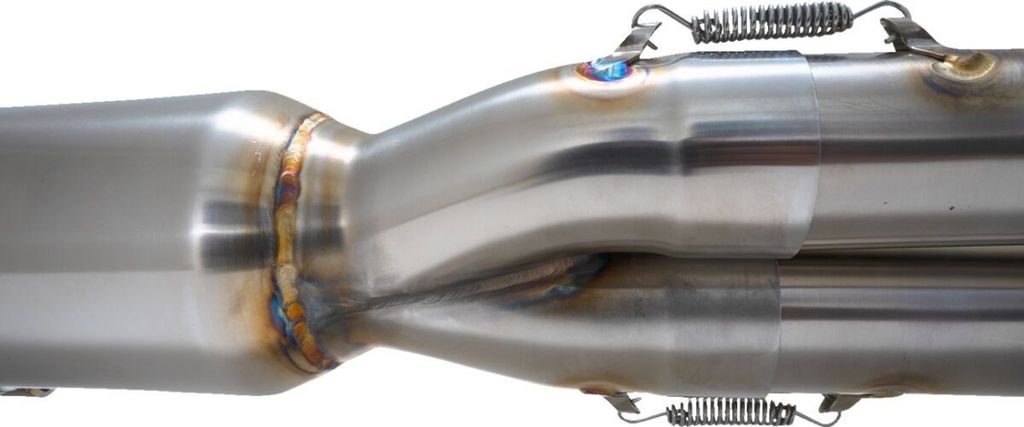

- The collector is even rotated to add extra ground clearance to enable steeper lean angles through the turns

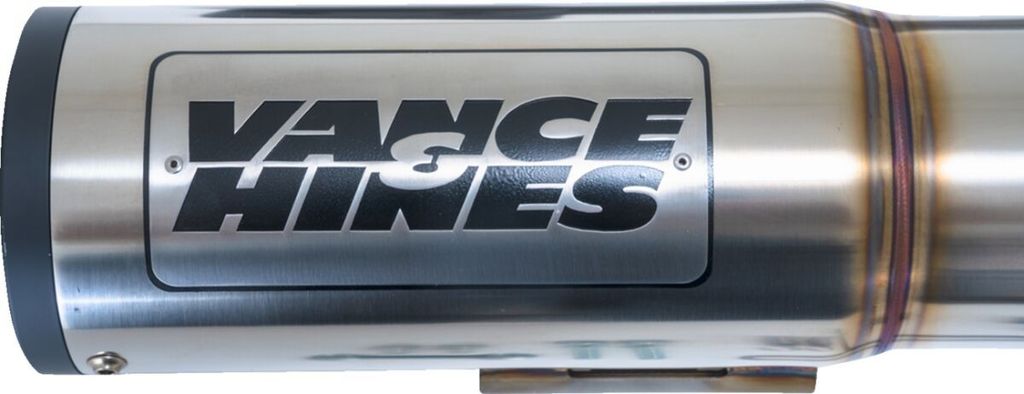

- Finishing off the system with the mid-length 4" Hi-Output megaphone emblazoned with the same double-layered laser-cut riveted badge from the race system and features the V&H innovative PCX technology, which integrates a chambered high-flow catalyst for a bigger boost in torque off the line and pull out of the corners
- Vance & Hines innovative PCX Technology explained: More Power & Less Heat
- Used to increase mid-range torque for more responsive acceleration off the line
- They are positioned downstream for up to 20% less heat at the floorboards / foot pegs and 50% less heat at the collector, to optimize rider comfort over the stock system
- All while producing an even deeper full-throated rumble, all with no compromise to the styling of any Vance & Hines exhaust system
- Note: For optional stainless heat shield set see 97492 Brushed or 974973 Black ceramic coated
- Tech-Tip: Pre-2021 USA mufflers on a 2021-up EU Softail/Touring?
- 21-up US models, have just 2 O2 sensors in the headers
- 21-up EU models (Euro 5 system) have total 3 or 4 O2 sensors, also 1 or 2 downstream in the muffler(s) or in the balance pipe of the cross-over section
- The FuelPak FP4 (part number 942227) allows you to disable the 2nd. downstream O2 sensor, without triggering trouble codes
Will not fit: '17 - '22 Triglide/Freewheeler. Not recommended for Touring bikes with stretched bags.
Fits: 17-24 114" FLT/Touring (excl. 17-24 FLHRXS, FLHXS, FLTRXS, FLHXSE, FLTRXSE; 2023 FLTRXS; all 23-24 CVO's; models with stretched saddlebags; all trikes). Requires disabling 2nd, down stream O2 sensor (s) of 20-up EU models (NU)
