Avgassystem Vance & Hines 2 into-1 Upsweep rostfri svart Softail 18-24
Vance & Hines 2-into-1 Upsweep avgassystem i rostfritt stål
Läs mer
- PCX-teknik (Power Chamber Exhaust) med högflödeskatalysator för ökat vridmoment
- Lättviktskonstruktion i höggradigt 304 rostfritt stål (ASTM A269)
- Handsvetsad med TIG-svetsning och megafondämpare
- Svart keramisk ytbehandling
- Upp till 20 % mindre värme vid fotpinnar och 50 % mindre värme vid kollektorn
- Kompatibel med både mittmonterade och framflyttade reglage
- Partiella funktionella värmesköldar samt monteringsdetaljer och anvisningar ingår
Passar inte 2018–2022 Softail Fat Boy, Breakout eller Low Rider ST då avgaskröken tar i kamkåpan (kräver minst .250" fritt utrymme). Vid montering på EU-modeller från 2021 och framåt (Euro 5 med 3–4 lambdasonder) kan FuelPak FP4 användas för att avaktivera den bakre lambdasonden utan felkoder.
Passar: 18-24 Softail med smal ram
-
Hämta47323.pdf4.92 MB
2-into-1 Upsweep Exhaust System
- PCX (Power Chamber Exhaust) technology
- Chambered high-flow catalyst cartridge designed to increase torque
- Lightweight high grade 304 stainless steel construction
- Hand TIG welded
- 49-state emissions compliant
- Mounting and hardware instructions included
- Black ceramic coated
- At Vance & Hines they have the know-how for a true competition exhaust system in abundance
- This 2-1 Upsweep is another testimony to the capability of the craftsman responsible for this 2-1 system
- It had to have a 'Works' finish and not be afraid to show its racing genes

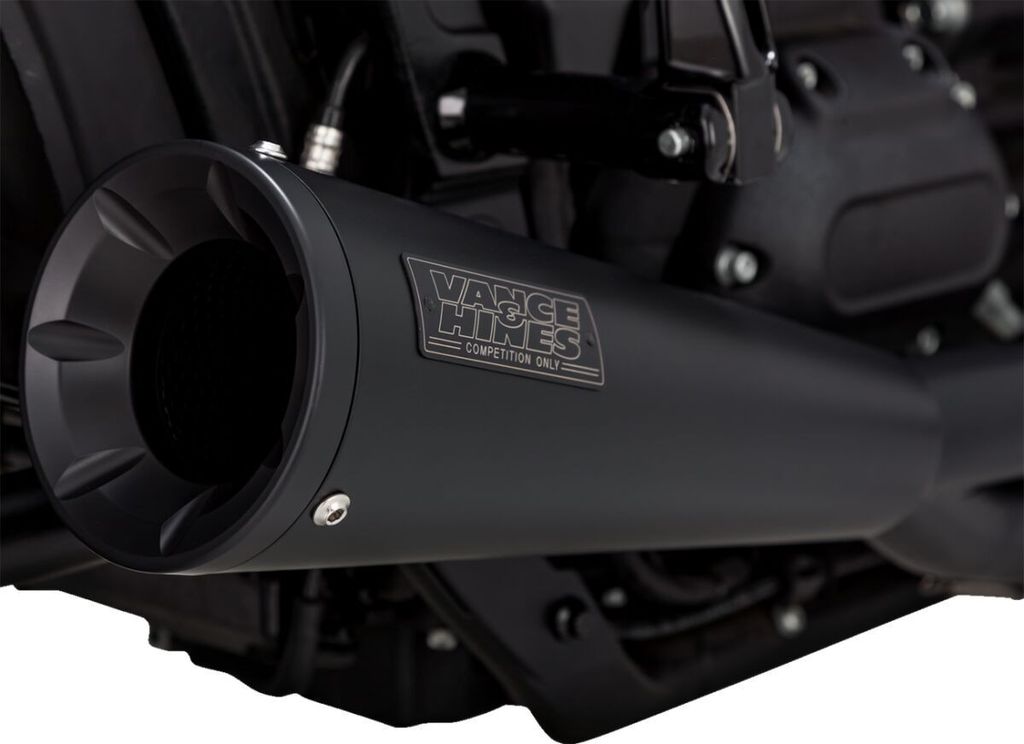

- It is therefore hand-TIG welded and made from high grade (ASTM A269) 304 stainless steel and comes with a megaphone muffler
- Comes with a partial functional heatshield only, there is nothing here that doesn't breath competition including the Vance & Hines badge
- Enjoy the sound, performance and a color-scheme that only a true stainless system is able to provide
- Compatible with both mid and forward controls
- Vance & Hines innovative PCX Technology explained: More Power & Less Heat
- Used to increase mid-range torque for more responsive acceleration off the line
- They are positioned downstream for up to 20% less heat at the floorboards / foot pegs and 50% less heat at the collector, to optimize rider comfort over the stock system
- All while producing an even deeper full-throated rumble, all with no compromise to the styling of any Vance & Hines exhaust system
- Tech-Tip: Pre-2021 USA mufflers on a 2021-up EU Softail/Touring?
- 21-up US models, have just 2 O2 sensors in the headers
- 21-up EU models (Euro 5 system) have total 3 or 4 O2 sensors, also 1 or 2 downstream in the muffler(s) or in the balance pipe of the cross-over section
- The FuelPak FP4 (part number 942227) allows you to disable the 2nd. downstream O2 sensor, without triggering trouble codes
Will not fit: '18 - '22 Harley-Davidson Softail models Fat Boy, Breakout, Low Rider ST. Header contacts cam cover, Minimum Clearance - .250.
Fits: 18-24 Softail with narrow frame: 18-20 FXBB Street Bob 107; 18-24 FXBBS Street Bob 114; 18-20 FLSL Slim 107; 18-20 FXLR Low Rider 107; 20-21 FXLRS Low Rider 114; 22-24 FXLRS Low Rider S 117; 22-24 FXLRST Low Rider ST 117; 18-20 FXFB Fat Bob 107; 18-21 FXFBS Fat Bob 114; 18-20 FLDE Deluxe; 20-24 FXST Softail Standard 107. Will not fit with saddlebags. Note: May require disabling 2nd, down stream O2 sensor of 20-up EU models. Will not fit with saddlebags.
